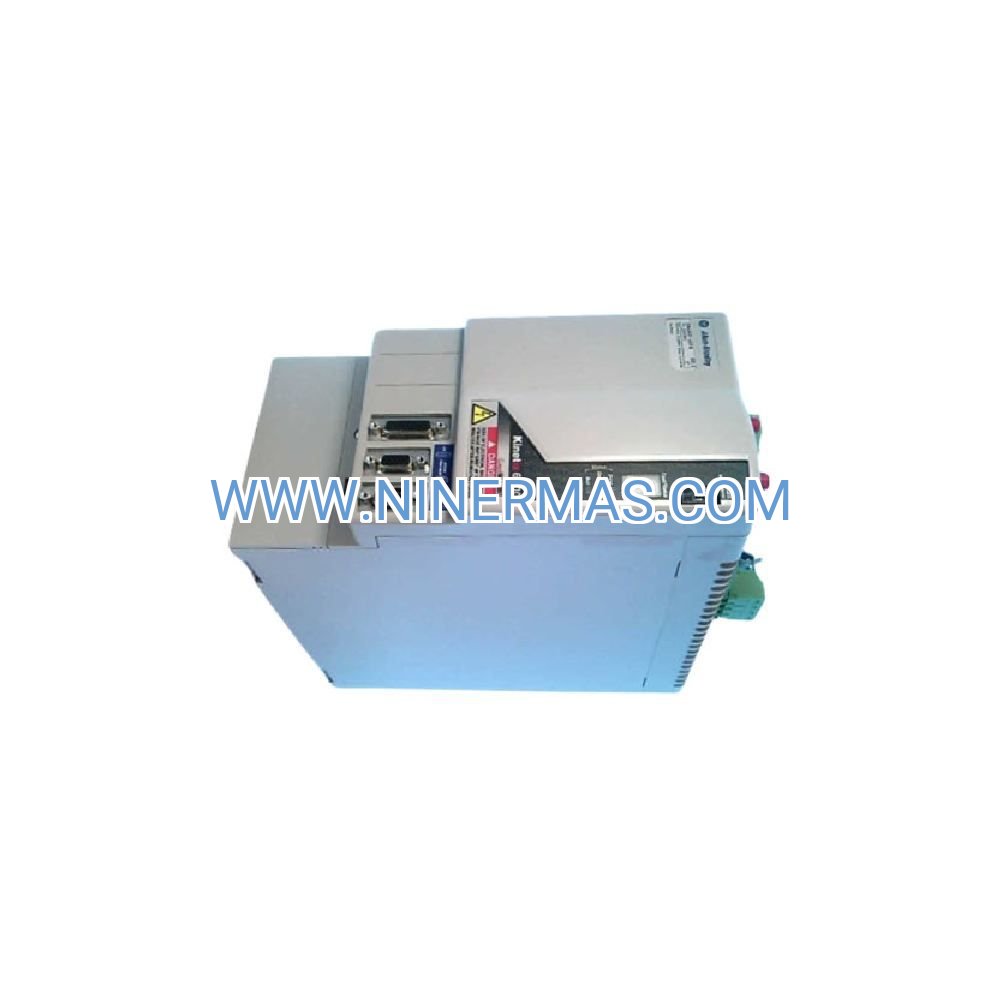

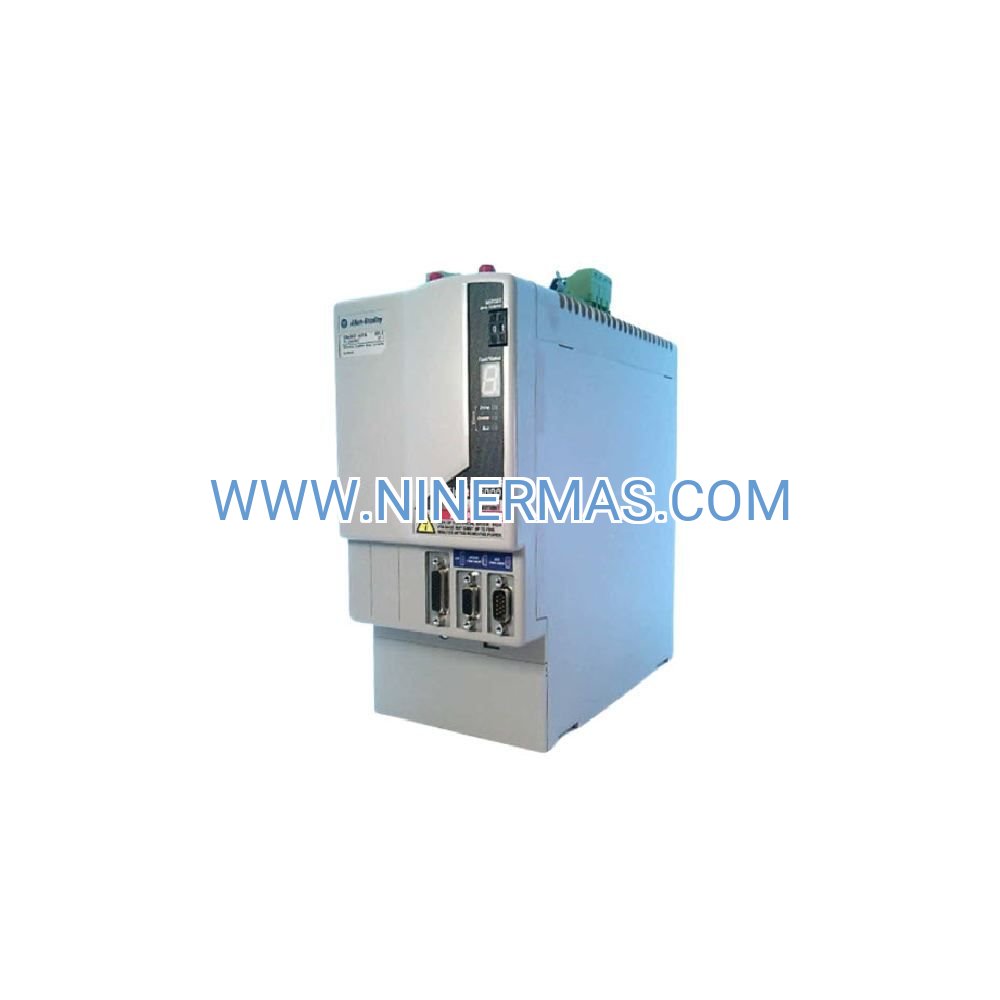

2094-BC01-M01-S Integrated Axis Module (Industrial-Grade Servo Solution)

The 2094-BC01-M01-S represents a breakthrough in compact motion control architecture—delivering full servo drive functionality in just 50mm width. Engineered for the Kinetix 6000 platform, this integrated axis module (IAM) combines AC-DC conversion, servo amplification, and SERCOS III communication in a single DIN-rail package, eliminating the complexity of traditional multi-component servo systems.

Designed for OEMs and system integrators facing panel space constraints, this module provides 1.0A continuous output at 460V AC three-phase input, supporting servo motors up to 0.75 kW. Field-oriented control with 2 kHz current loop bandwidth ensures sub-millisecond response to load disturbances, while adaptive auto-tuning achieves optimal PID parameters in under 30 seconds—reducing commissioning time by 60% compared to manual tuning methods.

Whether you're synchronizing packaging line registration axes, positioning medical diagnostic stages, or coordinating electronics assembly pick-and-place heads, the 2094-BC01-M01-S delivers ±0.01° accuracy with SIL 3 safety integration. Request technical specifications or application consultation today.

Core Capabilities & Technical Advantages

→ Space-Optimized Integration: 50mm width houses rectifier, DC bus, and servo amplifier—reducing panel footprint 40% versus discrete components while eliminating 12+ inter-component wiring connections

→ High-Bandwidth Control: 2 kHz current loop and 800 Hz velocity loop bandwidth enable precision torque regulation for applications requiring ±2% speed stability under varying loads

→ Deterministic Communication: SERCOS III fiber optic ring delivers 250 μs update cycles with multi-axis synchronization jitter <1 μs, critical for electronic camming and gearing applications

→ Adaptive Commissioning: Auto-tuning algorithm measures system inertia and friction, then calculates optimal gains automatically—eliminating trial-and-error tuning and reducing setup time from hours to minutes

→ Thermal Independence: Dedicated heat sink per axis prevents thermal coupling; adjacent modules at full load do not derate this unit's 1A continuous rating at 40°C ambient

→ Safety-Certified Protection: Dual-channel Safe Torque Off (STO) meets IEC 61800-5-2 SIL 3 / PLe requirements, integrating directly with emergency stop circuits without external safety relays

Industry Applications & Problem-Solving Scenarios

✓ Pharmaceutical Packaging Lines
Challenge: Blister pack machines require registration accuracy ±0.3mm at 150 cycles/minute in compact cabinet space
Solution: 50mm-wide IAM fits 8 axes in standard 19" panel; electronic camming maintains phase lock within ±0.05° during 3000 RPM operation
Value: Reduces material waste 15% through improved cut registration; eliminates DC bus wiring saves 4 hours installation time per machine

✓ Laboratory Diagnostic Equipment
Challenge: Blood analyzer requires 0.02mm positioning repeatability for pipetting robots in benchtop enclosure
Solution: Dual-loop control with 32-bit position resolution achieves ±10 μm repeatability; convection cooling operates silently in lab environment
Value: Meets medical device EMC requirements (EN 61800-3 C3); compact size enables portable instrument design

✓ Electronics SMT Assembly
Challenge: Component placement heads need 0.05mm accuracy at 12,000 CPH with frequent acceleration changes
Solution: 300% peak overload capacity (3A for 2 sec) handles rapid index moves; torque limiting prevents component damage during pick operations
Value: Increases throughput 8% through faster settling time; reduces mechanical wear via programmable acceleration profiles

✓ Textile Weaving Machinery
Challenge: Warp beam synchronization requires ±0.1% speed regulation across 6 axes despite tension variations
Solution: Electronic line shaft with disturbance observer compensates for load changes within 5ms; gearing ratio adjustable on-the-fly
Value: Improves fabric quality by eliminating pattern distortion; reduces setup time 70% versus mechanical gearbox changes

✓ Food Portioning Systems
Challenge: Slicing blade must maintain velocity ±1% during cut cycle to ensure weight consistency in washdown environment
Solution: Velocity loop regulation holds speed within ±0.5% under varying product density; IP20 rating suitable for NEMA 4X enclosure installation
Value: Reduces product giveaway 12% through consistent portion weight; stainless mounting hardware resists corrosion

Technical Parameters & Selection Criteria

Motor Compatibility: Allen-Bradley MP-Series (MPL, MPF, MPS) and TL-Series servo motors from 0.2-0.75 kW. Verify motor continuous current ≤1.0A and peak current ≤3.0A. For motors with holding brake, use separate 24V DC supply (brake not powered by drive).

Sizing Guidelines: Calculate RMS current including acceleration/deceleration phases. For applications with >50% duty cycle at peak torque, select next larger drive size (2094-BC02-M02-S, 2A continuous). Inertia ratio (load:motor) should be ≤10:1 for optimal dynamic response.

Advanced Motion Functions & IoT Integration

Electronic Camming: Synchronize slave axis to master using programmable cam profiles stored in controller memory. Supports up to 64 cam segments with cubic spline interpolation for smooth velocity transitions. Ideal for packaging, printing, and converting applications requiring phase-locked registration.

Electronic Gearing: Maintain precise speed ratio between axes with programmable gear ratios adjustable during operation. Phase correction algorithm compensates for mechanical backlash, maintaining ±0.01° synchronization accuracy at speeds up to 6000 RPM.

Coordinated Motion: Execute multi-axis linear and circular interpolation for XY tables, SCARA robots, and gantry systems. Path planning in Studio 5000 Logix Designer with real-time trajectory generation ensures smooth contours without velocity discontinuities.

Torque Control Mode: Direct torque command for tension control, force limiting, and torque-to-move applications. Programmable torque limits (0-300% rated) protect mechanical components from overload damage during jam conditions.

FactoryTalk Integration: Real-time axis status, fault codes, and performance metrics accessible via FactoryTalk View HMI. Trend position error, motor temperature, and DC bus voltage for predictive maintenance. Export data to FactoryTalk Analytics for machine learning-based optimization.

Cloud Connectivity: When paired with ControlLogix 5580 controllers and FactoryTalk Hub, stream motion data to cloud platforms for remote monitoring, OEE analysis, and fleet-wide performance benchmarking across multiple production sites.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical downtime situations (contact sales for availability)

Custom Configuration: Factory-configured units with pre-loaded parameters available with 7-10 day lead time; includes axis tuning file, SERCOS node address, and application-specific settings

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended 60-month warranty available for critical infrastructure applications

Technical Support: Unlimited phone and email support during commissioning phase; remote diagnostic assistance via Studio 5000 connection for troubleshooting; on-site startup support available (travel charges apply)

Documentation Package: Includes installation manual, quick-start guide, wiring diagrams, sample Logix code, and auto-tuning procedure; CAD models (STEP, DXF) and 3D PDFs available for panel design

Training Resources: Access to online video tutorials covering installation, configuration, and troubleshooting; instructor-led Kinetix 6000 training courses available through Rockwell Automation University

Frequently Asked Questions

Q: What communication protocols does the 2094-BC01-M01-S servo drive support for multi-axis coordination?
A: The module uses SERCOS III fiber optic communication exclusively, providing deterministic 250 μs update cycles for up to 32 axes on a single ring. It connects to ControlLogix controllers via 1756-M02AE or 1756-M03SE SERCOS interface modules. The controller can simultaneously communicate with other plant devices via EtherNet/IP, but the servo ring itself is SERCOS-only for guaranteed real-time performance.

Q: How do I determine the correct drive size for my application's torque and speed requirements?
A: Calculate RMS current using this formula: I_RMS = √[(I₁²×t₁ + I₂²×t₂ + ... + Iₙ²×tₙ) / (t₁+t₂+...+tₙ)], where I is current and t is time for each motion segment. Ensure I_RMS ≤1.0A and peak current ≤3.0A for ≤2 seconds. Also verify motor power ≤0.75 kW. If calculations exceed these limits, select the 2094-BC02-M02-S (2A) or 2094-BC04-M03-S (4A) model instead.

Q: Can this integrated axis module operate in energy-efficient regenerative braking mode?
A: Yes, the internal DC bus capacitor absorbs regenerative energy during deceleration. However, for applications with frequent or high-energy braking (e.g., vertical axes, high-inertia loads), the DC bus voltage may exceed 800V and trigger an overvoltage fault. In such cases, add an external regeneration resistor (catalog 2094-BM01-S) to dissipate excess energy as heat.

Q: What installation clearances are required for proper convection cooling performance?
A: Mount vertically (terminals down) with minimum 50mm clearance above and below the module. Side-by-side mounting of multiple drives requires no additional spacing. Horizontal mounting reduces current rating by 20% due to reduced convection efficiency. Ensure ambient temperature ≤40°C; for higher temperatures, derate current by 2.5% per °C or add forced-air cooling.

Q: Does the auto-tuning feature work with all mechanical load types and inertia ratios?
A: Auto-tuning performs best with inertia ratios (load:motor) between 1:1 and 10:1 and systems with minimal mechanical compliance. For highly compliant systems (belt drives, long lead screws), manual tuning may achieve better results. The algorithm requires a 360° test move, so ensure adequate travel range. Systems with significant friction or cogging may need friction compensation enabled before tuning.

Q: How does Safe Torque Off (STO) integrate with existing emergency stop circuits?
A: The STO function uses two independent input channels (STO1, STO2) that must both be energized for drive operation. Wire these inputs in series with your emergency stop circuit's safety relay outputs. When either input opens, the drive disables PWM output within 10ms, meeting SIL 3 / PLe requirements. Note that STO does not control motor holding brake—wire brake separately to safety circuit for vertical axis applications.

Ready to Optimize Your Motion Control System?

The 2094-BC01-M01-S delivers precision servo performance in the industry's most compact form factor. Whether you're designing a new machine or retrofitting existing equipment, our application engineers can help you:

✓ Verify drive sizing for your torque and speed profile
✓ Design SERCOS network topology for your axis count
✓ Select compatible motors and feedback devices
✓ Develop sample Logix code for your motion sequences
✓ Plan panel layout to meet thermal and clearance requirements

Contact our motion control specialists today: Email sale@ninermas.com or call +0086 187 5021 5667 for technical consultation, pricing, and delivery options. In-stock units ship within 24 hours.
