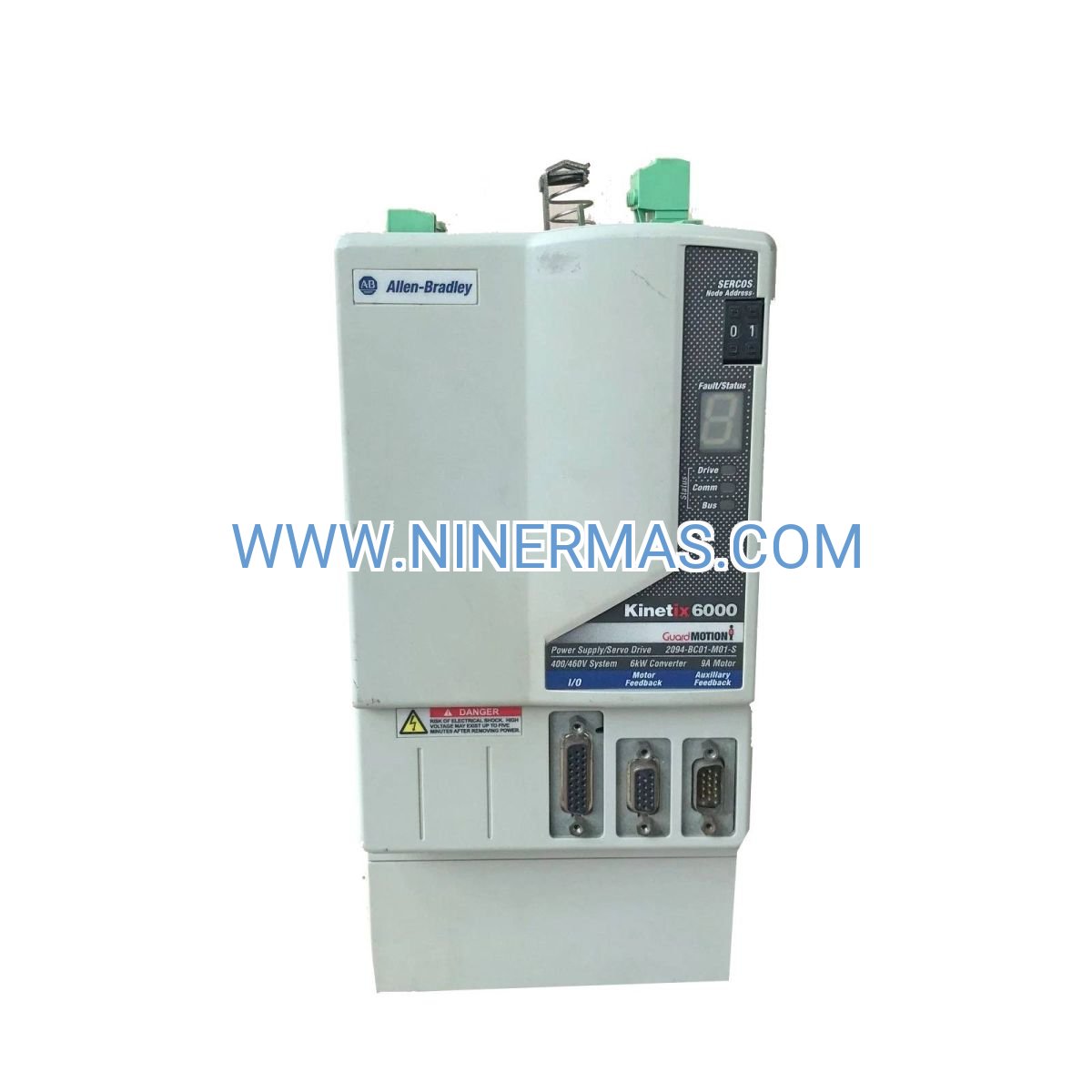

Allen-Bradley 2094-BC01-M01 Kinetix 6000 Integrated Axis Module (Industrial Motion Control System)

The Allen-Bradley 2094-BC01-M01 is a high-performance integrated axis module within the Kinetix 6000 series, engineered for precision motion control applications. Through advanced servo drive technology and seamless integration with Logix controllers, it delivers accurate positioning, smooth velocity regulation, and synchronized multi-axis coordination for demanding industrial environments.

Designed for manufacturing automation, packaging machinery, material handling systems, CNC equipment, and robotic assembly lines, this module addresses critical challenges including positioning accuracy drift, torque fluctuation, complex wiring overhead, and limited diagnostic visibility during production cycles.

With standardized mounting configurations and flexible parameter customization, the 2094-BC01-M01 offers rapid commissioning, robust fault protection, superior thermal management, and compatibility with major fieldbus protocols—ideal for system integrators, OEM machine builders, plant engineers, and automation solution providers. Contact our technical team for application-specific sizing and quotation assistance.

Core Features & Advantages

• Precision Servo Control
  Utilizes high-resolution encoder feedback and closed-loop algorithms to maintain positioning accuracy within microns, minimizing overshoot and settling time for high-speed operations.
• Integrated Design Efficiency
  Combines drive electronics, power stage, and control logic in a compact footprint, reducing panel space requirements by up to 40% compared to modular architectures and simplifying installation.
• Seamless Logix Platform Integration
  Native compatibility with ControlLogix and CompactLogix controllers via SERCOS or EtherNet/IP, enabling unified programming environment and real-time motion coordination across multiple axes.
• Comprehensive Protection Suite
  Equipped with overcurrent, overvoltage, undervoltage, overtemperature, ground fault, and motor overload protection—reducing unplanned downtime and extending equipment service life.
• Advanced Diagnostics & Monitoring
  Provides real-time status feedback, fault logging, and predictive maintenance alerts through Studio 5000 software, allowing operators to identify issues before they escalate into production stoppages.
• Flexible Power & Motor Compatibility
  Supports 460V AC three-phase input and accommodates a wide range of rotary and linear servo motors, offering scalability for diverse torque and speed requirements.

Typical Application Scenarios

This module is engineered for applications demanding high positioning repeatability, dynamic response, and continuous operation reliability, particularly in:

• Automated Manufacturing & Assembly
  Drives pick-and-place units, screw-driving stations, and component insertion machines where cycle time and positional consistency directly impact throughput and quality yield.
• Packaging & Labeling Systems
  Controls film feeders, cutting knives, and registration systems to synchronize material flow with variable product dimensions, reducing waste and ensuring label placement accuracy.
• Material Handling & Conveying
  Manages belt conveyors, gantry cranes, and sortation systems requiring coordinated motion profiles, smooth acceleration curves, and precise stop positioning at transfer points.
• CNC Machining & Metalworking
  Powers spindle axes, tool changers, and rotary tables in milling, turning, and grinding centers where surface finish and dimensional tolerance depend on vibration-free motion control.
• Robotics & Articulated Arms
  Actuates joint axes in industrial robots for welding, painting, and palletizing tasks, delivering the torque density and path accuracy needed for complex trajectories.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key electrical, mechanical, and environmental specifications. Custom configurations are available to match project-specific requirements.

Selection Recommendations: When specifying, consider peak torque demand, duty cycle profile, ambient temperature, available panel depth, and network topology. For applications requiring coordinated motion across 4+ axes or integration with safety-rated controllers, consult our engineering team with motor datasheets, load inertia calculations, and cycle time targets for optimized module selection.

Extended Capabilities

• Multi-Axis Synchronization: Supports electronic gearing, camming, and coordinated path interpolation for up to 32 axes within a single Logix chassis.
• Safe Torque-Off (STO): Optional safety function integration for compliance with ISO 13849-1 / IEC 61508 machinery safety directives.
• Energy Monitoring: Built-in power metering for tracking energy consumption per axis, supporting sustainability reporting and cost allocation.
• Firmware Upgradability: Field-updateable via Studio 5000, ensuring long-term compatibility with evolving Logix platform features.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured modules require 10–15 business days depending on specification complexity.

Warranty: Backed by a 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Technical Support: Remote commissioning assistance, parameter optimization guidance, and troubleshooting support available via phone and email. On-site startup services can be arranged for large-scale projects (subject to location and scope).

Documentation Package: Each module ships with installation manual, wiring diagrams, parameter reference guide, and sample Studio 5000 Add-On Instructions (AOI) to accelerate integration.

Frequently Asked Questions (FAQ)

Q: How does the 2094-BC01-M01 Kinetix 6000 module interface with existing Allen-Bradley control systems?
A: The module connects via SERCOS fiber-optic ring or EtherNet/IP network to ControlLogix or CompactLogix controllers. You'll need to confirm controller firmware version, available communication slots, and network bandwidth to ensure seamless integration.

Q: What is the maximum number of axes this module can support in a single system?
A: Each 2094-BC01-M01 controls one servo axis. A single Logix controller can coordinate up to 32 Kinetix 6000 modules (32 axes) depending on chassis size and network configuration.

Q: What level of energy savings can be expected compared to traditional AC induction motor drives?
A: Servo systems typically reduce energy consumption by 20–35% in applications with frequent start/stop cycles or variable speed profiles, thanks to regenerative braking and optimized torque delivery. Actual savings depend on duty cycle and load characteristics.

Q: What are the environmental and installation requirements for this module?
A: The module requires installation in a ventilated enclosure (IP20 rating), ambient temperature 0–55°C, and vertical mounting orientation for optimal cooling. Ensure adequate clearance (minimum 50mm top/bottom) and avoid exposure to conductive dust or corrosive gases.

Q: Can the module support remote monitoring and data acquisition for Industry 4.0 applications?
A: Yes, via EtherNet/IP and FactoryTalk integration, the module exposes real-time diagnostics, performance metrics, and alarm data to SCADA, MES, or cloud-based analytics platforms using standard protocols such as OPC-UA and MQTT.

Q: Is the 2094-BC01-M01 compatible with third-party servo motors?
A: While optimized for Allen-Bradley MPL, MPF, and TL-series motors, the module can drive select third-party motors if encoder type, voltage rating, and thermal characteristics are compatible. Motor parameter tuning and validation testing are required—contact our team for compatibility assessment.

Request Technical Support & Quotation

To receive a detailed application review, customized configuration proposal, or pricing quotation, please provide the following information: project name, application type (e.g., packaging, CNC, robotics), required number of axes, motor specifications (torque, speed, inertia), power supply details, and environmental conditions. Our motion control engineers will respond within one business day with tailored recommendations.
