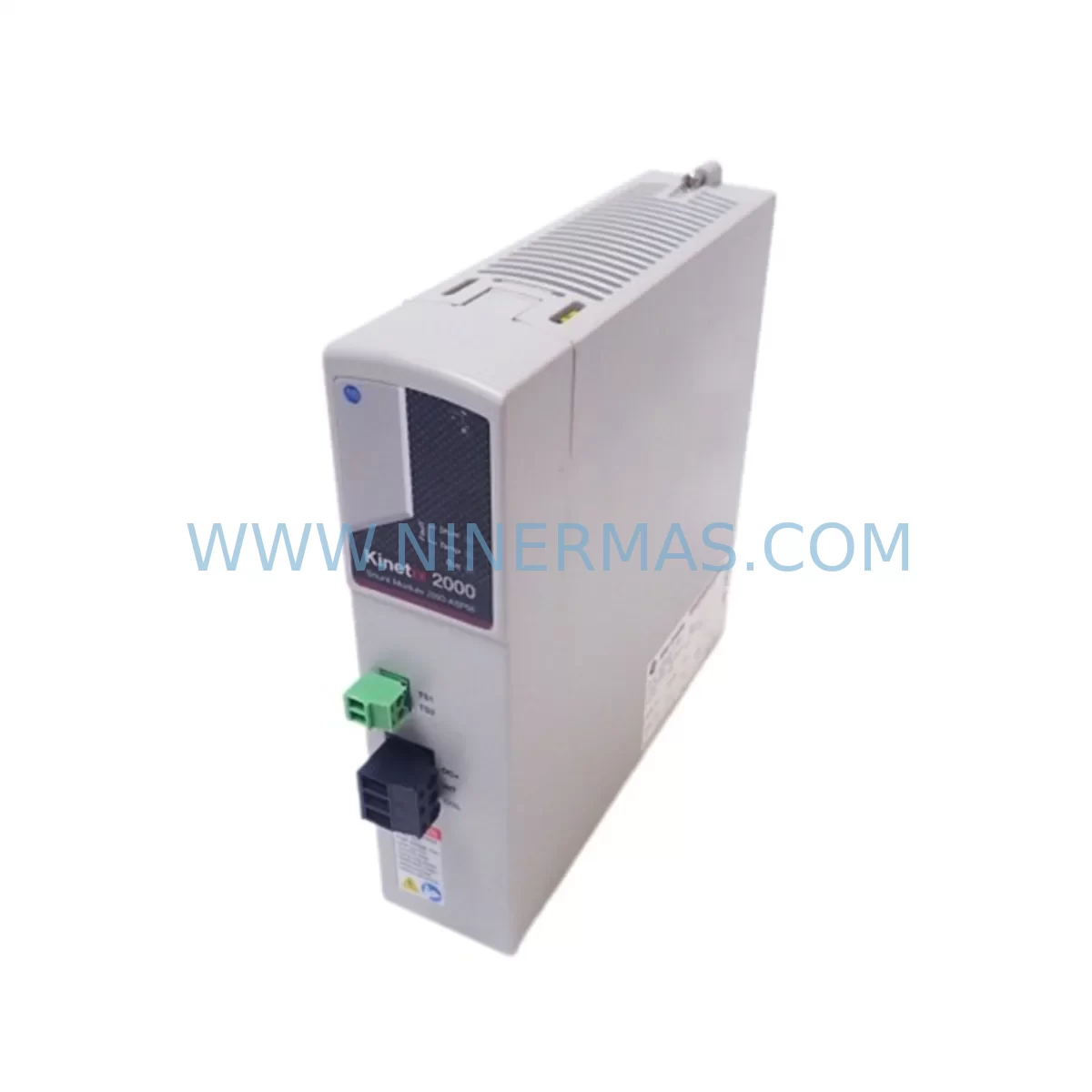

The Allen-Bradley 2093-ASP06 is a shunt resistor module designed for use within the Kinetix 2000 multi-axis servo drive platform. As legacy automation lines face increasing pressure to modernize, the 2093-ASP06 plays a critical role in retrofit projects where the original Kinetix 2000 drive system must remain operational or be upgraded with minimal disruption. Whether you are replacing a failed shunt module, extending the service life of an existing control cabinet, or planning a phased migration to a newer drive architecture, the 2093-ASP06 provides a reliable, drop-in-compatible solution backed by a 12-month warranty and verified in-stock availability.

The Kinetix 2000 series was widely deployed across discrete manufacturing, packaging, material handling, and assembly automation. Many of these installations remain in active production, and sourcing discontinued or hard-to-find components such as the 2093-ASP06 is often the fastest path to restoring uptime without committing to a full system overhaul. NINERMAS maintains verified inventory of this module to support emergency breakdown recovery, planned maintenance cycles, and long-term spare parts programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 2093-ASP06, engineers must evaluate the full scope of the Kinetix 2000 installation. The shunt module connects directly to the integrated axis module (IAM) — typically a 2093-AC05-MP1 or 2093-AC05-MP2 — and works in conjunction with the shared DC bus architecture that powers multiple axes from a single power rail. Before replacing the shunt, confirm that the IAM’s DC bus capacitors are within specification and that the shared bus voltage is stable under regenerative load conditions.

In many legacy control cabinets, the Kinetix 2000 system is paired with a ControlLogix or CompactLogix controller communicating over a SERCOS fiber ring. During retrofit planning, verify that the 1756-M08SE or 1756-M16SE SERCOS interface module is still functional and that the fiber connections between axes are intact. A degraded SERCOS ring can cause axis faults that are incorrectly attributed to the shunt module. Similarly, if the system uses a 1756-DNB DeviceNet bridge for auxiliary I/O, confirm that the network scan list and node addresses are documented before any hardware is disturbed.

Terminal wiring on the Kinetix 2000 IAM follows a defined pinout for motor power (U, V, W), feedback (encoder or resolver), and control signals. When swapping the 2093-ASP06, no rewiring of motor or feedback circuits is required, but the shunt connector must be seated fully and the locking tab engaged. In installations where the original shunt was mounted externally due to thermal constraints, verify that the external shunt wiring gauge and length comply with the original system design documentation.

For sites planning a broader migration from Kinetix 2000 to Kinetix 5500 or Kinetix 5700, the 2093-ASP06 replacement can serve as a bridge measure to maintain production while the migration is staged axis by axis. The Kinetix 5500 (2198-Hxxx series) uses a different power rail and feedback interface, so a direct swap is not possible without updating the motor cables, feedback wiring, and Logix drive configuration. However, keeping the existing Kinetix 2000 system operational with a replacement 2093-ASP06 allows production to continue on unaffected axes while the migration proceeds on a controlled schedule.

I/O expansion in legacy Kinetix 2000 panels often relies on 1734 POINT I/O modules connected via a 1734-AENT or 1734-ACNR adapter. During any retrofit activity near the drive cabinet, confirm that the I/O adapter’s IP address, RPI rate, and connection path in the Logix project are documented. Accidental disconnection of the I/O network during drive maintenance can trigger safety faults or process shutdowns that extend downtime beyond the planned maintenance window. A 1756-EN2T or 1756-EN3TR EtherNet/IP bridge module, if present in the same chassis, should also be verified for firmware compatibility with the current Logix project version.

HMI screens associated with the Kinetix 2000 axes — typically running on a PanelView Plus 6 or PanelView Plus 7 terminal — should be reviewed to confirm that drive status tags, fault codes, and axis state indicators are mapped correctly. After replacing the 2093-ASP06 and re-enabling the drive, clear any latched drive faults from the HMI and verify that the axis status returns to the “Axis Ready” state before resuming automatic operation. If the HMI project references specific drive fault bit addresses, confirm these are consistent with the installed firmware version on the IAM.

Downtime Control During System Migration

Minimizing downtime during a shunt module replacement or broader Kinetix 2000 retrofit requires careful pre-staging and a disciplined commissioning sequence. Before the maintenance window begins, the replacement 2093-ASP06 should be on-site and verified against the original part number. NINERMAS ships modules with outgoing inspection records, allowing engineers to confirm the unit is functional before the production line is taken offline.

The recommended sequence for a shunt module swap is: (1) command all axes to the disabled state from the Logix controller, (2) de-energize the Kinetix 2000 IAM and wait for the DC bus discharge indicator to clear, (3) remove the existing 2093-ASP06 and install the replacement, (4) re-energize the system and verify bus voltage, (5) enable axes one at a time and confirm no drive faults are present, (6) run a short jog cycle on each axis before returning to automatic mode. This sequence typically requires 30 to 60 minutes for a single-axis shunt replacement and can be completed within a standard planned maintenance window.

To protect the original program logic, back up the Logix project to a local drive and to a network share before beginning any hardware work. If the controller is a ControlLogix 1756-L7x or 1756-L8x, use the controller’s SD card slot to store a local backup. For CompactLogix 1769-L3x or 1769-L4x controllers, use RSLogix 5000 or Studio 5000 to save the project file before the maintenance window. These backups ensure that if a communication fault or unexpected power event occurs during the retrofit, the original program can be restored without delay.

Field commissioning after the shunt replacement should include a verification of the drive’s thermal performance under load. Monitor the IAM’s internal temperature via the drive status display or through the Logix tag for drive temperature. If the system previously operated near the thermal limit, consider whether the replacement shunt module’s power dissipation rating is appropriate for the application duty cycle. NINERMAS technical support can assist with shunt sizing verification if the original system documentation is unavailable.

Retrofit Support FAQ

Q: Is the 2093-ASP06 a direct replacement for the original shunt module in all Kinetix 2000 configurations?
A: Yes, the 2093-ASP06 is the standard shunt module for the Kinetix 2000 IAM platform. It is compatible with all standard Kinetix 2000 multi-axis drive configurations. Confirm the shunt connector and backplane slot are undamaged before installation. No firmware changes are required.

Q: Does NINERMAS test the 2093-ASP06 before shipment?
A: Yes. All units supplied by NINERMAS undergo outgoing inspection and functional verification before dispatch. Each module is shipped with an inspection record. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q: What wiring changes are needed when installing the replacement 2093-ASP06?
A: No motor or feedback wiring changes are required. The shunt module connects via a dedicated shunt connector on the IAM. Ensure the connector is fully seated and the locking tab is engaged. If an external shunt resistor was previously wired, verify the external shunt wiring is disconnected or reconfigured according to the drive’s installation manual before enabling the internal shunt.

Q: How quickly can NINERMAS supply the 2093-ASP06 for an emergency breakdown?
A: NINERMAS maintains in-stock inventory of the 2093-ASP06 to support emergency breakdown recovery. Standard lead time for in-stock units is 1–3 business days for international shipment. Contact sale@ninermas.com or call +0086 187 5021 5667 for urgent requirements and expedited shipping options.
