Allen-Bradley 2090-CSBM1DF-14AA05 Kinetix DSL Motor Cable | 5m Power Feedback Brake Cable for Servo Systems

Allen-Bradley Kinetix DSL Motor Cable – Integrated Power, Feedback & Brake Solution for Servo Systems

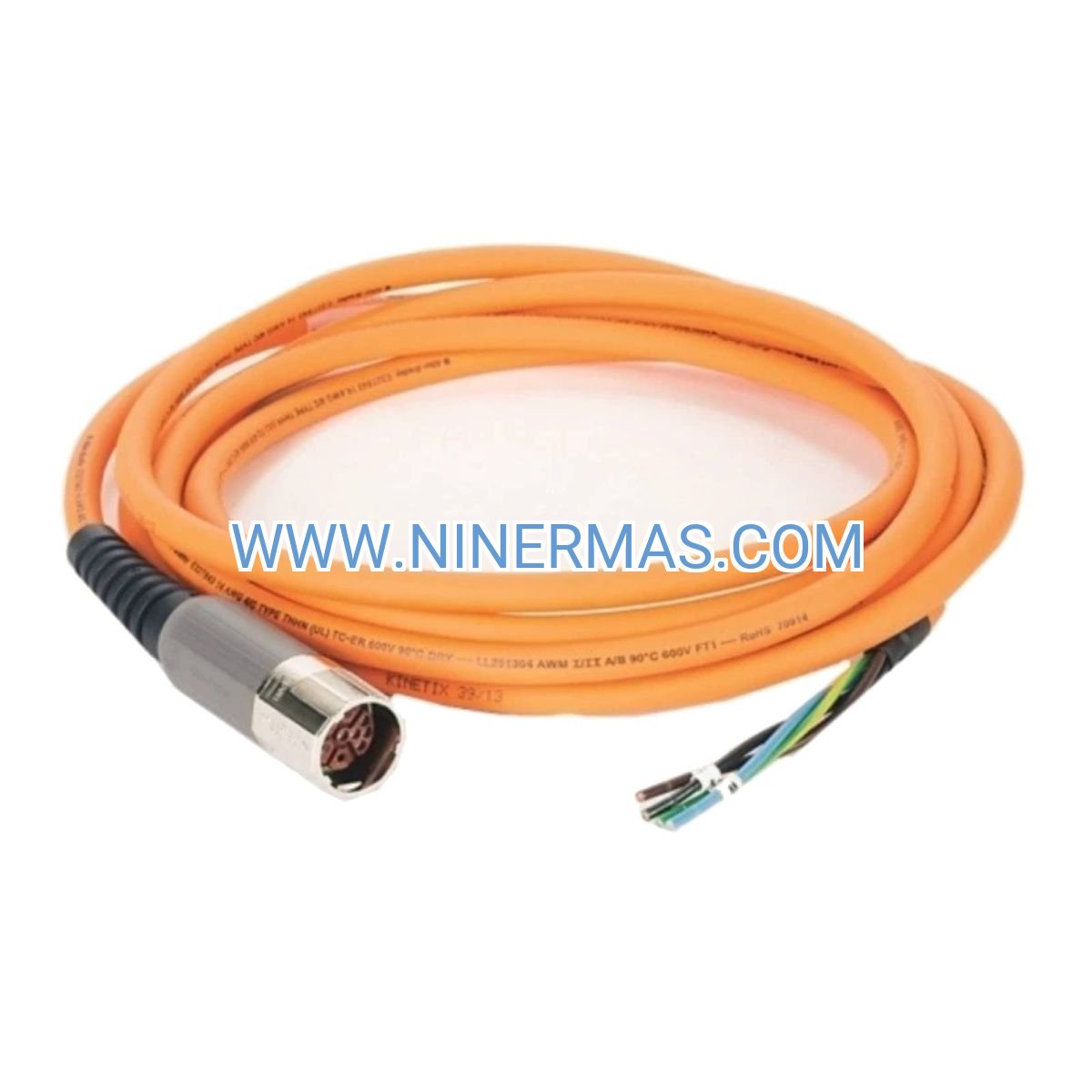

The Allen-Bradley 2090-CSBM1DF-14AA05 is a factory-engineered single DSL motor cable designed for Kinetix servo drive systems. It integrates power transmission, encoder feedback, and brake control into one compact, shielded cable assembly, delivering reliable performance in demanding industrial automation environments. With a 5-meter length and pre-terminated connectors, this cable simplifies installation, reduces wiring errors, and ensures consistent signal integrity for precision motion control applications.

Ideal for manufacturing automation, packaging machinery, CNC equipment, and robotic systems, this cable addresses common challenges such as electromagnetic interference (EMI), installation complexity, and signal degradation. By combining multiple functions in a single cable, it minimizes cabinet space, reduces labor costs, and improves system reliability—making it the preferred choice for design engineers, system integrators, and maintenance teams worldwide.

Backed by Allen-Bradley's proven quality standards and available with technical support, the 2090-CSBM1DF-14AA05 offers plug-and-play compatibility with Kinetix servo drives, fast delivery options, and comprehensive documentation. Whether you're upgrading existing systems or designing new automation solutions, this cable provides the performance, durability, and ease of integration you need.

Core Features & Technical Advantages

All-in-One Integrated Design
Combines power conductors, encoder feedback lines, and brake wiring in a single DSL cable assembly, eliminating the need for multiple separate cables and reducing installation time by up to 40%.

Factory-Terminated Connectors
Pre-assembled with high-quality connectors on both ends, ensuring proper pin alignment, reducing field wiring errors, and enabling faster commissioning with zero on-site termination required.

Superior EMI Shielding
Features multi-layer shielding and twisted-pair construction to protect sensitive feedback signals from electrical noise in high-power industrial environments, maintaining encoder accuracy and system stability.

Optimized for Kinetix Servo Drives
Engineered specifically for Allen-Bradley Kinetix 5500, 5700, and VP-Series servo drives, ensuring full compatibility, certified performance, and seamless integration with Rockwell Automation control architectures.

Durable Industrial Construction
Built with oil-resistant, flame-retardant outer jacket rated for continuous flexing in cable carriers, withstanding temperatures from -30°C to +80°C and meeting UL, CE, and RoHS compliance standards.

Flexible Length Options
Available in standard lengths from 3m to 50m (this model: 5m), allowing precise cable routing without excess slack, reducing clutter and improving cabinet aesthetics and airflow.

Typical Application Scenarios

This cable is engineered for high-precision motion control systems where reliability, signal integrity, and installation efficiency are critical:

CNC Machining Centers & Metal Fabrication
Connects servo motors to drives in multi-axis CNC mills, lathes, and laser cutting systems, ensuring accurate positioning feedback and responsive torque control for tight-tolerance manufacturing operations.

Packaging & Material Handling Automation
Powers and controls servo-driven conveyors, pick-and-place robots, and labeling machines in food, pharmaceutical, and consumer goods production lines, where uptime and repeatability are essential.

Robotic Assembly & Welding Systems
Provides reliable power and feedback for industrial robots in automotive, electronics, and appliance assembly, supporting high-speed motion profiles and coordinated multi-axis control.

Printing & Converting Equipment
Enables precise web tension control and registration in flexographic presses, slitters, and rewinders, where encoder accuracy directly impacts product quality and waste reduction.

Semiconductor & Electronics Manufacturing
Supports ultra-clean, low-vibration servo systems in wafer handling, die bonding, and PCB assembly equipment, meeting stringent EMC and contamination control requirements.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, please review the following specifications:

Cable Type: Single DSL (Digital Servo Link) with integrated power, feedback, and brake
Part Number: 2090-CSBM1DF-14AA05
Cable Length: 5 meters (16.4 feet)
Conductor Size: Power: 14 AWG | Feedback: 22 AWG shielded twisted pairs
Voltage Rating: 600V AC/DC (power conductors)
Current Capacity: Up to 10A continuous (power lines)
Shielding: Overall foil + braid shield, >85% coverage
Connector Type: SpeedTec DIN connectors (motor end & drive end)
Bend Radius: Minimum 10× cable diameter (static), 15× (dynamic flexing)
Temperature Range: -30°C to +80°C operating | -40°C to +105°C storage
Certifications: UL, CSA, CE, RoHS compliant
Compatible Drives: Kinetix 5500, 5700, VP-Series servo drives
Compatible Motors: Allen-Bradley MP-Series, TL-Series servo motors with DSL interface

Selection Recommendations:
When selecting a motor cable, consider the following factors to ensure proper fit and performance:

• Cable Length: Measure the actual distance from drive to motor, adding 10-15% for routing flexibility. Avoid excessive length to minimize voltage drop and signal delay.
• Environmental Conditions: For washdown or outdoor applications, specify cables with enhanced sealing and UV-resistant jackets.
• Motion Profile: For continuous flexing in cable carriers, select cables rated for >5 million flex cycles.
• Power Requirements: Verify motor current rating does not exceed cable ampacity; consult drive manual for derating factors.
• Feedback Type: Confirm encoder interface (incremental, absolute, EnDat, Hiperface) matches cable pinout.

For custom lengths, special connectors, or application-specific configurations, please contact our engineering team with your project details.

Extended Capabilities & System Integration

Plug-and-Play Installation
Color-coded connectors and keyed designs prevent mis-mating, while pre-tested assemblies eliminate field continuity checks, reducing commissioning time and minimizing startup errors.

Cable Carrier Compatibility
Designed for use in energy chains and cable tracks with optimized flexibility and abrasion resistance, supporting dynamic applications with travel distances up to 50 meters and speeds to 5 m/s.

Integrated Brake Control
Dedicated brake conductors support holding brakes on servo motors, enabling safe vertical axis operation and emergency stop functions without additional wiring.

Future-Proof Design
Compatible with latest Kinetix firmware and EtherNet/IP networked drive architectures, ensuring long-term supportability and upgrade paths for evolving automation systems.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 1-3 business days; custom configurations typically 7-14 days depending on specifications.
Warranty: 12-month manufacturer warranty covering defects in materials and workmanship under normal use conditions.
Technical Support: Access to Rockwell Automation technical support resources, including installation guides, wiring diagrams, and troubleshooting assistance via phone, email, or online portal.
Documentation: Each cable ships with product datasheet, dimensional drawings, pinout diagrams, and certificate of conformity for quality traceability.
Installation Assistance: Remote technical guidance available; on-site commissioning support can be arranged for large projects or complex integrations (subject to location and scope).

Frequently Asked Questions (FAQ)

Q: How do I connect the Allen-Bradley 2090-CSBM1DF-14AA05 cable to my existing servo system?
A: This cable features SpeedTec DIN connectors that directly mate with compatible Kinetix servo drives and MP/TL-Series motors. Simply align the keyed connector, insert until it clicks, and rotate the locking ring clockwise to secure. No field wiring or crimping required. Refer to the included wiring diagram for pin assignments if integrating with third-party components.

Q: What is the maximum number of motors I can connect with DSL cables in a single system?
A: Each motor requires a dedicated point-to-point cable to its corresponding drive axis. A typical Kinetix multi-axis system can support 8-32 axes depending on the drive model. Consult your drive's user manual for specific axis count and cable length limitations.

Q: What kind of energy savings or performance improvement can I expect with this cable?
A: While the cable itself does not directly reduce energy consumption, its superior shielding and low-resistance conductors minimize signal noise and voltage drop, enabling the servo drive to operate more efficiently with tighter control loops. This can result in 5-10% reduction in settling time and improved positioning accuracy, indirectly reducing cycle time and energy waste in high-speed applications.

Q: What are the installation environment requirements? What is the IP rating?
A: The cable is designed for industrial environments with IP65-rated connectors when properly mated and locked. It can withstand exposure to cutting fluids, coolants, and light washdown conditions. For submersion or high-pressure washdown (IP67/IP69K), specify sealed connector variants. Ambient temperature should remain within -30°C to +80°C during operation.

Q: Can this cable support remote monitoring and data acquisition? What protocols are compatible?
A: The cable transmits encoder feedback and drive status signals that are accessible via the Kinetix drive's EtherNet/IP or DeviceNet interface. When integrated with a Rockwell Automation controller (e.g., ControlLogix, CompactLogix), you can monitor motor position, velocity, torque, and fault codes in real-time through FactoryTalk software or third-party SCADA systems supporting standard industrial protocols (Modbus TCP, OPC UA).

Q: Is this cable suitable for use in cleanroom or food-grade applications?
A: The standard version uses industrial-grade TPE jacket material that is oil-resistant and RoHS-compliant but not explicitly food-safe certified. For FDA-regulated or cleanroom environments, request cables with FDA-compliant jackets and stainless steel connector hardware. Consult our application engineers for specific compliance documentation.

Get Expert Selection Support & Custom Solutions

To receive a detailed technical proposal, quotation, or application-specific recommendations, please provide the following information:

• Project name and application type (e.g., CNC retrofit, new packaging line)
• Servo drive model and firmware version
• Motor model, power rating, and encoder type
• Required cable length and quantity
• Environmental conditions (temperature, washdown, chemical exposure)
• Installation method (fixed conduit, cable carrier, robotic arm)
• Delivery timeline and destination

Our application engineers will respond within 24 hours with a customized solution, including cable selection, accessory recommendations, and pricing.
