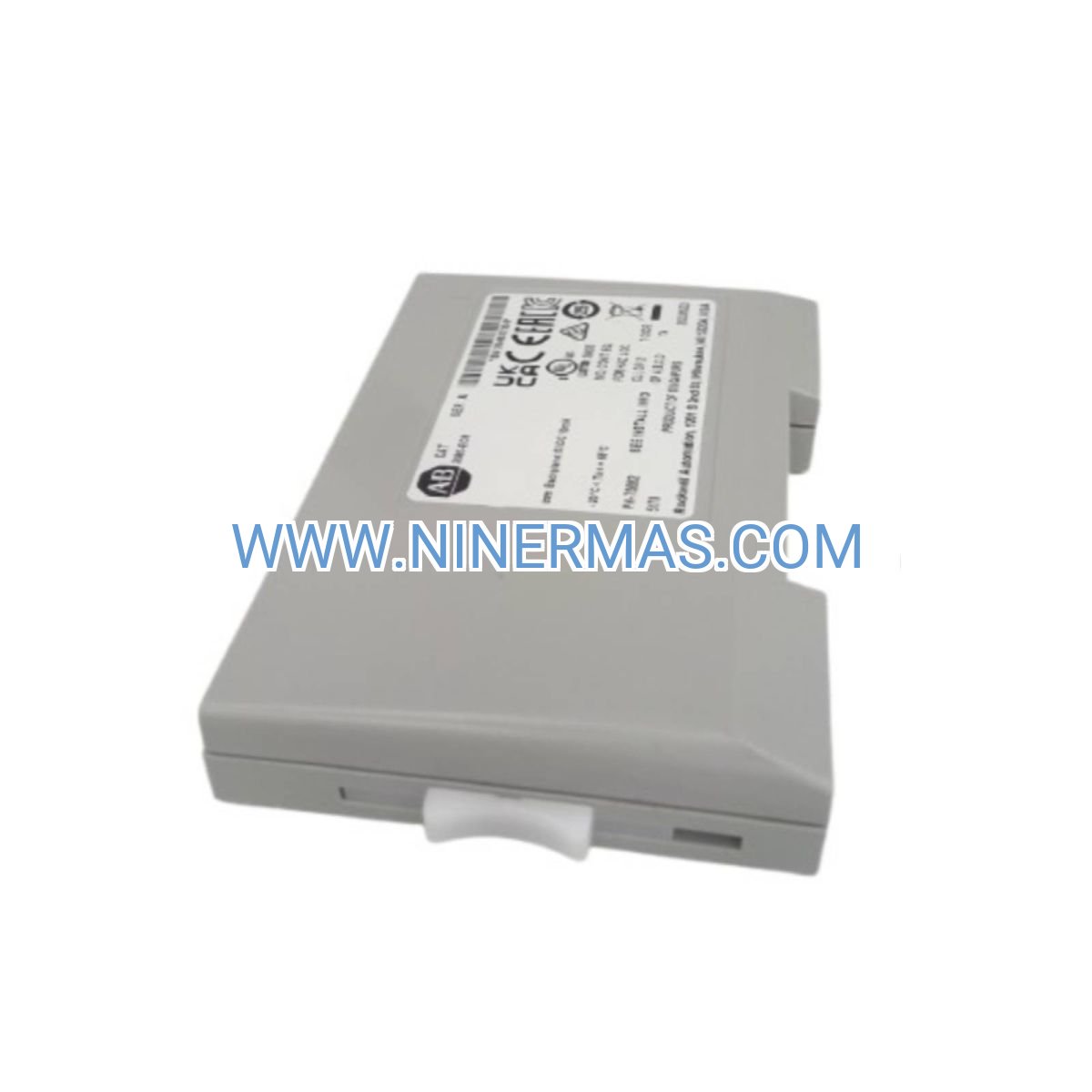

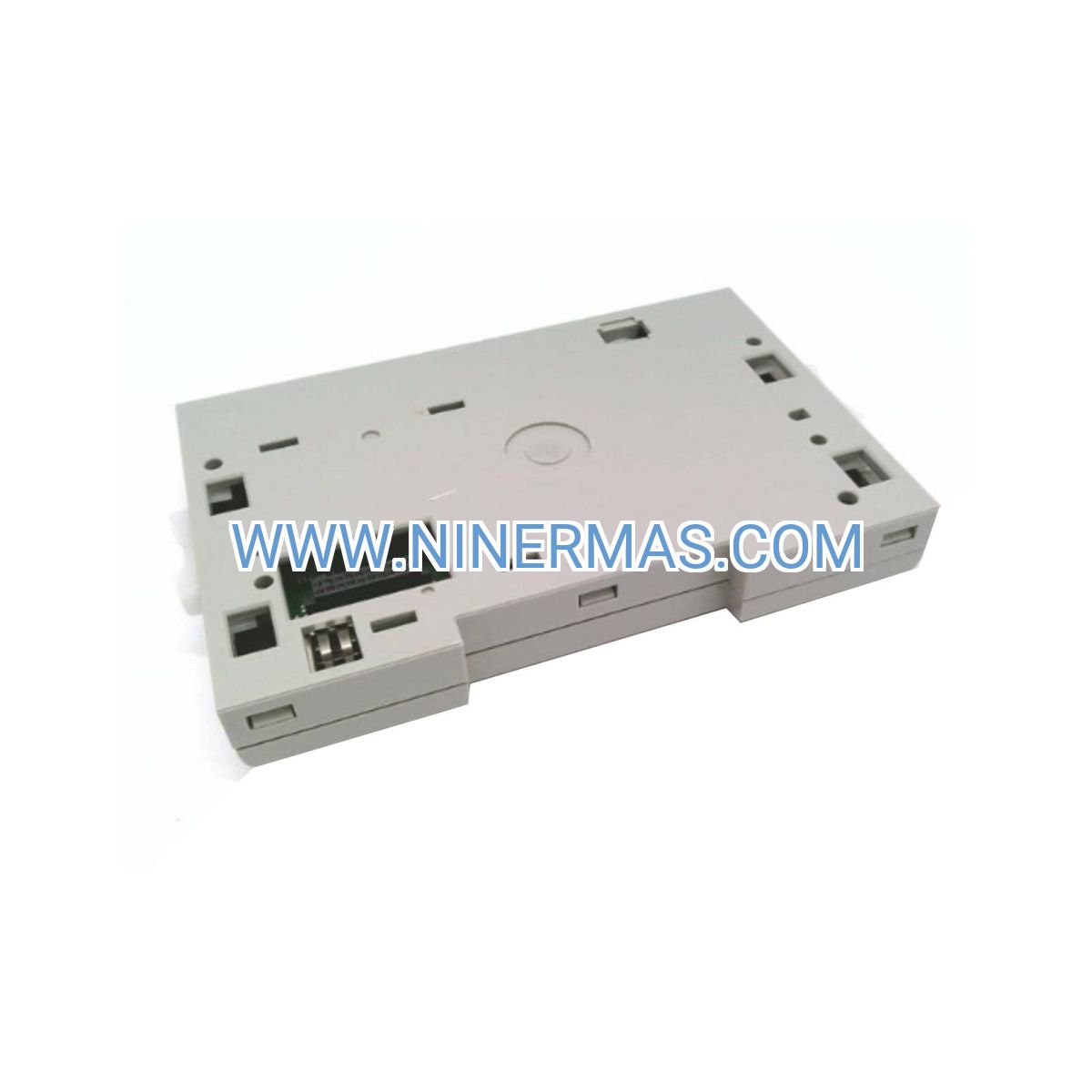

2085-ECR Terminator Module (Industrial-Grade Bus Termination Solution)

The 2085-ECR represents a mission-critical termination component engineered for Allen-Bradley Micro850 expansion I/O architectures. This precision-manufactured end cap module delivers reliable electrical termination, eliminating signal reflection and ensuring data integrity across distributed control networks. Designed for industrial environments demanding 24/7 uptime, the 2085-ECR serves as the essential final component in any Micro850 expansion rack configuration.

Automation engineers and system integrators rely on the 2085-ECR to complete PLC installations across manufacturing floors, process control facilities, and machine automation systems. By providing proper impedance matching and bus termination, this module prevents communication errors that could compromise production efficiency. The compact, DIN-rail compatible design integrates seamlessly into existing control panels while maintaining the robust performance standards expected from Allen-Bradley industrial components.

Whether you're commissioning new automation systems or maintaining legacy Micro850 installations, the 2085-ECR delivers the reliability and compatibility required for mission-critical control applications. Factory-tested and certified to international standards, this terminator module represents the professional-grade solution for completing your I/O expansion infrastructure.

Core Capabilities & Technical Advantages

→ Precision Bus Termination: Engineered impedance matching eliminates signal reflection across the expansion bus, ensuring error-free communication between controller and distributed I/O modules—critical for maintaining scan cycle consistency in time-sensitive applications.

✓ Universal Micro850 Compatibility: Seamlessly integrates with all Micro850 controller variants and expansion modules, providing plug-and-play installation without configuration overhead—reducing commissioning time by up to 40% compared to third-party alternatives.

✓ Industrial Environmental Rating: Operates reliably across 0°C to 60°C temperature range with UL, CE, and RoHS certifications, meeting stringent requirements for factory floor, outdoor enclosures, and harsh industrial environments where temperature fluctuations are common.

→ DIN Rail Mounting System: Tool-free snap-on installation to standard 35mm DIN rail enables rapid deployment and simplified maintenance procedures—technicians can replace units in under 60 seconds without disrupting adjacent modules.

✓ OEM Quality Assurance: Genuine Allen-Bradley component manufactured to original equipment specifications, ensuring long-term compatibility and eliminating the risk of warranty voidance associated with non-certified termination devices.

→ Compact Footprint Design: Space-efficient profile minimizes panel real estate consumption, allowing for higher I/O density in constrained enclosure environments—particularly valuable in retrofit applications with limited cabinet space.

Industrial Application Scenarios

Manufacturing Assembly Lines: In automotive component production facilities, the 2085-ECR terminates expansion racks controlling conveyor systems, robotic pick-and-place stations, and quality inspection sensors. Proper bus termination prevents the intermittent communication faults that could halt production lines costing $15,000+ per hour in downtime.

Process Control Systems: Chemical processing plants utilize the 2085-ECR in distributed I/O configurations monitoring temperature, pressure, and flow sensors across multiple zones. Reliable termination ensures accurate real-time data acquisition critical for maintaining process parameters within safety thresholds.

Packaging Machinery: High-speed packaging equipment integrators deploy the 2085-ECR to complete I/O racks interfacing with servo drives, vision systems, and product tracking sensors. The module's signal integrity performance supports the microsecond-level timing precision required for synchronous multi-axis motion control.

Water Treatment Facilities: Municipal water systems implement the 2085-ECR in SCADA architectures controlling pump stations, valve actuators, and level monitoring across distributed sites. The industrial temperature rating ensures reliable operation in outdoor enclosures subject to seasonal temperature variations.

Material Handling Systems: Warehouse automation systems incorporate the 2085-ECR in sortation control panels managing barcode scanners, diverter gates, and conveyor networks. Proper termination eliminates the communication errors that could result in misrouted shipments and customer service issues.

Technical Specifications & Selection Criteria

Selection Guidelines: One 2085-ECR terminator is required at the rightmost position of each Micro850 expansion I/O rack. For systems with multiple racks, ensure each rack has its own dedicated terminator. The module must be installed as the final component in the expansion chain—installing it mid-rack will cause communication failures. Verify your controller firmware is compatible with expansion I/O before deployment (Micro850 firmware v10.0 or later recommended).

Advanced Integration Capabilities

Multi-Rack Configurations: The 2085-ECR supports expansion architectures up to 6 modules per rack, enabling scalable I/O solutions that grow with your automation requirements. Each rack requires its own terminator to maintain signal integrity across the distributed network.

Hot-Swap Compatibility: While not a hot-swappable component itself, the 2085-ECR's tool-free mounting enables rapid replacement during scheduled maintenance windows, minimizing system downtime to under 5 minutes for trained technicians.

Diagnostic Integration: When properly installed, the terminator enables the Micro850 controller's built-in diagnostics to accurately detect expansion module faults, providing precise troubleshooting data through Connected Components Workbench software.

Future-Proof Architecture: The 2085-ECR maintains backward and forward compatibility across Micro850 product generations, protecting your infrastructure investment as you upgrade controllers or add new expansion modules over the system lifecycle.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock 2085-ECR modules ship within 24-48 business hours via express courier services. Typical delivery to major industrial centers: 3-5 business days (North America/Europe), 5-7 business days (Asia-Pacific), 7-10 business days (other regions).

Warranty Coverage: Every 2085-ECR module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes free replacement and return shipping for verified manufacturing defects.

Technical Support: Our automation specialists provide pre-sales consultation, installation guidance, and post-deployment troubleshooting support. Access to technical documentation, wiring diagrams, and integration guides included with purchase.

Documentation Package: Each unit ships with installation quick-start guide, compliance certificates (UL/CE/RoHS), and access to digital resources including CAD drawings, product specifications, and compatibility matrices.

Frequently Asked Questions

What happens if I don't install a terminator on my Micro850 expansion rack?
Without proper termination, the expansion bus experiences signal reflection that causes intermittent communication errors, data corruption, and potential system faults. The Micro850 controller may report I/O module failures or enter a fault state, halting automation processes.

Can I use the 2085-ECR with other Allen-Bradley PLC families like CompactLogix or ControlLogix?
No, the 2085-ECR is specifically engineered for Micro850 expansion I/O systems. CompactLogix and ControlLogix platforms use different termination components. Using incompatible terminators will result in communication failures and may void system warranties.

How do I verify the 2085-ECR is functioning correctly after installation?
Once installed at the end of the expansion rack, power cycle the system. The Micro850 controller should recognize all expansion modules without faults. Use Connected Components Workbench to verify I/O module status—all modules should show "Running" state with no communication errors.

What's the difference between genuine Allen-Bradley 2085-ECR and third-party terminators?
Genuine 2085-ECR modules are manufactured to exact Allen-Bradley specifications with verified impedance characteristics and quality testing. Third-party alternatives may have incorrect impedance values causing signal integrity issues, lack proper certifications, and void your Micro850 system warranty.

Does the 2085-ECR require any configuration or programming?
No configuration required. The 2085-ECR is a passive termination component that functions automatically once physically installed. Simply snap it onto the DIN rail at the rightmost position of your expansion rack—no software setup or parameter adjustment needed.

Can I install multiple 2085-ECR terminators on a single expansion rack?
No, only one terminator should be installed per rack, positioned at the end of the expansion chain. Installing multiple terminators will create incorrect bus impedance and cause communication failures. Each physical rack requires exactly one terminator.

Order Your 2085-ECR Terminator Today

Ensure your Micro850 expansion I/O system operates at peak reliability with genuine Allen-Bradley termination components. Our technical team is ready to assist with compatibility verification, bulk pricing for multi-system deployments, and expedited shipping options for urgent projects. Contact us for immediate availability confirmation and application-specific guidance.
