Allen-Bradley 2080-OB4 Digital Output Module | 24V DC 4-Point Sourcing I/O for Micro800 PLC

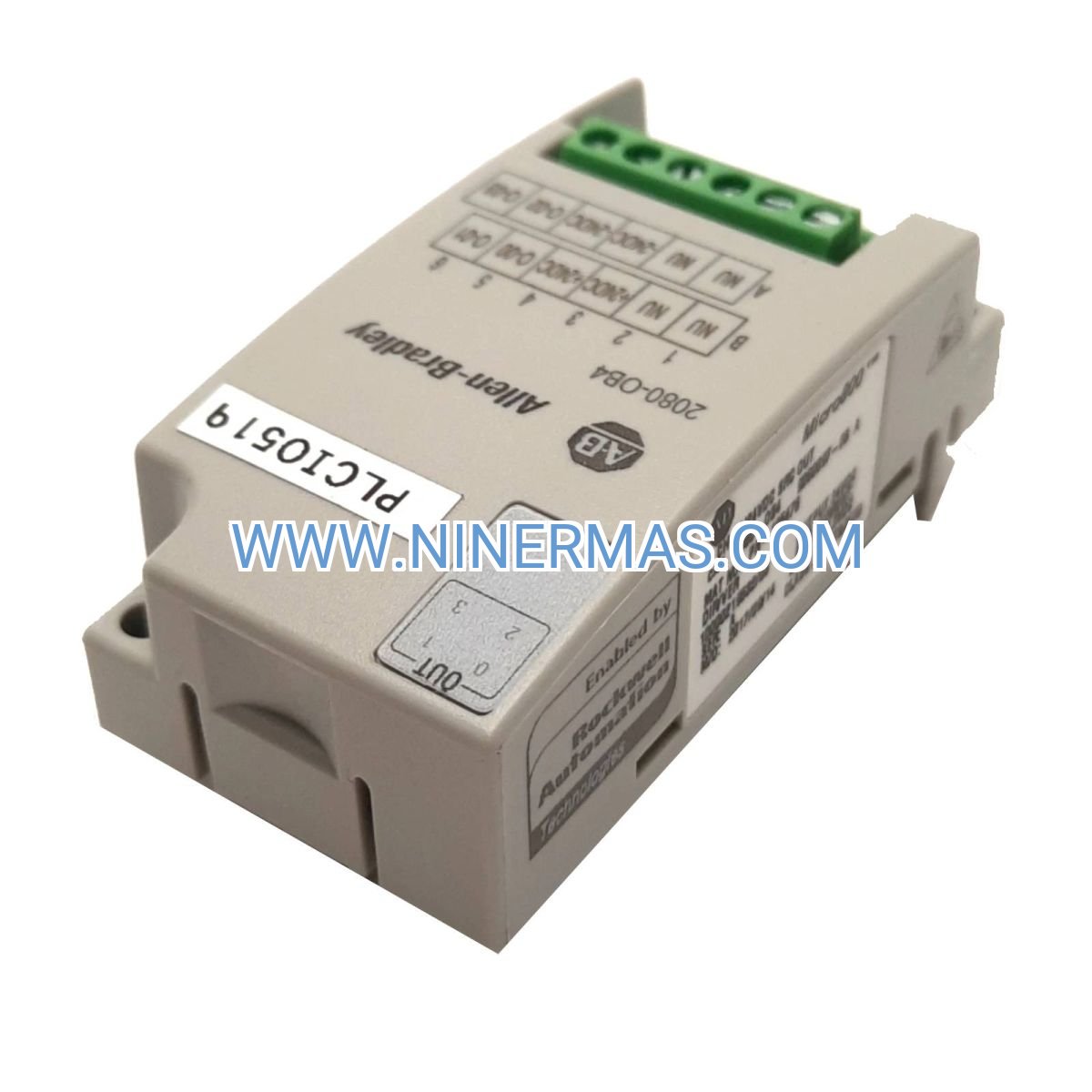

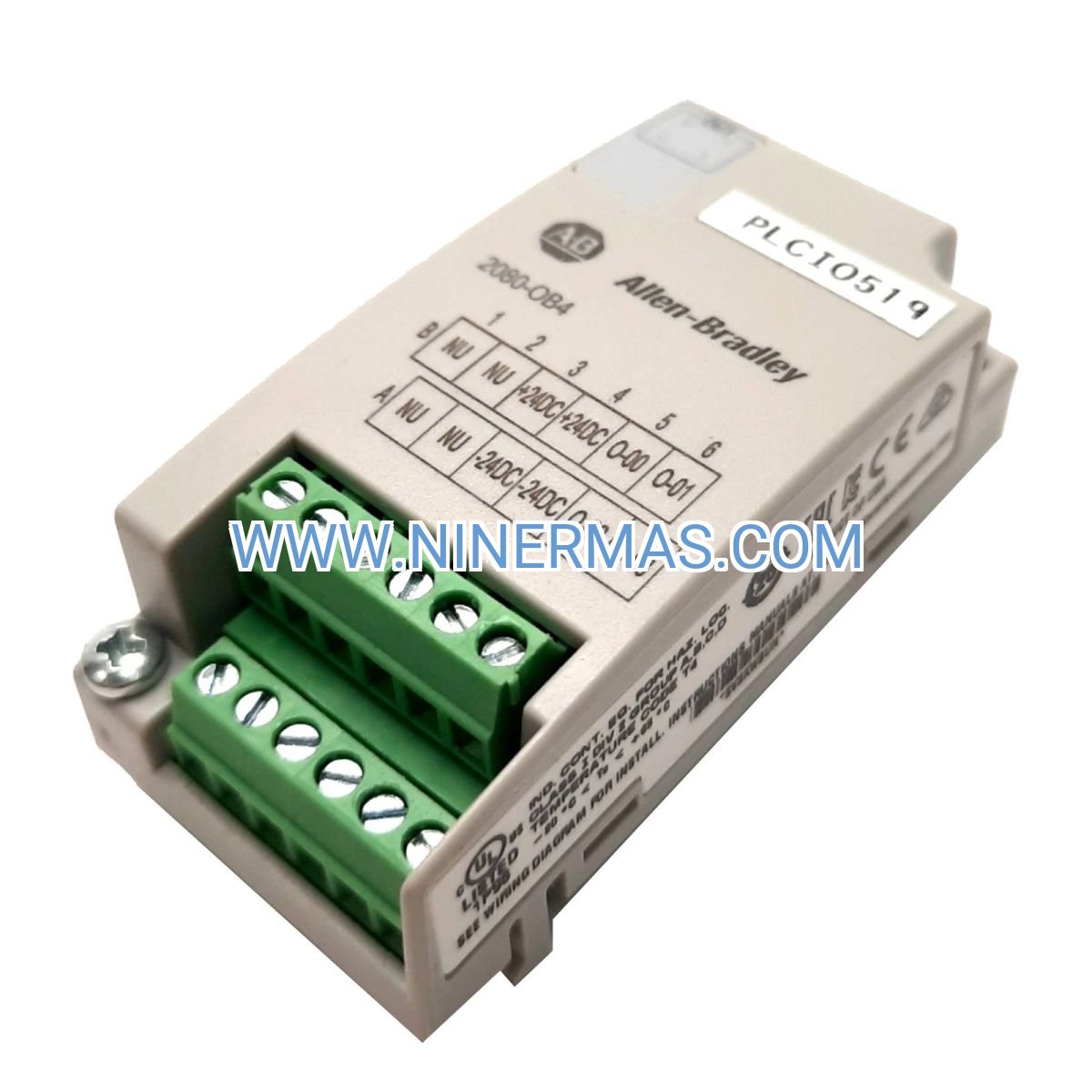

Allen-Bradley 2080-OB4 Digital Output Module (Industrial-Grade Sourcing I/O for Micro800 PLC Systems)

The Allen-Bradley 2080-OB4 is a professional 4-point digital output module designed for Micro800 series PLCs, delivering reliable 24V DC sourcing output through advanced solid-state switching technology. This plug-in I/O module enables precise control of solenoid valves, indicator lights, relays, and actuators in industrial automation environments.

Engineered for manufacturing facilities, process control systems, packaging lines, and building automation projects, the 2080-OB4 addresses critical challenges including output channel expansion limitations, signal isolation requirements, high-frequency switching demands, and harsh industrial environment protection needs.

Through standardized design and flexible configuration options, this module offers fast installation, excellent electromagnetic compatibility, robust overload protection, and seamless integration with Rockwell Automation ecosystems—ideal for system integrators, control panel builders, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration solutions and technical quotations.

Core Features & Technical Advantages

High-Performance Sourcing Output
Provides four independent 24V DC sourcing outputs with solid-state transistor switching, delivering fast response times (typically <1ms) and supporting high-frequency switching applications up to 20kHz, ideal for servo control and precision positioning systems.

Plug-and-Play Expansion Architecture
Hot-swappable plug-in design allows field replacement without powering down the entire system, reducing downtime by up to 85%. Auto-detection by Micro800 controllers eliminates manual configuration steps.

Industrial-Grade Protection Suite
Equipped with short-circuit protection, overload shutdown, reverse polarity protection, and surge suppression (up to 1500V), ensuring reliable operation in electrically noisy environments and extending module lifespan beyond 100,000 operating hours.

Compact Footprint with High Density
Space-efficient design (90mm × 40mm × 70mm) enables up to 12 modules per standard DIN rail section, maximizing cabinet space utilization while maintaining proper heat dissipation and serviceability.

Comprehensive Diagnostic Capabilities
Individual channel status LEDs provide instant visual feedback; integrated diagnostics report fault conditions to the controller in real-time, enabling predictive maintenance and reducing troubleshooting time by 60%.

Wide Operating Temperature Range
Certified for -20°C to +60°C ambient operation with conformal coating option for humidity resistance, suitable for outdoor enclosures, cold storage facilities, and high-temperature production areas.

Typical Application Scenarios

This module excels in applications requiring stable output control, rapid switching capability, and long-term reliability, particularly in:

Automated Manufacturing & Assembly Lines
Controls pneumatic actuators, conveyor motors, and robotic gripper solenoids in automotive, electronics, and consumer goods production, ensuring synchronized multi-station operations with sub-millisecond timing accuracy.

Process Control & Chemical Dosing Systems
Manages metering pump activation, valve sequencing, and alarm annunciation in water treatment plants, pharmaceutical batching, and food & beverage processing, meeting FDA 21 CFR Part 11 compliance requirements.

Packaging & Material Handling Equipment
Drives label applicators, reject gates, and diverter mechanisms in high-speed packaging lines (up to 300 cycles/min), reducing product damage and improving throughput consistency.

Building Automation & HVAC Control
Operates damper actuators, pump starters, and lighting contactors in commercial buildings and data centers, integrating with BACnet/IP and Modbus TCP networks for centralized energy management.

Machine Tool & CNC Equipment
Interfaces with coolant pumps, chip conveyors, and tool changer solenoids in machining centers, providing deterministic I/O response critical for precision manufacturing operations.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key electrical and mechanical parameters below. Custom configurations are available for specialized project requirements.

Electrical Characteristics:

• Output Type: 24V DC Sourcing (PNP)
• Number of Points: 4 independent channels
• Output Current: 0.5A per point (2A total module maximum)
• Voltage Range: 19.2V to 28.8V DC
• Isolation: 1500V AC optical isolation (field to logic)
• Response Time: ON delay <0.5ms, OFF delay <1.0ms
• Switching Frequency: Up to 20kHz (resistive load)

Mechanical & Environmental:

• Mounting: DIN rail (35mm) or panel mount
• Dimensions: 90mm (H) × 40mm (W) × 70mm (D)
• Weight: Approximately 150g
• Protection Rating: IP20 (IP65 with optional enclosure)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Vibration: IEC 60068-2-6 compliant

Compatibility & Integration:

• Compatible Controllers: Micro820, Micro830, Micro850, Micro870 series
• Programming Software: Connected Components Workbench (CCW)
• Communication: Integrated via controller backplane (no separate wiring)
• Certifications: UL Listed, CE marked, RoHS compliant

Selection Recommendations:
When specifying this module, consider: total output current requirements (ensure sum of all loads ≤2A), load type (inductive loads may require external flyback diodes), environmental conditions (temperature, humidity, vibration), cabinet space constraints, and future expansion needs. For systems requiring >4 outputs, multiple modules can be daisy-chained on the same backplane. Our application engineers can assist with load calculations, wiring diagrams, and panel layout optimization—please provide your process flow diagram, I/O list, and electrical single-line drawing for customized recommendations.

Advanced Integration Capabilities

Seamless Rockwell Ecosystem Integration
Native compatibility with FactoryTalk View HMI, Studio 5000 Logix Designer (via gateway), and Arena simulation software enables unified programming, visualization, and virtual commissioning workflows.

Industrial IoT & Remote Monitoring
When paired with Micro800 controllers featuring Ethernet connectivity, supports MQTT publish/subscribe for cloud-based condition monitoring, OPC UA for MES/ERP integration, and RESTful API for mobile app development.

Cybersecurity Features
Firmware-level access control, encrypted configuration files, and audit logging capabilities help meet IEC 62443 industrial cybersecurity standards for critical infrastructure applications.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules (e.g., conformal coating, extended temperature rating) require 10-15 business days. Expedited shipping options available for urgent project needs.

Warranty & Support:
All modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (up to 36 months) available for critical applications. Technical support includes remote diagnostics assistance, on-site commissioning services (region-dependent), and access to our 24/7 engineering hotline.

Documentation Package:
Each shipment includes: detailed installation manual (multi-language), electrical wiring diagrams with terminal assignments, sample ladder logic code for common applications, dimensional drawings in DXF/PDF formats, and calibration certificates traceable to NIST standards.

Quality Certifications:
Manufactured in ISO 9001:2015 certified facilities with 100% functional testing, burn-in screening, and environmental stress testing per MIL-STD-810G protocols. Full material traceability and conflict minerals compliance documentation available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the 2080-OB4 digital output module to my existing Micro800 PLC system?
A: The module uses a plug-in backplane connection—simply insert it into any available expansion slot on your Micro800 controller or expansion base. The controller will auto-detect the module upon power-up. Field wiring connects to the removable terminal block (18-22 AWG wire recommended). Refer to the quick-start guide for detailed terminal assignments and grounding requirements.

Q: What is the maximum number of output modules I can add to a single Micro800 controller?
A: The Micro820 supports up to 4 expansion modules, Micro830/850 up to 6 modules, and Micro870 up to 10 modules. Total I/O count is also limited by controller model (consult datasheet). For larger systems, consider using distributed I/O via EtherNet/IP adapters.

Q: What energy savings can I expect compared to relay-based output systems?
A: Solid-state outputs consume approximately 0.2W per active channel versus 2-3W for electromechanical relays, resulting in 85-90% reduction in I/O power consumption. For a 100-point system, this translates to ~200W savings and reduced cooling requirements. Additionally, elimination of relay coil inrush current reduces power supply sizing by 15-20%.

Q: What are the environmental requirements for installation? Can it be used in outdoor enclosures?
A: The module is rated IP20 for standard indoor installations. For outdoor or washdown environments, install in a NEMA 4X/IP65 rated enclosure with adequate ventilation (recommend forced-air cooling above 50°C ambient). Conformal coating option (specify at order) provides additional protection against humidity, dust, and corrosive atmospheres. Operating temperature range is -20°C to +60°C; for extreme cold applications, use enclosure heaters.

Q: Does the module support remote monitoring and predictive maintenance?
A: Yes—when used with Ethernet-enabled Micro800 controllers, diagnostic data (output current, thermal status, fault history) can be accessed via Modbus TCP, EtherNet/IP, or OPC UA protocols. Integration with FactoryTalk Analytics or third-party SCADA systems enables trend analysis, alarm notification, and remaining useful life prediction based on switching cycle counts.

Q: Can I control inductive loads like solenoid valves and motor contactors directly?
A: Yes, but inductive loads require external flyback diodes (1N4007 or equivalent) installed across the load to suppress voltage spikes during turn-off. For highly inductive loads (>50mH), consider using RC snubber networks. The module's built-in surge protection handles transients up to 1500V, but proper load suppression extends module lifespan and prevents false triggering of adjacent channels.

Request Custom Configuration & Technical Support

To receive a tailored I/O solution, detailed selection guide, or project quotation, please provide the following information to our engineering team:

• Project name and application description
• Total number of digital outputs required (current and future expansion)
• Load specifications (type, voltage, current per channel)
• Environmental conditions (temperature range, humidity, vibration, IP rating)
• Controller model and existing I/O configuration
• Communication protocol requirements (if any)
• Delivery timeline and quantity needed

Our certified application engineers will respond within 24 hours with customized recommendations, wiring diagrams, and budget pricing. For complex systems, we offer complimentary design review and virtual commissioning support.
