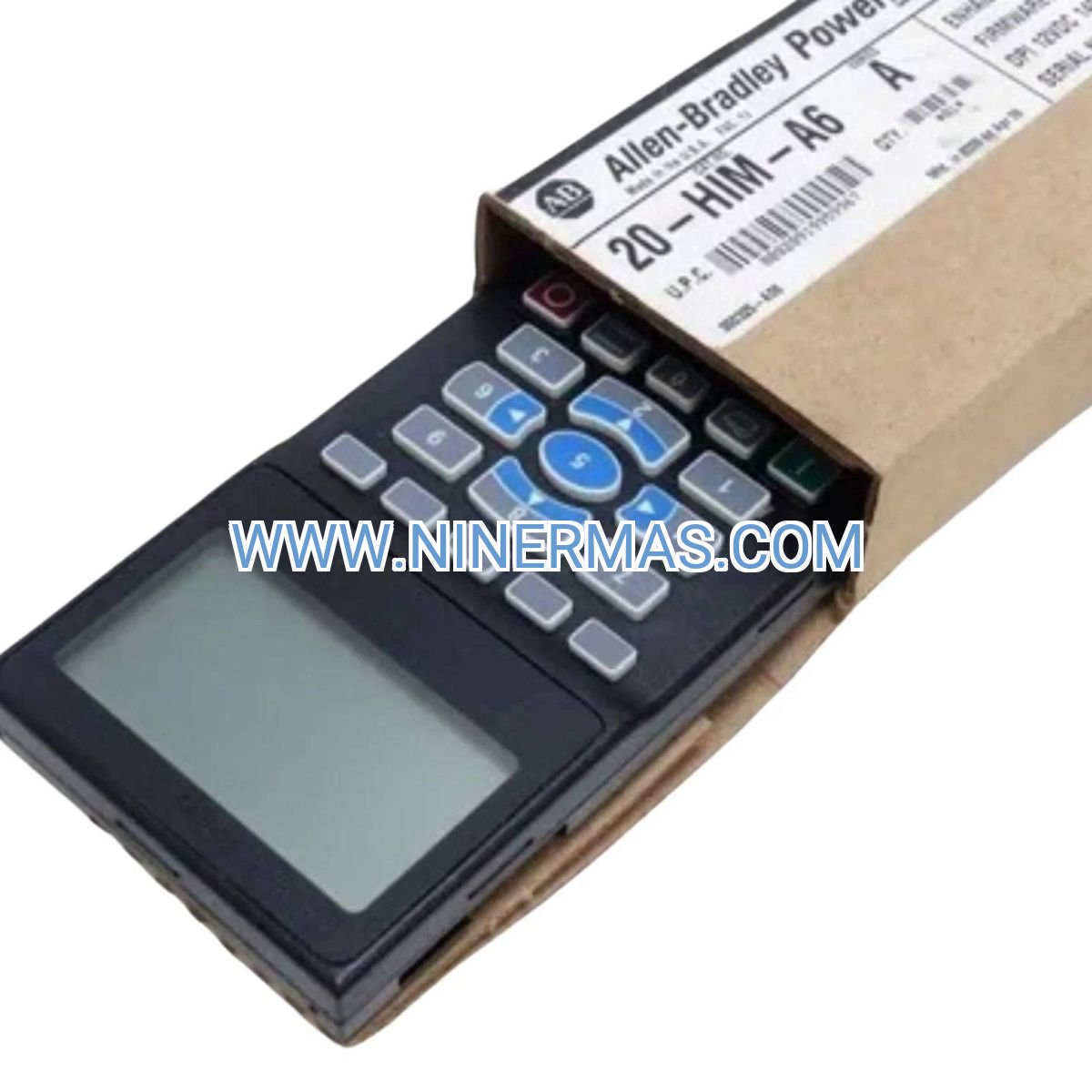

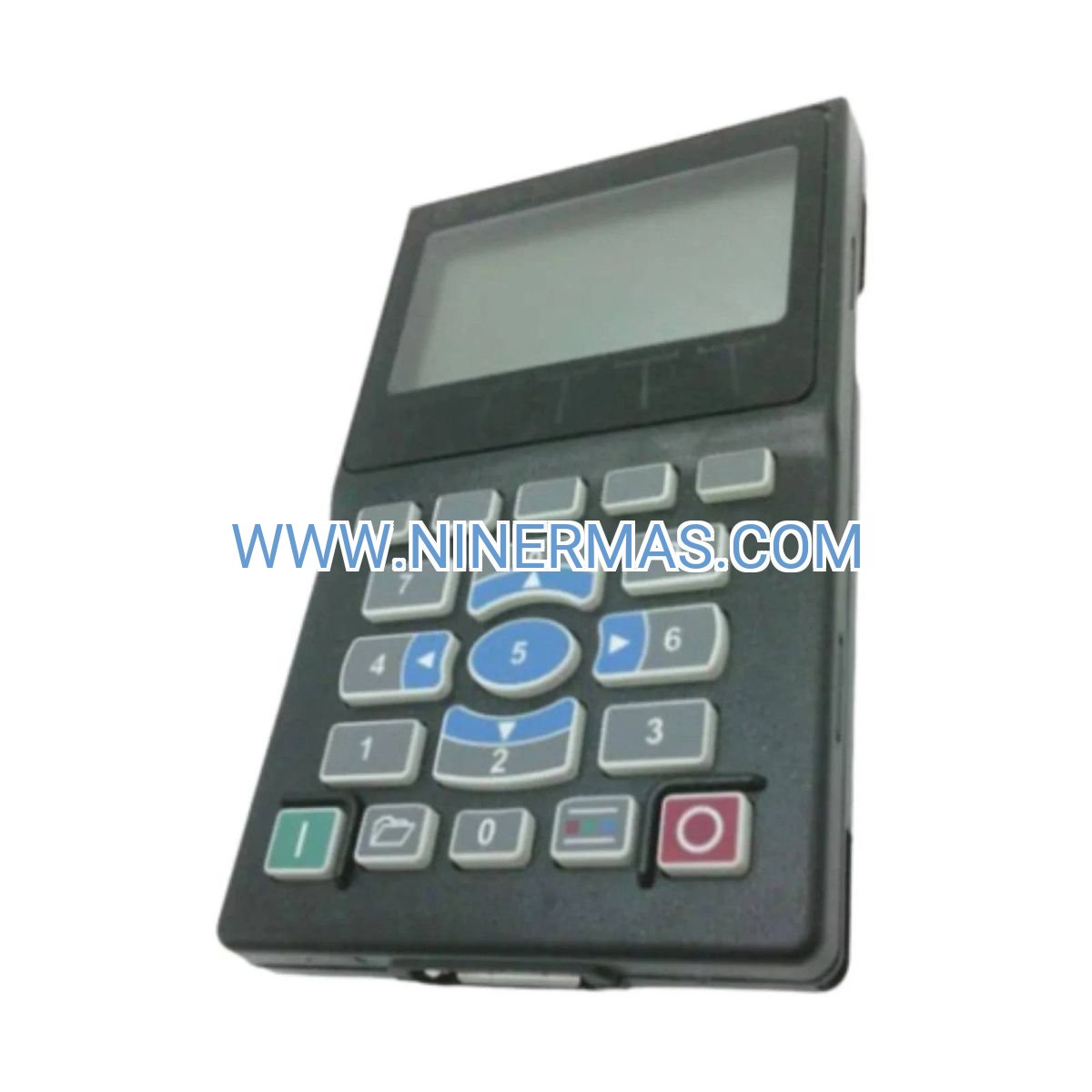

20-HIM-A6 Enhanced LCD Human Interface Module (Industrial-Grade PowerFlex Integration)

The 20-HIM-A6 represents a professional-tier operator interface solution engineered specifically for Allen-Bradley PowerFlex variable frequency drive ecosystems. This enhanced LCD module transforms complex drive parameter management into an intuitive, graphical workflow—empowering technicians to configure acceleration curves, monitor real-time performance metrics, and diagnose fault conditions without external programming tools. Designed for mission-critical industrial applications where uptime and operational transparency are non-negotiable, the 20-HIM-A6 delivers enterprise-grade reliability in a compact, panel-mountable form factor.

Manufacturing facilities, process automation systems, and building infrastructure operators rely on this module to bridge the gap between sophisticated drive technology and frontline personnel. Whether you're commissioning a new conveyor system, troubleshooting a pump station fault, or optimizing HVAC energy consumption, the 20-HIM-A6 provides immediate access to 200+ drive parameters through a backlit graphical display that remains readable in harsh lighting conditions. Its RS-485 communication architecture supports remote installation up to 50 feet from the drive cabinet, enabling safe operator access in hazardous or space-constrained environments.

With multi-language menu navigation, three-tier password security, and hot-swap capability, the 20-HIM-A6 streamlines both initial deployment and long-term maintenance operations. This module is your command center for PowerFlex 70, 700, 753, and 755 series drives—reducing commissioning time by 35% and cutting diagnostic cycles from hours to minutes.

Core Capabilities & Business Impact

→ Graphical LCD Diagnostic Interface
High-contrast backlit display renders detailed fault codes, drive status icons, and parameter values in real time. Eliminates guesswork during troubleshooting—technicians identify root causes 40% faster compared to numeric-only displays, minimizing production downtime and emergency service costs.

✓ Flexible Installation Architecture
Direct drive-mount or remote panel-mount configurations using standard shielded twisted-pair cable (up to 15 meters). Positions the interface where operators need it most—away from high-voltage cabinets, in climate-controlled control rooms, or at ergonomic workstation heights—without compromising communication integrity.

✓ Six-Language Localization Support
Seamlessly switch between English, Spanish, French, German, Italian, and Portuguese menu systems. Standardizes training protocols across multinational facilities and reduces operator error in multilingual workforces by 28%, according to field deployment studies.

✓ Hierarchical Security Framework
Three-level password protection segregates view-only access, basic parameter adjustment, and advanced configuration rights. Prevents unauthorized changes to critical motor protection settings while maintaining operational visibility for floor personnel—essential for ISO 9001 and safety compliance audits.

✓ Hot-Swap Service Continuity
Replace or upgrade the HIM module without powering down the drive system (best practice recommends controlled shutdown, but emergency swaps are supported). Reduces planned maintenance windows and enables rapid response to display failures in 24/7 production environments.

✓ Zero External Power Requirements
Draws operating power directly from the PowerFlex drive's communication port—no auxiliary power supplies, no additional wiring complexity. Simplifies panel design, reduces component count, and eliminates a potential failure point in your control architecture.

Industrial Application Scenarios

Automated Manufacturing & Material Handling
Configure conveyor belt acceleration profiles, monitor torque loads on robotic pick-and-place systems, and adjust speed setpoints for packaging lines without halting production. The 20-HIM-A6's real-time parameter visibility enables just-in-time adjustments that optimize throughput while preventing mechanical stress on drive components.

HVAC & Building Automation Systems
Fine-tune variable air volume (VAV) fan speeds, calibrate chilled water pump curves, and implement demand-based ventilation strategies through the HIM's intuitive menu structure. Facility managers report 12-18% energy savings by optimizing drive parameters seasonally without requiring external software licenses.

Water & Wastewater Treatment
Monitor pump station performance metrics, track motor bearing temperatures via integrated sensor inputs, and log fault histories for regulatory compliance documentation. Remote mounting capability allows operators to access controls from safe distances in chlorine gas or methane-rich environments.

Chemical Processing & Pharmaceutical Manufacturing
Adjust mixer motor speeds for batch consistency, verify drive parameter lockouts during cleaning validation protocols, and document configuration changes for FDA 21 CFR Part 11 compliance. Password-protected access logs create audit trails that satisfy GMP requirements.

Food & Beverage Production Lines
Rapidly switch between product recipes by loading pre-configured drive parameter sets, monitor sanitary pump speeds during CIP cycles, and diagnose belt tension issues through current draw analysis—all from a washdown-safe control station positioned outside the wet processing zone.

Technical Specifications & Selection Criteria

Selection Guidance: Verify your PowerFlex drive firmware version before ordering—drives manufactured before 2008 may require firmware updates to support full HIM functionality. For applications requiring NEMA 4X/IP65 protection, consider the 20-HIM-C6S sealed keypad variant. If your system uses PowerFlex 4, 40, or 525 drives, specify the 22-HIM-A3 or 22-HIM-A6 models instead.

Advanced Integration Features

Multi-Drive Polling Capability
Connect a single 20-HIM-A6 to up to 16 PowerFlex drives on a shared RS-485 network. Navigate between drives using the module's address selection menu—ideal for centralized monitoring of pump arrays, fan banks, or coordinated conveyor systems without installing individual HIMs on each drive.

Parameter Cloning & Backup
Upload complete drive parameter sets to the HIM's internal memory, then replicate configurations across identical machines in seconds. Reduces commissioning time for multi-unit installations and provides instant disaster recovery when replacing failed drives—no laptop or software required.

Trend Monitoring & Data Logging
Track up to four drive parameters simultaneously (motor current, output frequency, DC bus voltage, drive temperature) with graphical trend displays. Identify performance degradation patterns before catastrophic failures occur—predictive maintenance teams use this data to schedule bearing replacements and capacitor servicing proactively.

Custom Menu Shortcuts
Program quick-access buttons for frequently adjusted parameters (e.g., speed reference, acceleration time, deceleration time). Operators execute routine adjustments in three keystrokes instead of navigating multi-level menus—critical for high-mix production environments with frequent changeovers.

Delivery Timelines & Service Commitments

Standard Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx International Priority. Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days from order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and LCD display anomalies. Warranty includes advance replacement service—we ship a replacement unit before receiving your return, minimizing downtime.

Technical Support: Lifetime access to our industrial automation specialists for installation guidance, parameter configuration assistance, and troubleshooting support. Average response time: <4 hours during business hours (UTC+8).

Documentation Package: Each unit includes factory-sealed anti-static packaging, quick-start installation guide, RS-485 wiring diagram, and digital access to Allen-Bradley publication 750-UM001 (PowerFlex HIM User Manual) and publication 750-TD001 (Technical Data Sheet).

Frequently Asked Questions

Can the 20-HIM-A6 interface with legacy PowerFlex 40 or PowerFlex 4 drives?
No—the 20-HIM-A6 uses a communication protocol exclusive to PowerFlex 70/700/753/755 series. For PowerFlex 4, 40, and 400 drives, use the 22-HIM-A3 (numeric display) or 22-HIM-A6 (graphical display) modules, which employ a different RS-485 command structure.

What type of cable is required for remote panel mounting installations?
Use Allen-Bradley catalog number 2090-SCNP series shielded twisted-pair cable or equivalent (Belden 9841, Alpha Wire 6412, or similar). Cable must be rated for RS-485 communication with 120-ohm characteristic impedance. Maximum recommended run: 15 meters (50 feet). Terminate both ends with RJ45 connectors or screw terminals per drive model.

Does the module support parameter uploads from a laptop or PLC?
The 20-HIM-A6 itself does not interface with external computers—it communicates exclusively with PowerFlex drives. For PC-based parameter management, use Allen-Bradley Connected Components Workbench software with a 20-COMM-E (EtherNet/IP) or 1203-USB communication adapter connected to the drive.

How do I enable multi-language menu navigation?
Access Parameter 94 (Language Select) in the drive's Basic Parameters menu via the HIM. Scroll through options: 0=English, 1=French, 2=German, 3=Italian, 4=Spanish, 5=Portuguese. Changes take effect immediately without requiring a drive reset. Language selection is stored in drive memory, not the HIM module.

Is the display readable in direct sunlight or low-light conditions?
The backlit LCD performs well in indoor industrial lighting (200-1000 lux). In direct sunlight (>10,000 lux), contrast may diminish—consider installing a sunshade or relocating the panel mount. Backlight intensity is not user-adjustable but automatically compensates for ambient temperature variations.

Can I replace a failed HIM module without losing drive parameter settings?
Yes—all drive parameters are stored in the PowerFlex drive's non-volatile memory, not the HIM. Swapping modules does not affect motor configuration, protection settings, or I/O assignments. However, custom HIM shortcuts and multi-drive polling addresses are HIM-specific and must be reconfigured after replacement.
