Allen-Bradley 20-COMM-D PowerFlex DeviceNet Adapter | Industrial Communication Module

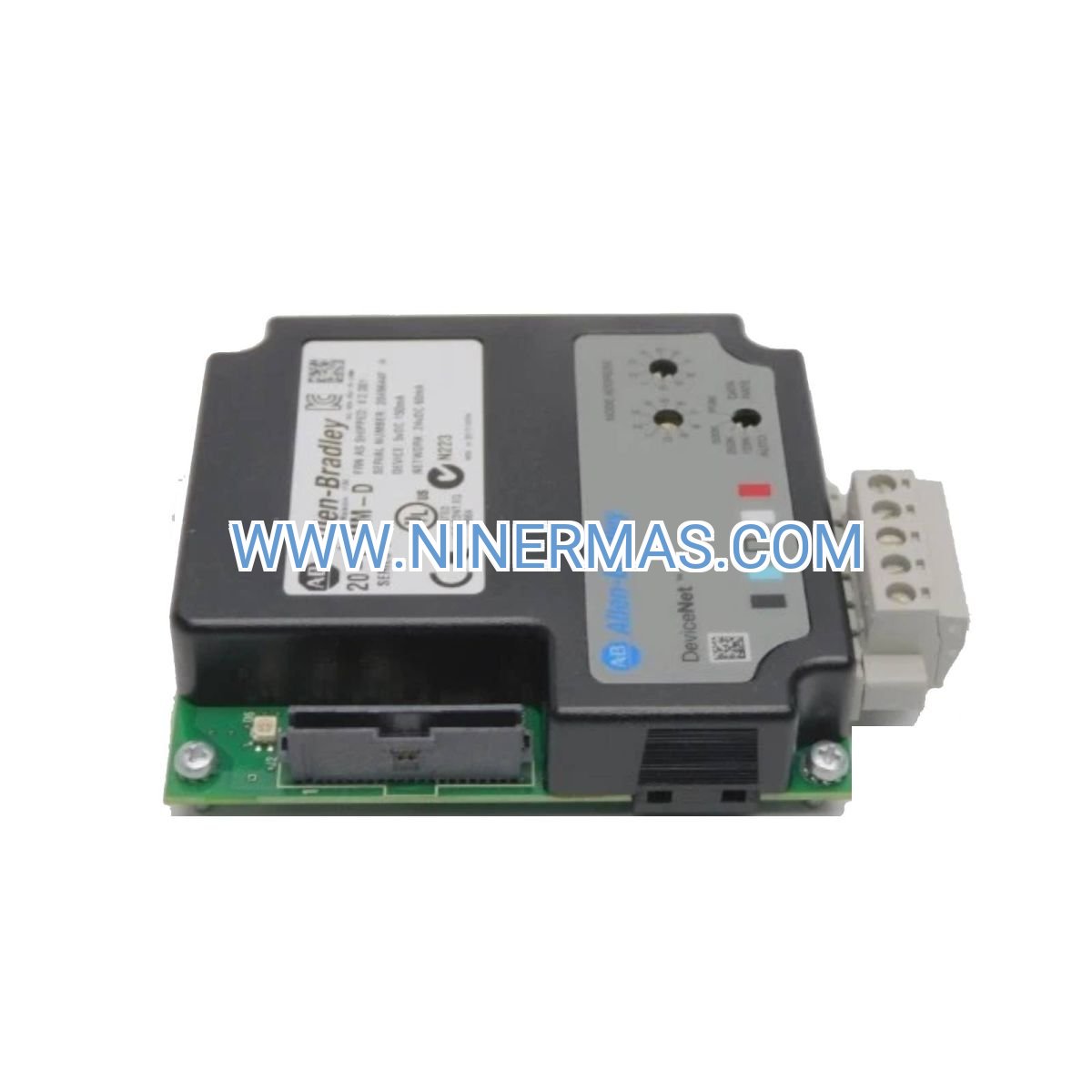

Allen-Bradley 20-COMM-D PowerFlex DeviceNet Communication Adapter (Industrial Network Integration Module)

The Allen-Bradley 20-COMM-D is a high-performance DeviceNet communication adapter designed for PowerFlex series AC drives, enabling seamless integration into DeviceNet industrial networks through advanced protocol conversion and real-time data exchange. By leveraging DeviceNet's open network architecture and CIP (Common Industrial Protocol) messaging, this module delivers precise drive parameter configuration, operational status monitoring, and fault diagnostics capabilities.

Ideal for distributed motor control systems in automotive assembly lines, material handling conveyors, packaging machinery, HVAC variable air volume (VAV) systems, and water/wastewater treatment plants, the 20-COMM-D addresses critical challenges including isolated drive islands, delayed fault response, manual parameter tuning inefficiencies, and limited multi-drive coordination. It empowers system integrators, control engineers, and OEM manufacturers to achieve centralized control architecture and predictive maintenance workflows.

Through standardized hardware design and flexible configuration options, this adapter offers plug-and-play installation, multi-vendor device interoperability, reduced commissioning time, enhanced system diagnostics transparency, and scalable network expansion. Suitable for design consultants, automation contractors, machine builders, and end-user facilities seeking reliable industrial communication solutions. Contact our application engineers for network topology design, device configuration files (EDS), and technical quotations.

Core Features & Technical Advantages

DeviceNet Protocol Compliance
Fully compliant with ODVA DeviceNet specifications, supporting explicit messaging for parameter access and I/O messaging for real-time control, ensuring interoperability with Allen-Bradley controllers (ControlLogix, CompactLogix) and third-party DeviceNet masters.

Seamless PowerFlex Integration
Factory-tested compatibility with PowerFlex 4, 40, 70, 400, 700, 750 series drives, enabling direct access to drive parameters, speed commands, start/stop control, and fault status via network communication without additional programming.

Real-Time Diagnostics & Monitoring
Provides continuous monitoring of drive operating conditions including output frequency, motor current, DC bus voltage, thermal status, and fault codes, with configurable alarm thresholds and event logging for proactive maintenance.

Reduced Wiring & Installation Costs
Replaces traditional hardwired I/O connections with a single DeviceNet trunk cable, reducing panel space requirements, simplifying cable routing, and lowering installation labor by up to 40% compared to point-to-point wiring.

Flexible Configuration Tools
Supports configuration via RSNetWorx for DeviceNet software, allowing offline device setup, network scanning, parameter upload/download, and diagnostic troubleshooting through intuitive graphical interfaces.

Robust Industrial Design
Conformal-coated PCB assembly with industrial-grade connectors, operating temperature range of 0–60°C (32–140°F), vibration resistance per IEC 60068-2-6, and EMC compliance to EN 61800-3 Category C3 for harsh industrial environments.

Typical Application Scenarios

This adapter is engineered for applications demanding reliable network-based drive control, distributed system architecture, and centralized monitoring capabilities, particularly in:

Automotive Manufacturing & Assembly Lines
Coordinates multiple conveyor drives, robotic work cells, and paint booth ventilation systems via DeviceNet backbone, enabling synchronized motion control and centralized fault management from PLC or SCADA platforms.

Material Handling & Warehouse Automation
Integrates sortation conveyors, vertical lifts, and automated storage/retrieval systems (AS/RS) into unified control networks, supporting dynamic speed adjustments, zone control logic, and predictive maintenance analytics.

Packaging & Food Processing Equipment
Facilitates multi-axis coordination for filling machines, labeling systems, and palletizers, with recipe-based parameter switching and production data logging for OEE (Overall Equipment Effectiveness) tracking.

HVAC & Building Automation Systems
Connects variable frequency drives for air handling units, chiller pumps, and cooling tower fans to building management systems (BMS), enabling demand-based control, energy optimization, and remote diagnostics.

Water & Wastewater Treatment Plants
Networks pump drives, blower controls, and chemical dosing systems for centralized SCADA monitoring, flow-pacing control strategies, and compliance reporting with minimal field wiring.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide standardized specifications and application-specific configuration guidance:

Key Technical Parameters:

• Network Protocol: DeviceNet (ODVA compliant)
• Communication Speed: 125 kbps, 250 kbps, 500 kbps (selectable via rotary switch)
• Compatible Drives: PowerFlex 4, 40, 70, 400, 700, 750 series
• Node Address Range: 0–63 (configurable via rotary switch or software)
• Power Supply: Derived from DeviceNet network (11–25V DC)
• Current Consumption: Typically 50 mA @ 24V DC
• Connector Type: 5-pin DeviceNet open-style connector
• Mounting: DIN rail or panel mount (adapter bracket included)
• Operating Temperature: 0–60°C (32–140°F)
• Storage Temperature: -40–85°C (-40–185°F)
• Humidity: 5–95% RH, non-condensing
• Enclosure Rating: IP20 (when properly installed)
• Certifications: UL, cUL, CE, RCM

Selection Considerations:
When specifying the 20-COMM-D adapter, consider the following system parameters: total number of DeviceNet nodes on the network segment, required communication baud rate, drive model and firmware revision compatibility, available panel mounting space, and environmental conditions (temperature, humidity, vibration). For custom network architectures or multi-drop configurations, consult with our application engineers who can provide network loading calculations, cable length guidelines, and EDS file integration support.

Advanced Configuration & Integration Options

Network Topology Design: Supports trunk-line/drop-line topology with T-tap connections, allowing flexible device placement and simplified troubleshooting. Maximum trunk length varies by baud rate (500m @ 125 kbps, 250m @ 250 kbps, 100m @ 500 kbps).

Parameter Mapping: Configurable I/O assembly instances enable custom mapping of drive parameters to DeviceNet input/output data, supporting application-specific control strategies and HMI integration.

Redundancy & Fault Tolerance: Compatible with DeviceNet scanner redundancy features in ControlLogix controllers, providing automatic failover for mission-critical applications.

Protocol Bridging: Can be integrated with EtherNet/IP or Modbus TCP networks via Allen-Bradley communication gateways, enabling multi-protocol system architectures.

Delivery, Service & Technical Support

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured or bulk orders may require 10–15 business days depending on quantity and specifications.

Warranty: Backed by a comprehensive 18-month manufacturer warranty covering defects in materials and workmanship, with extended warranty options available for critical applications.

Installation & Commissioning: Remote technical guidance provided via phone/email; on-site startup assistance and training available in select regions (subject to service agreement and travel costs).

Technical Documentation: Each unit ships with installation instructions, quick-start guide, DeviceNet EDS file (electronic data sheet), and wiring diagrams. Complete user manuals, application notes, and sample PLC code available for download from technical support portal.

Lifecycle Support: Access to firmware updates, obsolescence notifications, and migration planning assistance to ensure long-term system maintainability and investment protection.

Frequently Asked Questions (FAQ)

Q: How do I connect the 20-COMM-D DeviceNet adapter to my PowerFlex drive?
A: The adapter mounts directly onto the drive's communication option slot (typically located on the control board). Secure the module with the provided mounting screws, connect the DeviceNet trunk cable to the 5-pin connector, and configure the node address and baud rate using the rotary switches. Detailed installation steps are provided in the user manual.

Q: What is the maximum number of PowerFlex drives I can connect on a single DeviceNet network?
A: DeviceNet supports up to 64 nodes per network segment (addresses 0–63). However, practical limits depend on network loading, message update rates, and controller scan time. For systems with more than 32 drives, consult network loading calculations or consider segmenting into multiple DeviceNet networks.

Q: Can I monitor drive faults and alarms through the DeviceNet network?
A: Yes, the 20-COMM-D provides real-time access to drive fault codes, warning conditions, and operational status. You can configure the PLC or SCADA system to monitor these parameters continuously and trigger alarms or automated responses based on predefined conditions.

Q: Is the adapter compatible with non-Allen-Bradley DeviceNet masters?
A: Yes, the 20-COMM-D is ODVA DeviceNet compliant and can communicate with any DeviceNet scanner/master that supports standard DeviceNet protocols, including products from Siemens, Omron, and other vendors. EDS files ensure proper device recognition and configuration.

Q: What environmental protection does the adapter offer? Can it be used in washdown areas?
A: The adapter is rated IP20 for standard industrial environments. For washdown or outdoor applications, the drive and adapter should be installed in a NEMA 4X or IP65-rated enclosure with appropriate cable glands and environmental seals.

Q: Does the adapter support remote firmware updates or diagnostics?
A: Firmware updates are typically performed via the drive's main control interface or through connected programming software. Remote diagnostics (parameter monitoring, fault history) are fully supported through the DeviceNet network using RSNetWorx or compatible SCADA platforms.

Request Technical Support & Custom Solutions

For detailed application engineering, custom network design, technical specifications, or pricing quotations, please provide the following information to our team:

• Project name and application overview
• Number of PowerFlex drives and model numbers
• Required DeviceNet network topology and cable lengths
• Control system platform (PLC model, SCADA software)
• Environmental conditions and enclosure requirements
• Delivery timeline and installation support needs

Our application engineers will provide one-on-one consultation, network architecture recommendations, and comprehensive technical documentation to ensure successful system integration.
