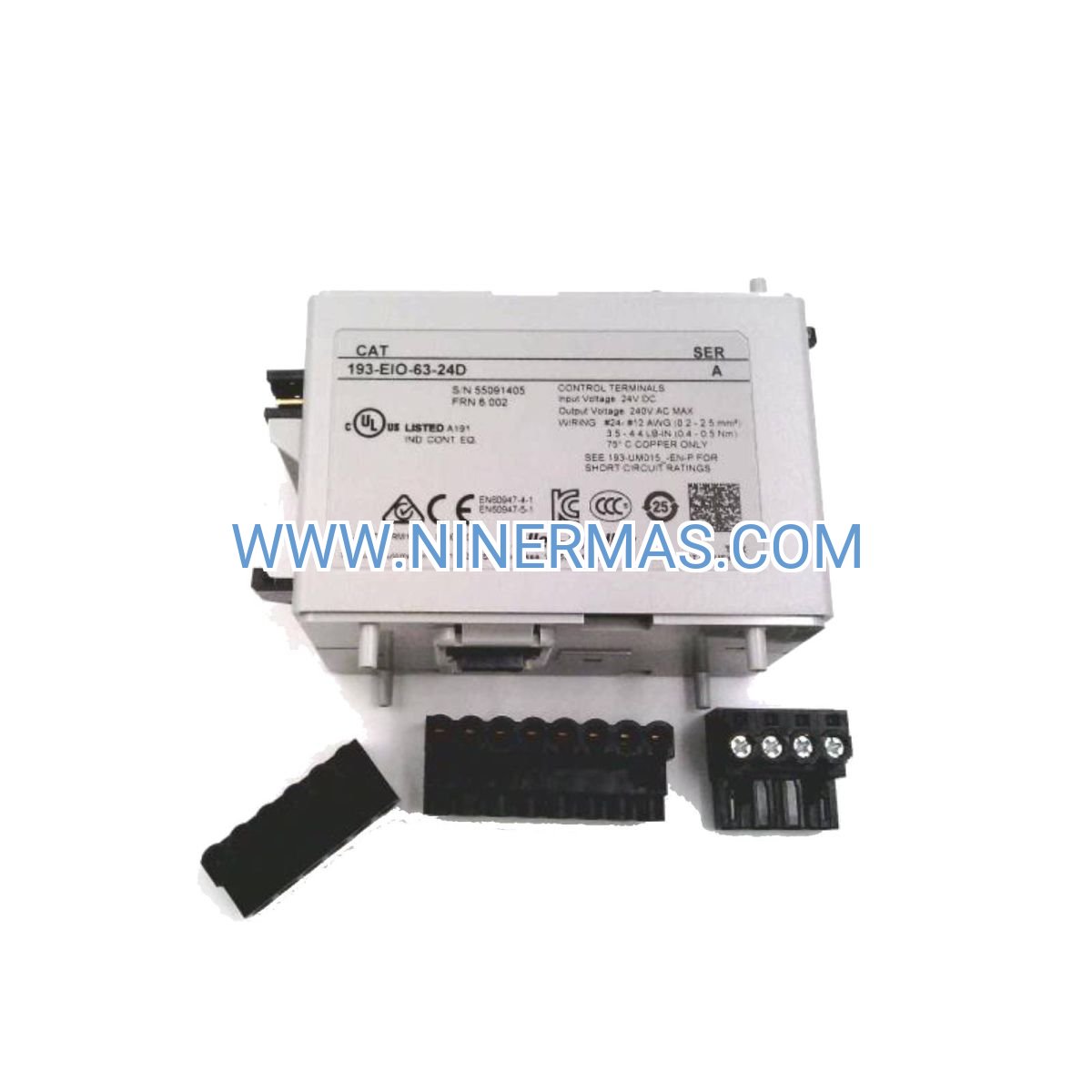

Allen-Bradley 193EIO6324D Digital I/O Control Module (Industrial Motor Protection System)

The Allen-Bradley 193EIO6324D is a precision-engineered digital input/output control module designed for seamless integration with E300 and E200 series motor protection relays. Through advanced digital signal processing and real-time communication protocols, this module enables comprehensive motor monitoring, fault diagnostics, and automated protection coordination across industrial control networks.

Ideal for manufacturing plants, process automation facilities, water treatment systems, HVAC installations, and material handling operations, this module addresses critical challenges including delayed fault response, limited diagnostic visibility, manual reset requirements, incompatible legacy system integration, and insufficient remote monitoring capabilities.

Engineered with standardized mounting configurations and flexible I/O mapping, the 193EIO6324D delivers factory-calibrated accuracy, industrial-grade reliability, and plug-and-play compatibility. Suitable for control engineers, system integrators, maintenance teams, and OEM equipment manufacturers seeking to enhance motor protection infrastructure. Contact our application engineers for customized configuration guidance and technical specifications.

Core Functions & Advantages

• Real-Time Digital Communication
  Bi-directional digital I/O interface enables instant status feedback and command execution between motor protection relays and control systems, reducing response time to critical fault conditions and improving overall system safety.
• Enhanced Diagnostic Capability
  Provides detailed operational data including trip history, thermal capacity usage, ground fault detection, and phase imbalance monitoring, allowing predictive maintenance strategies and minimizing unplanned downtime.
• Flexible Integration Architecture
  Compatible with multiple communication protocols and control platforms, supporting both new installations and retrofit projects. Seamlessly connects with PLCs, SCADA systems, and building management networks.
• Comprehensive Protection Coordination
  Supports advanced protection schemes including overload class selection, ground fault sensitivity adjustment, phase loss detection, and motor jam protection, ensuring optimal equipment protection across varying load conditions.
• Simplified Installation & Configuration
  Pre-configured terminal blocks, clear LED status indicators, and intuitive DIP switch settings reduce commissioning time by approximately 40% compared to traditional wiring methods, lowering installation labor costs.
• Industrial-Grade Durability
  Designed to withstand harsh industrial environments with wide operating temperature range (-20°C to +60°C), high electromagnetic immunity (EMC compliant), and robust enclosure protection (IP20 standard), ensuring long-term reliability in demanding applications.

Typical Application Scenarios

This digital I/O module is engineered for applications requiring precise motor protection coordination, continuous operation reliability, and comprehensive diagnostic feedback, particularly in:

• Manufacturing & Process Automation
  Protects critical production line motors, conveyor systems, and process pumps. Integrates with factory automation networks to provide centralized monitoring and coordinated shutdown sequences during fault conditions.
• Water & Wastewater Treatment
  Ensures reliable operation of pump motors in water distribution, sewage treatment, and irrigation systems. Enables remote monitoring of pump stations and automated response to abnormal operating conditions such as dry running or cavitation.
• HVAC & Building Systems
  Coordinates protection for chiller motors, cooling tower fans, and air handling units. Provides building management systems with detailed motor health data for energy optimization and preventive maintenance scheduling.
• Material Handling & Logistics
  Safeguards conveyor motors, crane drives, and automated storage systems. Supports zone-based control strategies and emergency stop coordination across distributed material handling networks.
• Oil & Gas, Mining Operations
  Protects motors in hazardous area applications (when used with appropriate enclosures), including pump jacks, compressors, and ventilation systems. Delivers critical fault data to remote operations centers for rapid response.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized electrical ratings, communication specifications, and environmental parameters. Custom configurations are available based on specific project requirements.

Selection Recommendations: When specifying this module, consider the following factors: motor protection relay model compatibility, required number of I/O points, control system communication protocol, panel space constraints, and environmental conditions. For applications requiring hazardous area certification, consult with our engineering team regarding appropriate enclosure solutions. Provide motor nameplate data, control architecture diagrams, and site environmental conditions for optimized configuration recommendations.

Advanced Integration Features

• Programmable Logic Functions – Configurable logic gates and timers enable custom protection sequences without external PLC programming
• Multi-Motor Coordination – Supports sequential starting, load shedding, and alternation control for multi-pump or multi-compressor systems
• Remote Reset Capability – Allows authorized personnel to reset motor protection trips from central control rooms, reducing response time
• Data Logging & Trending – Stores operational parameters and fault events for compliance documentation and performance analysis
• Cybersecurity Features – Password protection and access level control prevent unauthorized configuration changes

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock. Custom-configured modules require 10-15 business days for factory programming and testing.

Warranty Coverage: All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: Our application engineering team provides pre-sale consultation, configuration assistance, and post-installation troubleshooting support. Remote diagnostic services available for commissioned systems (subject to network connectivity).

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, I/O configuration tables, communication protocol specifications, and dimensional drawings in AutoCAD-compatible formats for seamless integration into project documentation.

Quality Certifications: Manufactured under ISO 9001 certified quality management systems. All units undergo factory acceptance testing including power-on verification, I/O functional testing, and communication protocol validation prior to shipment.

Frequently Asked Questions (FAQ)

Q: How does the 193EIO6324D Digital I/O Module integrate with existing E300/E200 motor protection relays?
A: The module connects directly to the relay's expansion port via a dedicated communication cable (typically included). Configuration is performed through the relay's front panel or PC-based software. The module automatically synchronizes with the relay's protection settings and provides mapped I/O points for external control integration. Detailed wiring diagrams are provided in the installation manual.

Q: What is the maximum number of I/O modules that can be connected to a single motor protection relay?
A: Most E300/E200 series relays support up to 2 expansion modules in a daisy-chain configuration, providing a total of 12 digital inputs and 6 relay outputs when using two 193EIO6324D modules. Consult the specific relay model documentation for exact expansion limits and addressing requirements.

Q: Can this module be used in hazardous area (Class I Div 2 or ATEX Zone 2) applications?
A: The module itself is not intrinsically safe or explosion-proof rated. However, it can be installed in hazardous areas when mounted inside an appropriately certified control panel or purged enclosure that meets local electrical code requirements. Consult with certified panel builders or our engineering team for compliant installation methods.

Q: What communication protocols are supported for integration with SCADA or PLC systems?
A: The 193EIO6324D supports Modbus RTU serial communication as standard. DeviceNet and EtherNet/IP options are available through alternative module variants (193-EIO-DN, 193-EIO-EN). Protocol selection should match your existing control system infrastructure. Gateway devices can also be used for protocol conversion if needed.

Q: Does the module require separate power supply, or is it powered by the motor protection relay?
A: The module requires an external 24V DC power supply (not included). It does not draw power from the motor protection relay to ensure electrical isolation and prevent relay malfunction in case of module power issues. A dedicated 24V DC industrial power supply rated for at least 10W is recommended.

Q: What diagnostic information can be accessed through the digital I/O module?
A: The module provides access to comprehensive relay status including trip cause identification, thermal capacity percentage, ground fault current levels, phase current imbalance, motor running hours, and start count. Specific data points available depend on the connected relay model and firmware version. Custom data mapping can be configured to prioritize critical parameters for your application.

Request Technical Support & Quotation

For detailed application engineering support, custom configuration assistance, or project quotations, please provide the following information to our technical sales team:

• Project name and application description
• Motor nameplate data (HP/kW, voltage, FLA, service factor)
• Existing motor protection relay model (if retrofit project)
• Control system communication requirements (protocol, baud rate)
• Required I/O point count and signal types
• Environmental conditions (temperature, humidity, enclosure type)
• Quantity required and delivery timeline

Our application engineers will respond within 24 business hours with tailored recommendations, configuration drawings, and competitive pricing.
