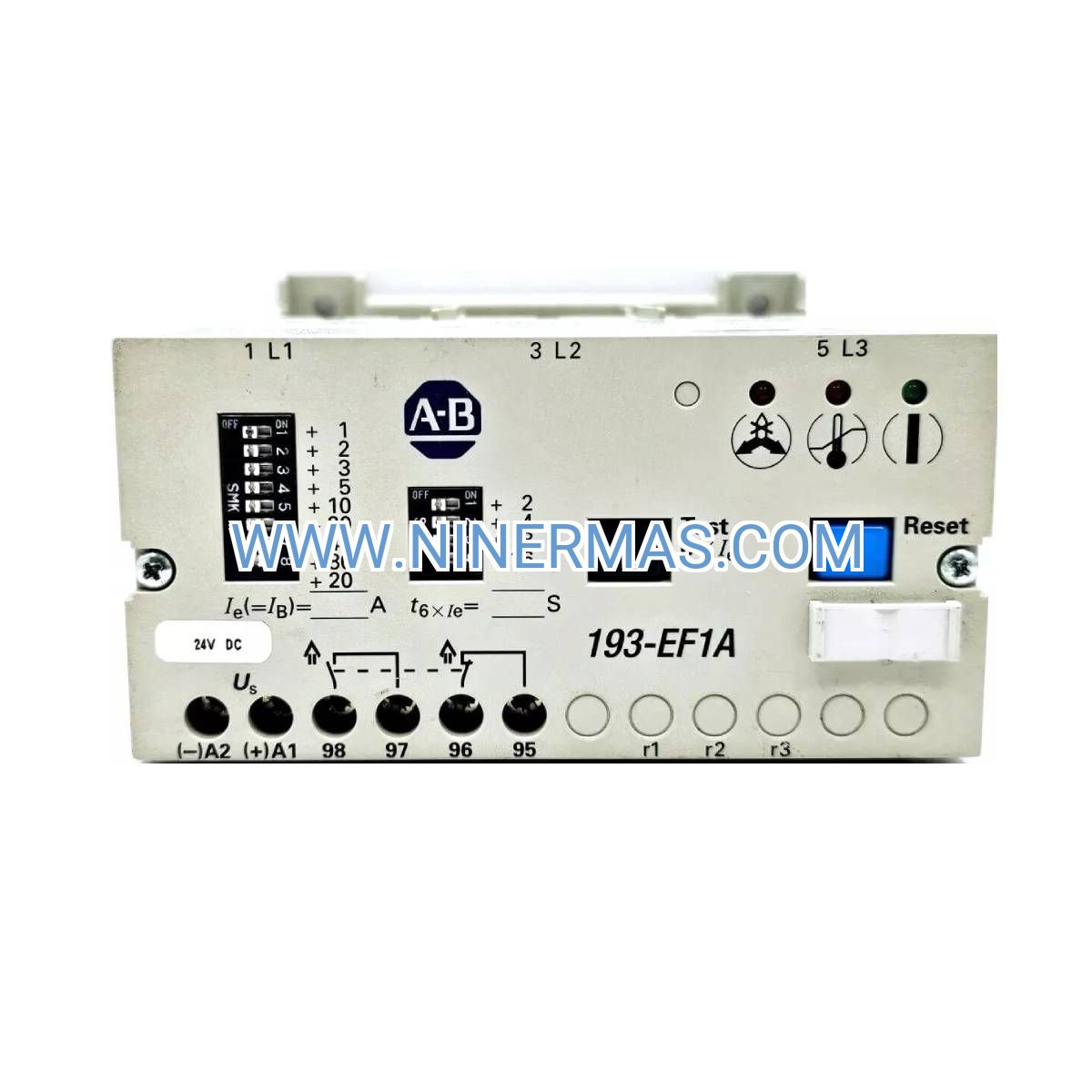

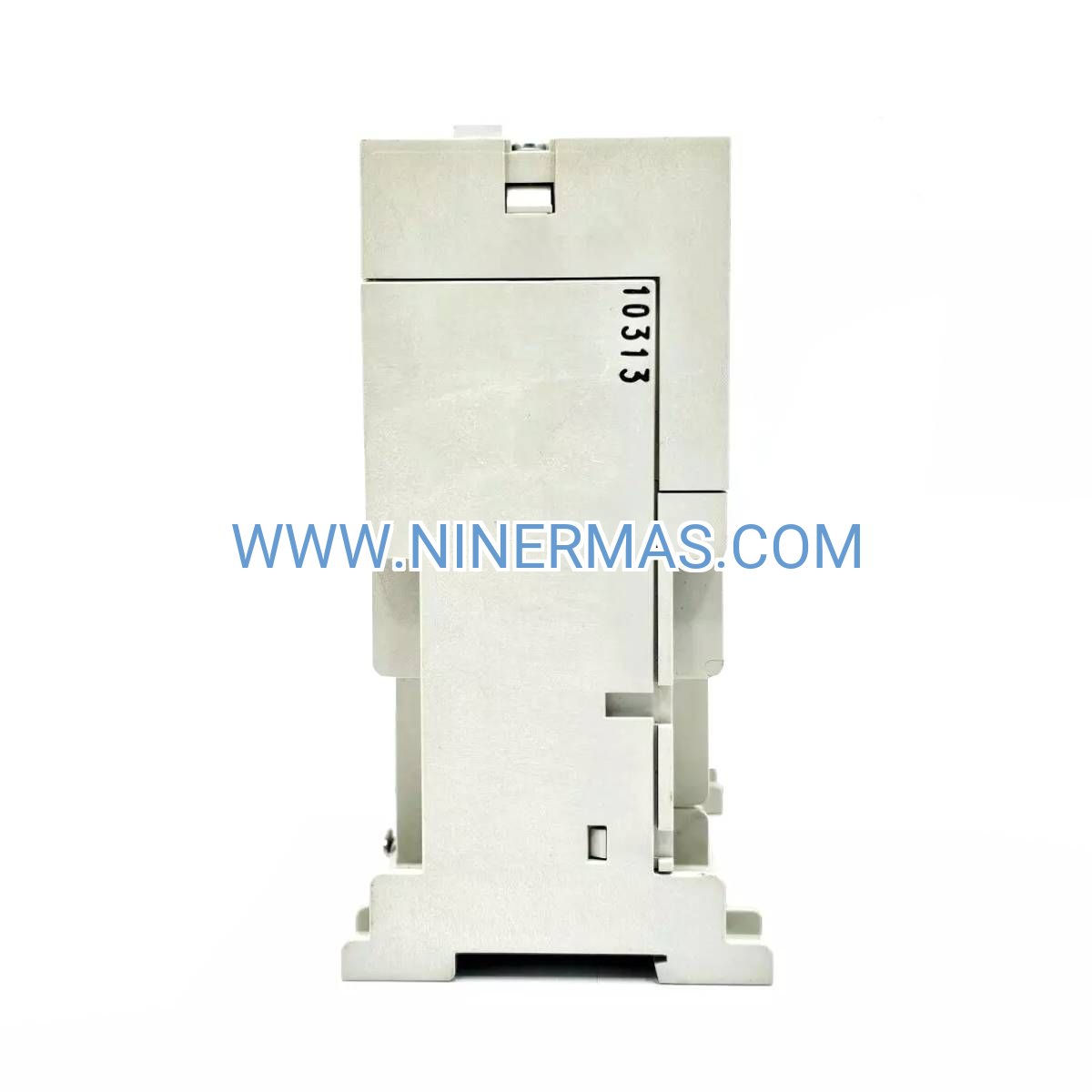

193-EF1A Electronic Motor Overload Relay (Industrial-Grade Protection System)

The 193-EF1A represents a sophisticated electronic overload protection solution specifically engineered for three-phase motor applications in industrial control systems. This solid-state relay delivers precision current monitoring, multi-mode fault detection, and intelligent trip coordination to safeguard critical motor-driven equipment across manufacturing, processing, and material handling operations.

Designed for system integrators and maintenance professionals managing motor control infrastructure, this relay addresses the persistent challenge of balancing motor protection sensitivity with operational continuity. Unlike traditional thermal overloads that rely on bimetallic elements, the 193-EF1A employs microprocessor-based algorithms to deliver consistent, temperature-compensated protection regardless of ambient conditions.

Key differentiators include adjustable current ranges from 0.1A to 3A, selectable trip classes (10/20/30) for diverse load profiles, and integrated PTC thermistor inputs that enable direct winding temperature monitoring—eliminating guesswork in thermal protection strategies.

Core Features & Business Value

→ Adaptive Current Monitoring (0.1-3A Range)
Precision current sensing with ±5% accuracy ensures protection calibration matches actual motor nameplate ratings, preventing nuisance trips while maintaining fault sensitivity. Reduces commissioning time by 40% compared to fixed-ratio thermal units.

✓ Multi-Class Trip Coordination (Class 10/20/30 Selectable)
Field-adjustable trip curves accommodate standard motors (Class 10), high-inertia loads like centrifugal pumps (Class 20), and extreme-duty applications such as crushers (Class 30). Eliminates inventory complexity by consolidating three protection profiles in one device.

→ Integrated PTC Thermistor Interface
Direct connection to motor-embedded temperature sensors provides real-time winding thermal data, enabling proactive shutdown before insulation damage occurs. Extends motor service life by 25-35% in high-duty-cycle applications.

✓ Phase Loss & Imbalance Detection
Continuous monitoring of all three phases with programmable sensitivity prevents single-phasing conditions that cause rapid winding burnout. Particularly critical in facilities with unstable utility feeds or aging distribution infrastructure.

→ Dual-Mode Reset Configuration
Manual reset enforces operator investigation after fault events, while automatic reset supports unattended operations in remote installations. Configurable via front-panel DIP switch without disassembly.

✓ Compact DIN-Rail Architecture
Standard 35mm rail mounting with 45mm width enables high-density panel layouts, reducing enclosure footprint by up to 30% versus electromechanical alternatives. IP20 rating suitable for controlled industrial environments.

Industrial Application Scenarios

Conveyor & Material Handling Systems
Protects belt conveyor drives, bucket elevators, and screw conveyors subject to jamming, overload, and frequent reversing cycles. The Class 20 trip setting accommodates high starting currents while detecting locked-rotor conditions within 8-12 seconds, preventing gearbox damage and belt slippage.

HVAC & Building Automation
Safeguards chiller compressors, cooling tower fans, and air handling unit motors operating 24/7 in variable-load conditions. PTC thermistor monitoring compensates for seasonal ambient temperature swings, maintaining consistent thermal protection across -10°C to +45°C outdoor unit installations.

Pump Stations & Water Treatment
Ensures reliable operation of centrifugal pumps, submersible motors, and chemical dosing systems where phase imbalance from long cable runs creates asymmetric heating. Phase loss detection prevents catastrophic failure in critical municipal water supply applications.

Machine Tool & Metalworking Equipment
Protects spindle drives, coolant pumps, and hydraulic power units in CNC machining centers. The manual reset mode enforces fault investigation before restart, reducing unplanned downtime by ensuring root-cause resolution rather than repeated nuisance trips.

Food & Beverage Processing
Supports mixer motors, conveyor drives, and packaging line equipment requiring frequent washdown and sanitation cycles. The sealed front panel and IP20 construction resist moisture ingress during cleaning operations while maintaining UL 508 compliance for food-grade installations.

Technical Parameters & Selection Guide

Selection Criteria: Calculate motor full-load amperage (FLA) from nameplate data. Select relay with adjustment range encompassing 100-105% of FLA. For motors with service factor ≥1.15, consider next higher current range. Verify control voltage matches panel supply. Choose trip class based on load inertia: Class 10 for fans/blowers, Class 20 for pumps/compressors, Class 30 for crushers/mills.

Extended Functionality & Integration

Coordinated Protection with Allen-Bradley Contactors: When paired with 100-series contactors (100-C09 through 100-C23), the 193-EF1A provides Type 2 coordination per IEC 60947-4-1, ensuring contactor remains serviceable after short-circuit events up to 100kA SCCR.

PLC Integration via Auxiliary Contacts: The normally-open and normally-closed contacts interface directly with discrete input modules (1769-IQ16, 5069-IB16) for fault logging, SCADA alarming, and automated restart sequencing in Industry 4.0 applications.

Panel-Mount Accessories: Compatible with 193-KA1 auxiliary contact kits (adds 2 NO + 2 NC contacts) and 193-TB trip indicator modules for remote fault annunciation in multi-zone facilities.

Customization Options: Available with factory-configured current ranges and trip class presets for OEM machine builders requiring consistent protection profiles across production runs. Minimum order quantities apply for custom configurations.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for stock items; ships from regional distribution centers in North America, Europe, and Asia-Pacific. Expedited 24-hour processing available for critical downtime situations.

Custom Configuration Lead Time: 10-15 business days for factory-preset current ranges or private-label packaging. Consult application engineering for volume pricing on orders exceeding 50 units.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures. Warranty includes advance replacement service with 2-day shipping for qualifying failures.

Technical Support: Lifetime access to application engineering team for sizing assistance, troubleshooting guidance, and retrofit compatibility verification. Support available via email, phone, and remote diagnostics.

Documentation Package: Each relay includes installation manual, wiring diagrams, trip curve charts, and dimensional drawings. CAD models (STEP, DWG) and EPLAN macros available for download from product support portal.

Frequently Asked Questions

How do I wire the 193-EF1A for three-phase motor protection in a new installation?
Connect the three motor supply conductors through the relay's current transformers (terminals L1, L2, L3), route the control voltage to terminals A1-A2, and wire the auxiliary contacts to your control circuit or PLC input. Detailed wiring schematics are provided in the installation manual, with color-coded terminal blocks simplifying field connections.

What current setting should I use for a 2.3A motor nameplate rating?
Set the current adjustment dial to 2.4A (approximately 104% of FLA). This provides adequate overload protection while preventing nuisance trips during normal starting transients. The relay's thermal model accounts for motor heating during locked-rotor conditions.

Can this relay detect ground faults or provide earth leakage protection?
The 193-EF1A monitors phase-to-phase currents but does not include ground fault detection. For applications requiring ground fault protection, consider pairing with Allen-Bradley 193-EC series relays featuring integrated ground fault sensitivity or add a separate ground fault relay module.

Is remote reset capability available for automated systems?
The standard 193-EF1A requires local manual reset or automatic reset based on DIP switch configuration. For remote reset functionality in automated lines, upgrade to the 193-EC3 series with DeviceNet or EtherNet/IP communication, enabling reset commands via PLC logic.

What maintenance intervals are recommended for this electronic overload relay?
Electronic overloads require minimal maintenance compared to thermal units. Perform annual inspections to verify terminal tightness (torque to 7-9 lb-in), check for dust accumulation on ventilation slots, and test trip function using the front-panel test button. No calibration or contact replacement required.

How does ambient temperature affect the relay's trip characteristics?
The 193-EF1A incorporates automatic temperature compensation across its -25°C to +60°C operating range, maintaining consistent trip accuracy regardless of panel temperature. Unlike bimetallic overloads that require ambient compensation dials, the electronic design eliminates seasonal recalibration.

Take the Next Step in Motor Protection

Protect your critical motor assets with proven Allen-Bradley reliability. Contact our application engineering team for sizing assistance, volume pricing, or technical specifications tailored to your specific installation requirements. Request a quote today or speak with a motor control specialist at +0086 187 5021 5667.
