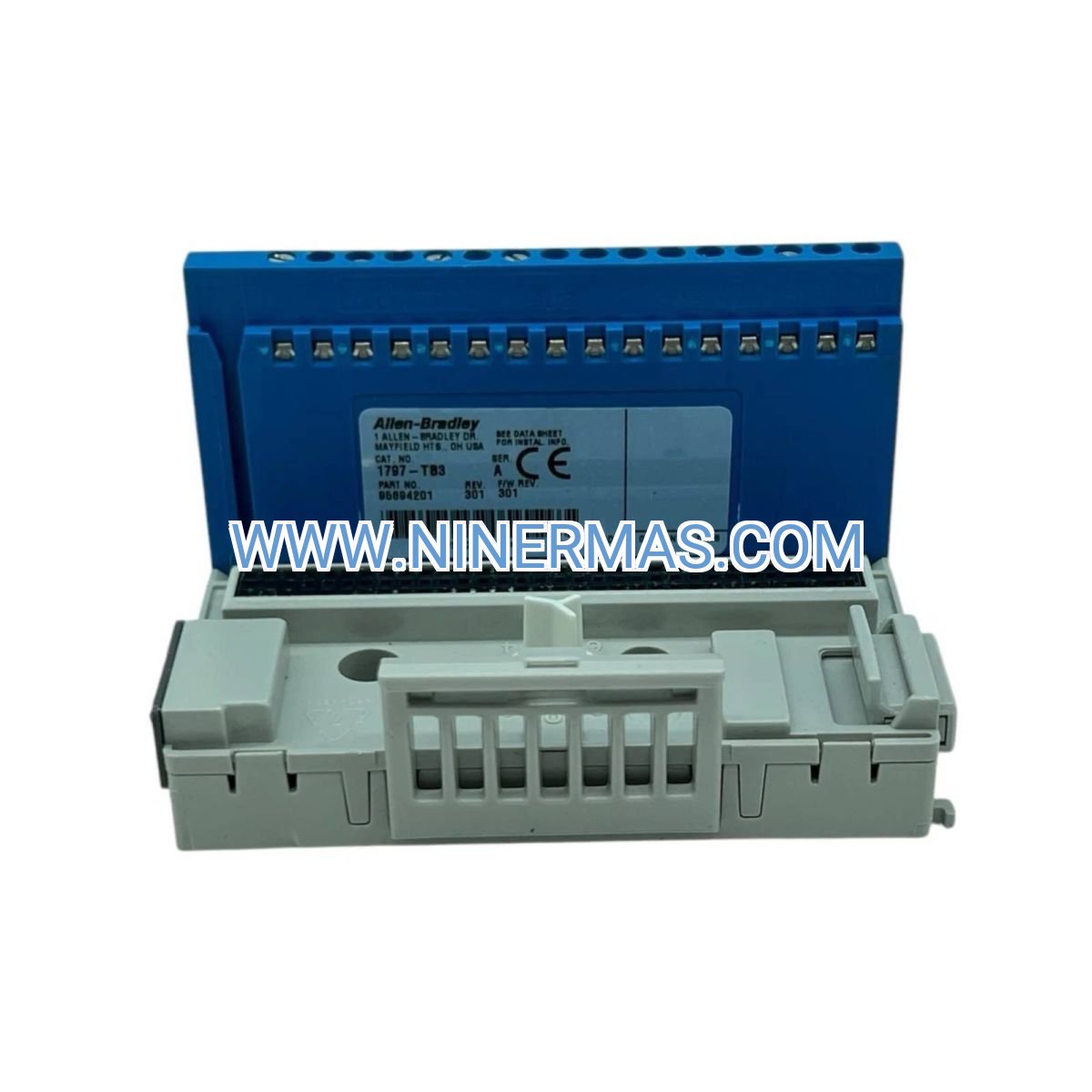

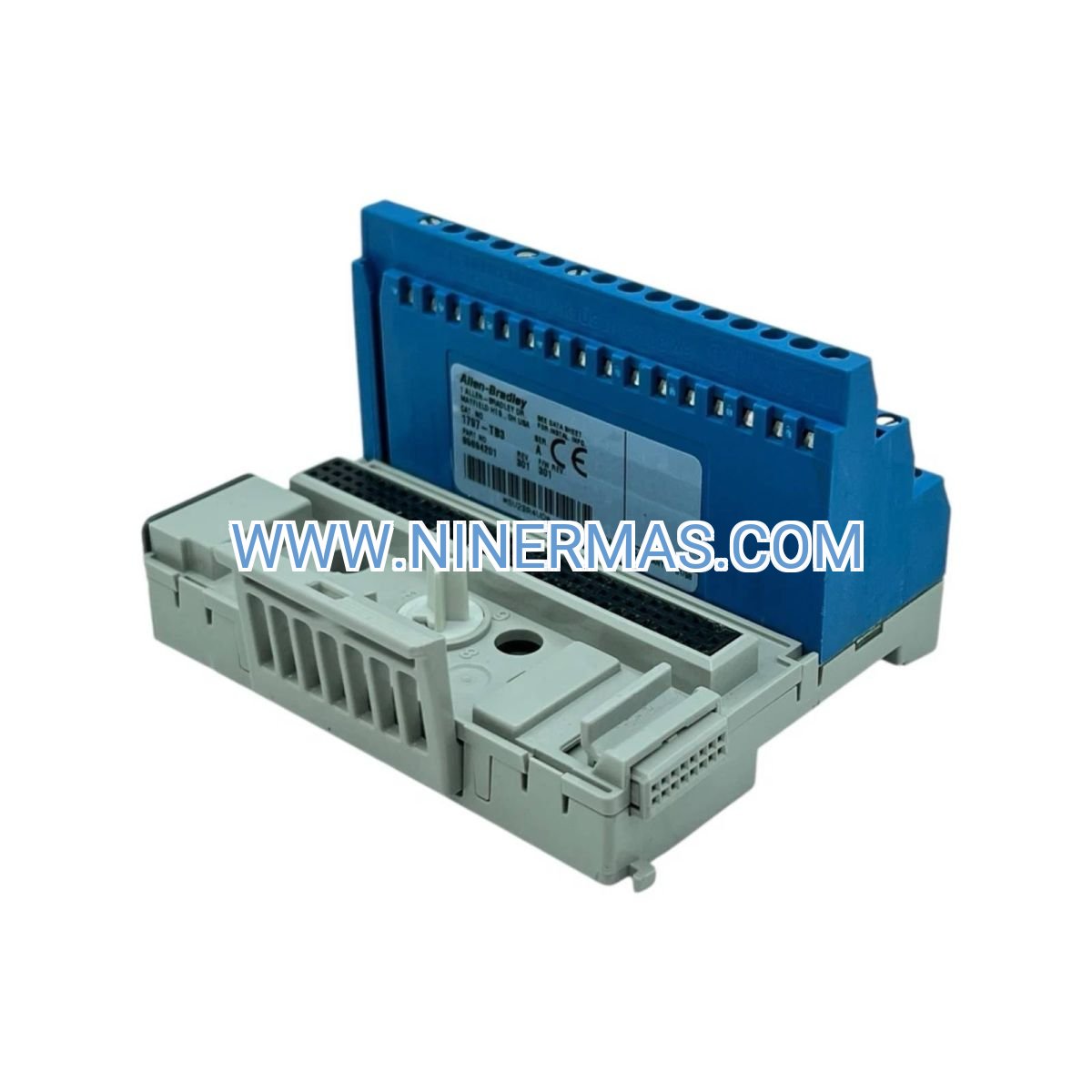

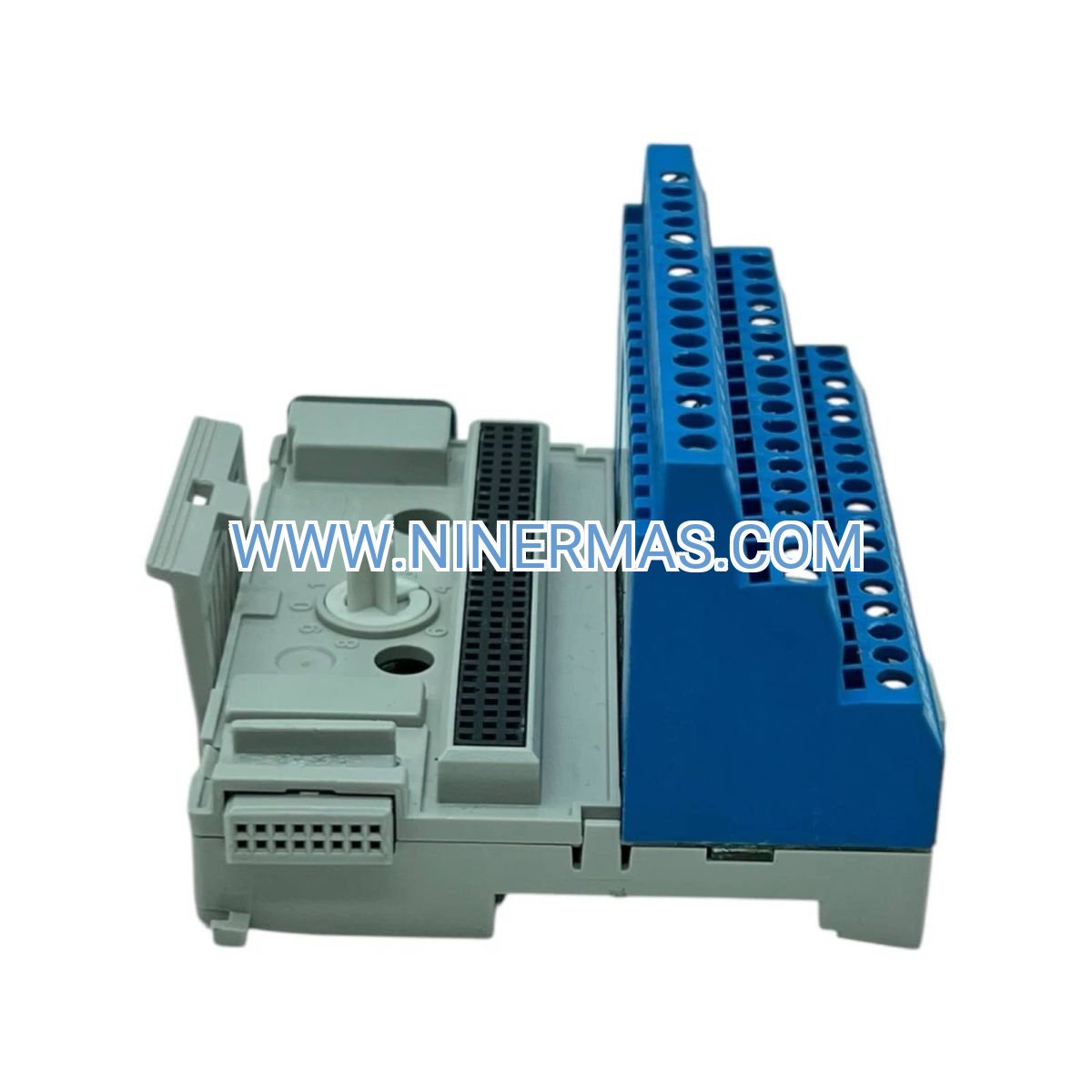

Allen-Bradley 1797-TB3 Terminal Base Module (Intrinsically Safe Flex Ex I/O System)

The Allen-Bradley 1797-TB3 is an industrial-grade terminal base module designed for intrinsically safe applications in hazardous environments. Through its robust screw-clamp terminal design and Class I Division 2 certification, it enables secure signal connection and distribution for Flex Ex I/O systems, ensuring reliable operation in explosive atmospheres where safety is paramount.

Ideal for oil & gas facilities, chemical processing plants, pharmaceutical manufacturing, mining operations, and paint/coating production lines, this terminal base helps solve critical challenges including explosive atmosphere risks, unreliable connections in vibration-prone environments, complex wiring in hazardous zones, and limited space for control equipment installation.

With standardized design and flexible configuration options, the 1797-TB3 delivers intrinsic safety compliance, industrial durability, simplified installation, and broad system compatibility. It serves design engineers, system integrators, plant maintenance teams, and EPC contractors who demand certified safety solutions. Contact our application engineers for customized selection guidance and technical quotations.

Core Features & Advantages

Intrinsically Safe Certification
Certified for Class I Division 2 hazardous locations, the 1797-TB3 meets stringent safety standards for explosive atmospheres. Its intrinsically safe design limits energy levels to prevent ignition, protecting personnel and assets in high-risk industrial environments.

Reliable Screw-Clamp Terminals
Features industrial-grade screw-clamp connections that ensure secure, vibration-resistant wire termination. This design minimizes loose connections and signal interruptions, reducing maintenance frequency and improving long-term system reliability in demanding applications.

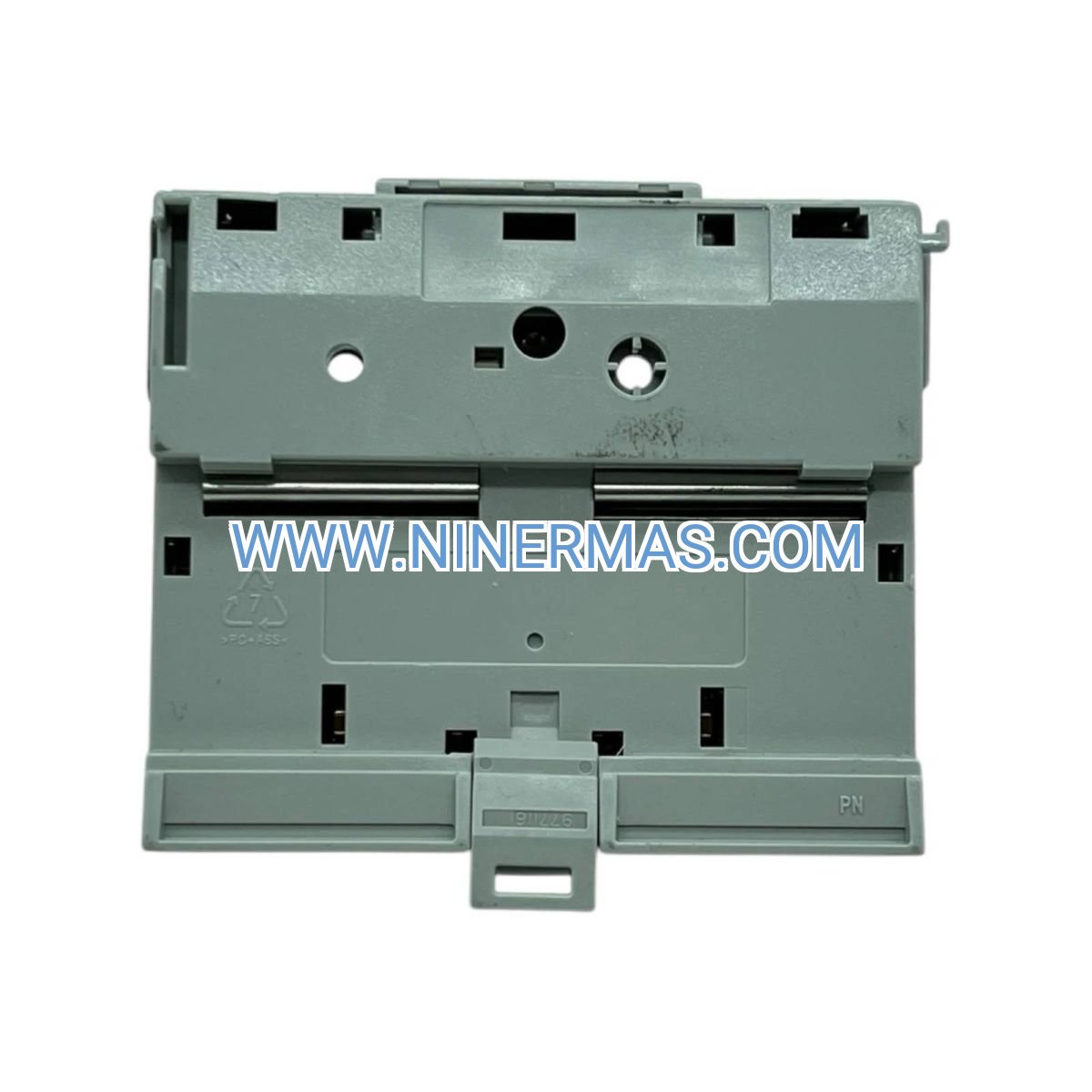

DIN Rail Mounting System
Standard 35mm DIN rail mounting enables quick installation and removal without specialized tools. The compact form factor optimizes panel space utilization, allowing flexible layout configurations in crowded control cabinets and junction boxes.

Robust Environmental Protection
Engineered with industrial-grade materials and protective coatings, the module withstands temperature extremes, humidity, dust, and corrosive atmospheres. Its rugged construction ensures consistent performance across harsh operating conditions, extending service life and reducing replacement costs.

Seamless Flex Ex Integration
Designed specifically for Allen-Bradley Flex Ex I/O systems, the 1797-TB3 provides plug-and-play compatibility with 1797 series modules. This native integration simplifies system design, accelerates commissioning, and ensures optimal signal integrity throughout the control architecture.

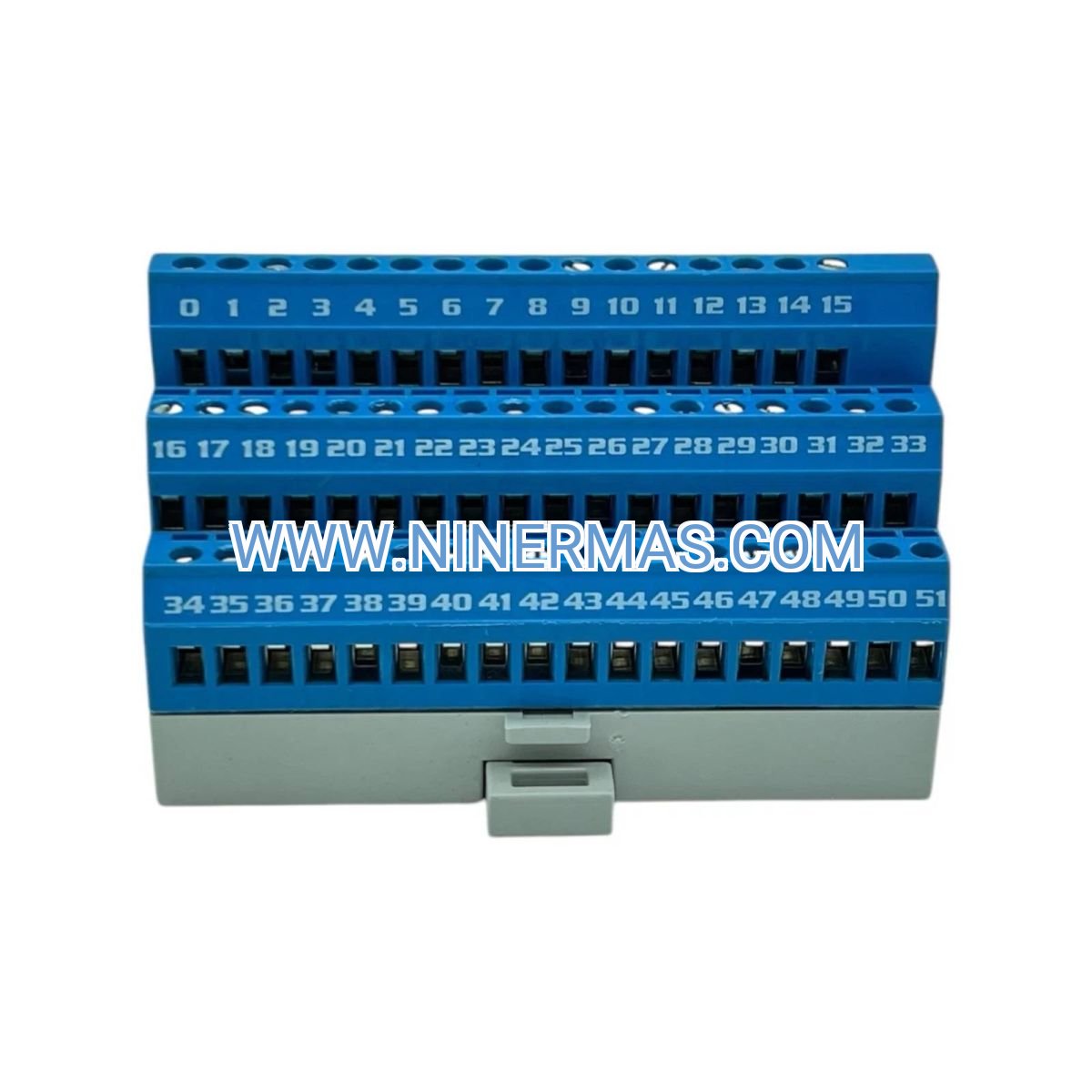

Clear Terminal Identification
Each terminal position features permanent laser-etched labeling for easy identification during installation and troubleshooting. This user-friendly design reduces wiring errors, speeds up maintenance procedures, and improves documentation accuracy for compliance audits.

Typical Application Scenarios

The 1797-TB3 terminal base is engineered for environments where intrinsic safety and reliable signal distribution are critical, particularly in:

Oil & Gas Production Facilities
Provides intrinsically safe I/O connections for wellhead monitoring, pipeline control, and offshore platform automation. Meets stringent safety requirements for Zone 1 and Zone 2 classified areas, ensuring continuous operation in explosive hydrocarbon atmospheres while maintaining signal integrity.

Chemical Processing & Petrochemical Plants
Enables safe control system integration in reactor monitoring, distillation control, and storage tank management applications. The certified intrinsic safety design prevents ignition sources in areas with flammable vapors, supporting compliance with ATEX, IECEx, and NEC 500 standards.

Pharmaceutical Manufacturing Clean Rooms
Supports process control and environmental monitoring in solvent handling areas and sterile production zones. Combines intrinsic safety with contamination-resistant construction, meeting both explosion protection and GMP cleanliness requirements for pharmaceutical automation.

Mining Operations & Mineral Processing
Delivers reliable I/O connectivity for underground coal mining, methane monitoring systems, and ore processing facilities. The rugged terminal base withstands shock, vibration, and dust exposure while maintaining intrinsic safety certification for combustible dust and gas environments.

Paint & Coating Production Lines
Facilitates safe automation of spray booths, mixing systems, and solvent recovery units. The intrinsically safe design eliminates ignition risks from electrical equipment in areas with flammable coating vapors, protecting workers and production assets.

Technical Parameters & Selection Guide

To facilitate engineering design and system integration, we provide comprehensive technical specifications for the 1797-TB3 terminal base. Custom configurations are available to meet specific project requirements.

Key Technical Specifications:

• Product Series: Allen-Bradley Flex Ex 1797
• Module Type: Intrinsically Safe Terminal Base
• Catalog Number: 1797-TB3
• Hazardous Location Rating: Class I Division 2, Groups A, B, C, D
• Terminal Type: Screw-clamp, cage-clamp compatible
• Wire Gauge Range: 12-22 AWG (2.5-0.5 mm²)
• Mounting Method: 35mm DIN rail (EN 50022)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 5% to 95% non-condensing
• Enclosure Rating: IP20 (when properly installed)
• Vibration Resistance: 5g operational, 10-500 Hz per IEC 60068-2-6
• Shock Resistance: 30g operational per IEC 60068-2-27
• Dimensions (H×W×D): Approximately 90mm × 35mm × 58mm
• Weight: Approximately 0.15 kg (0.33 lbs)
• Compliance Standards: UL, cUL, CE, ATEX, IECEx, RCM

Selection Recommendations:

When selecting the 1797-TB3 terminal base, consider the following factors: hazardous area classification (Zone/Division rating), compatible Flex Ex I/O modules in your system, available panel space and DIN rail length, ambient temperature and environmental conditions, wire gauge and termination requirements, and quantity needed for system redundancy. For application assistance, please provide: project name and location, hazardous area classification details, I/O module types and quantities, environmental conditions (temperature, humidity, vibration), panel layout constraints, and required certifications. Our application engineers will recommend the optimal configuration and provide detailed quotations.

Extended Functionality & System Integration

Modular System Architecture
The 1797-TB3 integrates seamlessly with the complete Flex Ex I/O family, including analog input/output modules, digital I/O modules, and specialty function modules. This modular approach enables scalable system design from small machine control to large distributed control systems.

Multi-Protocol Communication Support
Compatible with DeviceNet, ControlNet, and EtherNet/IP communication adapters, the terminal base supports flexible network integration. This multi-protocol capability allows connection to various PLC platforms including Allen-Bradley ControlLogix, CompactLogix, and MicroLogix controllers.

Hot-Swap Capability
Supports online module replacement without system shutdown when used with appropriate Flex Ex adapters. This hot-swap functionality minimizes production downtime during maintenance, enabling continuous operation in critical process applications.

Diagnostic LED Indicators
When paired with Flex Ex I/O modules, provides visual status indication for power, communication, and fault conditions. These diagnostic features accelerate troubleshooting and reduce mean time to repair (MTTR) during system commissioning and operation.

Delivery, Service & Quality Assurance

Inventory & Lead Time: Factory-sealed 1797-TB3 modules are typically available from stock with same-day shipping for standard orders. Custom configurations or bulk quantities may require 7-15 business days. Express shipping options are available for urgent project requirements.

Warranty Coverage: All 1797-TB3 terminal bases include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs are available for critical applications requiring long-term protection.

Technical Support: Our certified application engineers provide pre-sales consultation, system design assistance, and post-installation troubleshooting support. Remote technical guidance is available via phone and email, with on-site commissioning services offered for major projects (availability varies by region).

Documentation Package: Each module ships with complete technical documentation including installation instructions, wiring diagrams, dimensional drawings, certification documents, and safety data sheets. CAD files and 3D models are available upon request for panel design integration.

Quality Certifications: All products are sourced through authorized distribution channels and undergo rigorous quality inspection before shipment. Certification documents (UL, CE, ATEX, IECEx) and traceability records are provided to support compliance audits and project documentation requirements.

Frequently Asked Questions (FAQ)

Q: How does the 1797-TB3 terminal base integrate with existing Flex Ex I/O systems?
A: The 1797-TB3 is designed for direct compatibility with all Allen-Bradley 1797 series Flex Ex I/O modules. Simply mount the terminal base on a 35mm DIN rail, snap the corresponding I/O module onto the base, and connect field wiring to the screw-clamp terminals. No special adapters or configuration tools are required. Ensure your system's communication adapter (DeviceNet, ControlNet, or EtherNet/IP) is properly configured to recognize the I/O module type.

Q: What is the maximum number of terminal bases that can be used in a single Flex Ex system?
A: A single Flex Ex communication adapter can support up to 8 I/O modules (and therefore 8 terminal bases) in a local bank configuration. For larger systems, multiple adapter banks can be deployed on the same network. The exact configuration depends on your communication protocol, I/O module types, and network bandwidth requirements. Consult the Flex Ex system planning guide or contact our engineers for multi-bank system design.

Q: What energy savings or efficiency improvements can be expected with intrinsically safe systems?
A: While the 1797-TB3 itself is a passive terminal base without active power consumption, intrinsically safe systems reduce overall installation costs by 15-30% compared to explosion-proof enclosures. This is achieved through simplified wiring (no need for heavy conduit or sealing fittings), reduced panel space requirements, and faster installation times. Additionally, the ability to perform maintenance without hot-work permits in classified areas significantly reduces operational downtime and associated costs.

Q: What are the installation environment requirements and protection rating for the 1797-TB3?
A: The 1797-TB3 is rated IP20 and designed for installation inside control panels or junction boxes that provide appropriate environmental protection. Operating temperature range is -20°C to +60°C with 5-95% relative humidity (non-condensing). The module should be protected from direct water spray, corrosive chemicals, and excessive dust accumulation. For outdoor or harsh environment installations, mount the terminal base inside a NEMA 4X or IP65-rated enclosure with adequate ventilation and temperature control.

Q: Does the 1797-TB3 support remote monitoring and data acquisition? What communication protocols are compatible?
A: The 1797-TB3 terminal base itself does not contain communication electronics, but it works with Flex Ex communication adapters that support DeviceNet, ControlNet, and EtherNet/IP industrial protocols. When connected through an EtherNet/IP adapter, the system can integrate with SCADA systems, HMI panels, and cloud-based IIoT platforms for remote monitoring and data logging. The system supports standard industrial protocols including Modbus TCP, OPC UA, and MQTT for enterprise-level integration and predictive maintenance applications.

Q: Can the 1797-TB3 be used in Zone 0 or Division 1 hazardous locations?
A: The 1797-TB3 is certified for Class I Division 2 (North American standard) and Zone 2 (IECEx/ATEX standard) hazardous locations. For Zone 0 or Division 1 applications requiring higher levels of protection, consider Allen-Bradley's explosion-proof enclosure solutions or consult with our hazardous location specialists for alternative intrinsically safe barrier configurations that can extend protection to more stringent classifications.

Request Technical Support & Quotation

To receive detailed selection guidance, technical specifications, or project quotations for the Allen-Bradley 1797-TB3 terminal base module, please provide the following information to our engineering team:

• Project name, location, and industry application
• Hazardous area classification (Zone/Division, Gas Group)
• Flex Ex I/O module types and quantities required
• Environmental conditions (temperature range, humidity, vibration levels)
• Control panel layout and available DIN rail space
• Communication protocol preference (DeviceNet, ControlNet, EtherNet/IP)
• Required certifications and compliance standards
• Project timeline and delivery requirements

Our certified application engineers will provide one-on-one consultation, system architecture recommendations, and competitive pricing within 24 business hours.
