Allen-Bradley 1797-OE8 Analog Output Module | 8-Ch Intrinsically Safe I/O for Hazardous Areas

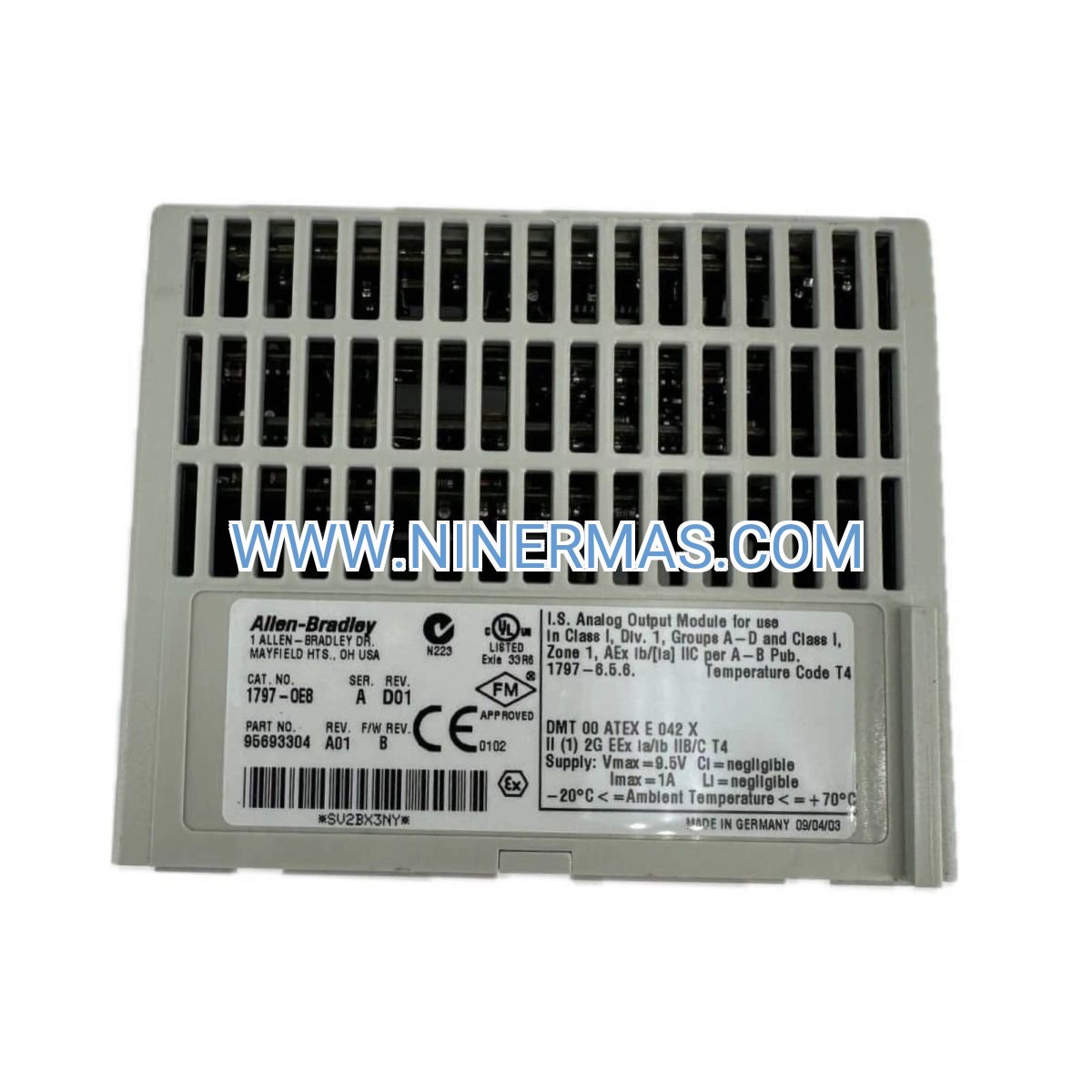

Allen-Bradley 1797-OE8 Flex Ex Analog Output Module (Intrinsically Safe 8-Channel I/O System)

The Allen-Bradley 1797-OE8 Flex Ex Analog Output Module is an industrial-grade intrinsically safe I/O device designed for hazardous location control applications. Through advanced isolation technology and factory-calibrated signal conditioning, it delivers precise 8-channel analog output control (4-20mA or 0-10V) for critical process automation in Zone 2 / Division 2 classified environments.

Ideal for oil & gas facilities, chemical processing plants, pharmaceutical manufacturing, and paint/coating operations, this module addresses challenges such as signal interference in explosive atmospheres, complex wiring requirements, limited I/O expansion capacity, and costly downtime from equipment failures in hazardous zones.

Featuring certified intrinsic safety barriers, hot-swappable design, and seamless integration with ControlLogix/CompactLogix systems, the 1797-OE8 provides reliable performance, simplified installation, easy maintenance, and broad compatibility. Suitable for control engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers. Contact our application engineers for configuration assistance and technical quotations.

Core Features & Advantages

Intrinsically Safe Design
Certified for Zone 2 / Division 2 hazardous locations with built-in isolation barriers, ensuring safe operation in explosive gas and dust environments while eliminating the need for external safety barriers.

8-Channel High-Precision Output
Supports both 4-20mA current loop and 0-10V voltage output modes with factory calibration, delivering ±0.1% accuracy for precise control of valves, dampers, variable frequency drives, and process instrumentation.

Hot-Swappable & Modular Architecture
DIN-rail mounting with tool-free installation and online module replacement capability, minimizing system downtime and simplifying maintenance procedures without disrupting active control loops.

Comprehensive Diagnostic Protection
Equipped with open-circuit detection, short-circuit protection, over-current shutdown, and channel-level fault indication via LED status indicators, reducing troubleshooting time and preventing cascading failures.

Seamless System Integration
Native compatibility with Rockwell Automation ControlLogix, CompactLogix, and RSLogix 5000/Studio 5000 programming environments, supporting EtherNet/IP and DeviceNet communication protocols for flexible network topologies.

Industrial-Grade Reliability
Operating temperature range -40°C to +70°C, conformal coating for moisture/chemical resistance, MTBF >500,000 hours, and compliance with IEC 61010, UL 508, and ATEX/IECEx standards.

Typical Application Scenarios

This module is engineered for environments requiring both precise analog control and intrinsic safety compliance, particularly in:

Oil & Gas Production and Refining
Controls flow control valves, pressure regulators, and temperature loops in offshore platforms, wellhead stations, and refinery process units where explosive hydrocarbon vapors are present.

Chemical Processing & Petrochemical Plants
Manages reactor temperature control, distillation column pressure regulation, and batch dosing systems in facilities handling flammable solvents, acids, and volatile organic compounds.

Pharmaceutical Manufacturing (Cleanroom & Solvent Areas)
Regulates HVAC damper positioning, solvent recovery systems, and sterile filtration pressure control in classified areas with strict contamination and explosion prevention requirements.

Paint & Coating Production Lines
Drives spray booth airflow control, mixing tank agitators, and curing oven temperature regulation in environments with combustible paint vapors and powder coatings.

Grain Handling & Food Processing
Controls pneumatic conveying systems, dust collection dampers, and dryer temperature loops in facilities with combustible grain dust or alcohol vapor hazards.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications with customization options for project-specific requirements:

Key Specifications:

• Number of Channels: 8 independent analog outputs
• Output Signal Types: 4-20mA (current sourcing), 0-10V DC (voltage output)
• Output Accuracy: ±0.1% of full scale (factory-calibrated)
• Resolution: 16-bit (65,536 steps)
• Update Rate: 10ms per channel typical
• Isolation: 250V AC channel-to-backplane, 30V AC channel-to-channel
• Hazardous Location Rating: Class I Division 2 Groups A, B, C, D / Zone 2 IIC T4
• Power Consumption: 3.5W typical from backplane (24V DC)
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Humidity: 5% to 95% non-condensing
• Mounting: 35mm DIN rail (EN 50022)
• Dimensions: 118mm (H) × 87mm (W) × 40mm (D)
• Certifications: UL/cUL 508, ATEX, IECEx, CE, RCM
• Communication: Backplane communication via Flex Ex adapter module

Selection Recommendations:
When specifying this module, consider: required output signal type (current vs. voltage), load impedance characteristics (for 4-20mA: max 600Ω, for 0-10V: min 10kΩ), hazardous area classification (Zone/Division), ambient temperature range, and system architecture (standalone Flex Ex vs. integrated ControlLogix). For application assistance, please provide: process control requirements, field device specifications, environmental conditions, and existing PLC platform. Our engineers will recommend optimal configuration and wiring diagrams.

Extended Functionality

Advanced Diagnostics & Predictive Maintenance
Built-in self-test routines monitor output circuit integrity, detect wiring faults, and log historical fault events accessible via Studio 5000 software, enabling condition-based maintenance scheduling.

Flexible Output Scaling & Linearization
Software-configurable output ranges, square-root extraction for flow measurement, and custom linearization tables support diverse sensor and actuator types without external signal conditioners.

Redundancy & Failsafe Options
Compatible with redundant Flex Ex adapter configurations for mission-critical applications, with configurable failsafe output states (hold last value, go to preset, or zero output) upon communication loss.

Delivery, Service & Quality Assurance

Lead Time: Stock items ship within 1-3 business days; custom-configured systems require 7-14 days for factory programming and testing.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available.

Technical Support: Complimentary remote configuration assistance, wiring diagram review, and troubleshooting guidance; on-site commissioning services available for major projects (location-dependent).

Documentation Package: Each module includes installation instructions, electrical schematics, terminal block wiring diagrams, Studio 5000 Add-On Profile (AOP), and quick-start configuration guide in PDF format.

Quality Certifications: ISO 9001:2015 manufacturing, RoHS compliance, conflict minerals declaration, and full traceability documentation for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the 1797-OE8 Flex Ex analog output module integrate with existing ControlLogix systems?
A: The module mounts on a Flex Ex adapter (1797-BN8 or similar) which connects to your ControlLogix backplane via EtherNet/IP or DeviceNet. Install the Add-On Profile in Studio 5000, configure I/O addressing, and map output tags to your control logic—no custom programming required.

Q: What is the maximum number of 1797-OE8 modules supported in a single Flex Ex system?
A: Each Flex Ex adapter supports up to 8 I/O modules (mix of input/output types). For larger systems, deploy multiple adapters on the same network or upgrade to a distributed I/O architecture with additional communication adapters.

Q: Can this module drive 4-20mA transmitters and valve positioners simultaneously?
A: Yes, each of the 8 channels is independently configurable for either 4-20mA current sourcing or 0-10V voltage output. You can mix signal types within the same module based on field device requirements.

Q: What are the installation environment requirements for intrinsically safe operation?
A: The module must be installed in a Zone 2 / Division 2 area or safer (non-hazardous). Wiring to field devices in Zone 0/1 or Division 1 requires approved intrinsic safety barriers (Zener diodes) and adherence to entity parameters per certification drawings. Maintain proper grounding and cable separation per NEC Article 504/505.

Q: Does the 1797-OE8 support remote monitoring and data logging via SCADA systems?
A: Yes, output values and diagnostic status are accessible via standard ControlLogix tags, which can be published to SCADA platforms (FactoryTalk View, Ignition, Wonderware, etc.) using OPC-UA, Modbus TCP, or native EtherNet/IP drivers.

Q: What is the typical power budget impact when adding this module to a Flex Ex system?
A: The 1797-OE8 draws approximately 3.5W from the 24V DC backplane supply. Verify your Flex Ex adapter's total power capacity (typically 30-50W depending on model) and ensure adequate margin for all installed modules plus future expansion.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide the following information:

• Project name and application overview
• Hazardous area classification (Zone/Division, Gas Group, Temperature Class)
• Number of analog output points and signal types required (4-20mA / 0-10V)
• Field device specifications (load impedance, power requirements)
• Existing control system platform (ControlLogix model, software version)
• Environmental conditions (temperature range, humidity, vibration)
• Delivery timeline and installation support requirements

Our application engineers will respond within 24 hours with tailored recommendations, system architecture diagrams, and competitive pricing.
