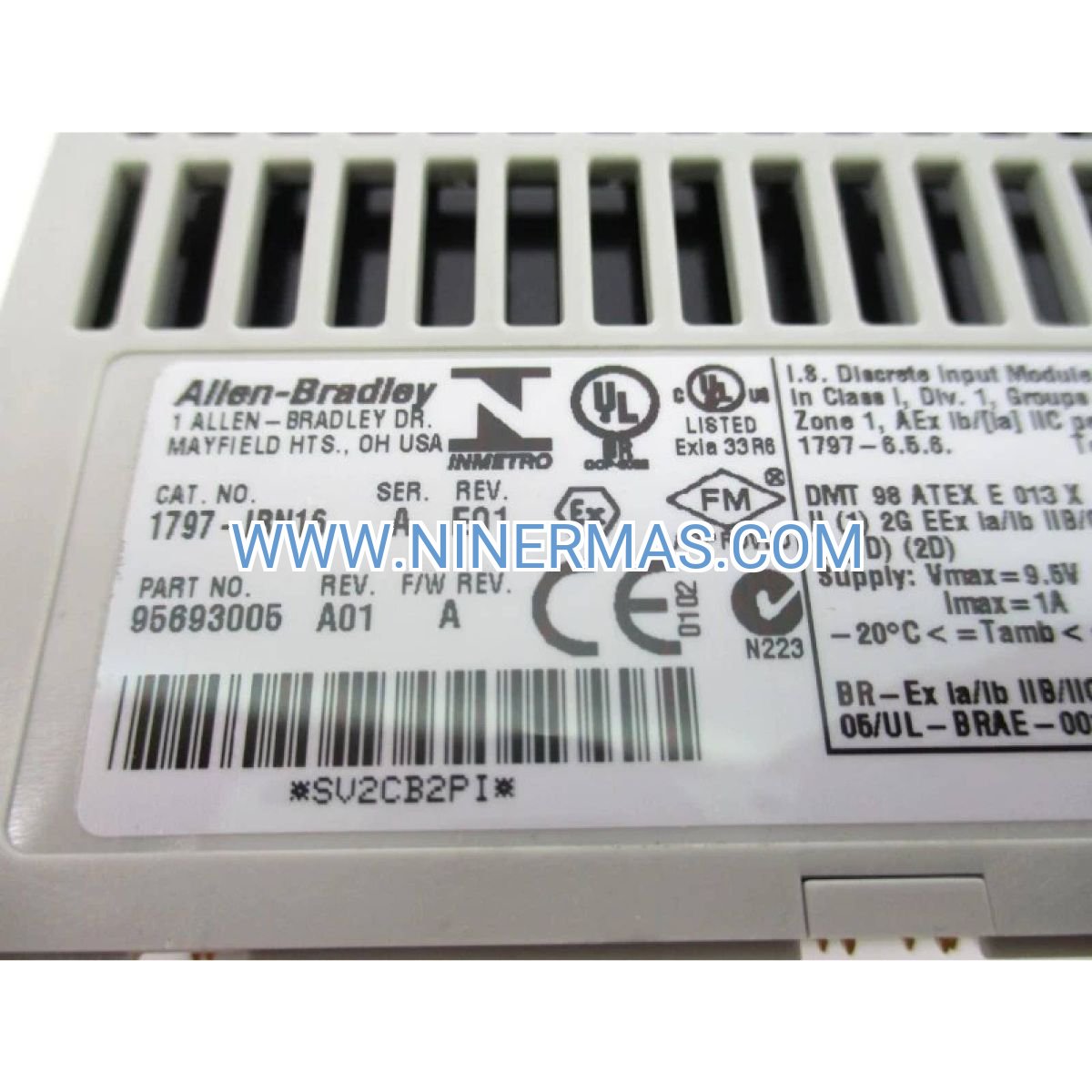

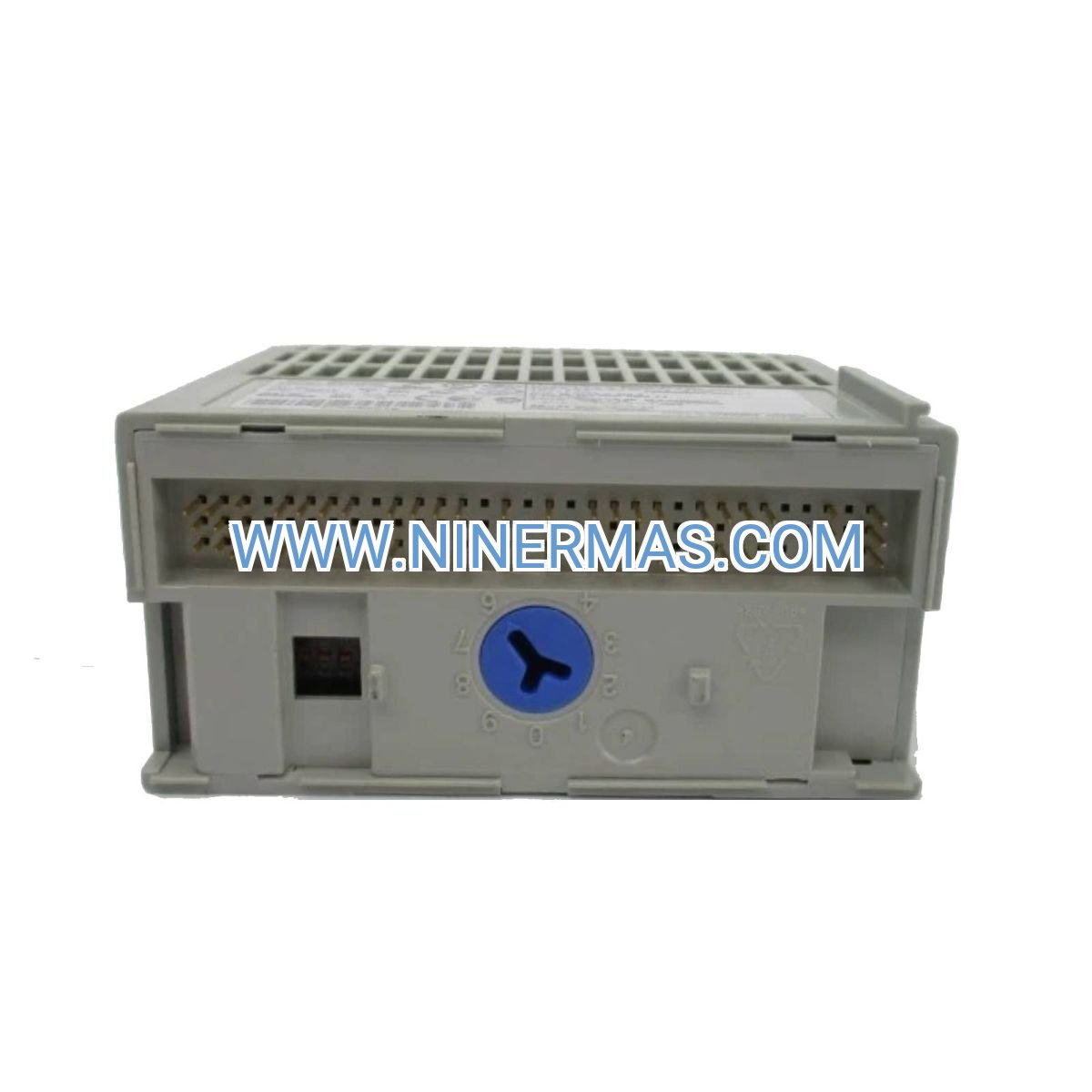

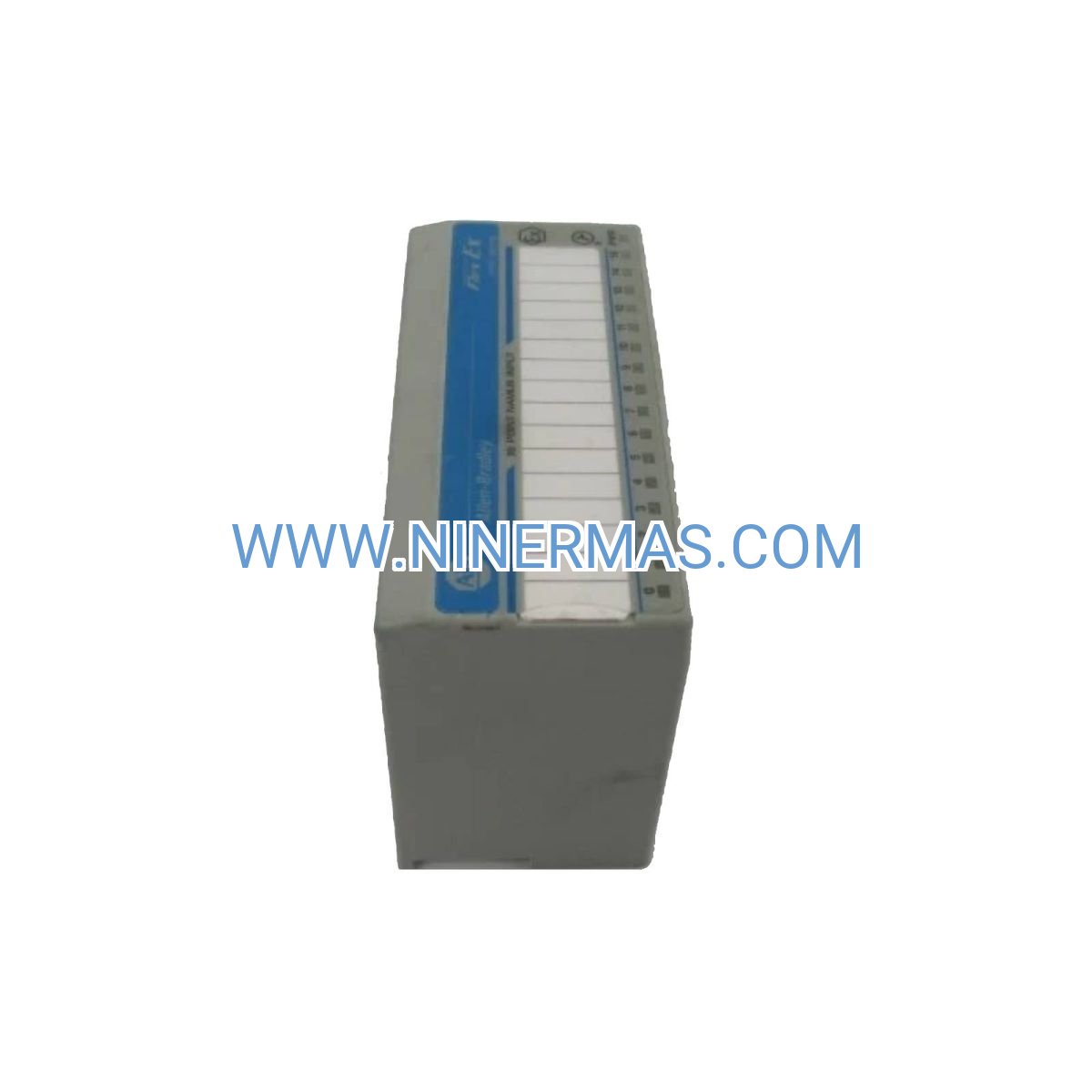

Allen-Bradley 1797-IBN16 NAMUR Digital Input Module – Intrinsically Safe I/O Solution for Hazardous Environments

The Allen-Bradley 1797-IBN16 is a high-performance 16-channel NAMUR digital input module designed for intrinsically safe applications in hazardous classified areas. Leveraging advanced Flex Ex architecture and API 670 compliance, this module delivers reliable signal acquisition from proximity sensors, vibration monitors, and field instruments in Zone 0, Division 1, and ATEX-certified environments.

Engineered for critical industries including oil & gas exploration, petrochemical refining, pharmaceutical manufacturing, and offshore platforms, the 1797-IBN16 addresses key operational challenges: ensuring personnel safety in explosive atmospheres, maintaining signal integrity under harsh conditions, reducing false trip events, and enabling seamless integration with distributed control systems (DCS) and safety instrumented systems (SIS).

With factory-certified intrinsic safety barriers, hot-swappable design, and comprehensive diagnostic capabilities, this module combines operational continuity, regulatory compliance, and long-term cost efficiency. Suitable for process engineers, instrumentation contractors, system integrators, and plant maintenance teams. Contact our application engineers for customized configuration guidance and competitive quotations.

Core Features & Technical Advantages

Intrinsically Safe Design for Zone 0/Division 1
Certified to IECEx, ATEX, and FM standards with built-in galvanic isolation and energy-limiting circuits. Each channel supports NAMUR-compliant sensors (proximity switches, vibration transducers) while preventing ignition risks in explosive gas or dust atmospheres.

API 670 Compliant Signal Processing
Meets API Standard 670 requirements for machinery protection systems, ensuring accurate detection of sensor faults, wire breaks, and short circuits. Provides distinct status indication for normal, alarm, and fault conditions to minimize unplanned shutdowns.

16 Independent Input Channels
Supports simultaneous monitoring of up to 16 NAMUR sensors with individual channel diagnostics. Configurable input filtering (2 ms to 32 ms) reduces electromagnetic interference (EMI) and mechanical vibration noise in industrial environments.

Hot-Swappable & Modular Architecture
Field-replaceable module design allows maintenance without system shutdown. Compatible with 1797 Flex Ex I/O chassis and ControlLogix/CompactLogix controllers via DeviceNet, EtherNet/IP, or ControlNet communication adapters.

Advanced Diagnostics & Predictive Maintenance
Real-time channel health monitoring with LED indicators and software-accessible fault logs. Detects open circuits, short circuits, sensor drift, and power supply anomalies to enable proactive maintenance scheduling.

Rugged Construction for Harsh Environments
Conformal-coated PCB withstands temperature extremes (-40°C to +70°C), humidity (5% to 95% non-condensing), and vibration per IEC 60068-2-6. IP20-rated enclosure suitable for Zone 2 cabinet mounting or Zone 0 field junction boxes when paired with approved barriers.

Typical Application Scenarios

The 1797-IBN16 module is optimized for safety-critical and process-critical installations requiring intrinsically safe signal acquisition:

Oil & Gas Upstream Production
Monitor turbine overspeed sensors, compressor vibration probes, and flame detectors on offshore platforms and wellhead facilities. Ensures compliance with API RP 14C and IEC 61508 SIL 2/3 requirements for emergency shutdown (ESD) systems.

Petrochemical & Refining Plants
Interface with proximity switches on rotating equipment (pumps, blowers, agitators) and level sensors in flammable liquid storage tanks. Reduces explosion risks in classified areas while maintaining continuous process visibility.

Pharmaceutical & Fine Chemical Manufacturing
Acquire signals from solvent vapor detectors, reactor temperature switches, and clean-in-place (CIP) verification sensors in ATEX Zone 1 production suites. Supports FDA 21 CFR Part 11 audit trail requirements through integrated diagnostics.

Mining & Mineral Processing
Connect to conveyor belt misalignment switches, crusher bearing temperature sensors, and dust explosion suppression triggers in underground coal mines and surface grinding mills. Certified for Group I (methane) and Group II (dust) hazardous locations.

Power Generation & Utilities
Monitor gas turbine vibration sensors, boiler flame scanners, and hydrogen cooling system leak detectors in combined-cycle power plants. Integrates with Triconex, Honeywell, and Siemens safety PLCs for coordinated trip logic.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, key parameters are summarized below:

Selection Recommendations:
When specifying the 1797-IBN16, consider: (1) total number of NAMUR sensors and required I/O density, (2) hazardous area classification (Zone/Division, Gas Group), (3) ambient temperature and enclosure IP rating, (4) controller platform and network protocol, (5) required SIL level for safety functions. For multi-zone installations or custom cable lengths, consult our engineering team with site-specific parameters including loop resistance, cable capacitance, and entity parameters.

System Integration & Configuration Options

Compatible Controllers: Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), GuardLogix (safety-rated), SLC 500 (via adapter)
Network Adapters: 1797-ACNR15 (ControlNet), 1797-AENTR (EtherNet/IP), 1797-DN16 (DeviceNet)
Software Tools: RSLogix 5000/Studio 5000 for programming, RSNetWorx for network configuration, FactoryTalk View for HMI integration
Mounting: DIN rail or panel mount via 1797 Flex Ex chassis (2, 4, 8-slot configurations)
Cable Assemblies: Pre-terminated M12 or terminal block field wiring kits available; custom lengths upon request
Redundancy: Supports dual-adapter configurations for high-availability applications

Delivery, Warranty & Technical Support

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouses (Americas, EMEA, APAC). Custom-configured systems or large-volume orders typically require 10-15 business days; expedited service available upon request.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) and advance replacement services are available for mission-critical installations.

Installation & Commissioning: Remote technical assistance provided at no charge during initial setup. On-site commissioning support, loop testing, and FAT/SAT witnessing available on a project basis (subject to location and scope).

Documentation Package: Each shipment includes: (1) Product datasheet and quick-start guide, (2) Electrical wiring diagrams and terminal assignments, (3) Hazardous area certification documents (ATEX/IECEx certificates), (4) Configuration file templates for Studio 5000, (5) Maintenance and troubleshooting manual.

Compliance & Certifications: CE marked, RoHS compliant, UL/cUL listed, ATEX/IECEx certified, FM approved, API 670 compliant. Full traceability documentation and material test reports (MTR) available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the 1797-IBN16 NAMUR digital input module integrate with existing Allen-Bradley control systems?
A: The module mounts in a 1797 Flex Ex chassis and communicates via a network adapter (EtherNet/IP, ControlNet, or DeviceNet) to ControlLogix, CompactLogix, or GuardLogix controllers. Configuration is performed in Studio 5000 using standard Add-On Instructions (AOIs). No custom programming required for basic I/O mapping; advanced diagnostics accessible via controller tags.

Q: What is the maximum number of NAMUR sensors supported per chassis?
A: Each 1797-IBN16 module supports 16 sensors. An 8-slot Flex Ex chassis can accommodate up to 7 I/O modules (one slot reserved for adapter), enabling 112 NAMUR inputs per chassis. Multiple chassis can be networked for larger systems.

Q: What energy savings or operational benefits can be expected from using intrinsically safe I/O?
A: Intrinsically safe design eliminates the need for explosion-proof enclosures and conduit sealing in hazardous zones, reducing installation costs by 20-40%. Simplified wiring (standard instrumentation cable vs. armored/rigid conduit) cuts labor hours and material expenses. Diagnostic features reduce unplanned downtime by 15-25% through early fault detection.

Q: What are the environmental and installation requirements for the 1797-IBN16 module?
A: The module is rated IP20 and must be installed in a suitable enclosure (minimum IP54 for Zone 2, IP65 for outdoor/washdown areas). Operating temperature range is -40°C to +70°C; ensure adequate ventilation if ambient exceeds 60°C. Mounting orientation is flexible (horizontal or vertical DIN rail). Avoid direct exposure to corrosive gases, condensation, or conductive dust.

Q: Can the module support remote monitoring and data logging via SCADA or cloud platforms?
A: Yes. When connected via EtherNet/IP adapter, the module's I/O data and diagnostics are accessible to FactoryTalk View SE, Ignition SCADA, Wonderware, or third-party HMI/SCADA systems. For cloud integration, use Rockwell's FactoryTalk Edge Gateway or KEPServerEX to publish data to Azure IoT, AWS IoT, or on-premise historians via OPC UA, MQTT, or REST APIs.

Q: What protocols and standards does the 1797-IBN16 comply with for safety and hazardous area applications?
A: The module is certified to IEC 60079 (explosive atmospheres), ATEX Directive 2014/34/EU, IECEx Scheme, NEC 500/505 (North America), and API RP 670 (machinery protection). It supports integration into SIL 2/3 safety loops per IEC 61508/61511 when used with appropriate safety controllers and validated application logic.

Request a Quotation or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific engineering support, please provide the following information to our team:

• Project name and industry sector
• Application description (e.g., turbine monitoring, tank farm safety system)
• Total number of NAMUR input points required
• Hazardous area classification (Zone/Division, Gas Group, Temperature Class)
• Controller platform and network protocol preference
• Ambient operating conditions (temperature, humidity, vibration)
• Required certifications or compliance standards (ATEX, FM, SIL level)
• Delivery timeline and installation location

Our application engineers will respond within 24 hours with a tailored solution including module configuration, wiring diagrams, bill of materials, and competitive pricing.
