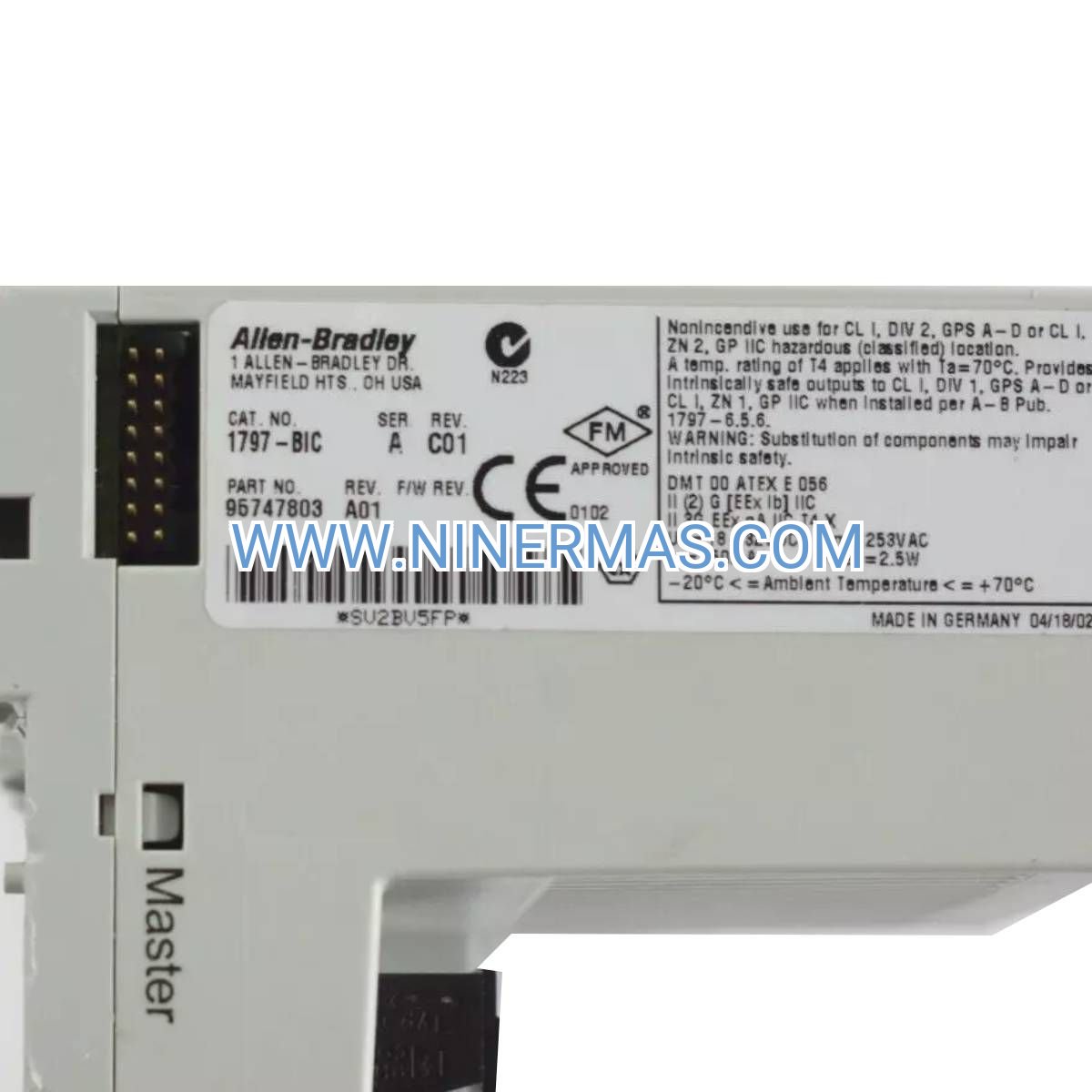

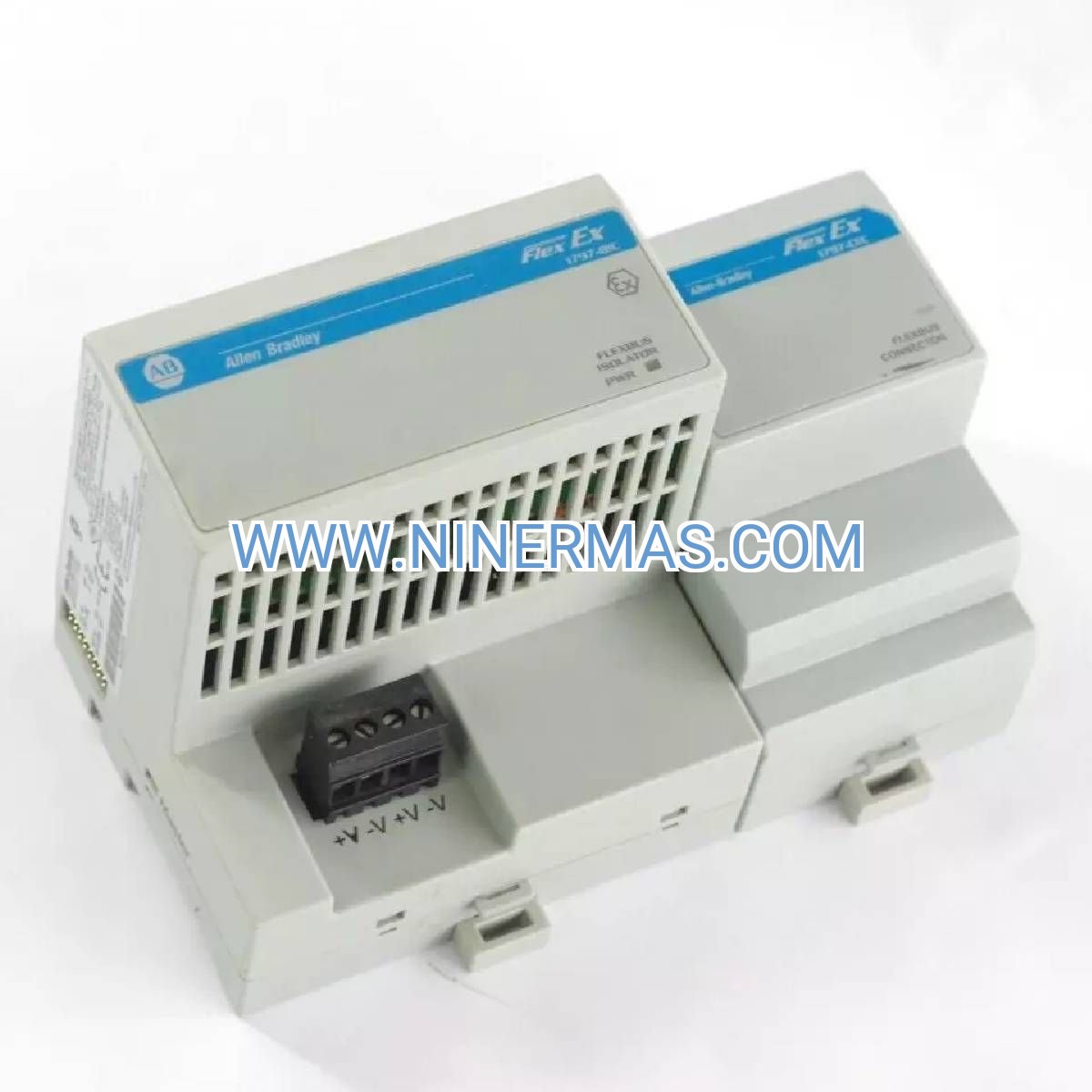

1797-BIC Intrinsically Safe Bus Isolator (Industrial-Grade FLEX Ex Connector)

The 1797-BIC represents a mission-critical safety barrier for industrial automation in explosive atmospheres. Engineered by Allen-Bradley, this intrinsically safe bus isolator delivers galvanic isolation between your control network and up to eight FLEX Ex I/O modules operating in hazardous zones. Whether you're managing offshore drilling platforms, chemical reactors, or underground mining operations, the 1797-BIC ensures your distributed I/O architecture meets the strictest global safety mandates while maintaining real-time process control.

Designed for Zone 1 and Zone 2 classified locations, this isolator eliminates the risk of ignition sources reaching explosive gas mixtures. Its [Ex ib] IIC certification under ATEX, IECEx, FM, and cULus standards makes it the trusted choice for industries where safety and uptime are non-negotiable. The hot-swappable architecture minimizes maintenance windows, while the transparent integration with ControlLogix and CompactLogix platforms accelerates commissioning timelines.

With proven reliability in petrochemical refineries, pharmaceutical solvent handling, and paint manufacturing facilities worldwide, the 1797-BIC transforms hazardous location control from a compliance burden into a competitive advantage. Backed by comprehensive technical documentation and 12-month warranty coverage, this isolator delivers the performance assurance your critical operations demand.

Core Capabilities & Business Value

→ Multi-Module Isolation Architecture
Supports up to 8 FLEX Ex I/O modules on a single isolator, reducing cabinet footprint by 40% compared to individual isolator designs. Enables flexible mix-and-match configurations of analog and digital modules without recertification.

✓ Global Safety Certification Portfolio
ATEX, IECEx, FM, and cULus approvals eliminate regional compliance gaps. Pre-certified entity parameters (Uo, Io, Co, Lo) streamline hazardous area documentation and accelerate authority having jurisdiction (AHJ) approvals by weeks.

• Galvanic Isolation Per DIN EN 60079-11
Electrical separation between safe and hazardous areas prevents fault propagation while maintaining signal integrity. Protects upstream control systems from field-side electrical disturbances in corrosive or high-EMI environments.

1. Hot-Swap Maintenance Capability
Replace failed modules without de-energizing the entire I/O bank or shutting down adjacent process zones. Reduces mean time to repair (MTTR) by 60% and eliminates costly production interruptions during routine maintenance.

2. Extended Temperature & Humidity Range
Operates reliably from -20°C to 70°C in 5-95% humidity environments. Proven performance in desert heat, arctic cold, and tropical offshore installations where conventional electronics fail.

3. Transparent System Integration
No special configuration software or programming required. Appears as standard I/O to RSLogix 5000 and Studio 5000 environments, enabling existing automation engineers to deploy without specialized training.

Industry-Specific Application Scenarios

Upstream Oil & Gas Production
Offshore platforms and wellhead monitoring systems require Zone 1-rated I/O for separator level control, flare gas monitoring, and emergency shutdown (ESD) logic. The 1797-BIC enables distributed control architecture up to 500 meters from the central equipment room, reducing expensive intrinsically safe cabling by 70%. Typical deployment: 6 analog input modules (pressure, temperature, flow) + 2 digital output modules (valve control) per isolator.

Chemical Batch Processing
Reactor temperature profiling and pH control in solvent-rich environments demand precise analog I/O with explosion protection. The isolator's low power dissipation (2.1W) prevents heat buildup in confined junction boxes, while its 39 μF capacitance limit accommodates long cable runs to field transmitters. Solves the challenge of maintaining 0.1% measurement accuracy through galvanic barriers.

Pharmaceutical Cleanroom Manufacturing
Isopropyl alcohol and ethanol handling zones require intrinsically safe control without compromising FDA 21 CFR Part 11 data integrity. The 1797-BIC's deterministic I/O update rates (typically 5-10ms) support real-time batch record generation and electronic signature workflows in Emerson DeltaV or Rockwell FactoryTalk Batch systems.

Underground Coal Mining
Longwall shearer control and methane monitoring systems operate in Class I, Division 1 atmospheres where a single spark can trigger catastrophic explosions. The isolator's rugged construction withstands continuous vibration and coal dust ingress, while its green LED status indicator enables rapid troubleshooting in low-visibility conditions.

Automotive Paint Shops
Robotic spray booth control requires dozens of I/O points for atomizer pressure, booth airflow, and solvent vapor detection—all within Class I, Division 2 zones. The 1797-BIC's 8-module capacity consolidates I/O distribution, reducing panel space by 50% and simplifying UL 508A compliance documentation.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total I/O point count and signal types first. For applications requiring >64 I/O points, consider multiple isolators with separate Flexbus segments. Verify that cumulative cable capacitance and inductance from all field devices remains within entity parameter limits. For SIL 2/3 safety applications, consult TÜV certification documentation for systematic capability ratings.

Advanced Integration & Customization Options

EtherNet/IP Diagnostics Integration: When paired with 1797-ACNR15 adapter modules, the isolator enables real-time health monitoring through CIP Safety protocols. Predictive maintenance algorithms can track power supply voltage drift, connector resistance trends, and module communication errors before they cause unplanned shutdowns.

Redundant Power Supply Configuration: Deploy dual 24V DC supplies with diode-OR circuits to achieve 99.99% uptime in critical safety instrumented systems (SIS). The isolator's wide input voltage range (18-32V) accommodates battery backup systems during utility power failures.

Hybrid I/O Architectures: Combine FLEX Ex intrinsically safe modules with standard 1734 POINT I/O modules in the same control cabinet. The 1797-BIC handles hazardous area I/O while non-IS modules manage safe area signals, optimizing total system cost by 30-40%.

Third-Party Device Integration: The isolator's FISCO (Fieldbus Intrinsically Safe Concept) compatibility enables connection to HART, FOUNDATION Fieldbus, and Profibus PA field devices through appropriate interface modules. Unlocks advanced diagnostics from smart transmitters and valve positioners.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed packaging with custom labeling or extended temperature testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Covers replacement unit shipping and technical root cause analysis. Extended warranties available for mission-critical applications.

Technical Support: Unlimited phone and email support from certified automation engineers. Typical response time: <4 hours for critical issues, <24 hours for general inquiries. Support includes entity parameter calculations, cable sizing worksheets, and AutoCAD panel layout drawings.

Documentation Package: Includes installation manual (publication 1797-UM001), entity parameter certificates, ATEX/IECEx declaration of conformity, and sample RSLogix 5000 I/O configuration files. All documents available in PDF format for regulatory submissions.

Frequently Asked Questions

How do I calculate if my field device is compatible with the 1797-BIC entity parameters?
Sum the input capacitance (Ci) and inductance (Li) of all field devices connected to the FLEX Ex modules. The totals must not exceed the isolator's Co (39 μF) and Lo (100 μH) values. Include cable capacitance/inductance using manufacturer datasheets—typically 50-100 pF/m for IS cable. Our technical team provides free calculation worksheets.

Can the 1797-BIC isolator support redundant controller configurations?
Yes, when used with ControlLogix redundancy modules (1756-RM or 1756-RM2), the FLEX Ex I/O automatically switches to the backup controller during failover events. The isolator itself does not require redundancy as it's a passive barrier device, but dual power supplies are recommended for SIL-rated applications.

What is the maximum distance between the isolator and FLEX Ex modules?
Flexbus cable length is limited to 3 meters (9.8 feet) between the isolator and the first FLEX Ex module, with 0.3-meter spacing between subsequent modules. For longer distances, use 1797-ACNR15 adapter modules with fiber optic or Ethernet connectivity up to 500 meters.

Does the green LED indicator affect intrinsic safety certification?
No, the LED is part of the certified design and operates within intrinsically safe energy limits. It provides visual confirmation of proper 24V DC power supply connection and does not compromise the [Ex ib] IIC rating.

How do I handle obsolescence for legacy 1797 systems?
The 1797-BIC remains in active production with no announced end-of-life date. For long-term spares planning, we recommend stocking one isolator per 10 installed units. Migration paths to newer 5069 Compact I/O systems are available, and our team provides conversion consulting at no charge.

What grounding practices are required for intrinsically safe installations?
The isolator's safe-side ground connects to your control cabinet earth ground. Hazardous-side grounding follows NEC Article 504 or IEC 60079-14 requirements—typically single-point grounding at the isolator with insulated cable shields. Never ground field devices independently, as this creates ground loops that can compromise intrinsic safety.

Ready to Secure Your Hazardous Area Control System?

Contact our automation specialists today for application-specific entity parameter calculations, panel layout recommendations, and volume pricing. Whether you're retrofitting an existing installation or designing a greenfield facility, we'll ensure your 1797-BIC deployment meets safety standards while optimizing total cost of ownership.

Request a Quote: Email your I/O list and hazardous area classification drawings to our team for same-day technical review and budget pricing.
