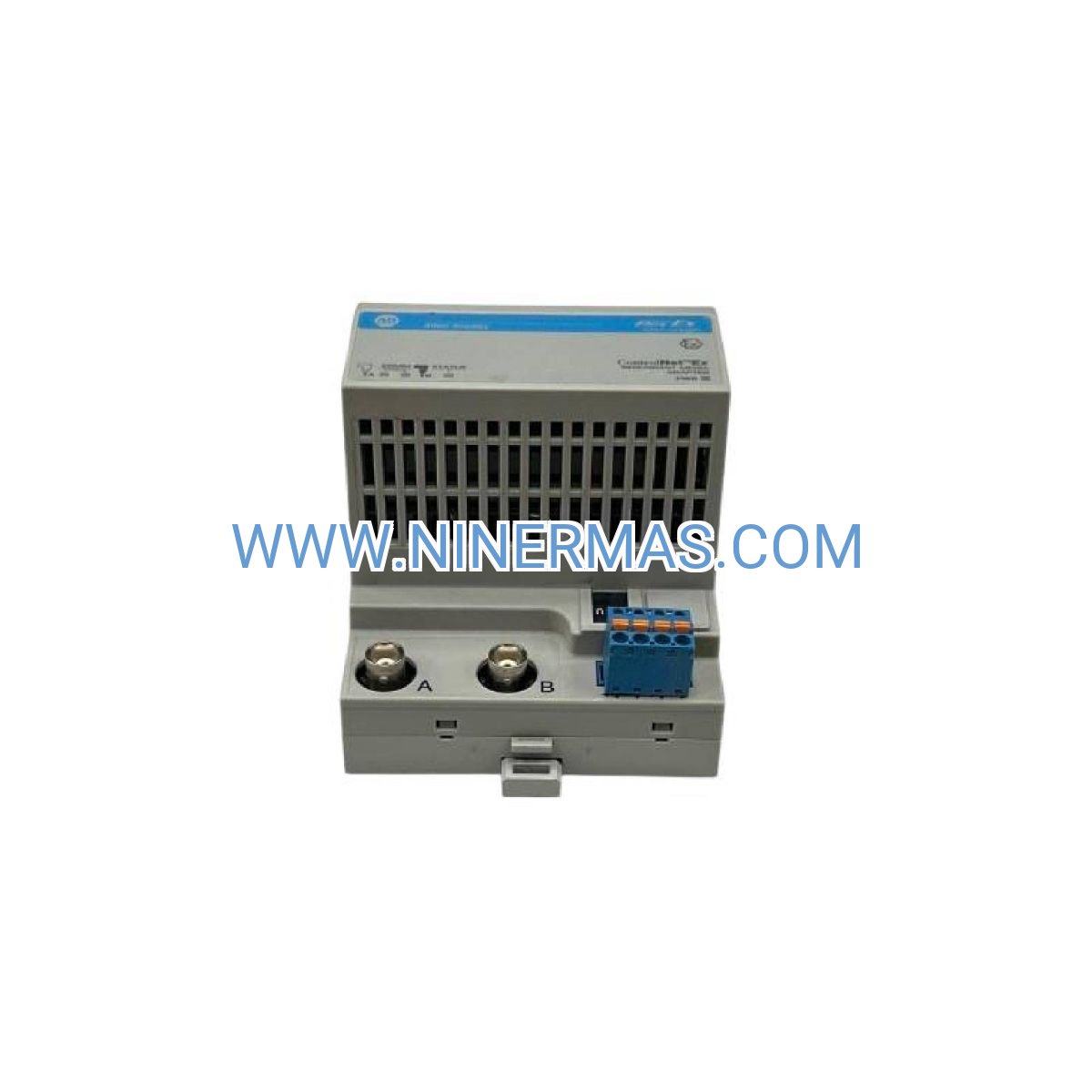

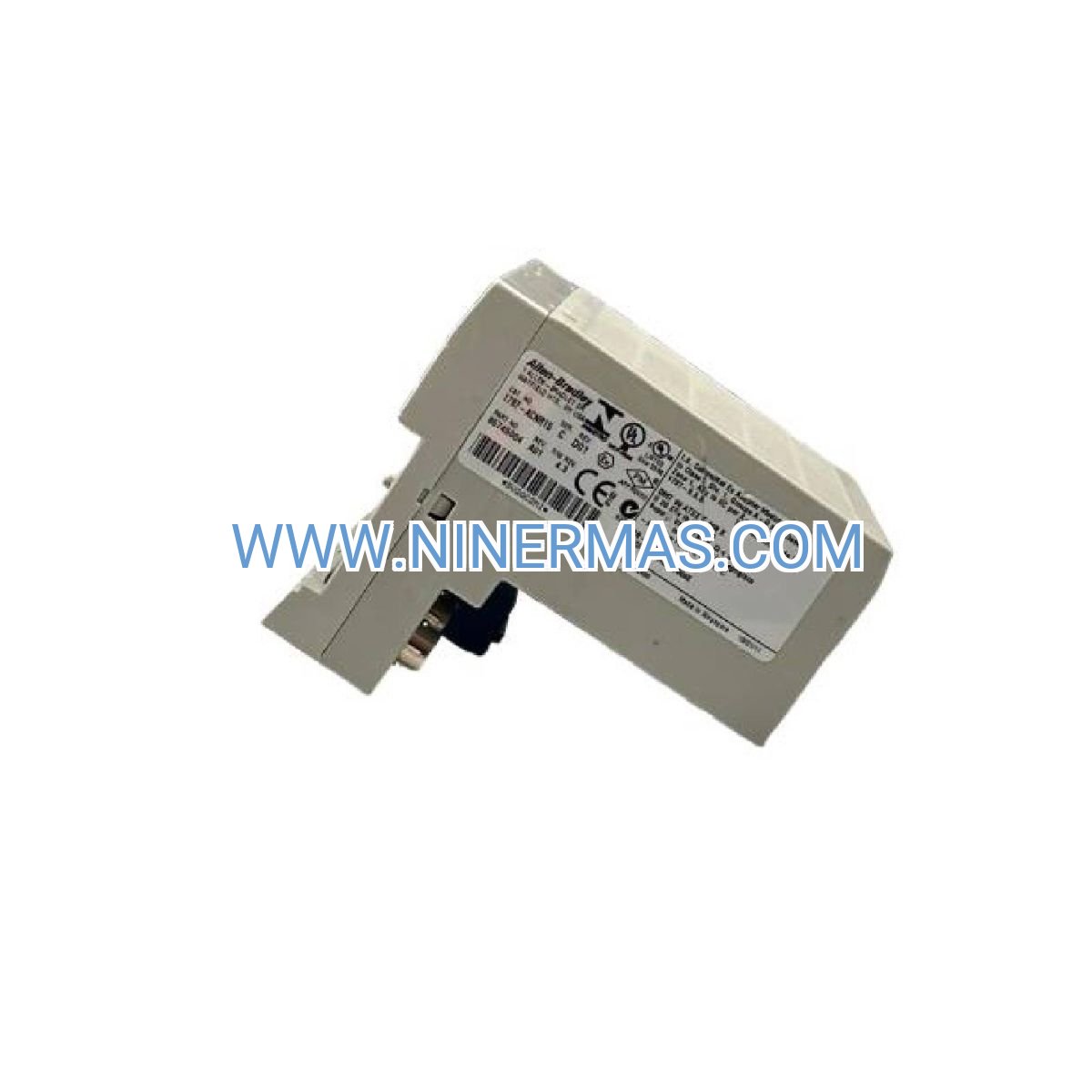

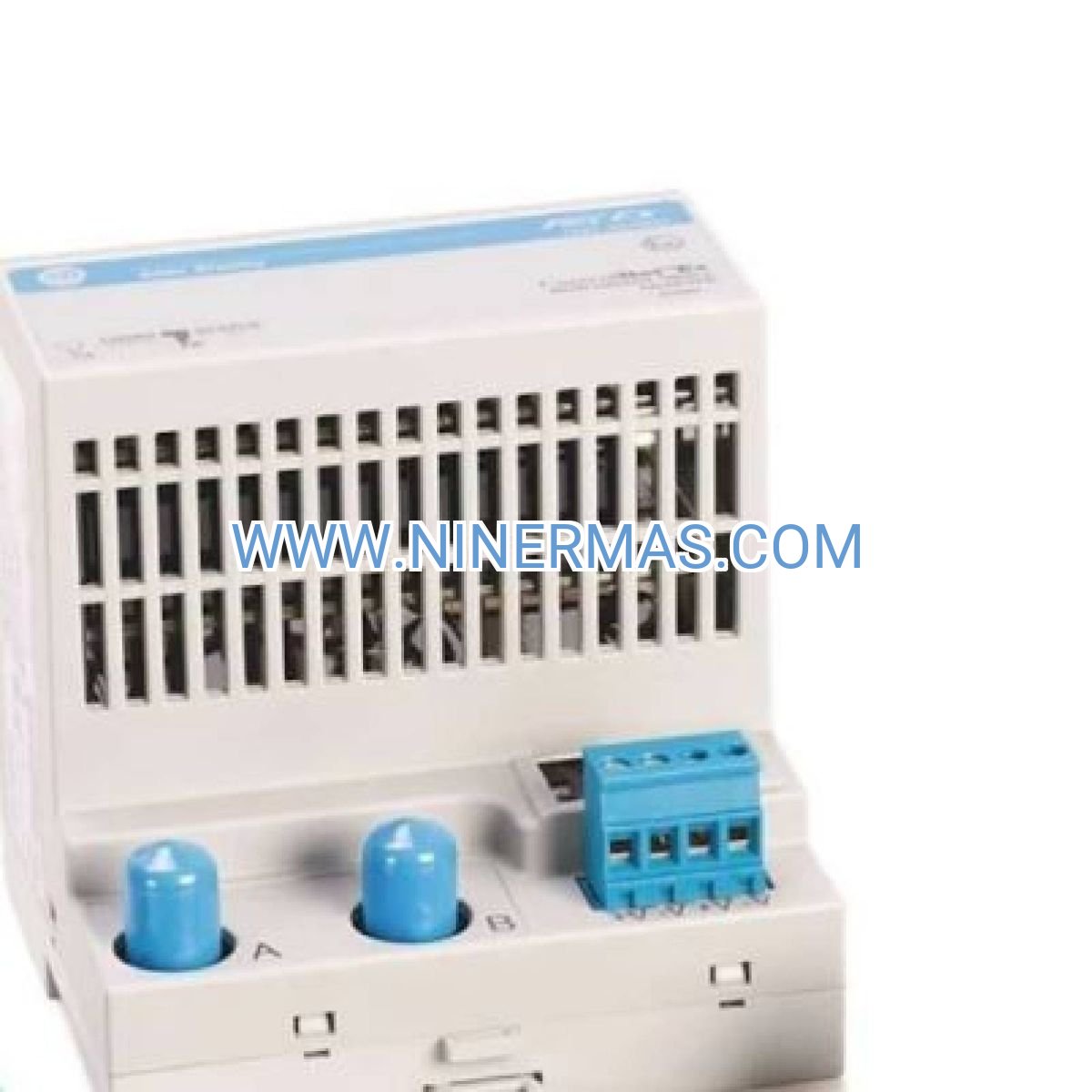

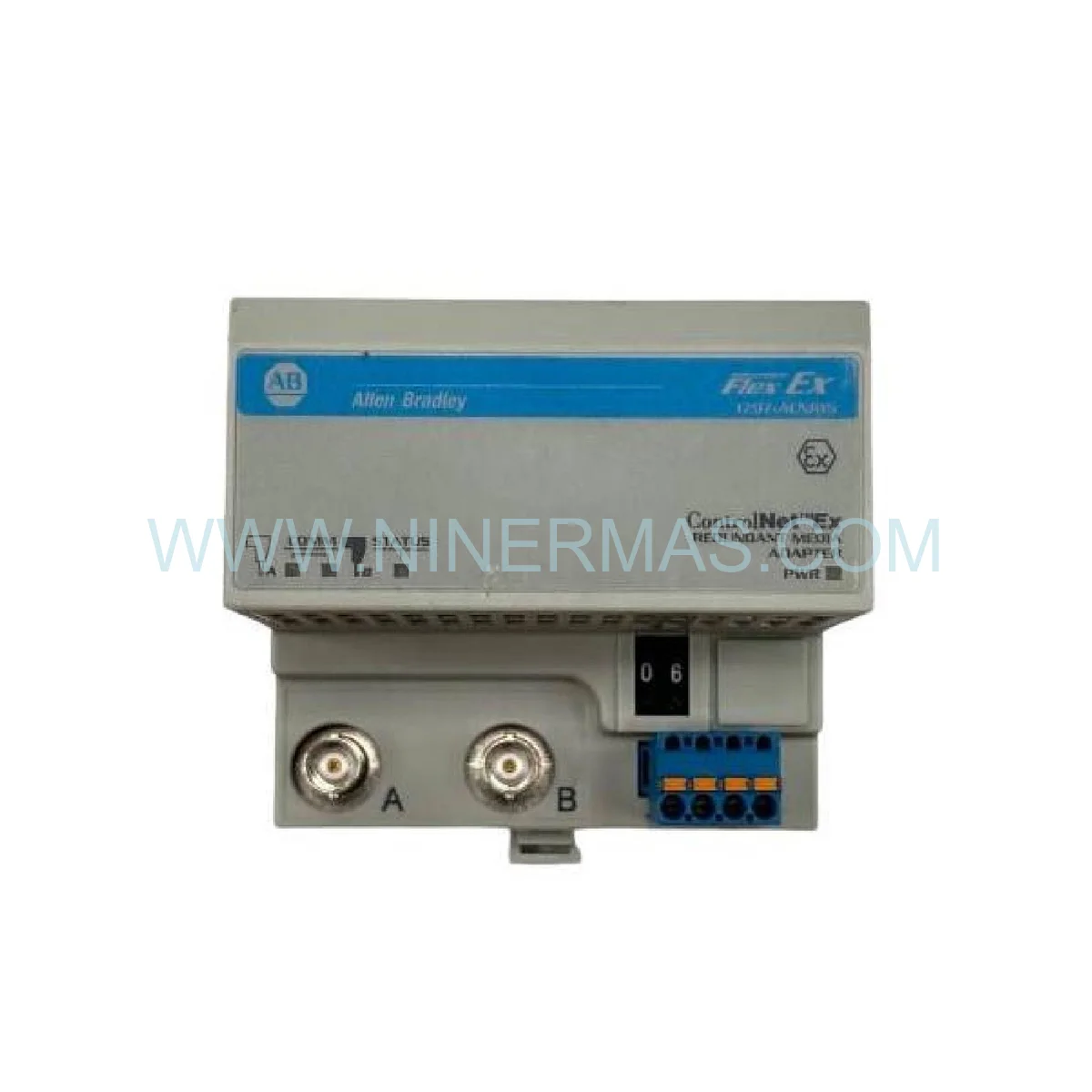

Allen-Bradley 1797-ACNR15 ControlNet Redundant Media Adapter (Industrial-Grade Flex Ex Module)

The Allen-Bradley 1797-ACNR15 is a high-reliability ControlNet redundant media adapter designed for mission-critical industrial automation systems in hazardous locations. Through advanced redundant network architecture and intrinsically safe design, it ensures continuous communication integrity in Flex Ex distributed I/O systems, even during network failures or maintenance operations.

Ideal for oil & gas facilities, chemical processing plants, pharmaceutical manufacturing, and offshore platforms where Zone 1/Division 1 hazardous area compliance is mandatory. This adapter solves critical challenges including network downtime risks, single-point-of-failure vulnerabilities, costly production interruptions, and regulatory compliance requirements for explosive atmospheres.

Engineered with standardized ControlNet protocol support and field-proven redundancy algorithms, the 1797-ACNR15 delivers seamless failover capability, extended MTBF (Mean Time Between Failures), simplified maintenance procedures, and full compatibility with Rockwell Automation control ecosystems. Suitable for system integrators, plant engineers, OEM machine builders, and end-user facilities requiring certified hazardous location solutions. Contact our application engineers for network topology design, redundancy configuration guidance, and project-specific quotations.

Core Features & Technical Advantages

Redundant Network Architecture
Dual ControlNet media interface with automatic failover ensures uninterrupted communication during cable damage, switch failure, or scheduled maintenance. Eliminates single-point network vulnerabilities and maximizes system uptime in critical processes.

Hazardous Location Certification
Intrinsically safe design certified for Class I Division 1 Groups A-D and Zone 1 explosive atmospheres. Meets ATEX, IECEx, and NEC 505 standards, enabling safe deployment in petrochemical, mining, and pharmaceutical environments without additional barriers.

Seamless Flex Ex Integration
Native compatibility with 1797 Flex Ex I/O modules and ControlLogix/CompactLogix controllers. Supports hot-swappable installation, reducing commissioning time and enabling live system expansion without process shutdown.

Deterministic Communication Performance
ControlNet protocol guarantees predictable data delivery with configurable update rates (2ms to 100ms). Supports up to 99 nodes per network segment, ideal for large-scale distributed control systems requiring precise timing synchronization.

Comprehensive Diagnostic Capabilities
Built-in LED indicators and embedded diagnostics provide real-time network health monitoring, fault location identification, and predictive maintenance alerts. Integrates with RSLogix/Studio 5000 for centralized troubleshooting and performance analytics.

Rugged Industrial Construction
Conformal-coated PCB and sealed enclosure withstand temperature extremes (-40°C to +70°C), vibration (IEC 60068-2-6), and corrosive atmospheres. IP20-rated housing ensures long-term reliability in harsh industrial environments.

Typical Application Scenarios

This redundant media adapter is engineered for environments demanding both hazardous area protection and zero-tolerance network downtime:

Upstream Oil & Gas Production
Offshore platforms, wellhead control systems, and gas processing facilities require continuous monitoring of pressure, flow, and safety instrumentation. The 1797-ACNR15 ensures uninterrupted SCADA communication during harsh weather conditions and equipment maintenance cycles.

Chemical & Petrochemical Processing
Reactor control, distillation columns, and batch processing systems in Zone 1 areas benefit from redundant network paths. Prevents costly batch losses and safety incidents caused by communication failures during critical process phases.

Pharmaceutical Manufacturing (Cleanroom & Hazardous)
Solvent handling areas and API (Active Pharmaceutical Ingredient) production zones require both explosion-proof ratings and FDA 21 CFR Part 11 compliant data integrity. Redundant architecture supports audit trail requirements and continuous batch documentation.

Mining & Mineral Processing
Underground conveyor systems, ventilation control, and methane monitoring networks in explosive dust environments. Dual-path communication maintains safety system responsiveness even during cable damage from mobile equipment.

Power Generation & Utilities
Turbine control, emissions monitoring, and auxiliary systems in classified areas of power plants. Redundancy ensures regulatory compliance for critical environmental reporting and grid stability control loops.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, key specifications include:

• Network Protocol: ControlNet (IEC 61158 Type 2)
• Redundancy Type: Media redundancy with automatic failover (<10ms switchover)
• Hazardous Area Rating: Class I Div 1 Groups A-D / Zone 1 / ATEX II 2G Ex ib IIC T4
• Power Supply: 24V DC ±20% (isolated, supplied via Flex Ex backplane)
• Current Consumption: 150mA @ 24V DC (typical)
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Network Data Rate: 5 Mbps (ControlNet standard)
• Maximum Network Nodes: 99 devices per segment
• Mounting: DIN rail (35mm) via Flex Ex adapter module
• Enclosure Rating: IP20 (when properly installed in Flex Ex system)
• Certifications: UL/cUL 508, ATEX, IECEx, FM, CSA, NEPSI
• MTBF: >500,000 hours (MIL-HDBK-217F)

Selection Considerations:
When specifying the 1797-ACNR15, evaluate: (1) Total ControlNet node count and network loading, (2) Required update rate for critical I/O (RPI settings), (3) Hazardous area classification and temperature code requirements, (4) Physical distance between controller and remote I/O (max 1000m per segment with repeaters), (5) Redundancy strategy (media vs. adapter-level), (6) Integration with existing Rockwell Automation platforms. For complex topologies or multi-drop configurations, consult with certified system integrators or submit network architecture diagrams for engineering review.

Advanced Configuration & Integration Options

Redundancy Modes: Supports both scheduled (load-balanced) and fault-triggered failover. Configure via RSNetWorx for ControlNet software with user-defined priority settings.

Network Diagnostics: Real-time monitoring of packet loss, CRC errors, and bandwidth utilization through embedded web server or Studio 5000 Logix Designer integration.

Protocol Bridging: When paired with 1756-CNB or 1756-CNBR controllers, enables seamless data exchange between ControlNet, EtherNet/IP, and DeviceNet networks in hybrid architectures.

Cybersecurity Features: Supports network segmentation strategies and integrates with Rockwell's Trusted® system extensions for defense-in-depth security architectures (requires compatible firmware).

Delivery, Quality Assurance & Technical Support

Lead Time: Factory-sealed units typically ship within 3-5 business days for standard orders; custom-configured or high-volume projects may require 10-15 days. Expedited logistics available for critical shutdowns.

Warranty & Certification: All units include 12-month manufacturer warranty covering defects in materials and workmanship. Products ship with original Allen-Bradley certification documentation, calibration certificates (where applicable), and full traceability to manufacturing batch codes.

Installation & Commissioning: Comprehensive technical documentation package includes: ControlNet network wiring diagrams, Flex Ex backplane installation guides, RSNetWorx configuration templates, and Studio 5000 Add-On Instruction (AOI) libraries. Remote commissioning support and on-site startup services available in select regions (consult for coverage).

Compliance Documentation: ATEX/IECEx certificates, FM/CSA hazardous location approvals, material declarations (RoHS/REACH), and cybersecurity advisories provided upon request for project documentation and regulatory submissions.

Frequently Asked Questions (FAQ)

Q: How does the 1797-ACNR15 ControlNet redundant media adapter integrate with existing non-redundant Flex Ex systems?
A: The adapter installs directly onto the Flex Ex DIN rail mounting system and connects to dual ControlNet trunk cables. Existing single-path configurations can be upgraded by adding a second network cable and configuring redundancy parameters in RSNetWorx. No changes to I/O module wiring or controller programming are required—only network topology updates.

Q: What is the maximum number of 1797 Flex Ex I/O modules supported per redundant adapter?
A: Each 1797-ACNR15 supports up to 8 Flex Ex I/O adapter modules (1797-IB16, 1797-OB8, etc.) on a single backplane segment, with total system capacity limited by ControlNet bandwidth (typically 40-60 modules per network depending on RPI settings and data density). For larger systems, deploy multiple adapters across network segments.

Q: What energy savings or efficiency improvements does redundant ControlNet architecture provide?
A: While the adapter itself doesn't directly reduce energy consumption, redundant communication prevents costly unplanned downtime (average $260,000/hour in process industries per Aberdeen Research). By eliminating emergency shutdowns caused by network failures, facilities maintain optimal process efficiency and avoid energy-intensive restart sequences. Typical ROI achieved within 6-18 months through uptime improvement alone.

Q: What are the environmental and installation requirements for hazardous location deployment?
A: The 1797-ACNR15 requires installation within a properly classified Zone 1/Division 1 enclosure or Flex Ex system rated for the specific gas group (IIC for hydrogen, IIB for ethylene, etc.). Ambient temperature must remain within -40°C to +70°C, and the unit must be protected from direct water spray (IP20 rating). All ControlNet cabling must use intrinsically safe blue trunk cable (Belden 3084A or equivalent) with proper grounding per NEC Article 504/505.

Q: Can the adapter support remote monitoring, data logging, and integration with SCADA or MES systems?
A: Yes—when connected to ControlLogix or CompactLogix controllers with EtherNet/IP communication modules, all I/O data and diagnostic information can be accessed via FactoryTalk View SE, Kepware OPC servers, or third-party SCADA platforms. The adapter supports standard ControlNet messaging (explicit and I/O) and integrates with Rockwell's FactoryTalk Analytics for predictive maintenance workflows. Modbus TCP and MQTT protocol bridging available through gateway devices.

Q: What is the typical failover time when switching between redundant ControlNet media paths?
A: Automatic failover occurs within 10 milliseconds of detecting primary path failure, ensuring minimal disruption to real-time control loops. This meets requirements for most safety-rated and high-speed process control applications. Failover events are logged with timestamps in the controller's diagnostic buffer for post-incident analysis.

Request Engineering Support & Custom Solutions

For detailed application engineering, network architecture design, or project-specific quotations, please provide the following information to our technical team:

• Project name and industry sector
• Hazardous area classification (Zone/Division, Gas Group, Temperature Code)
• Total number of I/O points and module types (digital, analog, specialty)
• Required network update rate (RPI) and determinism requirements
• Physical layout: controller-to-remote I/O distances and cable routing constraints
• Existing Rockwell Automation platform (ControlLogix, CompactLogix, PLC-5 legacy)
• Redundancy strategy: media-level, adapter-level, or full controller redundancy
• Cybersecurity and network segmentation requirements

Our certified system integration engineers will provide one-on-one consultation including network loading calculations, bill-of-materials optimization, configuration file templates, and compliance documentation support. Typical response time: 24-48 hours for standard inquiries.
