Allen-Bradley 1794-TB3T Terminal Base | Flex I/O RTD/TC Temperature Module Interface | Industrial Grade

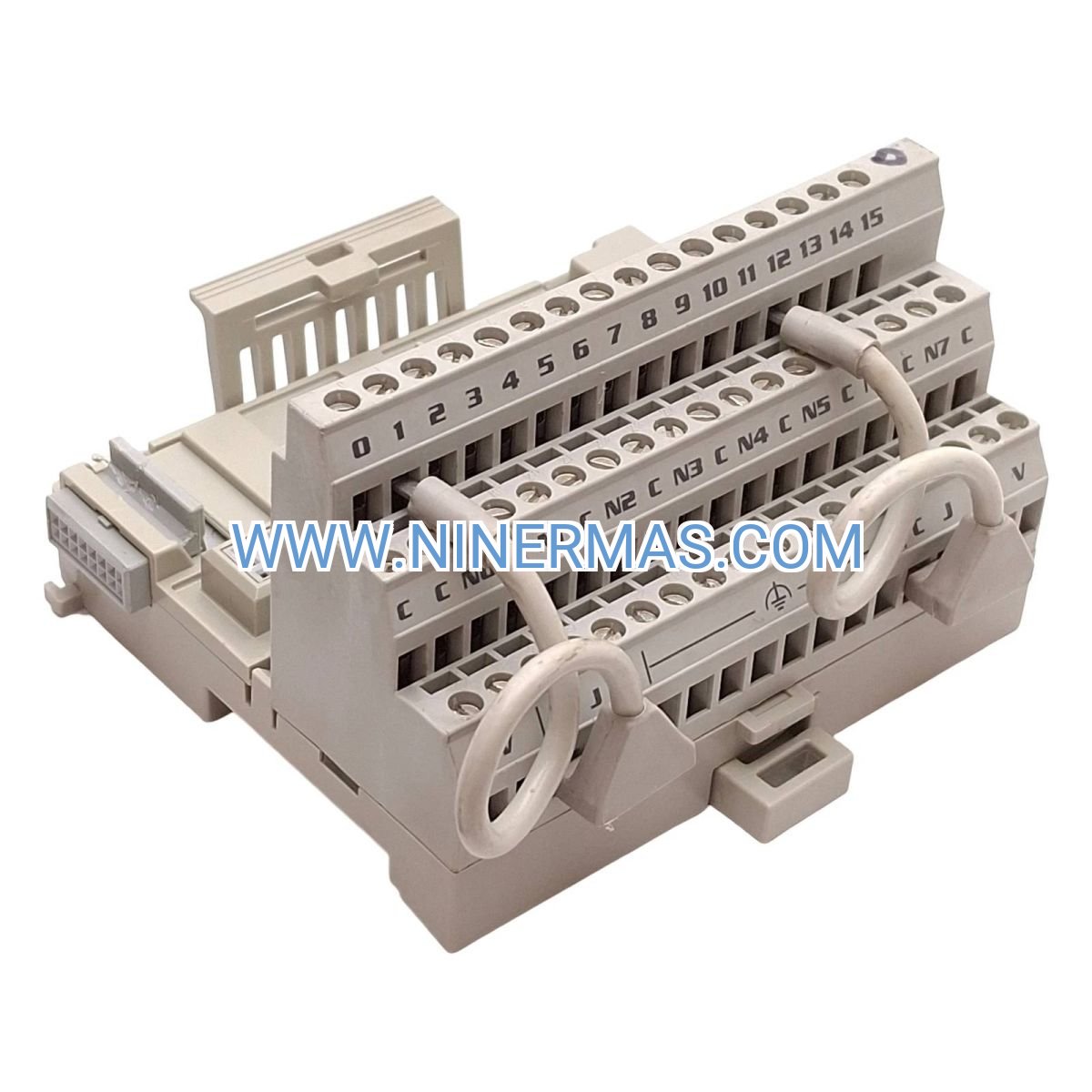

Allen-Bradley 1794-TB3T Terminal Base for Flex I/O Temperature Modules

The Allen-Bradley 1794-TB3T is a precision-engineered terminal base designed specifically for Flex I/O temperature input modules, enabling seamless integration of RTD (Resistance Temperature Detector) and thermocouple sensors into industrial control systems. Through its robust screw-terminal design and standardized DIN rail mounting, this terminal base delivers reliable signal transmission and secure module installation in demanding automation environments.

Engineered for process control, HVAC systems, industrial heating/cooling applications, and manufacturing quality monitoring, the 1794-TB3T addresses critical challenges including signal integrity degradation, installation complexity, and maintenance accessibility. It provides a stable, interference-resistant interface between field sensors and control logic, ensuring accurate temperature data acquisition across diverse industrial settings.

With factory-tested quality assurance, compatibility across the Flex I/O ecosystem, and field-proven durability, this terminal base is the preferred choice for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration guidance, technical drawings, and project-specific recommendations.

Core Features & Technical Advantages

• Universal Temperature Sensor Compatibility
  Supports both RTD (2-wire, 3-wire, 4-wire) and thermocouple (Types J, K, T, E, R, S, B, N) inputs, providing flexible sensor selection for temperature ranges from -200°C to +1800°C depending on module pairing.
• Secure Screw-Terminal Connection
  Industrial-grade screw terminals (12-22 AWG wire capacity) ensure vibration-resistant, low-resistance connections that maintain signal accuracy over years of operation, reducing false readings and system downtime.
• Standardized DIN Rail Mounting
  35mm DIN rail compatibility enables rapid installation and removal without tools, facilitating efficient panel assembly, system expansion, and on-site maintenance in confined enclosure spaces.
• Integrated Wiring Management
  Built-in wire routing channels and strain relief features organize field wiring, minimize electromagnetic interference (EMI), and simplify troubleshooting during commissioning and service activities.
• Robust Environmental Protection
  Conformal-coated circuitry and industrial-grade housing materials withstand temperature extremes (-40°C to +70°C ambient), humidity, dust, and chemical exposure typical in manufacturing and process environments.
• Plug-and-Play Module Interface
  Precision-aligned connector ensures proper module seating and electrical contact, eliminating installation errors and enabling hot-swappable module replacement without system shutdown in redundant configurations.

Typical Application Scenarios

The 1794-TB3T terminal base is engineered for temperature-critical applications requiring high accuracy, long-term stability, and regulatory compliance:

• Process Industry Temperature Monitoring
  Chemical reactors, distillation columns, and heat exchangers in petrochemical, pharmaceutical, and food processing plants rely on precise temperature control to ensure product quality, safety compliance, and energy efficiency.
• HVAC & Building Automation Systems
  Commercial buildings, data centers, and cleanroom facilities use multi-zone temperature monitoring to optimize comfort, maintain environmental specifications, and reduce HVAC energy consumption by 15-30%.
• Manufacturing Quality Control
  Injection molding, metal heat treatment, and semiconductor fabrication processes require real-time temperature profiling to maintain dimensional tolerances, material properties, and yield rates.
• Energy & Utilities Infrastructure
  Power generation facilities, district heating networks, and water treatment plants monitor critical equipment temperatures to prevent failures, schedule predictive maintenance, and ensure continuous operation.
• Laboratory & Test Equipment Integration
  Environmental chambers, material testing systems, and calibration laboratories demand traceable, high-accuracy temperature measurement for compliance with ISO 17025 and industry-specific standards.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, please review the following specifications when designing your control architecture:

Selection Recommendations: When specifying the 1794-TB3T, consider your sensor type (RTD vs. thermocouple), required channel count (8-channel modules typical), signal isolation needs, and ambient temperature conditions. For applications requiring intrinsic safety or hazardous area installation, consult factory documentation for approved barriers and enclosure ratings. Our engineering team can provide system-level design review, wiring diagrams, and bill-of-materials optimization for multi-point temperature monitoring projects.

System Integration & Expansion Capabilities

• Modular Architecture Scalability
  Flex I/O distributed control platform supports mixed I/O configurations, allowing temperature modules to coexist with digital, analog, and specialty I/O on the same network backbone, reducing panel space and wiring costs.
• Network Protocol Flexibility
  Compatible with ControlLogix, CompactLogix, and MicroLogix controllers via DeviceNet, EtherNet/IP, or ControlNet adapters, enabling seamless integration into existing Rockwell Automation ecosystems or third-party SCADA systems.
• Diagnostic & Maintenance Features
  Module-level LED indicators and network-accessible diagnostics provide real-time status of sensor health, open-circuit detection, and out-of-range alarms, accelerating troubleshooting and minimizing unplanned downtime.
• Redundancy & High-Availability Options
  When paired with redundant I/O adapters and dual-network configurations, the 1794-TB3T supports mission-critical applications requiring 99.9%+ uptime, such as continuous process industries and utility infrastructure.

Delivery, Quality Assurance & Technical Support

Product Availability: Factory-sealed, OEM-specification 1794-TB3T terminal bases are maintained in regional distribution inventory for same-day or next-business-day shipment. Custom configurations (pre-wired assemblies, labeled terminals, integrated surge protection) typically ship within 5-10 business days depending on complexity.

Quality & Warranty: All units undergo factory functional testing and visual inspection prior to shipment. Standard warranty coverage is 12 months from delivery date, covering material defects and workmanship under normal operating conditions. Extended warranty and advance-replacement programs are available for critical applications.

Technical Documentation: Each terminal base ships with installation quick-start guide, wiring diagram, and dimensional drawings. Complete user manuals, CAD models (STEP/DWG formats), and PLC configuration files are available via download or upon request.

Application Engineering Support: Our team provides pre-sales technical consultation, system design review, on-site commissioning assistance (subject to geographic availability), and post-installation troubleshooting support. Remote diagnostic services and training programs are available for integrator partners and end-user maintenance teams.

Frequently Asked Questions (FAQ)

Q: How do I connect RTD sensors to the 1794-TB3T terminal base?
A: The terminal base provides clearly labeled screw terminals corresponding to your temperature module's channel layout. For 3-wire RTD sensors (most common), connect the two leads from one side of the RTD to terminals marked for that channel's positive and sense connections, and the third lead to the negative/common terminal. Always refer to the module-specific wiring diagram (included with 1794-IR8 or equivalent) and ensure proper wire gauge (18-22 AWG recommended for signal integrity). Maintain separation between RTD wiring and high-voltage AC circuits to minimize noise.

Q: Can one 1794-TB3T terminal base support both RTD and thermocouple inputs simultaneously?
A: No. Each Flex I/O temperature module (and its corresponding terminal base) is dedicated to either RTD or thermocouple inputs, not mixed. If your application requires both sensor types, you will need separate modules: for example, a 1794-IR8 (RTD) with one 1794-TB3T, and a 1794-IT8 (thermocouple) with another 1794-TB3T, both mounted on the same Flex I/O rack.

Q: What is the maximum wire run distance from sensors to the terminal base?
A: For RTD sensors, maximum recommended cable length is typically 100-300 meters depending on wire gauge and RTD resistance (100Ω, 200Ω, etc.). Use shielded, twisted-pair cable and 3-wire or 4-wire configurations to compensate for lead resistance. For thermocouples, extension-grade wire of the correct type (matching sensor) can run 30-100 meters; beyond that, consider transmitter-based solutions. Always consult module specifications and perform loop resistance calculations for your specific installation.

Q: Does the 1794-TB3T require any special environmental protection or enclosure rating?
A: The terminal base itself is rated IP20, suitable for installation inside NEMA Type 1 or Type 12 enclosures that protect against dust and indirect water contact. For harsh environments (washdown areas, outdoor installations, corrosive atmospheres), mount the Flex I/O system in appropriately rated enclosures (NEMA 4X, IP65/IP66) with proper sealing and climate control. Ensure ambient temperature remains within -40°C to +70°C operational range.

Q: Can I hot-swap the temperature module while the system is running?
A: Hot-swapping capability depends on your Flex I/O adapter configuration and controller programming. In redundant or fault-tolerant systems with appropriate network settings, modules can be replaced without shutting down the entire I/O rack. However, the specific channel(s) on the replaced module will be offline during the swap. Always follow lockout/tagout procedures and consult your system integrator or Rockwell Automation documentation before performing live maintenance.

Q: What communication protocols and PLCs are compatible with Flex I/O systems using the 1794-TB3T?
A: Flex I/O supports DeviceNet, ControlNet, and EtherNet/IP networks via appropriate adapter modules (1794-ADN, 1794-ACN, 1794-AENT, etc.). Compatible controllers include Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix, and SLC 500 families, as well as third-party controllers supporting these industrial protocols. Configuration is performed using RSLogix/Studio 5000 software or equivalent programming environments.

Request Technical Consultation & Custom Quotation

To receive a tailored solution for your temperature monitoring application, please provide our engineering team with the following project details:

• Application description and industry sector (process control, HVAC, manufacturing, etc.)
• Number of temperature measurement points and sensor types (RTD model/thermocouple type)
• Temperature range requirements and accuracy specifications
• Control system platform (PLC model, network protocol)
• Environmental conditions (ambient temperature, enclosure type, hazardous area classification if applicable)
• Project timeline and delivery location

Our specialists will respond within one business day with configuration recommendations, certified drawings, compliance documentation, and competitive pricing.
