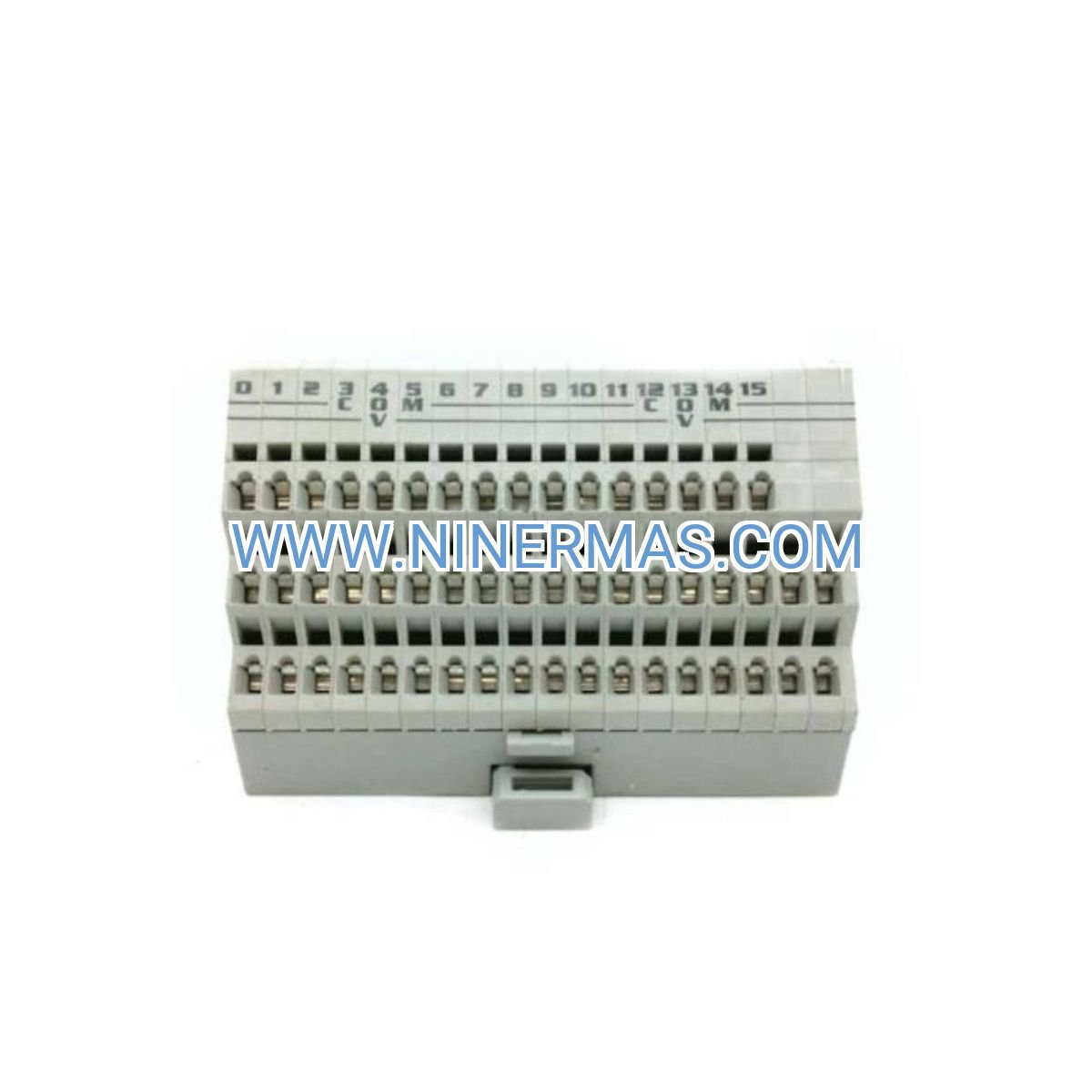

1794-TB3S Spring Clamp Terminal Base (Industrial-Grade Flex I/O Component)

The 1794-TB3S represents a breakthrough in industrial wiring efficiency—a spring clamp terminal base engineered for Allen-Bradley Flex I/O modular systems. Designed for automation professionals who demand rapid deployment without compromising connection integrity, this 36-point terminal block eliminates screwdriver dependency while delivering superior vibration resistance in demanding manufacturing environments.

Built for system integrators, OEMs, and plant engineers managing distributed control architectures, the 1794-TB3S solves the persistent challenge of time-consuming field wiring and maintenance downtime. Whether you're retrofitting legacy systems or deploying greenfield automation projects, this terminal base accelerates commissioning cycles while maintaining the reliability standards critical to continuous production operations.

What sets the 1794-TB3S apart is its intelligent balance of installation speed, connection durability, and hot-swap capability—enabling module replacement without disrupting live field wiring. Combined with universal DIN rail mounting and comprehensive compliance certifications, it delivers the flexibility modern control systems require across process, discrete, and hybrid manufacturing applications.

Core Features & Technical Advantages

✓ Zero-Tool Wire Termination
Spring clamp mechanism accepts 24-12 AWG conductors through push-in insertion, cutting installation time by 40-50% compared to screw terminals while ensuring consistent contact pressure across all connection points.

✓ Vibration-Proof Connection Technology
Engineered spring force maintains electrical continuity in high-vibration environments (packaging lines, material handling, mobile equipment) where traditional screw terminals can loosen over operational cycles.

✓ Hot-Swappable Module Architecture
Removable terminal block design allows I/O module replacement during system operation—field wiring remains undisturbed, reducing MTTR (Mean Time To Repair) by up to 60% during troubleshooting scenarios.

✓ Integrated Wire Management System
Dedicated labeling zones and color-coded terminal identification streamline documentation compliance and accelerate fault diagnosis during emergency maintenance events.

✓ Compact High-Density Footprint
Space-optimized profile maximizes I/O density per linear foot of DIN rail—critical for panel space constraints in machine builder applications and retrofit installations.

✓ Universal Environmental Ratings
Operates reliably across 0-60°C temperature range with 5-95% humidity tolerance, meeting industrial facility conditions without requiring specialized enclosures or climate control.

Typical Application Scenarios

→ Automated Assembly & Production Lines
Manufacturing facilities deploying robotic work cells, conveyor systems, and pick-and-place operations benefit from rapid wiring during line changeovers. The tool-free design reduces electrician labor hours during production equipment reconfiguration, directly impacting OEE (Overall Equipment Effectiveness) metrics.

→ Process Control & Batch Systems
Chemical processing, pharmaceutical manufacturing, and water treatment plants require reliable I/O connectivity in environments with temperature fluctuations and vibration from pumps/motors. The 1794-TB3S maintains signal integrity while simplifying validation documentation for regulatory compliance (FDA 21 CFR Part 11, GAMP 5).

→ Packaging & Material Handling Equipment
High-speed packaging lines, palletizers, and sortation systems generate continuous mechanical stress. Spring clamp terminals eliminate connection degradation common in screw-type bases, reducing unplanned downtime and maintenance callouts.

→ Building Automation & Energy Management
HVAC control systems, lighting networks, and access control installations leverage the 1794-TB3S for distributed I/O architectures. The compact design fits standard electrical enclosures while supporting EtherNet/IP integration for smart building platforms.

→ Machine Builder OEM Applications
Equipment manufacturers (printing presses, textile machinery, CNC systems) standardize on the 1794-TB3S to accelerate panel assembly during production. Consistent wiring methodology across machine models reduces training requirements and warranty service complexity.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1794-TB3S when installation speed and maintenance efficiency outweigh initial cost considerations. For applications requiring grounded terminals, specify the 1794-TB3GS variant. Harsh chemical environments benefit from the conformal-coated 1794-TB3K model. Verify wire gauge compatibility with your field wiring standards—stranded conductors perform optimally with insulated ferrules to prevent strand breakage.

Extended Functions & System Integration

Network Compatibility: Integrates seamlessly with ControlLogix, CompactLogix, and MicroLogix platforms via DeviceNet, ControlNet, and EtherNet/IP communication adapters. Supports distributed I/O architectures up to 512 I/O points per network segment.

Module Compatibility: Accepts all Flex I/O modules including analog input/output (voltage, current, RTD, thermocouple), digital I/O (AC/DC input, relay/transistor output), specialty modules (high-speed counter, encoder, weighing), and safety-rated I/O for SIL 2/PLd applications.

Advanced Diagnostics: When paired with Flex I/O communication adapters, provides module-level health monitoring, wire fault detection, and predictive maintenance alerts through Studio 5000 Logix Designer software—enabling condition-based maintenance strategies.

Customization Options: Available with custom labeling, pre-wired cable assemblies, and integrated surge protection for lightning-prone installations. Consult factory for high-volume OEM configurations and private labeling programs.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 24-48 hours via expedited carriers (DHL, FedEx, UPS). Typical delivery to major industrial centers: 3-7 business days domestic, 7-14 days international.

Custom Configurations: Pre-wired assemblies and special labeling require 10-15 business days. Volume orders (50+ units) may qualify for factory-direct shipment with optimized logistics.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited access to application engineers for installation guidance, troubleshooting assistance, and system design consultation. Remote diagnostic support available during commissioning phases.

Documentation Package: Each unit includes installation manual, wiring diagrams, compliance certificates (UL/CE), and CAD files (AutoCAD DWG, EPLAN macros) for panel design integration.

Frequently Asked Questions

What wire preparation is required for spring clamp terminals on the 1794-TB3S?
Strip wire insulation 10-12mm (0.4-0.5 inches) from conductor end. For stranded wire, crimp insulated ferrules to prevent strand separation and ensure optimal contact area. Solid wire inserts directly without additional preparation.

Can I mix spring clamp and screw terminal bases within the same Flex I/O rack?
Yes—Flex I/O architecture supports heterogeneous terminal base configurations. You can combine 1794-TB3S (spring), 1794-TB3 (screw), and 1794-TB3G (grounded screw) bases in a single rack based on module-specific wiring requirements.

How does the 1794-TB3S perform in high-vibration environments compared to screw terminals?
Spring clamp technology maintains constant contact force independent of mechanical vibration, eliminating the terminal loosening common in screw-type connections. Field testing demonstrates 99.7% connection reliability in applications with continuous vibration up to 5G acceleration.

What is the maximum wire run distance for analog signals using this terminal base?
For 4-20mA current loops, distances up to 1000 meters are achievable with proper shielding. Voltage signals (0-10V) should remain under 300 meters to minimize noise susceptibility. Always use twisted-pair shielded cable for analog I/O and follow grounding best practices per Rockwell publication 1794-UM001.

Does the 1794-TB3S support hot-swapping I/O modules during system operation?
Yes—the removable terminal block design enables module replacement without de-energizing field wiring. However, always follow LOTO (Lockout/Tagout) procedures and verify your controller configuration supports online module insertion/removal before performing hot-swap operations.

Are there environmental limitations for deploying the standard 1794-TB3S model?
The standard version operates reliably in typical industrial environments (0-60°C, 5-95% RH non-condensing). For corrosive atmospheres, chemical exposure, or extreme humidity, specify the conformal-coated 1794-TB3K variant which provides enhanced protection against moisture and contaminants.

Take the Next Step

Ready to accelerate your Flex I/O deployment? Contact our automation specialists for application-specific guidance, volume pricing, or technical consultation. Whether you're designing a new control system or upgrading existing infrastructure, we'll help you specify the optimal terminal base configuration for your operational requirements.

Request a quote today or speak with an engineer to discuss your project timeline and integration needs.
