Allen-Bradley 1794-TB3GS Terminal Base | Grounded Spring Clamp I/O Module for Industrial Automation

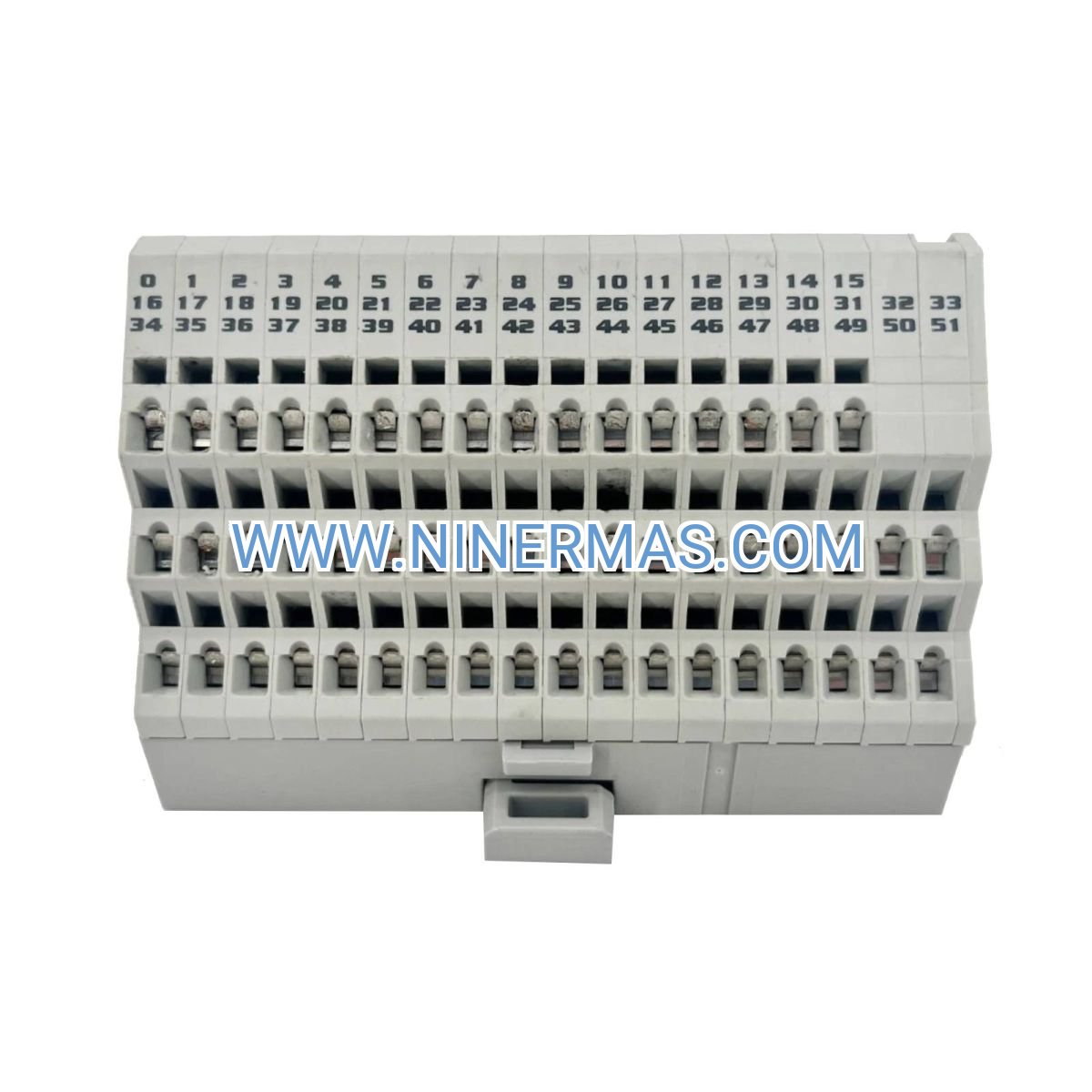

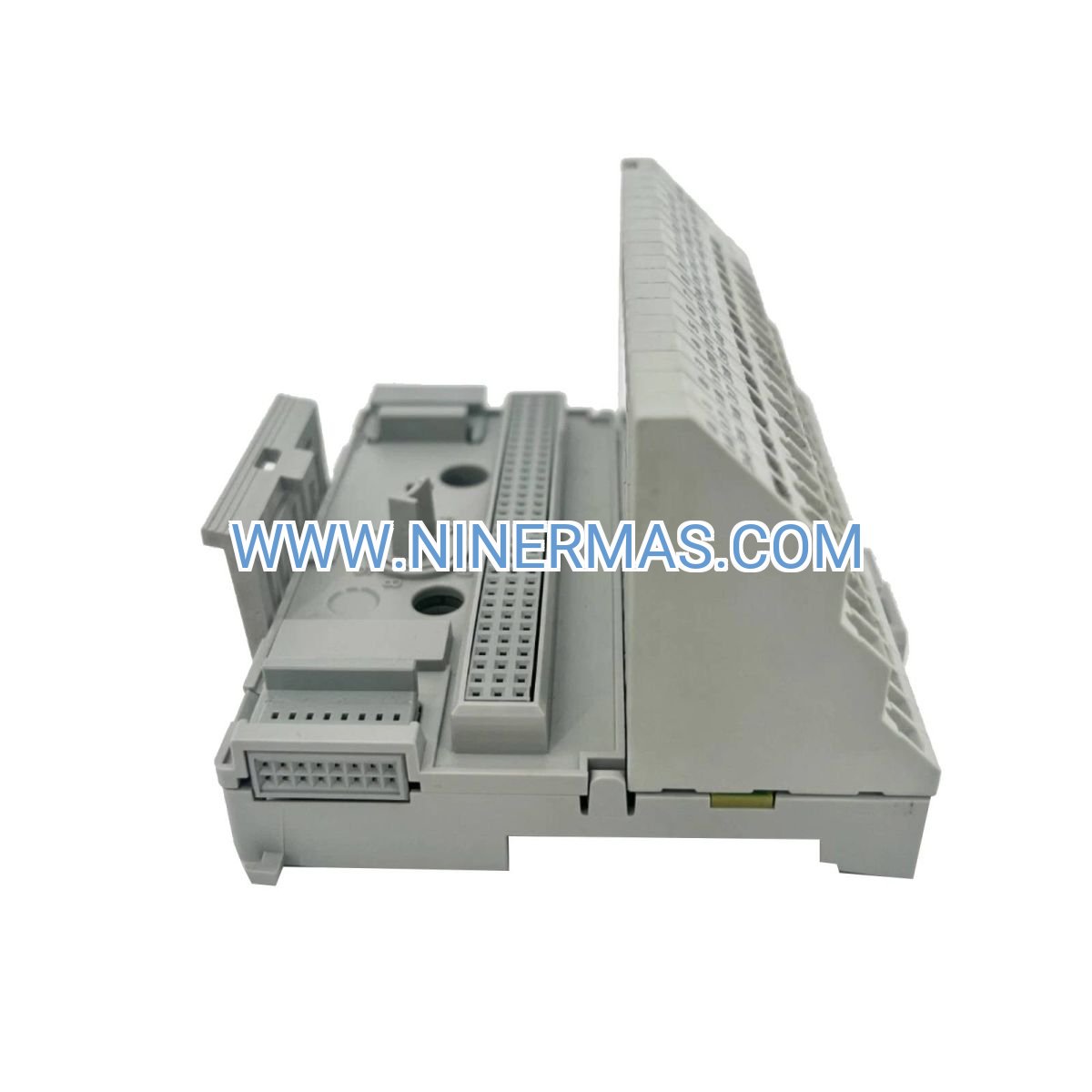

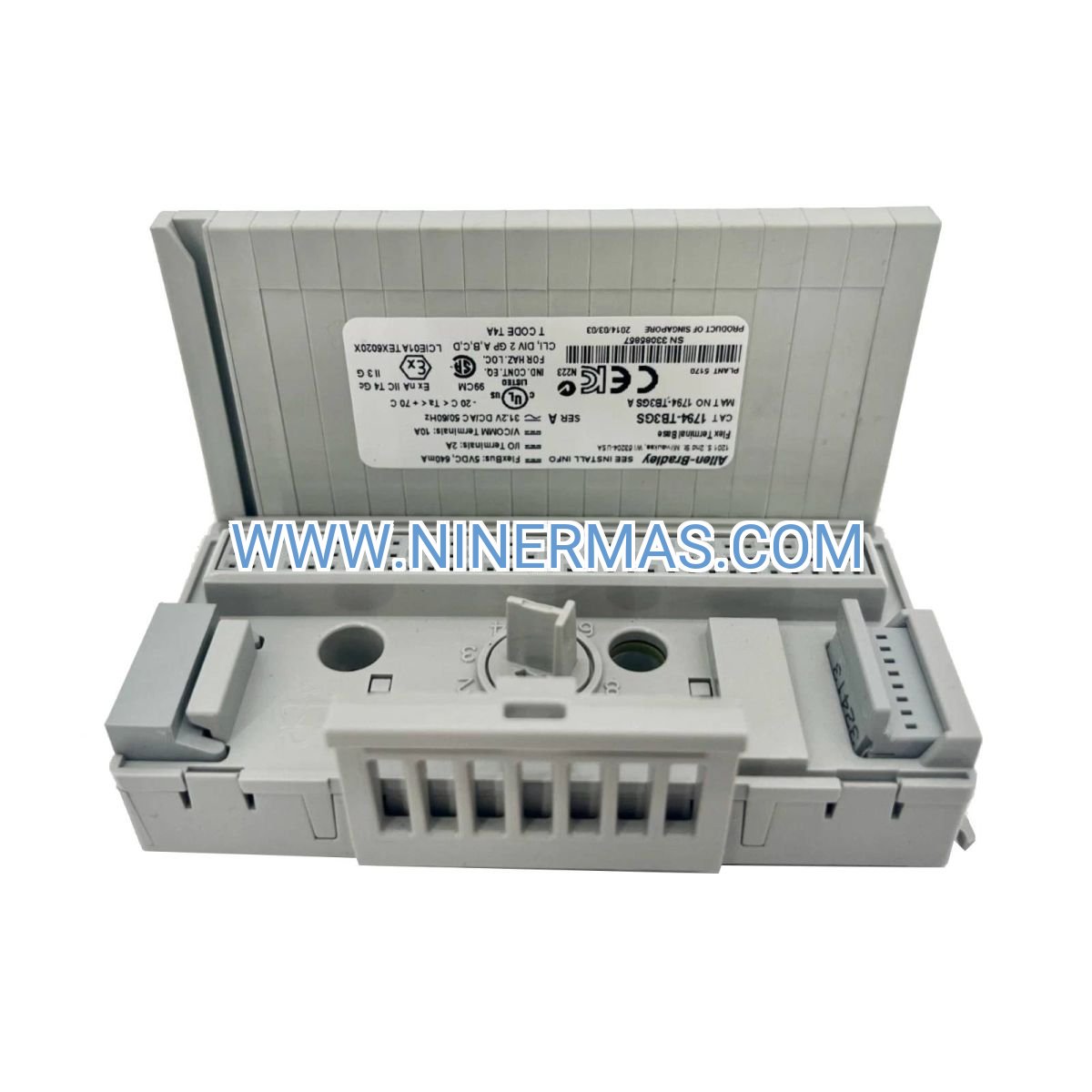

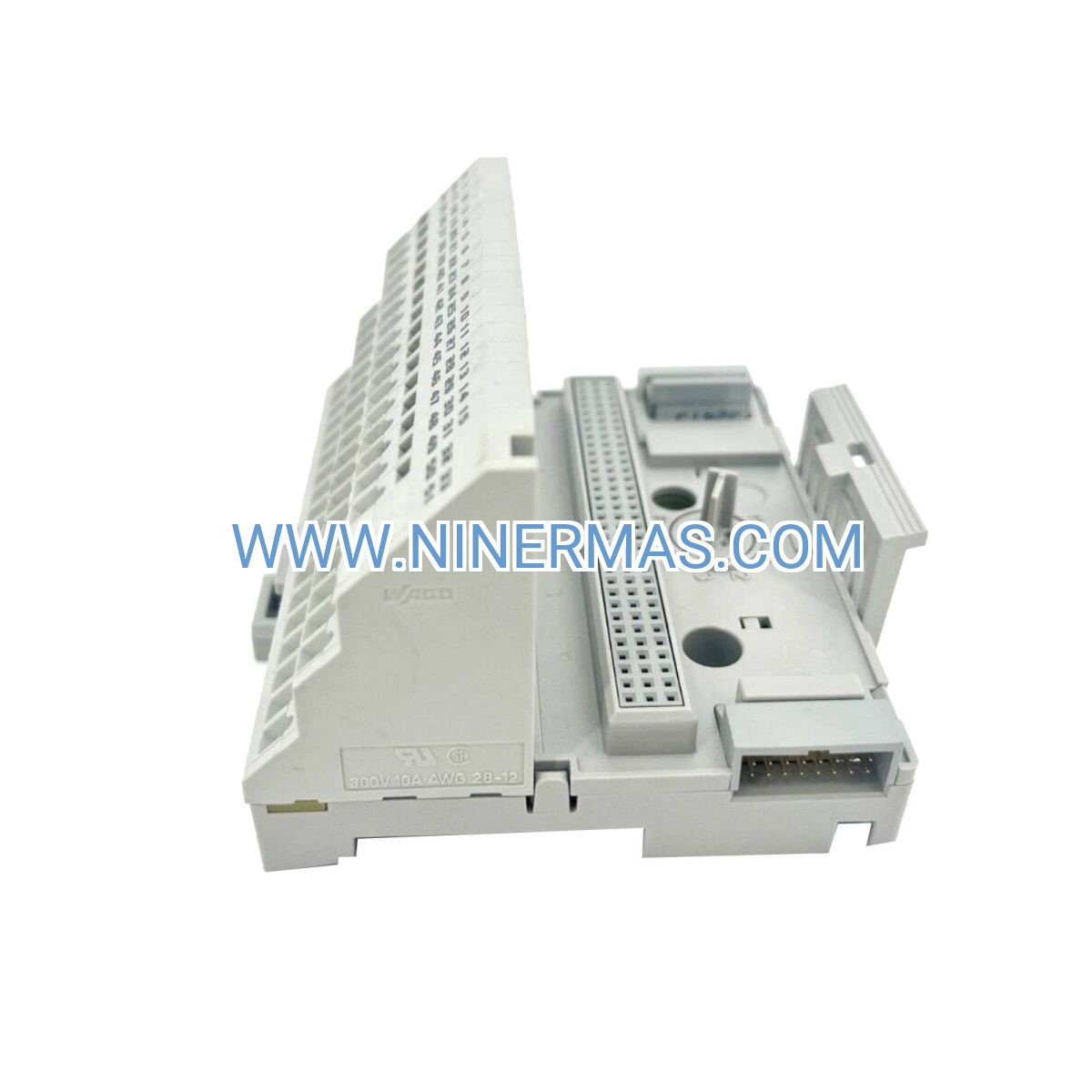

Allen-Bradley 1794-TB3GS Grounded Spring Clamp Terminal Base (Industrial-Grade I/O Connection Solution)

The Allen-Bradley 1794-TB3GS is a grounded spring clamp terminal base designed for Flex I/O systems, enabling fast, tool-free field wiring and reliable signal transmission in industrial automation applications. Through its spring-loaded contact mechanism and grounded design, it ensures secure electrical connections, minimizes installation time, and enhances system safety in harsh industrial environments.

Ideal for PLC control systems, process automation, manufacturing lines, building automation, and industrial data acquisition, this terminal base addresses common challenges such as time-consuming wiring, loose connections, signal interference, and grounding issues in distributed I/O architectures.

With standardized design and compatibility across the 1794 Flex I/O family, the 1794-TB3GS offers quick installation, maintenance-free operation, excellent EMC performance, and long-term reliability—making it the preferred choice for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our engineers for application guidance and technical specifications.

Core Features & Advantages

• Tool-Free Spring Clamp Technology
  Features push-in spring terminals that accept solid or stranded wires (14–22 AWG) without screwdrivers, reducing installation time by up to 60% and eliminating torque-related failures common in screw terminals.
• Integrated Grounding Design
  Built-in grounding terminal ensures proper chassis ground connection, reducing electromagnetic interference (EMI) and improving signal integrity in noisy industrial environments—critical for analog I/O and high-speed communication modules.
• Robust Construction for Harsh Environments
  Manufactured with flame-retardant thermoplastic housing and nickel-plated copper contacts, rated for -40°C to +70°C operation, suitable for factory floors, outdoor enclosures, and high-vibration applications.
• Universal Compatibility with 1794 Flex I/O
  Mechanically and electrically compatible with all Allen-Bradley 1794 series I/O modules (digital, analog, specialty), supporting mix-and-match configurations for flexible system expansion without redesign.
• Clear Wiring Identification
  Molded terminal numbers and color-coded grounding points simplify troubleshooting and maintenance, reducing downtime during commissioning and service—especially valuable in multi-module installations.
• Compact DIN-Rail Mounting
  Standard 35mm DIN-rail clip allows high-density installation in control cabinets, saving panel space while maintaining accessibility for wiring and module replacement.

Typical Application Scenarios

The 1794-TB3GS terminal base is engineered for applications demanding reliable I/O connectivity, fast deployment, and long-term serviceability, particularly in:

• Automated Manufacturing & Assembly Lines
  Connects sensors, actuators, and safety devices to PLC I/O modules in automotive, electronics, and packaging machinery, where frequent reconfigurations require quick wiring changes without production delays.
• Process Control & SCADA Systems
  Supports analog input modules for temperature, pressure, and flow measurement in chemical plants, water treatment facilities, and oil & gas installations, where grounding integrity is essential for accurate 4-20mA signal transmission.
• Building Automation & HVAC Control
  Interfaces with BMS controllers for lighting, HVAC, and access control in commercial buildings, hospitals, and data centers, providing reliable connections in environments with limited maintenance access.
• Machine Tool & CNC Equipment
  Facilitates I/O wiring for servo drives, spindle controls, and tool changers in precision machining centers, where vibration resistance and EMI immunity prevent false signals and machine faults.
• Renewable Energy & Power Distribution
  Used in solar inverter monitoring, wind turbine control, and substation automation systems, where outdoor-rated components and grounding protection ensure safe operation in high-voltage environments.

Technical Specifications & Selection Guide

To ensure proper integration with your Flex I/O system, the 1794-TB3GS offers the following specifications:

Selection Recommendations

When selecting the 1794-TB3GS terminal base, consider the following factors:

• I/O Module Compatibility: Verify that your 1794 series I/O module (e.g., 1794-IB16, 1794-OB16, 1794-IE8) requires a grounded terminal base—consult module datasheet for base type requirements.
• Wire Type & Gauge: For stranded wires, use ferrules to ensure proper contact; for solid wires, direct insertion is acceptable—avoid exceeding 22 AWG to prevent contact damage.
• Environmental Conditions: In high-EMI environments (near VFDs, welders, or RF equipment), the grounded design provides superior noise immunity compared to non-grounded bases.
• Panel Space: Measure available DIN-rail length and module spacing—each base occupies approximately 35mm width, allowing compact multi-module installations.
• Maintenance Access: Spring clamp terminals enable faster troubleshooting and wire replacement without tools, reducing mean time to repair (MTTR) in critical systems.

For assistance with system design, wiring diagrams, or compatibility verification, please provide your I/O module catalog numbers, wire specifications, and environmental conditions. Our application engineers will recommend the optimal terminal base configuration and provide CAD drawings for panel layout.

Extended Functionality & System Integration

• Hot-Swappable Module Support: Allows I/O module replacement without disconnecting field wiring, minimizing downtime during maintenance or upgrades—critical for 24/7 production environments.
• Labeling & Documentation: Compatible with standard terminal marking strips and label printers (e.g., Brady, Phoenix Contact), enabling clear wire identification per IEC 61346 or customer-specific naming conventions.
• Grounding Continuity: Ensures uninterrupted ground path across multiple bases when mounted on continuous DIN rail, meeting NEC and IEC grounding requirements for safety and EMC compliance.
• Accessory Compatibility: Works with 1794 series end caps, bus connectors, and power supplies to build complete distributed I/O systems—supports both local and remote I/O configurations via ControlNet, DeviceNet, or EtherNet/IP.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days from our Xiamen warehouse; custom configurations or bulk orders may require 7–14 days—contact sales for expedited shipping options.

Warranty: All 1794-TB3GS terminal bases include a 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service plans available for critical applications.

Technical Support: Comprehensive support includes remote troubleshooting, wiring diagram review, and on-site commissioning assistance (region-dependent)—our team provides guidance on installation best practices and compliance with local electrical codes.

Documentation Package: Each shipment includes product datasheet, wiring diagram, installation instructions, and compliance certificates (UL, CE, RoHS)—CAD models (STEP, DXF) and 3D PDFs available upon request for panel design integration.

Quality Control: Every unit undergoes factory inspection for contact resistance, insulation integrity, and dimensional accuracy—batch traceability ensures compliance with ISO 9001 quality management standards.

Frequently Asked Questions (FAQ)

Q: How does the 1794-TB3GS grounded spring clamp terminal base connect to existing Flex I/O modules?

A: The terminal base mounts directly onto the I/O module via alignment pins and locking clips—no tools required. Field wiring connects to spring terminals on the base, while the module's internal connector mates with the base's PCB contacts. Ensure the I/O module specifies compatibility with grounded terminal bases (check catalog number suffix).

Q: What is the maximum number of I/O modules that can share a single DIN rail with these terminal bases?

A: A standard 1-meter DIN rail can accommodate approximately 28 modules with terminal bases (35mm width each). Actual capacity depends on power supply placement, end caps, and bus connectors—consult the Flex I/O system planning guide for detailed layout calculations and power budget considerations.

Q: What energy savings or efficiency benefits does the grounded design provide?

A: While the terminal base itself does not reduce energy consumption, proper grounding minimizes signal errors and false triggers in analog I/O systems, preventing unnecessary process adjustments or equipment cycling—this can indirectly improve system efficiency by 5–15% in noise-sensitive applications like motor control or temperature regulation.

Q: What are the installation environment requirements and ingress protection rating?

A: The 1794-TB3GS is rated for indoor use in pollution degree 2 environments (IEC 60664-1) with operating temperatures from -40°C to +70°C and 5–95% non-condensing humidity. It does not have an IP rating as it is designed for enclosed control panels—use NEMA-rated enclosures (NEMA 12 or higher) for dusty or wet locations.

Q: Can the terminal base support remote monitoring and data acquisition protocols?

A: The terminal base provides physical wiring connections only—remote monitoring and communication protocols (Modbus TCP, EtherNet/IP, Profinet) are handled by the Flex I/O adapter or communication module mounted on the same DIN rail. The grounded design ensures reliable data transmission by reducing noise-induced communication errors.

Q: Is the spring clamp mechanism suitable for high-vibration applications like mobile machinery?

A: Yes, the spring clamp design maintains constant contact pressure (typically 1.5–2.0 N/mm²) even under vibration, outperforming screw terminals that can loosen over time. For extreme vibration (>2g continuous), use ferrules on stranded wires and verify compliance with IEC 60068-2-6 vibration testing—the 1794-TB3GS meets industrial vibration standards for fixed installations.

Request a Quote or Technical Consultation

To receive a detailed selection guide, pricing quotation, or application-specific recommendations, please provide the following information:

• Project name and application type (e.g., manufacturing line, HVAC control, process automation)
• I/O module catalog numbers and quantities (e.g., 1794-IB16, 1794-OB16)
• Field wiring specifications (wire gauge, type, cable length)
• Environmental conditions (temperature range, humidity, vibration level)
• Enclosure type and available DIN-rail space
• Required certifications or compliance standards (UL, CE, ATEX, etc.)

Our application engineers will provide one-on-one consultation, including wiring diagrams, panel layout drawings, and compatibility verification—ensuring seamless integration with your existing Allen-Bradley control system.
