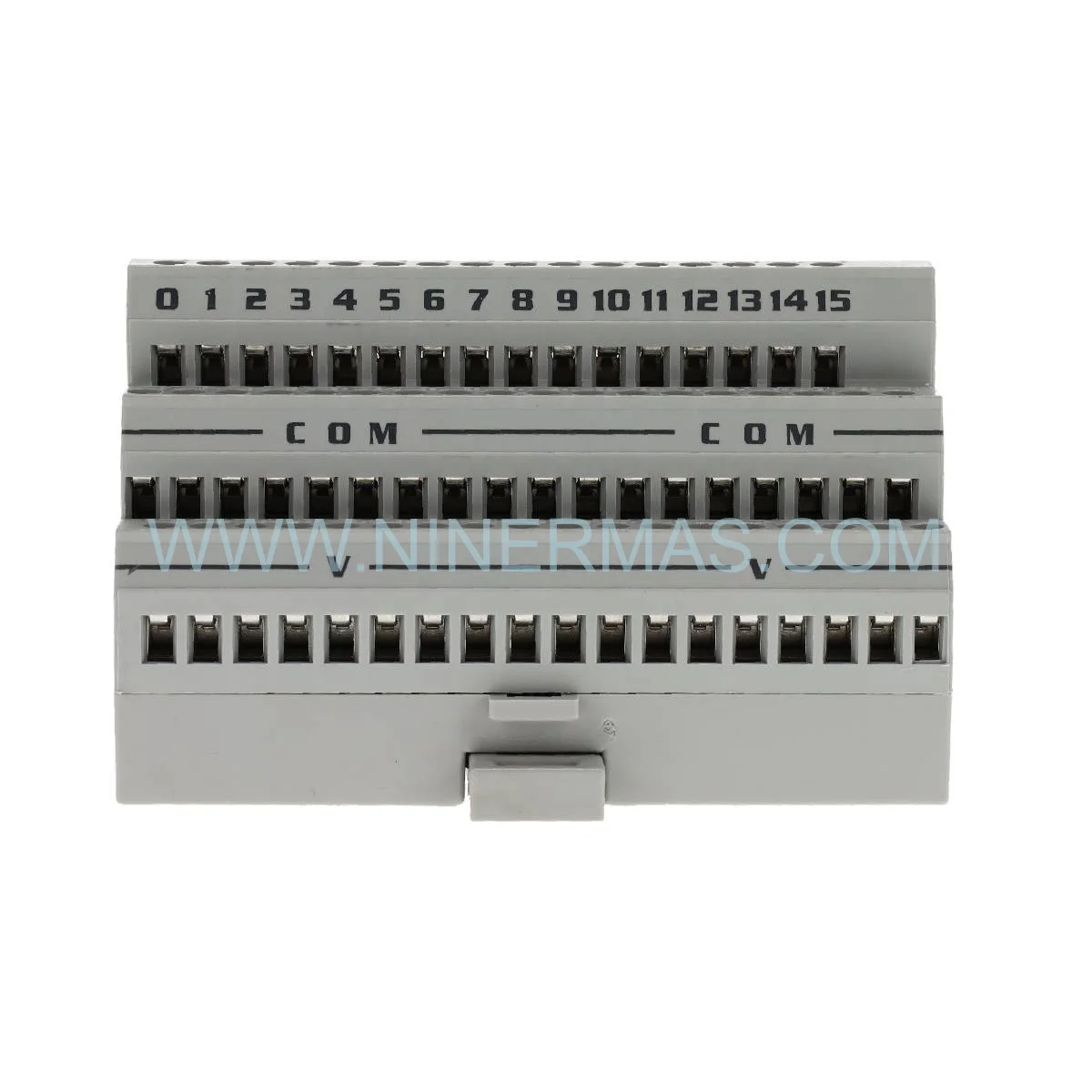

Allen-Bradley 1794-TB3 FLEX I/O Terminal Base Unit

Allen-Bradley 1794-TB3 FLEX I/O Terminal Base Unit — Reliable Foundation for Modular Control

The Allen-Bradley 1794-TB3 terminal base unit serves as the essential mounting platform for FLEX I/O modules in distributed control architectures. Engineered for industrial environments demanding high reliability, this terminal base provides secure mechanical support and electrical connectivity for analog and digital I/O modules across manufacturing, process control, and automation systems.

Technical Specifications

• Catalog Number: 1794-TB3
• Module Compatibility: FLEX I/O analog and digital modules
• Mounting: DIN rail or panel mount configuration
• Terminal Type: Removable screw terminals for field wiring
• Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Humidity: 5% to 95% non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant
• Certifications: UL, cUL, CE, RCM

Key Applications

Deploy the 1794-TB3 terminal base in diverse industrial scenarios:

• Process Manufacturing: Chemical processing, pharmaceutical production, food & beverage operations requiring distributed I/O architecture
• Discrete Manufacturing: Automotive assembly lines, packaging machinery, material handling systems
• Infrastructure Control: Water treatment facilities, HVAC systems, building automation networks
• Energy & Utilities: Power generation monitoring, substation control, renewable energy installations

Engineering Solutions

Modular Flexibility: The 1794-TB3 accepts a wide range of FLEX I/O modules, enabling customized I/O configurations that adapt to changing process requirements without complete system redesign.

Simplified Maintenance: Removable terminal blocks allow field wiring to remain in place during module replacement, reducing downtime and minimizing rewiring errors during service operations.

Space Optimization: Compact DIN rail mounting footprint maximizes panel density while maintaining accessibility for installation and troubleshooting activities.

Environmental Durability: Conformal coating options and robust construction ensure reliable operation in harsh industrial environments with temperature extremes, vibration, and electrical noise.

Frequently Asked Questions

Q: What FLEX I/O modules are compatible with the 1794-TB3?
A: The 1794-TB3 supports all standard FLEX I/O analog and digital modules including input, output, and combination modules. Verify specific module compatibility in the FLEX I/O selection guide.

Q: Can I hot-swap modules on the 1794-TB3 terminal base?
A: Module replacement should follow proper lockout/tagout procedures. While the terminal base supports module removal, consult your system documentation for hot-swap capabilities specific to your controller configuration.

Q: What wire gauge does the 1794-TB3 terminal block accept?
A: The removable screw terminals accommodate 14-22 AWG (2.5-0.5 mm ²) copper conductors. Use ferrules for stranded wire to ensure optimal connection integrity.

Q: How do I mount the 1794-TB3 in my control panel?
A: The terminal base mounts on standard 35mm DIN rail (EN 50022). Panel mounting holes are also provided for applications requiring fixed installation.

Warranty & Support

Every Allen-Bradley 1794-TB3 terminal base includes a 12-month manufacturer warranty covering defects in materials and workmanship. Our technical support team provides application assistance, troubleshooting guidance, and replacement coordination to minimize system downtime.

Related Products

Expand your FLEX I/O system with these compatible components:

• Allen-Bradley 1794-IE8/B Flex I/O 8-Channel Analog Input Module
• Allen-Bradley 1794-IB16 Flex I/O 16-Point Digital Input Module
• Allen-Bradley 1794-IE4XOE2/B Flex I/O Analog Combo Module
