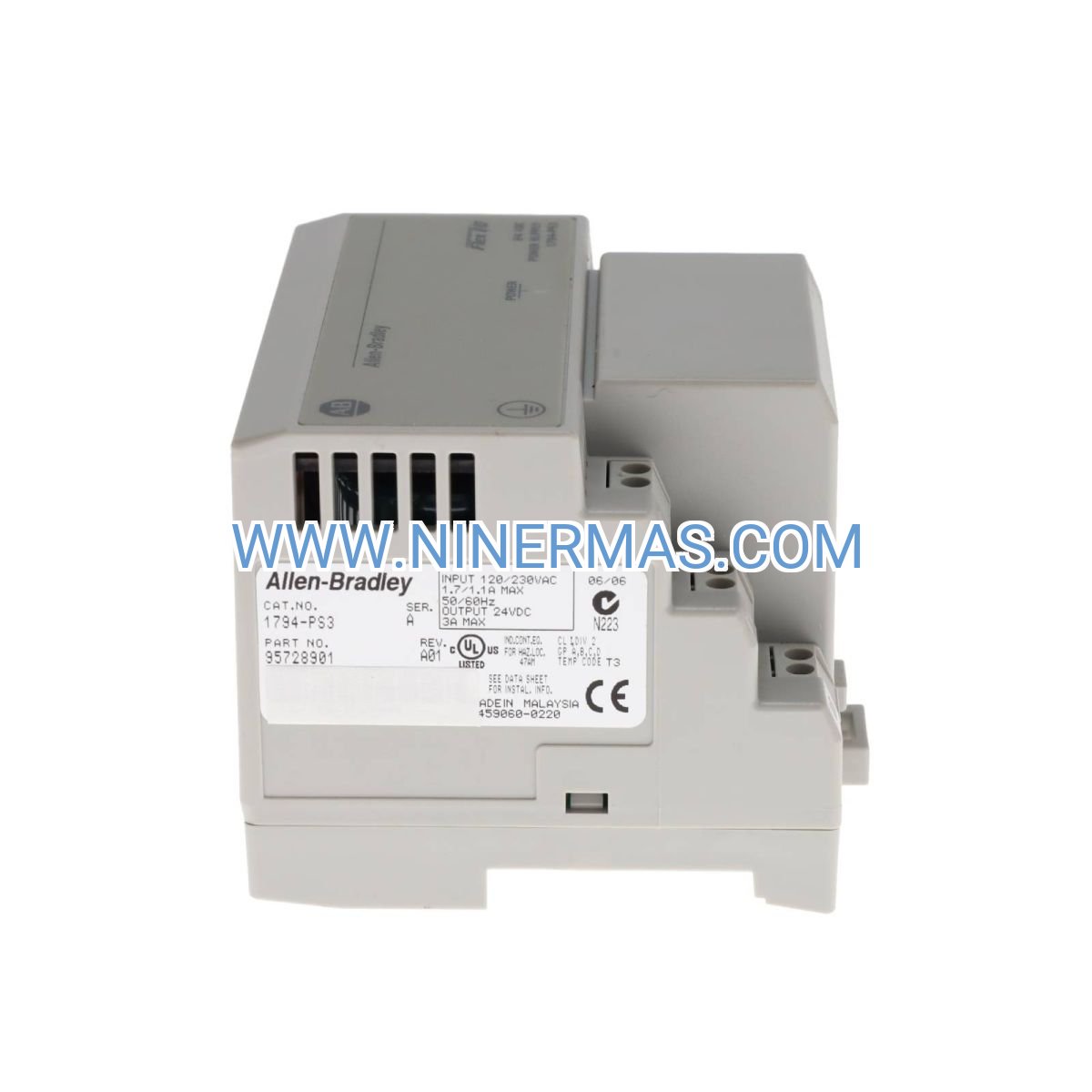

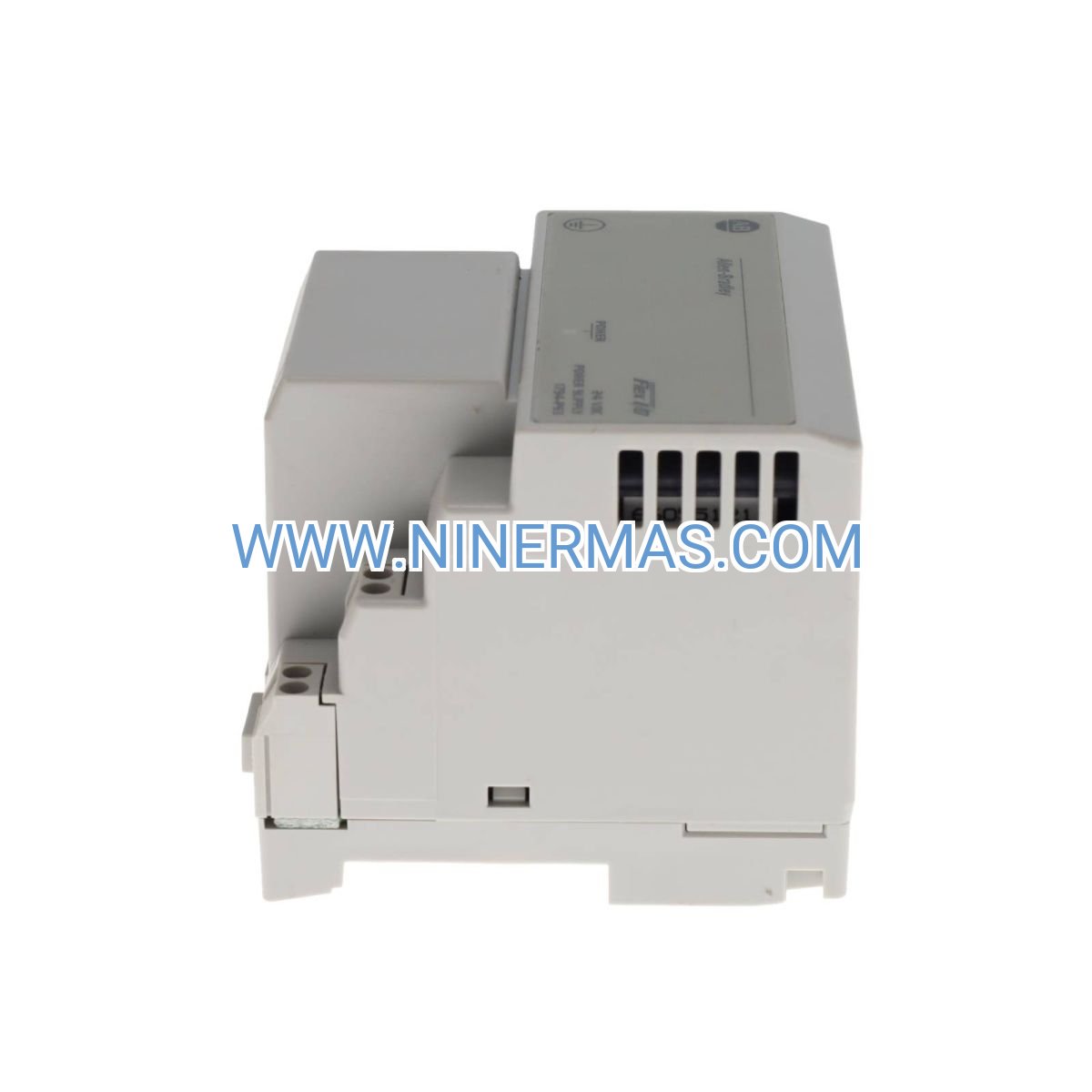

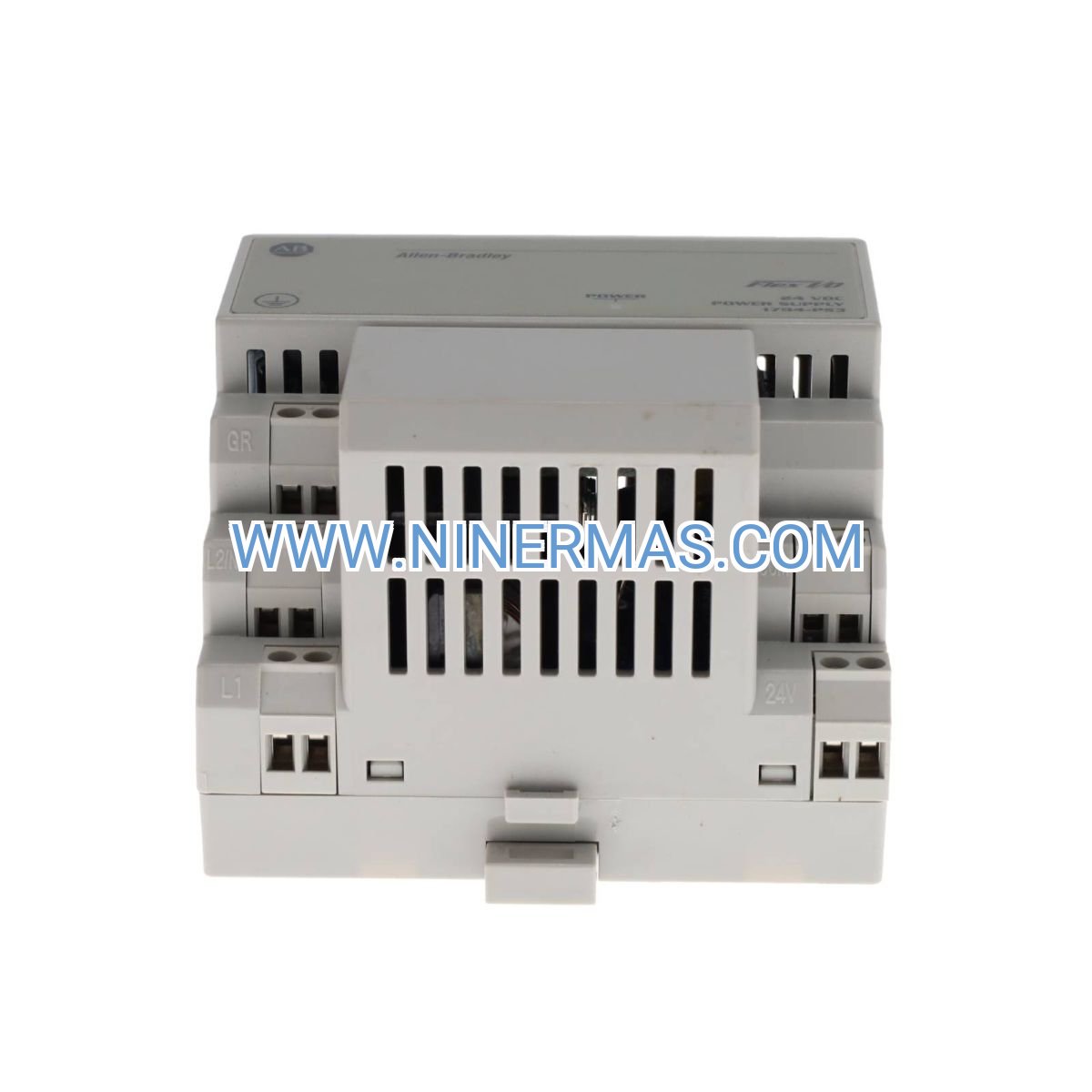

Allen-Bradley 1794-PS3 DC Power Supply Module (Industrial-Grade FLEX I/O Power Solution)

The Allen-Bradley 1794-PS3 is a high-performance DC power supply module designed specifically for FLEX I/O distributed control systems. Delivering stable 24VDC at 10A continuous output, this module ensures reliable power distribution across your automation network through advanced voltage regulation, overcurrent protection, and thermal management. Built to withstand harsh industrial environments, it provides the backbone power infrastructure for mission-critical control applications.

Ideal for manufacturing automation, process control, material handling systems, and building automation environments, this power supply addresses common challenges including voltage fluctuations, power distribution complexity, system downtime due to power failures, and inadequate protection against electrical faults. Whether you're upgrading legacy systems or designing new installations, the 1794-PS3 ensures consistent, protected power delivery.

Through standardized design and flexible mounting options, this module offers plug-and-play installation, wide input voltage tolerance, compact footprint, proven reliability in 24/7 operations, and seamless integration with existing FLEX I/O architectures. Perfect for system integrators, control panel builders, OEM equipment manufacturers, and facility maintenance teams. Contact our application engineers for power budget calculations and system configuration assistance.

Core Features & Technical Advantages

Stable 24VDC Output Regulation
Advanced switching power supply technology maintains ±2% voltage regulation under varying load conditions, ensuring consistent performance for sensitive I/O modules and field devices while minimizing voltage-related faults.

10A Continuous Current Capacity
Supports up to 10 amperes of continuous output current with 12A peak capability for inrush conditions, providing sufficient headroom for system expansion and accommodating multiple I/O modules on a single power rail.

Comprehensive Protection Circuitry
Integrated overcurrent limiting, short-circuit protection, overvoltage shutdown, and thermal overload safeguards protect both the power supply and downstream equipment, reducing unplanned downtime and maintenance costs.

Wide Input Voltage Range
Accepts 18-32VDC input voltage, accommodating typical industrial power distribution variations and battery backup systems without requiring precision-regulated input sources.

DIN-Rail Mounting Convenience
Standard 35mm DIN-rail mounting with secure clip mechanism enables rapid installation in control cabinets, reduces wiring complexity, and facilitates easy replacement during maintenance procedures.

Visual Status Indication
Front-panel LED indicators provide instant feedback on power status and fault conditions, enabling quick troubleshooting and reducing mean time to repair (MTTR) during system diagnostics.

Compact Industrial Design
Space-efficient form factor optimizes cabinet real estate while maintaining robust construction with conformal coating for protection against moisture, dust, and chemical contaminants in industrial atmospheres.

Typical Application Scenarios

This power supply module is engineered for environments demanding high reliability, consistent power quality, and long-term operational stability, particularly in:

Automated Manufacturing & Assembly Lines
Powers distributed I/O networks controlling conveyors, robotic cells, and quality inspection stations. Ensures uninterrupted production by maintaining stable voltage to PLCs, sensors, and actuators across multi-zone manufacturing facilities.

Process Control & Chemical Processing
Supports FLEX I/O modules monitoring temperature, pressure, flow, and level transmitters in continuous process industries. Provides reliable power for critical safety instrumented systems (SIS) and emergency shutdown circuits in hazardous area applications.

Material Handling & Warehouse Automation
Delivers consistent power to sortation systems, automated storage and retrieval systems (AS/RS), and conveyor networks. Handles dynamic load conditions from motor starters and variable frequency drives while maintaining I/O communication integrity.

Building Management & HVAC Control
Energizes distributed control points for lighting, access control, and environmental monitoring systems. Supports integration with BACnet, Modbus, and other building automation protocols through powered I/O interface modules.

Water & Wastewater Treatment Facilities
Powers remote I/O stations monitoring pump stations, filtration systems, and chemical dosing equipment. Withstands high-humidity environments and temperature extremes typical of municipal infrastructure installations.

Technical Specifications & Selection Guide

To facilitate accurate system design and component selection, we provide comprehensive electrical and mechanical specifications. Custom configurations available for specialized applications.

Electrical Parameters:

• Output Voltage: 24VDC nominal (±2% regulation)
• Output Current: 10A continuous, 12A peak (5 seconds)
• Input Voltage Range: 18-32VDC
• Input Current: 12A maximum at minimum input voltage
• Efficiency: >85% at full load
• Isolation: 1500VAC input-to-output, 500VAC output-to-ground
• Ripple & Noise: <100mV peak-to-peak

Environmental & Mechanical:

• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Mounting: 35mm DIN rail (EN 50022)
• Dimensions: 118mm H × 35mm W × 87mm D
• Weight: Approximately 0.3 kg
• Protection Rating: IP20 (enclosed cabinet installation)
• Certifications: UL, cUL, CE, RoHS compliant

Selection Recommendations:
When specifying this power supply, consider: total I/O module current draw (sum all connected modules), input power source characteristics (battery backup, UPS, or direct DC bus), ambient temperature in the control cabinet (derating may apply above 60°C), available mounting space and ventilation clearances, and future expansion requirements (recommend 20-30% power margin). For assistance with power budget calculations or multi-drop configurations, provide your I/O module list and installation environment details to our engineering team for customized recommendations.

Advanced Integration Capabilities

Redundant Power Configurations
Supports parallel operation with redundancy modules (1794-PS13) for N+1 power architectures, ensuring continuous operation during power supply maintenance or failure scenarios in critical applications.

System Diagnostics Integration
Status outputs can be monitored by PLC logic for predictive maintenance alerts, enabling condition-based replacement strategies and reducing unexpected failures through proactive system health monitoring.

Flexible System Scaling
Modular architecture allows multiple power supplies on a single FLEX I/O backplane, supporting distributed power zones and enabling incremental system expansion without complete power infrastructure redesign.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from our regional distribution centers. Custom-configured assemblies or large-volume orders typically require 7-14 days lead time. All products include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship.

Technical support includes remote application assistance, system design review, and troubleshooting guidance via phone and email. On-site commissioning support and training services available for major projects (subject to location and scope). Each module ships with complete documentation package including installation instructions, wiring diagrams, dimensional drawings, and compliance certificates for regulatory submissions.

Our quality management system maintains ISO 9001 certification, and all products undergo 100% functional testing including burn-in cycles, voltage regulation verification, and protection circuit validation before shipment.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1794-PS3 power supply to my existing FLEX I/O system?
A: The module mounts directly onto standard FLEX I/O backplanes using the integrated connector. Input power connects via screw terminals (18-32VDC source), and output distributes automatically through the backplane bus to connected I/O modules. Refer to wiring diagram in user manual for proper polarity and grounding connections. Maximum backplane length and module count depend on total current draw.

Q: What is the maximum number of I/O modules one 1794-PS3 can support?
A: The 10A output capacity supports approximately 8-16 standard I/O modules, depending on module types and their individual current requirements. High-density analog modules and relay outputs consume more power than digital input modules. Calculate total current by summing specifications from each module's datasheet, maintaining 20% margin for reliability.

Q: What energy savings can I expect compared to linear power supplies?
A: Switching power supply technology in the 1794-PS3 achieves >85% efficiency, compared to 50-60% for linear designs. In a typical 5A load scenario, this reduces heat dissipation by approximately 40-50 watts, lowering cabinet cooling requirements and energy costs. Annual savings depend on duty cycle and electricity rates but typically justify investment within 18-24 months.

Q: What are the installation environment requirements and protection rating?
A: The module requires IP20-rated enclosure installation (standard control cabinet) with minimum 50mm ventilation clearance above and below for convection cooling. Operating temperature range is -25°C to +70°C, with derating above 60°C ambient. Conformal coating provides protection against humidity and light chemical exposure, but direct water spray or submersion is not permitted.

Q: Does the 1794-PS3 support remote monitoring and data acquisition?
A: While the power supply itself does not have communication capability, its status output can be wired to a PLC digital input for monitoring. Advanced diagnostics require integration with FLEX I/O adapter modules (1794-AENT, 1794-ADN) that provide network connectivity via EtherNet/IP, DeviceNet, or ControlNet protocols for SCADA integration and predictive maintenance systems.

Q: Can I use this power supply in hazardous area (Class I Div 2) installations?
A: The standard 1794-PS3 is suitable for general industrial use (non-hazardous locations). For Class I Division 2 or ATEX Zone 2 applications, verify that the complete enclosure assembly meets area classification requirements. Consult factory for hazardous location certifications or consider explosion-proof enclosure solutions with appropriate temperature ratings.

Request Technical Support & Custom Solutions

For detailed application engineering assistance, custom power configurations, or volume pricing, please provide the following information: project name and industry sector, specific application requirements (I/O count, module types, environmental conditions), total power budget and voltage requirements, number of power supply units needed, input power source characteristics (voltage, backup system), and installation timeline. Our engineering team will respond within one business day with tailored recommendations and quotations.
