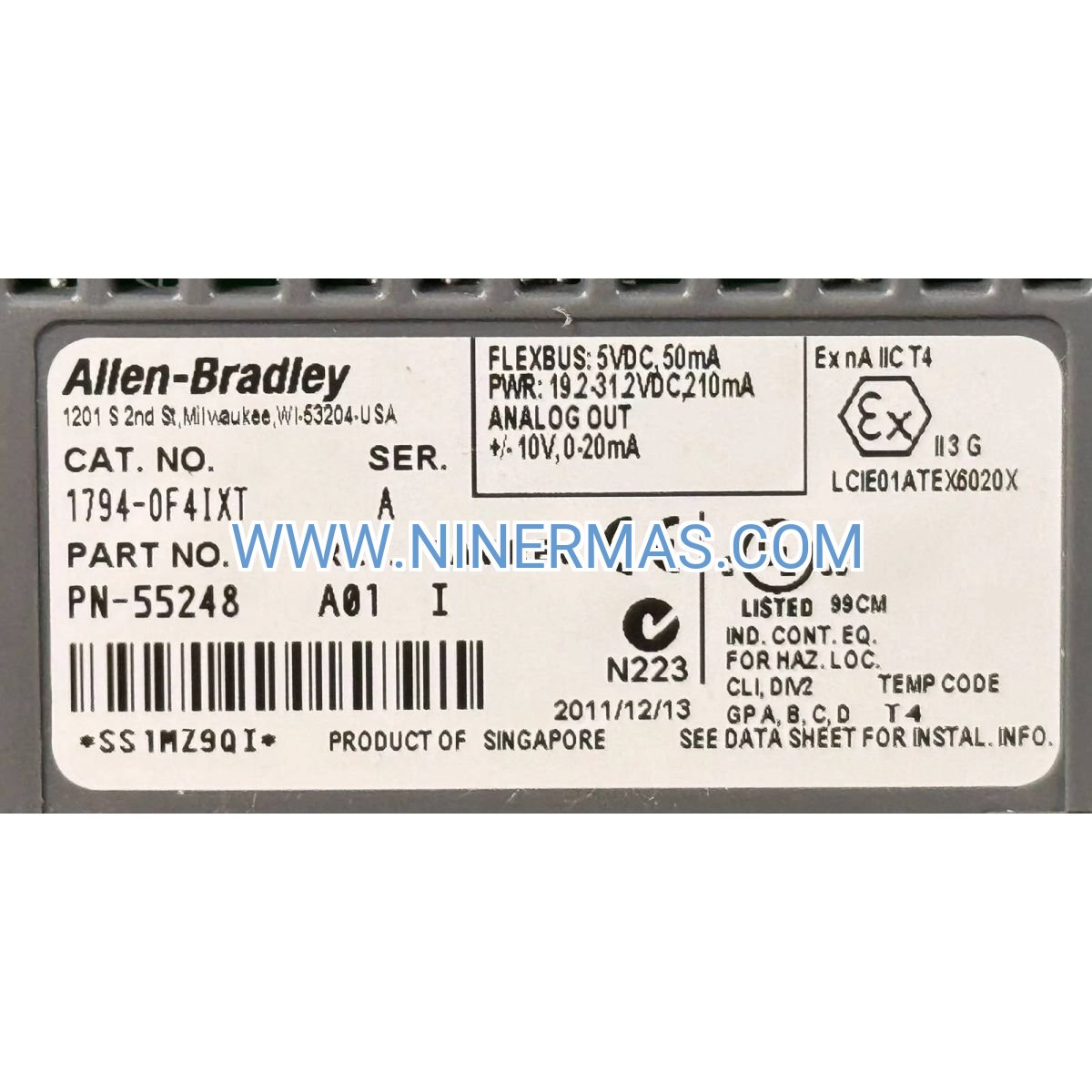

Allen-Bradley 1794-OF4IXT Isolated Analog Output Module (Industrial-Grade Control Solution)

The Allen-Bradley 1794-OF4IXT is a high-precision isolated analog output module designed for industrial automation and process control applications. Through advanced 16-bit D/A conversion technology and channel-to-channel isolation architecture, it delivers stable and accurate analog signal output (0-20mA or 4-20mA) for critical control loops in manufacturing, process industries, and building automation systems.

Ideal for applications requiring precise control of valves, actuators, variable frequency drives, and instrumentation in chemical processing plants, water treatment facilities, HVAC systems, pharmaceutical manufacturing, and oil & gas operations. This module effectively addresses challenges such as signal interference, ground loop issues, output drift, and the need for multi-point isolated control in harsh industrial environments.

Featuring factory calibration, hot-swappable design, and seamless integration with Rockwell Automation control platforms, the 1794-OF4IXT offers superior reliability, simplified maintenance, and flexible configuration options. Suitable for design engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized selection guidance, technical specifications, and competitive quotations.

Core Features & Technical Advantages

• 4-Channel Isolated Output Architecture
  Each channel provides 1500V RMS optical isolation from backplane and 250V between channels, eliminating ground loops and crosstalk, ensuring signal integrity in electrically noisy environments and multi-grounded systems.
• High-Resolution 16-Bit D/A Conversion
  Delivers exceptional output accuracy with 16-bit resolution (0.0015% of full scale), enabling precise control of analog devices and maintaining tight process tolerances for critical applications.
• Dual Current Output Ranges
  Software-selectable 0-20mA or 4-20mA output per channel, compatible with industry-standard instrumentation and control devices. Supports live-zero detection for enhanced diagnostics.
• Factory Calibration & Diagnostics
  Pre-calibrated at factory to ensure accuracy out-of-box. Built-in self-diagnostics detect open circuit, short circuit, and over-current conditions, with real-time fault reporting to controller for predictive maintenance.
• Hot-Swappable & Modular Design
  Supports online insertion and removal without powering down the system, minimizing downtime during maintenance. Compact Flex I/O form factor saves panel space and simplifies wiring.
• Seamless Rockwell Integration
  Native compatibility with ControlLogix, CompactLogix, and SLC 500 platforms via 1794 Flex I/O adapters. Configured through RSLogix/Studio 5000 software with comprehensive function blocks and diagnostic tools.

Typical Application Scenarios

The 1794-OF4IXT module is engineered for demanding industrial environments where output isolation, accuracy, and reliability are paramount:

• Chemical & Petrochemical Process Control
  Precise control of flow control valves, pressure regulators, and dosing pumps in reactors, distillation columns, and blending systems where signal isolation prevents hazardous ground faults.
• Water & Wastewater Treatment
  Regulates chemical feed pumps, pH control systems, and variable speed drives for pumps and blowers, ensuring stable treatment processes and compliance with environmental regulations.
• HVAC & Building Automation
  Controls damper actuators, VAV boxes, chilled water valves, and VFDs for air handling units, maintaining optimal indoor climate while reducing energy consumption by up to 25%.
• Pharmaceutical & Food Processing
  Manages sterile process equipment, temperature control loops, and CIP/SIP systems where isolated outputs prevent contamination risks and ensure GMP compliance.
• Oil & Gas Production & Pipeline
  Operates wellhead control valves, compressor anti-surge systems, and custody transfer metering in hazardous classified areas requiring intrinsically safe isolated I/O.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide comprehensive technical parameters for the 1794-OF4IXT module:

Selection Recommendations: When specifying the 1794-OF4IXT, consider the following factors: number of analog control points required, output current range compatibility with field devices, required isolation level based on electrical environment, ambient temperature range at installation location, and compatibility with existing Flex I/O chassis and controller platform. For applications requiring voltage outputs or higher channel density, consult our product family comparison guide. Our application engineers can provide customized I/O configuration drawings and bill of materials based on your P&ID or control narrative.

Advanced Configuration Options

The 1794-OF4IXT supports flexible configuration to meet diverse application requirements:

• Per-Channel Range Selection: Each output can be independently configured for 0-20mA or 4-20mA range via software, allowing mixed-range applications in a single module.
• Fault Detection & Alarming: Built-in diagnostics monitor output loop integrity and report open-circuit, short-circuit, or over-current faults to the controller with channel-specific status bits.
• Scaling & Linearization: Utilize controller-based scaling functions or module's internal scaling to convert engineering units directly to output current, simplifying programming.
• Redundancy Support: Compatible with redundant Flex I/O adapter configurations for high-availability applications requiring fault-tolerant control systems.
• Hazardous Location Approval: Certified for Class I Division 2 hazardous locations when used with appropriate barriers or in purged enclosures, suitable for oil & gas and chemical facilities.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business days lead time. Custom-configured modules or large quantity orders may require 2-4 weeks. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts are available upon request.

We provide comprehensive technical support including remote configuration assistance, on-site commissioning services (subject to location and project scope), and troubleshooting guidance. Complete documentation package includes product datasheet, user manual, wiring diagrams, sample ladder logic code, and RSLogix/Studio 5000 Add-On Instructions (AOI) for rapid integration.

All modules undergo factory acceptance testing (FAT) and are shipped with calibration certificates traceable to NIST standards. Optional services include custom labeling, pre-configuration to customer specifications, and kitting with terminal blocks and cables for turnkey installation.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1794-OF4IXT isolated analog output module to my existing Flex I/O system?
A: The module installs directly onto any 1794 Flex I/O chassis (local or distributed) and communicates via the backplane. You'll need to configure the module in your RSLogix/Studio 5000 project by adding it to the I/O configuration tree under your Flex adapter. Field wiring connects to the removable terminal block using 18-22 AWG shielded twisted-pair cable. Ensure proper grounding of cable shields at the module end only to maintain isolation effectiveness.

Q: What is the maximum number of 1794-OF4IXT modules I can install in a single Flex I/O chassis?
A: This depends on your chassis size and power budget. A standard 1794-AENT or 1794-IE8 adapter supports up to 8 I/O modules per bank. Each 1794-OF4IXT consumes approximately 3.5W from the backplane, so verify your power supply capacity. For systems requiring more than 32 analog outputs, consider using multiple chassis or a ControlLogix platform with distributed I/O.

Q: What energy savings can I expect, and what conditions are required to achieve them?
A: While the module itself doesn't directly save energy, its precise control enables optimization of connected devices like VFDs and control valves. In HVAC applications, accurate modulation of dampers and valves can reduce energy consumption by 20-30% compared to on/off control. Savings depend on proper loop tuning, appropriate control strategy implementation, and baseline system efficiency.

Q: What are the environmental requirements for installation? What is the IP rating?
A: The module operates reliably in 0-60°C ambient temperature with 5-95% non-condensing humidity. It's designed for indoor industrial environments with pollution degree 2 per IEC 61010. The module itself has no IP rating as it mounts inside an enclosure; select an appropriate NEMA 12 or IP54 minimum rated panel for typical factory environments, or NEMA 4X/IP66 for washdown or outdoor applications.

Q: Does the 1794-OF4IXT support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, when connected through Flex I/O adapters like 1794-AENT (EtherNet/IP) or 1794-ACN15 (ControlNet), the module's data is accessible via standard Rockwell Automation protocols. You can monitor output values, diagnostic status, and fault conditions through FactoryTalk View HMI, RSLinx data logging, or third-party SCADA systems supporting EtherNet/IP or OPC-UA. Integration with cloud platforms is possible via edge gateways supporting MQTT or REST APIs.

Q: Can I use this module in safety-rated applications or SIL-certified systems?
A: The 1794-OF4IXT is a standard I/O module and is not certified for safety functions per IEC 61508 or IEC 61511. For safety-instrumented systems (SIS) requiring SIL 2 or SIL 3 rated outputs, consider Allen-Bradley's GuardLogix safety platform with certified safety I/O modules. However, the 1794-OF4IXT can be used for non-safety control loops within the same system architecture.

Request Technical Support & Quotation

To receive detailed selection guidance, competitive pricing, or application-specific technical support, please provide the following information: project name and industry, application description (process type, control objective), number of analog output points required, output signal type and range for each point, field device specifications (loop resistance, power supply), controller platform and communication network, environmental conditions (temperature, hazardous area classification), and any special requirements (certifications, documentation, commissioning support).

Our certified application engineers will respond within 24 hours with a customized solution proposal, including recommended module configuration, system architecture diagram, estimated pricing, and delivery timeline. We support global shipping and provide multilingual technical documentation.
