Allen-Bradley 1794-OB8EPXT Digital Output Module | 8-Point 24VDC Protected I/O

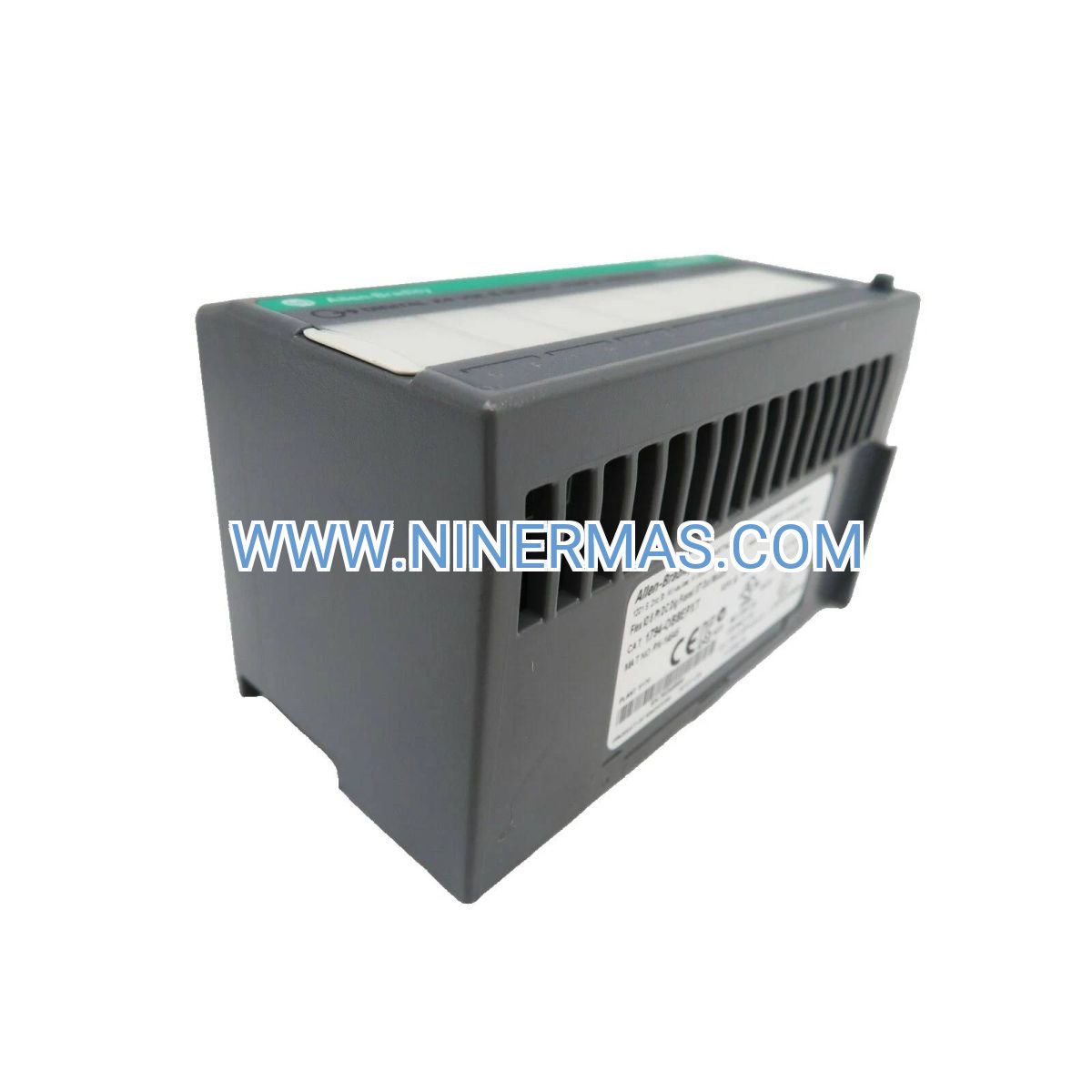

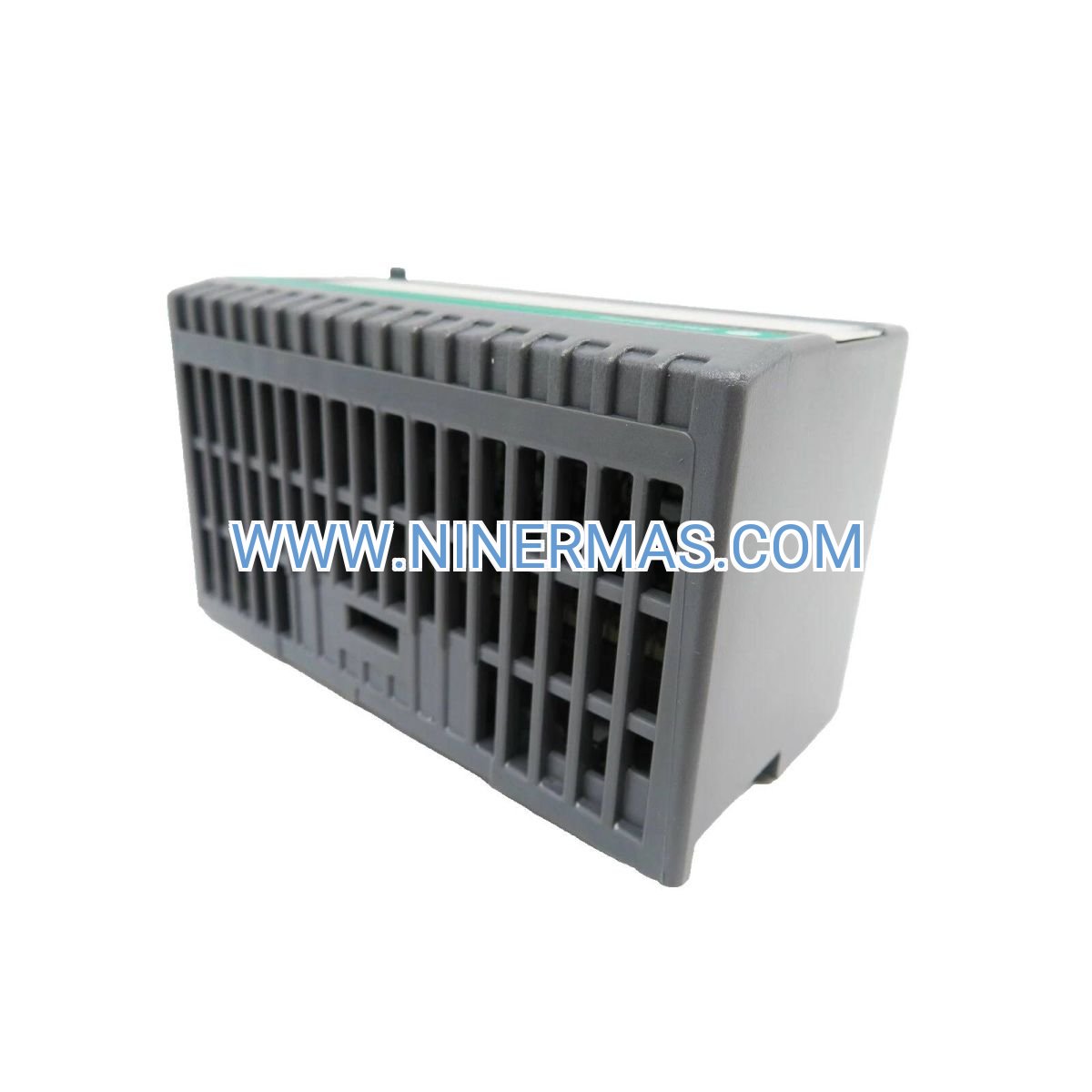

Allen-Bradley 1794-OB8EPXT Protected Digital Output Module (Industrial-Grade 24VDC Control System)

The Allen-Bradley 1794-OB8EPXT is a high-performance protected digital output module designed for industrial automation and control applications. Through advanced electronic protection circuitry and intelligent diagnostics, it delivers reliable 24VDC output control with enhanced safety features. This module integrates seamlessly into Flex I/O distributed control architectures, providing robust signal switching for demanding manufacturing environments.

Ideal for process control, machine automation, and industrial monitoring scenarios including packaging lines, material handling systems, assembly automation, chemical processing plants, and water treatment facilities. It addresses critical challenges such as output overcurrent protection, short-circuit isolation, real-time fault detection, and minimizing system downtime caused by wiring errors or load failures.

Featuring standardized design with flexible configuration options, this module offers electronic protection without external fuses, diagnostic LED indicators for instant status visibility, hot-swappable installation for minimal maintenance disruption, and compatibility with major PLC platforms. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration guidance and technical specifications.

Core Functions & Advantages

Electronic Overcurrent Protection
Built-in electronic current limiting protects each output channel from overload and short-circuit conditions without requiring external fuses, reducing maintenance costs and improving system reliability in harsh industrial environments.

Advanced Diagnostic Capabilities
Real-time channel-by-channel diagnostics with LED status indicators and network-accessible fault reporting enable rapid troubleshooting, reducing mean time to repair (MTTR) by up to 40% compared to non-diagnostic modules.

High-Density I/O Architecture
8-point output configuration in a compact form factor maximizes control cabinet space utilization, with each channel rated for 24VDC at 0.5A continuous current, suitable for driving solenoid valves, indicator lamps, and relay coils.

Comprehensive Safety Features
Integrated protection against reverse polarity, output-to-output shorts, and thermal overload conditions, with automatic channel shutdown and recovery functionality to prevent damage to connected field devices.

Intuitive Status Monitoring

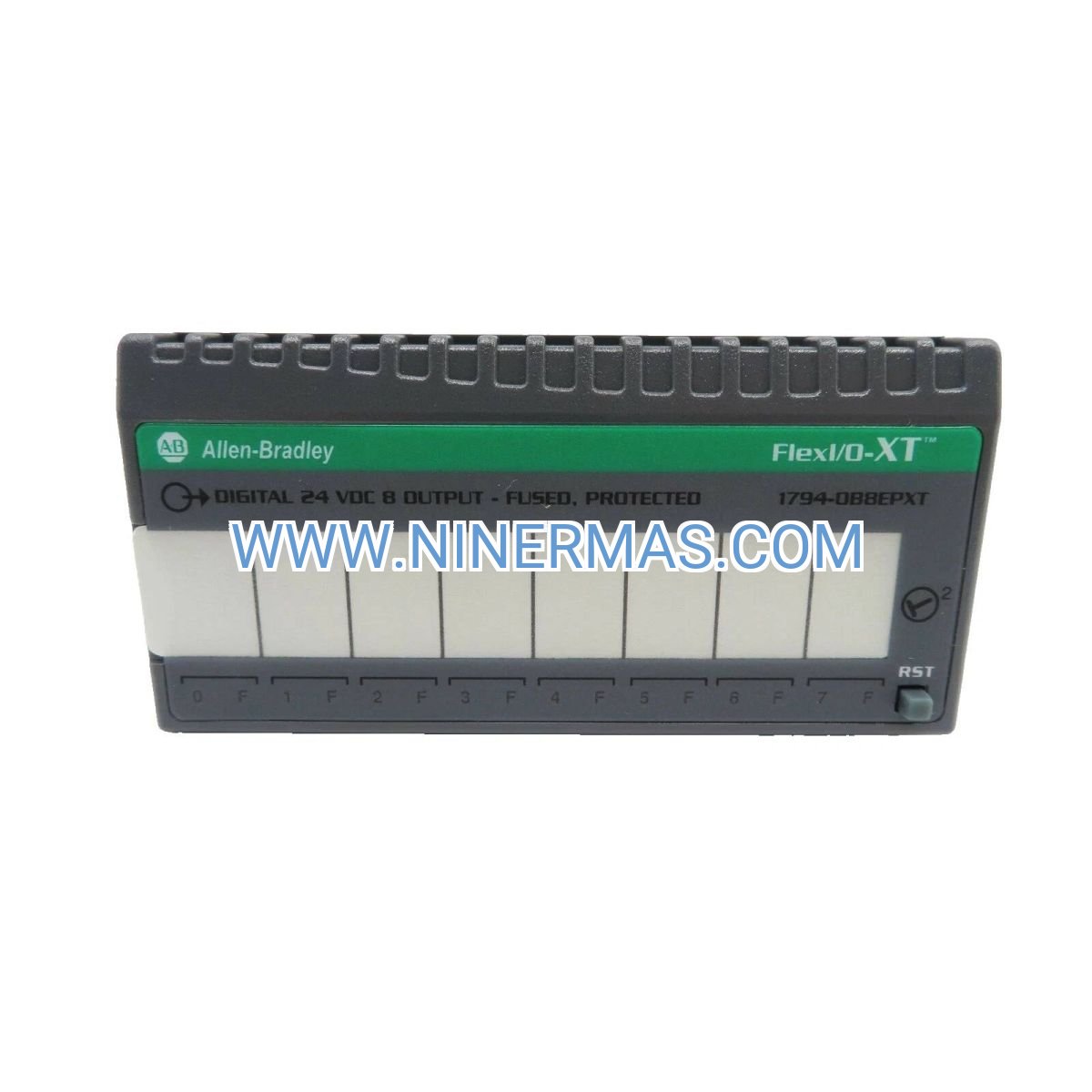

Dual-color LED indicators per channel provide instant visual feedback on output state and fault conditions, with module-level power and communication status LEDs for simplified commissioning and maintenance procedures.

Typical Application Scenarios

This module excels in applications requiring reliable digital output control with enhanced protection and diagnostics, particularly in:

Automated Manufacturing & Assembly Lines
Controls pneumatic actuators, conveyor motors, and part ejection mechanisms in high-speed production environments where output faults could halt entire production lines, ensuring continuous operation with rapid fault identification.

Process Control & Chemical Processing
Manages valve actuators, pump starters, and alarm indicators in process industries where safety and reliability are paramount, providing isolated control signals that meet stringent industrial safety standards.

Material Handling & Logistics Systems
Drives sorting gates, diverter mechanisms, and status indicators in warehouse automation and distribution centers, with protected outputs preventing damage from wiring errors during system expansion or reconfiguration.

Water & Wastewater Treatment
Controls chemical dosing pumps, valve actuators, and alarm systems in municipal and industrial water treatment facilities, operating reliably in high-humidity environments with corrosion-resistant terminal connections.

Building Automation & HVAC Control
Interfaces with damper actuators, fan starters, and alarm panels in commercial building management systems, providing energy-efficient control with diagnostic capabilities for predictive maintenance programs.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical specifications for the 1794-OB8EPXT:

Electrical Specifications:

• Output Voltage: 24VDC nominal (10-31.2VDC operating range)
• Output Current: 0.5A continuous per point, 8A total module maximum
• Output Type: Electronically protected, current-sourcing
• Protection: Electronic current limiting, thermal shutdown, short-circuit protection
• Isolation: 500V AC optical isolation between field side and backplane
• Response Time: 1ms typical ON/OFF delay

Physical & Environmental:

• Mounting: DIN rail via Flex I/O mounting base
• Dimensions: 118mm H × 35mm W × 87mm D (4.65" × 1.38" × 3.43")
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Enclosure Rating: Open-type module for use in IP20 or better enclosures

System Integration:

• Compatibility: Allen-Bradley Flex I/O system, ControlLogix, CompactLogix, MicroLogix platforms
• Communication: Via Flex I/O adapter module (DeviceNet, ControlNet, EtherNet/IP)
• Configuration: RSLogix/Studio 5000 software with electronic data sheet (EDS) file
• Hot-Swap: Supported with module keying for error prevention
• Diagnostics: Channel-level fault reporting via network and local LED indicators

Selection Considerations:
When specifying this module, consider: maximum load current per channel and total module current budget, field power supply voltage and current capacity, required diagnostic resolution (channel-level vs. module-level), environmental conditions (temperature, humidity, vibration), and cabinet space constraints. For applications requiring higher current outputs, consider the 1794-OB16P (1A per point) or 1794-OB32P (2A per point) variants. Our application engineers can assist with load calculations, power supply sizing, and system architecture design.

Extended Functionality & Integration

Network Diagnostics & Predictive Maintenance
Integrated diagnostics transmit real-time fault data to supervisory control systems via the Flex I/O network, enabling predictive maintenance strategies through trend analysis of output loading, fault frequency, and thermal conditions. Compatible with Allen-Bradley FactoryTalk software suites for enterprise-level asset management.

Flexible System Scaling
Mix-and-match capability with other Flex I/O modules (analog I/O, specialty modules, communication adapters) on a single mounting rail, supporting systems from 8 to 256+ I/O points. Distributed I/O architecture reduces wiring costs by up to 30% compared to centralized control panel designs.

Compliance & Certifications
Meets international safety and EMC standards including UL 508 (Industrial Control Equipment), CE marking (Low Voltage Directive, EMC Directive), C-Tick (Australia), and ATEX/IECEx for use in hazardous locations when properly installed. RoHS compliant for environmental sustainability.

Delivery, Service & Quality Assurance

Standard catalog modules ship from stock within 2-3 business days; custom-configured I/O assemblies typically deliver within 7-10 business days depending on complexity. All modules include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Comprehensive technical support includes remote configuration assistance via phone/email, on-site commissioning support (subject to location and project scope), and access to detailed documentation including installation manuals, wiring diagrams, EDS files, and sample ladder logic code. Each module ships with quick-start guide, terminal block labeling template, and certificate of conformity.

Factory-certified quality assurance: 100% functional testing prior to shipment, calibration certificates available upon request, and full traceability to manufacturing batch for quality control purposes. Modules are packaged in anti-static protective materials suitable for international shipping.

Frequently Asked Questions (FAQ)

Q: How does the 1794-OB8EPXT protected digital output module integrate with existing Allen-Bradley control systems?
A: The module mounts on any Flex I/O adapter base and communicates via the adapter's network interface (DeviceNet, ControlNet, or EtherNet/IP). Configuration is performed through RSLogix or Studio 5000 software using the module's EDS file. The module auto-detects when installed and can be hot-swapped during operation without powering down the entire I/O rack.

Q: What is the maximum load current per output channel and total module capacity?
A: Each of the 8 output channels is rated for 0.5A continuous current at 24VDC. The total module current budget is 8A maximum across all channels. Electronic protection limits current automatically if loads exceed rated values, preventing damage to the module or connected devices.

Q: What diagnostic capabilities does this protected output module provide?
A: The module offers channel-level diagnostics including overcurrent detection, short-circuit identification, and open-load detection (when enabled). Faults are indicated via dual-color LEDs on the module front and reported to the controller via the I/O network for integration into HMI alarm systems and maintenance management software.

Q: What are the environmental requirements and protection ratings for installation?
A: Operating temperature range is 0°C to 60°C with 5-95% non-condensing humidity. The module is designed for installation in IP20 or better rated enclosures to protect against dust and moisture. For harsh environments, consider installing in NEMA 4/4X or IP65 rated control panels with appropriate climate control.

Q: Can this module support remote monitoring and Industry 4.0 integration?
A: Yes, when used with EtherNet/IP Flex adapters, diagnostic data is accessible via standard industrial protocols including OPC-UA, MQTT, and Modbus TCP. This enables integration with cloud-based monitoring platforms, SCADA systems, and Industry 4.0 analytics tools for predictive maintenance and performance optimization.

Q: What is the difference between the 1794-OB8EPXT and standard 1794-OB8 output modules?
A: The "EPX" designation indicates enhanced electronic protection with advanced diagnostics. Compared to the standard OB8, the EPXT version adds per-channel current limiting, improved fault detection, and enhanced thermal management, making it ideal for applications where output protection and diagnostic visibility are critical for minimizing downtime.

Request Technical Support & Custom Configuration

For detailed application engineering support, custom I/O system design, or technical specifications, please provide the following information: project name and application type, required I/O point count and signal types, control system platform (ControlLogix, CompactLogix, etc.), environmental conditions and enclosure requirements, and any special certifications or compliance needs. Our certified automation specialists will provide personalized module selection recommendations, wiring diagrams, and budget quotations within 24 hours.
