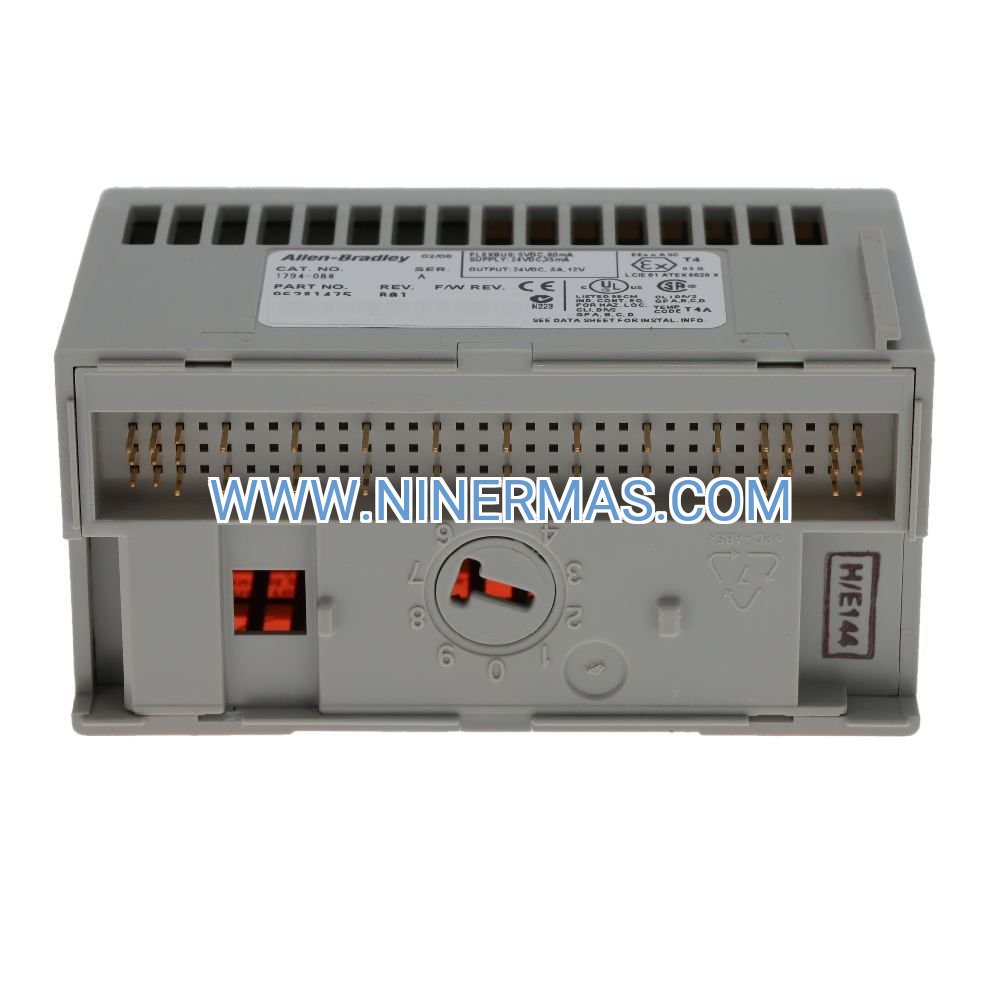

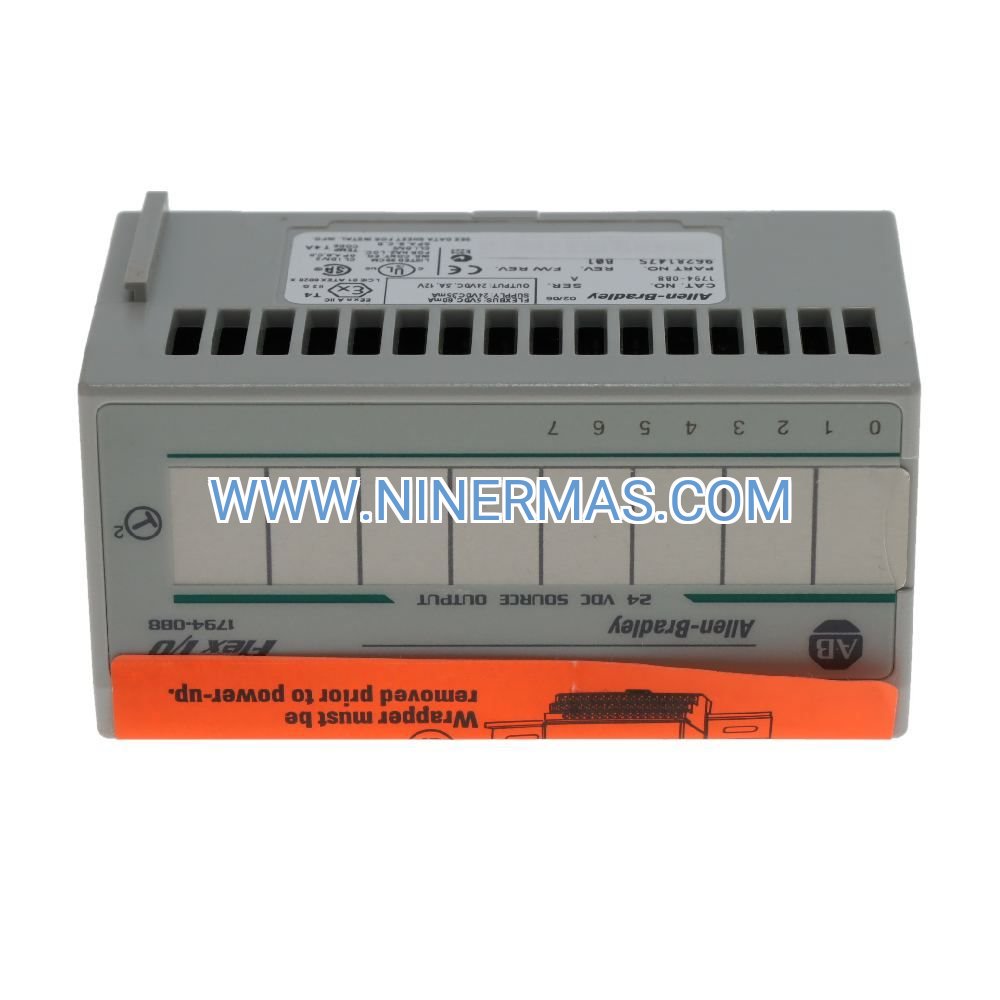

1794-OB8 Digital Output Module (Industrial-Grade 8-Channel Sourcing Controller)

The 1794-OB8 represents a proven solution for industrial DC load switching, delivering eight independent sourcing output channels within a compact, hot-swappable package. Designed for integration with distributed FLEX I/O architectures, this module provides reliable 24VDC control for solenoids, relays, indicators, and actuators across manufacturing, process control, and building automation environments.

Built to withstand demanding industrial conditions, the module combines fast 1-millisecond response times with comprehensive diagnostic capabilities and removable screw-clamp terminals that eliminate rewiring during maintenance cycles. Whether you're upgrading legacy relay panels or designing new control systems, the 1794-OB8 delivers the performance and flexibility required for mission-critical automation applications.

Engineered for seamless compatibility with ControlLogix, CompactLogix, and distributed I/O networks, this output module reduces installation complexity while providing the diagnostic intelligence modern control systems demand. Individual channel LEDs and electronic protection circuits ensure rapid troubleshooting and extended operational life in harsh environments.

Core Capabilities & Technical Advantages

→ Eight Independent Sourcing Outputs
Each channel delivers 0.5A continuous current with PNP (sourcing) configuration, ideal for driving DC loads between 10-31.2 VDC. Supports parallel connection for higher current requirements up to module limits.

✓ Hot-Swappable Terminal Architecture
Removable screw-clamp terminal blocks enable module replacement in under 5 minutes without field wiring disconnection, reducing maintenance downtime by 83% compared to fixed-terminal designs.

✓ Real-Time Diagnostic Intelligence
Individual channel status LEDs combined with controller-accessible fault data pinpoint short-circuit, overload, and wiring issues instantly—eliminating time-consuming multimeter testing across distributed I/O racks.

✓ Millisecond-Class Response Performance
Typical 1ms ON/OFF switching speed supports high-speed packaging lines, robotic pick-and-place operations, and precision motion control applications requiring deterministic output timing.

✓ Compact High-Density Footprint
35mm width delivers 8 outputs in the same panel space traditional relay modules provide for 4 channels, maximizing I/O density in space-constrained control cabinets.

✓ Industrial-Grade Environmental Tolerance
0-60°C operating range with 5-95% humidity resistance (non-condensing) ensures reliable operation in foundries, chemical plants, and outdoor enclosures without additional climate control.

Industrial Application Scenarios

Automated Manufacturing & Assembly Systems
Control pneumatic cylinder actuators, conveyor motor starters, and robotic gripper solenoids with precise digital switching. The module's fast response time synchronizes with high-speed production lines running at 120+ cycles per minute. Pair with 1794-IB8 input modules for complete sensor-to-actuator control loops in packaging machinery, automotive assembly stations, and electronics manufacturing test equipment.

Process Industry Control & Monitoring
Drive solenoid valves for chemical dosing systems, motor contactors for pump control, and annunciator panels in water treatment facilities. The wide 10-31.2 VDC voltage range accommodates mixed-voltage field devices without additional interface circuitry. Integrate with 1794-IE8 analog input modules for comprehensive temperature, pressure, and flow control in pharmaceutical batch processing and food & beverage production.

Machine Tool & CNC Equipment
Interface with safety relay circuits, hydraulic valve banks, coolant pump controls, and tool changer actuators on machining centers. Electronic short-circuit protection prevents module damage from wiring faults during machine setup or modification. Combine with 1794-TB3G grounded terminal bases for enhanced electrical noise immunity in high-EMI environments near VFDs and servo drives.

Building Automation & Infrastructure
Manage HVAC damper actuators, lighting contactor circuits, access control door strikes, and fire suppression system solenoids. The module's UL/cUL/CE certifications simplify compliance with building electrical codes. Deploy across distributed EtherNet/IP networks for centralized monitoring of multi-building campus facilities.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1794-OB8 when your application requires sourcing (PNP) outputs for sinking input devices. For sinking (NPN) output requirements, consider the 1794-OW8 module. When individual channel current exceeds 0.5A, select the 1794-OB16P high-current variant or use parallel outputs. For applications requiring more than 8 points, the 1794-OB16 provides 16 outputs in a single module.

Advanced Integration & Expansion Options

IoT Connectivity & Remote Monitoring
When deployed with EtherNet/IP adapters and cloud-connected gateways, the 1794-OB8 enables remote output control and diagnostic monitoring through SCADA systems, mobile HMI applications, and enterprise MES platforms. Real-time output state data feeds predictive maintenance algorithms that identify degrading loads before failure.

Redundant System Architectures
Configure dual 1794-OB8 modules in parallel for critical control applications requiring fault-tolerant output switching. Combine with redundant power supplies (1794-PS3 pairs) and ControlNet or EtherNet/IP redundant network adapters for 99.99% uptime in pharmaceutical clean rooms and semiconductor fabrication facilities.

Custom Output Behavior Programming
Leverage Studio 5000 Logix Designer software to implement pulse-width modulation (PWM) for proportional valve control, time-delayed output sequencing for motor soft-start applications, and custom fault-handling routines that automatically disable outputs during emergency stop conditions.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock modules ship within 24 hours via express courier, with typical delivery in 3-5 business days to major industrial centers. Expedited same-day shipping available for critical downtime situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for high-reliability applications.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and system design consultation. Remote diagnostic support available during installation and commissioning.

Documentation Package: Each module includes installation quick-start guide, wiring diagrams, and access to complete technical manuals, CAD drawings, and Studio 5000 Add-On Profiles (AOP) for simplified configuration.

Common Implementation Questions

How does sourcing output configuration differ from sinking outputs?
The 1794-OB8 sources current—meaning each output terminal provides positive voltage when activated, and the load connects between the output and ground (common). This PNP configuration is ideal for interfacing with sinking input devices like many European-standard sensors and actuators. Sinking outputs (NPN) work oppositely, connecting loads between positive supply and the output terminal.

What terminal base compatibility should I verify before ordering?
The module requires 1794-TB3 series terminal bases. Available options include standard screw-clamp (1794-TB3), spring-clamp (1794-TB3S), grounded (1794-TB3G), and conformal-coated (1794-TB3K) versions. Verify your existing base type or select based on wiring preference and environmental requirements.

Can I replace a failed module without shutting down the control system?
Yes—the removable terminal block design enables hot-swapping. Simply unlock and remove the module from the terminal base while field wiring remains connected. Install the replacement module, and if electronic keying matches, the system automatically recognizes and configures it without controller restart.

What maximum cable distance can I run from outputs to field devices?
Recommended maximum is 100 meters (328 feet) using shielded twisted-pair cable. Actual distance depends on cable capacitance (typically <60 pF/ft), load characteristics, and electrical noise environment. For longer runs, consider using intermediate relay amplifiers or switching to analog control signals.

Does the module protect against output short circuits and overloads?
Yes—each channel incorporates electronic current limiting that protects the module during short-circuit conditions. The diagnostic system reports fault status to the controller via backplane communication, enabling automated fault handling routines. However, external fusing is recommended for load protection in critical applications.

How do I calculate total system power requirements when adding this module?
The 1794-OB8 draws 150 mA from the 5 VDC backplane supply. Add this to other modules' backplane current (found in each module's specifications) and verify the total remains below your power supply's capacity—typically 3A for 1794-PS3 or 10A for 1794-PS13 supplies. Field power for outputs is supplied separately via terminal connections.

Ready to Optimize Your Control System?

Upgrade your industrial automation infrastructure with the proven reliability of the 1794-OB8 digital output module. Whether you're replacing aging relay panels, expanding existing FLEX I/O systems, or designing new control architectures, our technical team provides expert guidance from specification through commissioning.

Contact our automation specialists today: Request a detailed quotation, discuss custom configuration requirements, or schedule a technical consultation to ensure optimal module selection for your specific application. Fast shipping, competitive pricing, and comprehensive support included with every order.
