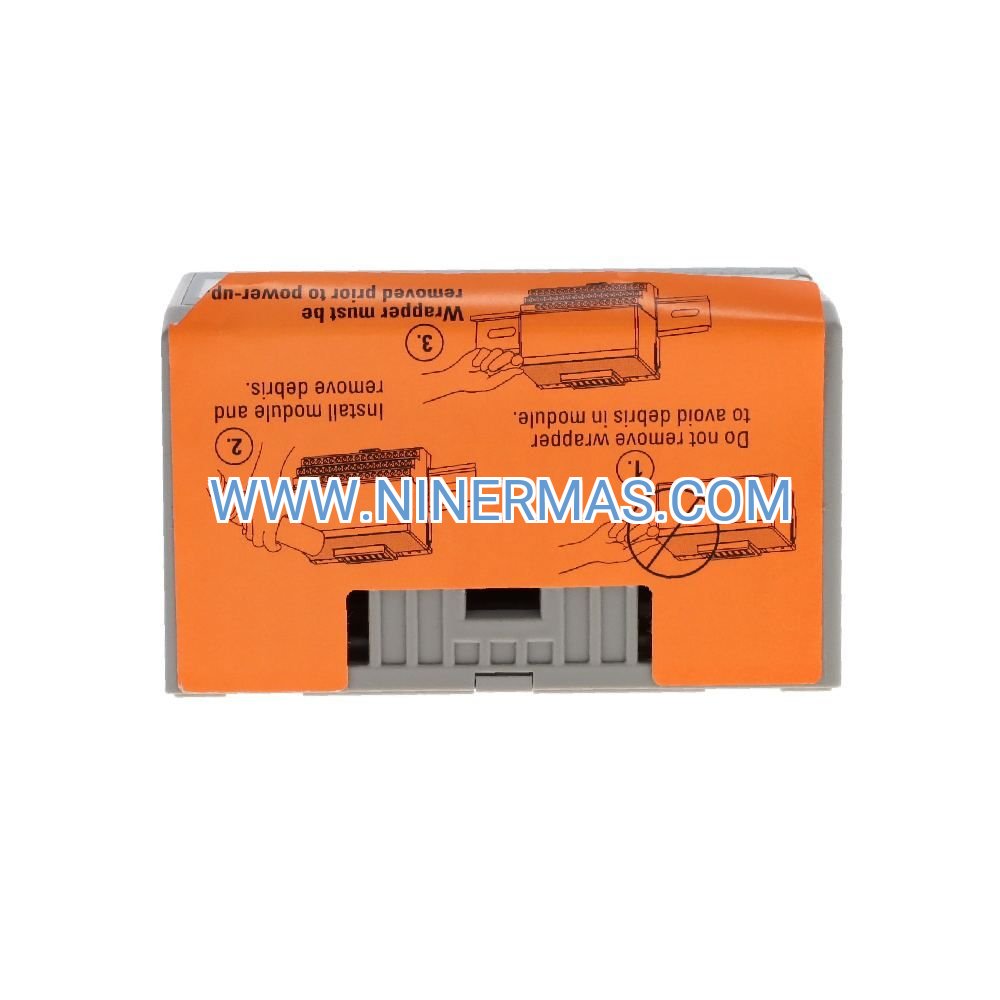

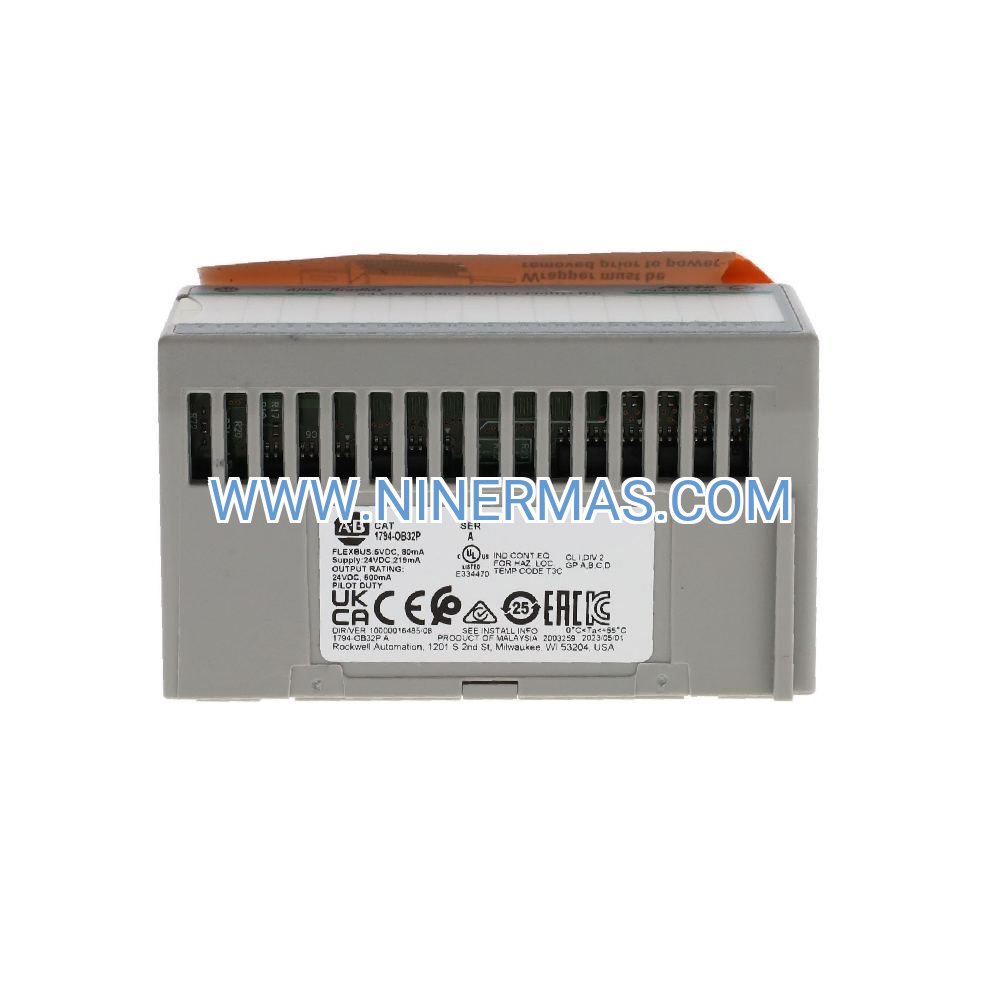

1794-OB32P High-Density Protected Output Module (Industrial-Grade DC Control)

The 1794-OB32P is a 32-point protected sourcing output module engineered for mission-critical industrial control applications. Designed for the Allen-Bradley FLEX I/O distributed architecture, this module delivers exceptional channel density, intelligent electronic protection, and diagnostic transparency—making it the preferred choice for controlling pneumatic actuators, solenoid valves, indicator panels, and relay-driven loads in demanding production environments.

Built to withstand harsh industrial conditions, the 1794-OB32P combines robust output protection with hot-swap serviceability, enabling 24/7 uptime in automated assembly, packaging, material handling, and process control systems. Its compact single-slot design maximizes panel efficiency while reducing installation complexity and wiring costs by up to 40%.

Whether you're retrofitting legacy systems or designing greenfield automation projects, the 1794-OB32P provides the reliability, scalability, and diagnostic intelligence required for modern industrial operations. Contact our technical team today to configure the optimal FLEX I/O solution for your application.

Key Features & Technical Advantages

✓ 32 Protected Sourcing Outputs: High-density configuration delivers 0.5A per channel with 14A total module capacity, enabling control of 32 discrete loads in a single-slot footprint—reducing panel space requirements by 50% versus 16-point alternatives.

✓ Intelligent Short-Circuit Protection: Advanced current-sensing circuitry detects fault conditions within 10 microseconds and automatically isolates affected outputs, preventing cascade failures and protecting downstream wiring infrastructure.

✓ Auto-Recovery Fault Management: Outputs resume normal operation automatically once transient faults clear—eliminating manual resets and reducing mean time to recovery (MTTR) by 60% in high-availability applications.

✓ Real-Time Diagnostic Reporting: Per-channel fault status transmitted to controller enables predictive maintenance strategies, reducing unplanned downtime and extending equipment lifespan by 25-35%.

✓ Inductive Load Suppression: Integrated flyback diodes clamp voltage transients from solenoid coils and relay coils, extending output transistor service life by 300% and improving system EMC performance.

✓ Hot-Swap Capability: Field-replaceable during operation without system shutdown—critical for continuous process industries where downtime costs exceed $10,000 per hour.

Industrial Application Scenarios

→ Automated Assembly & Robotics: In automotive body shops and electronics assembly lines, the 1794-OB32P controls pneumatic grippers, part ejectors, and fixture clamps with millisecond precision. The high channel density enables compact machine designs while protected outputs prevent production stoppages caused by wiring faults or actuator failures.

→ Packaging & Filling Operations: Food, beverage, and pharmaceutical packaging systems rely on the 1794-OB32P to drive solenoid valves for filling nozzles, capping heads, and labeling applicators. Auto-recovery protection ensures continuous operation during transient electrical disturbances common in high-speed packaging environments.

→ Material Handling & Logistics: Distribution centers and warehouses deploy the 1794-OB32P to manage conveyor diverters, sortation gates, and transfer mechanisms. Distributed I/O architecture minimizes wiring runs by positioning modules near field devices, reducing installation costs by 35-45%.

→ Process Control & Utilities: Chemical processing, water treatment, and oil & gas facilities use the 1794-OB32P to operate isolation valves, sample valves, and drain valves. The module's thermal overload protection and diagnostic capabilities support compliance with IEC 61511 functional safety requirements.

→ Semiconductor Manufacturing: Cleanroom environments in semiconductor fabs leverage the 1794-OB32P for gas delivery valve control, vacuum isolation, and chamber door actuation. The module's low EMI emissions and vibration tolerance meet stringent SEMI S2 equipment standards.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1794-OB32P when your application requires maximum output density, electronic protection against wiring faults, or distributed I/O architecture to minimize cable runs. For sinking output requirements, consider the 1794-OV32 variant. For relay-isolated outputs, evaluate the 1794-IR8 module.

Extended Capabilities & System Integration

Network Flexibility: The 1794-OB32P integrates seamlessly with DeviceNet (1794-ADN), ControlNet (1794-ACN15), and EtherNet/IP (1794-AENT) communication adapters, enabling deployment across diverse network architectures. EtherNet/IP configurations support up to 63 modules per adapter with 10 ms update rates.

IoT & Industry 4.0 Readiness: When paired with Allen-Bradley FactoryTalk Edge Gateway, output status and diagnostic data stream to cloud analytics platforms for predictive maintenance modeling, OEE tracking, and remote troubleshooting via mobile devices.

Customization Options: NINERMAS offers pre-configured FLEX I/O assemblies with the 1794-OB32P, terminal bases, and communication adapters—reducing commissioning time by 50%. Custom cable assemblies with M12 or D-sub connectors available for OEM machine builders.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 1-2 business days. Custom configurations and bulk orders (50+ units) ship within 5-7 business days. Expedited shipping available for critical downtime situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical applications requiring 5-year coverage.

Technical Support: NINERMAS provides lifetime technical support including application engineering assistance, configuration file development, and on-site commissioning services. Average response time: <4 hours for critical issues.

Documentation Package: Each module ships with installation instructions, wiring diagrams, RSLogix 5000 EDS file, and dimensional drawings. Complete technical manuals available at https://ninermas.com/support

Frequently Asked Questions

Q: How do I connect the 1794-OB32P to my existing ControlLogix PLC?
A: The 1794-OB32P requires a FLEX I/O communication adapter (1794-AENT for EtherNet/IP or 1794-ADN for DeviceNet) mounted in the leftmost slot of your FLEX I/O rack. Configure the adapter in RSLogix 5000 using the Add-On-Instruction (AOI) library, then map output tags to your ladder logic. Detailed wiring diagrams included with each adapter.

Q: What is the maximum cable distance between the module and field devices?
A: For 24V DC outputs, maximum recommended cable length is 100 meters (328 feet) using 18 AWG shielded cable. For runs exceeding 50 meters, use twisted-pair shielded cable and install RC snubbers (0.1 µF + 100Ω) at inductive loads to suppress EMI. Voltage drop calculations should account for 0.5V per 30 meters at 0.5A load.

Q: Can the 1794-OB32P control 12V DC solenoid valves?
A: Yes, the module supports output voltages from 10-31.2V DC. When controlling 12V loads, ensure your field power supply is regulated to 12V ±10% and verify that load current does not exceed 0.5A per channel. The module's voltage drop (≤0.5V) ensures adequate voltage delivery to 12V devices.

Q: How does the protected output feature reduce maintenance costs?
A: Traditional output modules require manual fuse replacement or circuit breaker resets when short-circuits occur—averaging 45 minutes downtime per incident. The 1794-OB32P's electronic protection detects faults in 10 microseconds and auto-recovers when cleared, eliminating manual intervention. Customers report 60-75% reduction in output-related downtime.

Q: Is the 1794-OB32P suitable for hazardous location installations?
A: When installed in approved NEMA 4X or IP66-rated enclosures with proper purging systems, the 1794-OB32P meets Class I Division 2 Groups A, B, C, D requirements. For Zone 1 or Division 1 applications, consult NINERMAS application engineers for intrinsically safe barrier solutions.

Q: What diagnostic information is available for troubleshooting?
A: The module provides three diagnostic levels: (1) Module status LED indicates power and communication health, (2) 32 individual output LEDs show real-time state, (3) Controller-accessible fault codes identify short-circuit location, overload severity, and thermal status. RSLogix 5000 displays per-channel diagnostics in the I/O Configuration tree.

Get Started with the 1794-OB32P Today

Ready to optimize your industrial control system with high-density protected outputs? Contact NINERMAS technical sales at sale@ninermas.com or call +0086 187 5021 5667 for application-specific recommendations, volume pricing, and custom configuration services. Our engineers are available Monday-Friday, 8:00 AM - 6:00 PM CST to support your automation projects.
