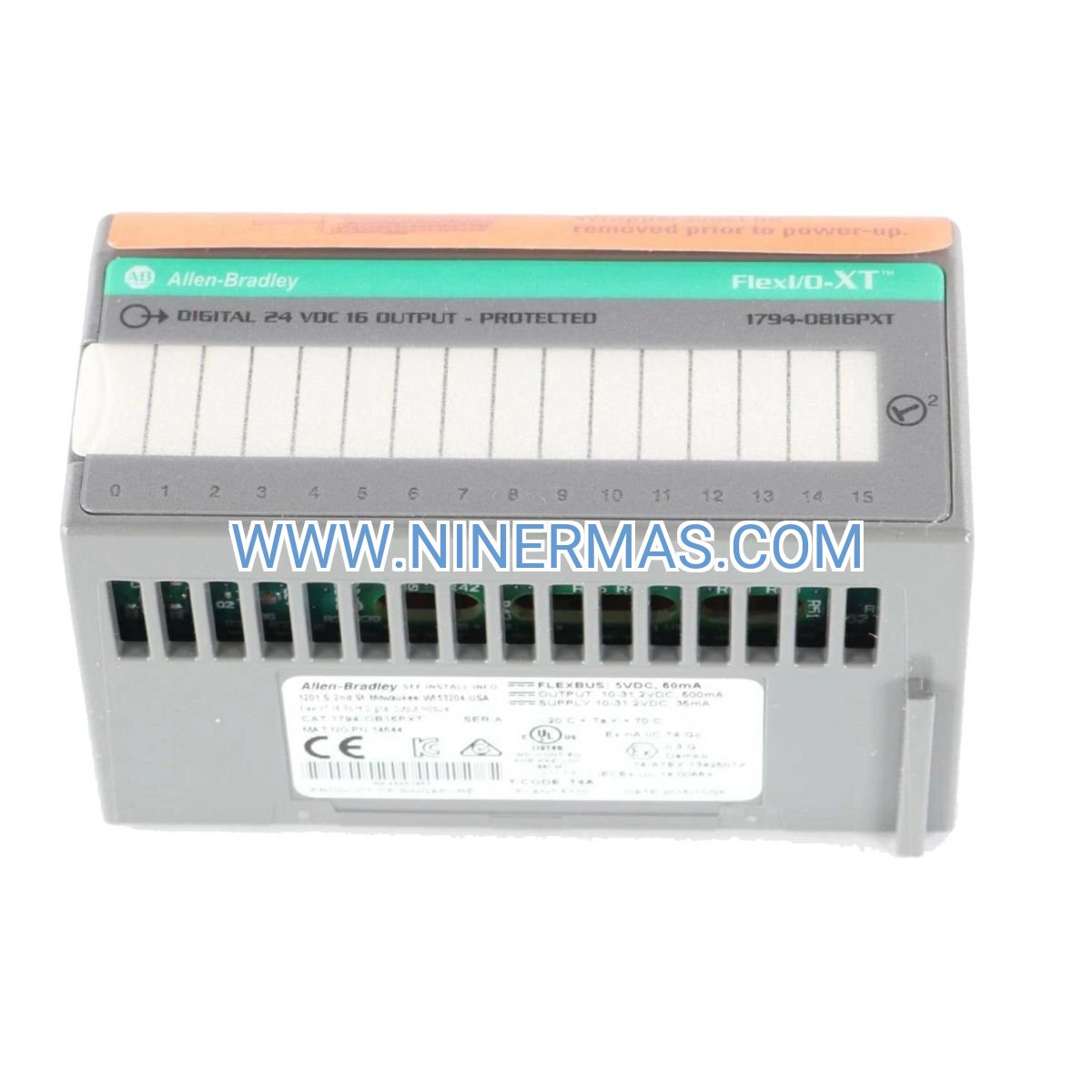

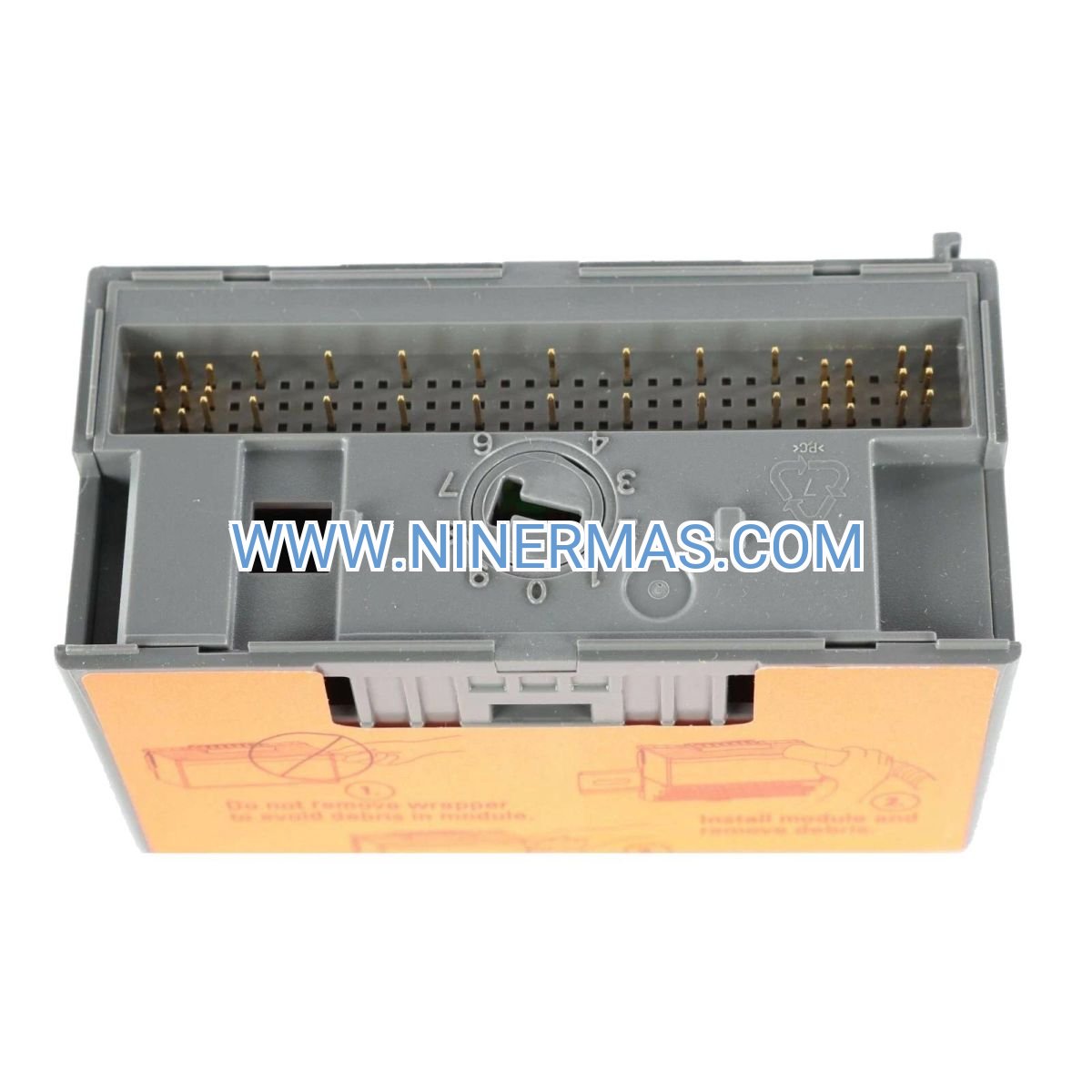

Allen-Bradley 1794-OB16PXT Protected Digital Output Module (Industrial-Grade I/O Control Solution)

The Allen-Bradley 1794-OB16PXT is a high-performance protected digital output module designed for industrial automation and control systems. Through advanced electronic protection circuitry and FLEX I/O architecture, it delivers reliable 24VDC output control with built-in overcurrent protection, ensuring safe operation in demanding manufacturing environments.

Ideal for discrete control applications in automotive assembly, packaging machinery, material handling systems, process automation, and building management systems. This module addresses common challenges including output short-circuit damage, wiring faults, load protection requirements, and system downtime caused by component failure.

With standardized FLEX I/O design and field-proven reliability, the 1794-OB16PXT offers fast installation, hot-swappable capability, diagnostic LEDs, and compatibility with ControlLogix, CompactLogix, and MicroLogix platforms. Suitable for control engineers, system integrators, OEM manufacturers, and maintenance teams. Contact our technical team for application-specific configuration and quotation.

Core Features & Technical Advantages

• Electronic Overcurrent Protection
  Each output channel features independent electronic protection that automatically limits current during short-circuit or overload conditions, preventing module damage and reducing maintenance costs compared to fuse-based systems.
• High-Density I/O Configuration
  16 discrete output points in a compact single-slot module maximize control cabinet space efficiency, reducing installation footprint by up to 40% compared to traditional relay-based solutions.
• FLEX I/O System Compatibility
  Seamlessly integrates with Allen-Bradley FLEX I/O adapters and controllers, supporting distributed control architectures with flexible network topologies including DeviceNet, ControlNet, and EtherNet/IP.
• Comprehensive Diagnostic Capabilities
  Individual channel status LEDs and built-in diagnostics enable rapid fault identification and troubleshooting, minimizing unplanned downtime and simplifying preventive maintenance procedures.
• Industrial-Grade Reliability
  Conformal-coated circuitry withstands harsh environments including temperature extremes (-40°C to +70°C), vibration, humidity, and electrical noise, ensuring consistent performance in demanding industrial applications.
• Hot-Swappable Design
  Field-replaceable module allows maintenance without system shutdown, supporting continuous production requirements and reducing mean time to repair (MTTR) in critical control systems.

Typical Application Scenarios

The 1794-OB16PXT module is engineered for applications requiring reliable discrete output control with enhanced protection, particularly in:

• Automotive Manufacturing & Assembly Lines
  Controls pneumatic actuators, conveyor systems, robotic work cells, and quality inspection stations where output protection prevents costly production interruptions and equipment damage.
• Packaging & Material Handling Systems
  Drives solenoid valves, motor starters, indicator lights, and sorting mechanisms in high-speed packaging lines, distribution centers, and automated warehousing applications.
• Process Control & Chemical Manufacturing
  Operates isolation valves, pump controls, alarm indicators, and safety interlocks in process industries requiring intrinsically safe output control with fault protection.
• Building Automation & HVAC Systems
  Manages damper actuators, fan controls, lighting circuits, and access control devices in commercial buildings, data centers, and industrial facilities requiring energy-efficient operation.
• Water Treatment & Municipal Infrastructure
  Controls pump stations, valve actuators, chemical dosing systems, and monitoring equipment in water distribution, wastewater treatment, and environmental control applications.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide comprehensive technical parameters for the 1794-OB16PXT module. Custom configurations and extended specifications are available for project-specific requirements.

Selection Recommendations: When specifying the 1794-OB16PXT, consider total output current requirements, load type (inductive/resistive), wiring distance, environmental conditions, and controller compatibility. For applications requiring higher current capacity, isolated outputs, or AC voltage control, alternative module configurations are available. Our application engineers can review your system architecture and recommend optimal I/O distribution strategies.

System Integration & Configuration Options

• Controller Compatibility: Compatible with ControlLogix (1756), CompactLogix (1769), MicroLogix (1761/1762), and SLC 500 (1747) platforms via appropriate FLEX I/O adapters
• Network Connectivity: Supports DeviceNet (1794-ADN), ControlNet (1794-ACN15), EtherNet/IP (1794-AENT), and Remote I/O (1794-ASB) communication adapters
• Wiring Systems: Accepts removable terminal blocks (RTB) or spring-clamp terminal assemblies for simplified installation and maintenance
• Redundancy Options: Can be configured in redundant I/O architectures for critical control applications requiring fault-tolerant operation
• Programming Support: Fully supported in RSLogix 500, RSLogix 5000, Studio 5000 Logix Designer, and Connected Components Workbench software environments

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or project quantities typically require 10-15 business days lead time. All products include a 12-month manufacturer warranty covering defects in materials and workmanship.

Technical support includes remote configuration assistance, troubleshooting guidance, and application engineering consultation. On-site commissioning and training services are available for large-scale installations (subject to location and project scope). Complete documentation package includes product datasheet, installation instructions, wiring diagrams, and programming examples compatible with Rockwell Automation development tools.

All modules undergo factory testing and calibration to ensure compliance with published specifications. Quality certifications include ISO 9001 manufacturing standards and RoHS environmental compliance for global market acceptance.

Frequently Asked Questions (FAQ)

Q: How does the 1794-OB16PXT protected output module integrate with existing Allen-Bradley control systems?
A: The module mounts directly onto FLEX I/O adapter bases and communicates via the backplane. Simply install the module into an available slot, configure the I/O mapping in your controller programming software (RSLogix or Studio 5000), and download the updated configuration. The module auto-detects and reports its identity to the controller.

Q: What is the maximum total current capacity for all 16 output channels?
A: While each channel supports 0.5A continuous current, the total module current is limited by the external 24VDC power supply capacity and thermal considerations. For maximum reliability, we recommend limiting total module load to 6-8A continuous. Contact our engineering team for specific application current budgeting.

Q: How does the electronic protection compare to traditional fuse-based output modules?
A: Electronic protection automatically limits current during fault conditions without requiring fuse replacement, reducing maintenance time by approximately 70%. The module remains operational after fault clearing, whereas fuse-based systems require manual intervention and spare parts inventory.

Q: What environmental protection rating does the 1794-OB16PXT provide?
A: The module features conformal coating for enhanced moisture and contaminant resistance, suitable for industrial environments. When installed in appropriate NEMA-rated enclosures, the system can achieve IP54 or higher protection levels depending on cabinet specifications.

Q: Can the module support remote monitoring and predictive maintenance capabilities?
A: Yes, when connected via EtherNet/IP adapters, the module provides diagnostic data accessible through FactoryTalk View, PlantPAx DCS systems, or third-party SCADA platforms. Channel status, fault history, and operational statistics enable condition-based maintenance strategies.

Q: Is the 1794-OB16PXT suitable for safety-rated control applications?
A: This is a standard I/O module not certified for safety functions. For safety-rated applications requiring SIL or PLe certification, consider Allen-Bradley GuardLogix safety I/O modules or consult our safety system specialists for compliant solutions.

Request Technical Support & Quotation

For detailed application engineering, custom configuration assistance, or project quotations, please provide the following information: project name and scope, application description, required I/O point count, controller platform and network architecture, environmental conditions, delivery timeline, and installation location. Our technical team will respond within 24 hours with tailored recommendations and competitive pricing.
