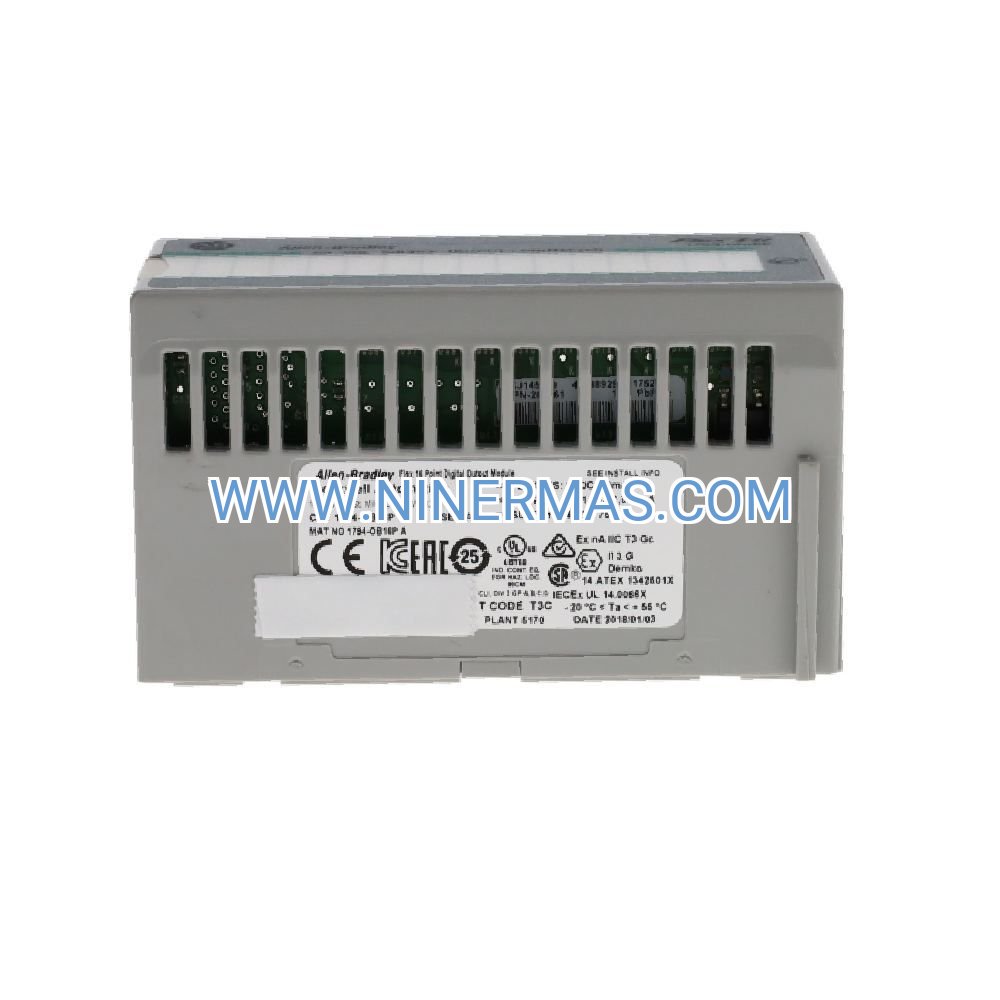

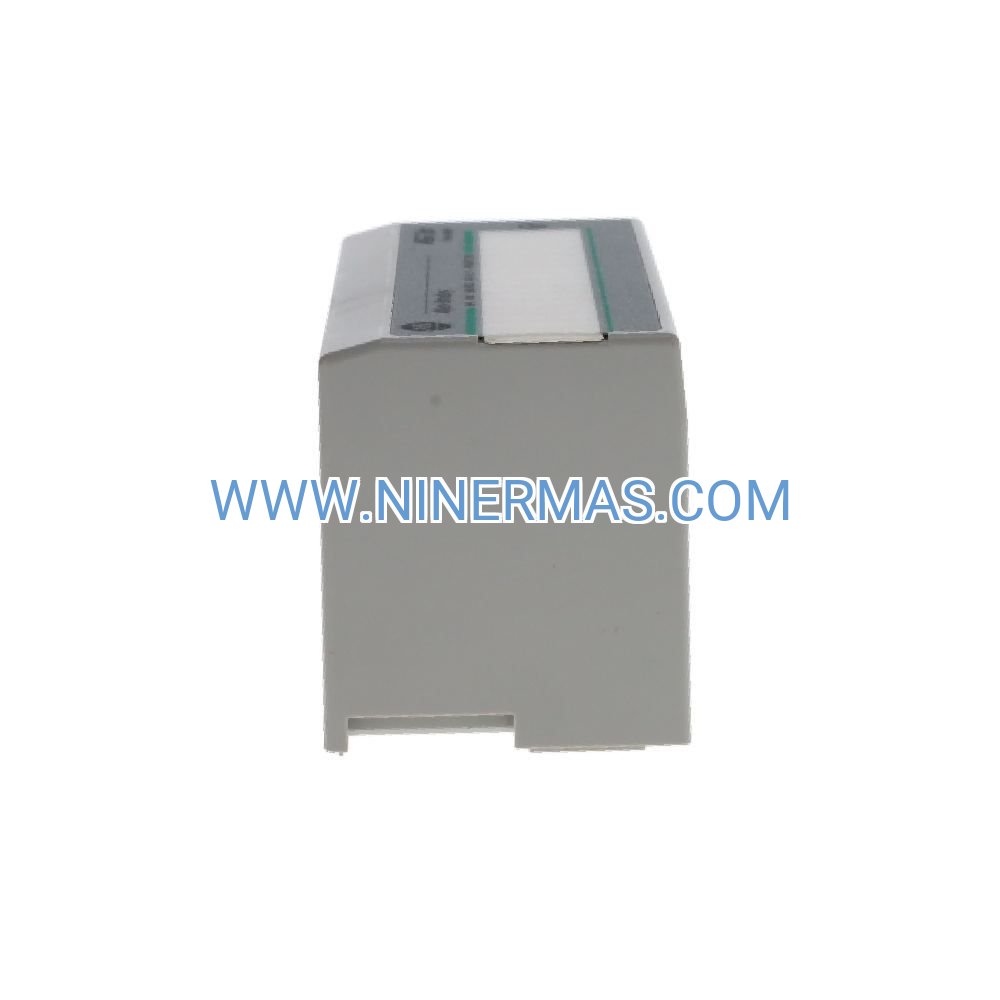

1794-OB16P Digital Output Module (Industrial-Grade Protected Control)

Engineered for demanding industrial environments, the 1794-OB16P represents a breakthrough in protected digital output technology. This 16-channel DC output module combines advanced electronic safeguards with intelligent diagnostics, delivering unmatched reliability for controlling pneumatic valves, motor contactors, and critical actuators in process automation, manufacturing, and infrastructure applications where system uptime directly impacts profitability.

Unlike conventional output modules, the 1794-OB16P integrates per-channel protection circuitry that detects and isolates faults within microseconds, preventing cascade failures that can halt entire production lines. With comprehensive diagnostic reporting and automatic fault recovery, maintenance teams gain unprecedented visibility into output health, enabling predictive maintenance strategies that reduce unplanned downtime by up to 40%.

Designed for seamless integration with distributed FLEX I/O architectures, this sourcing-type output module supports hot-swappable installation, multi-network compatibility, and flexible system scaling—making it the preferred choice for engineers building resilient automation systems that must operate continuously in harsh industrial conditions.

Core Features & Benefits

→ Electronic Protection on Every Channel
Independent short-circuit detection and overload monitoring on all 16 outputs prevent equipment damage and extend field device lifespan. When faults occur, affected channels shut down in under 10 microseconds while healthy outputs continue operation, maintaining partial system functionality during troubleshooting.

→ Real-Time Diagnostic Intelligence
Advanced fault detection identifies short circuits, open wiring, and thermal overloads with per-channel resolution. Diagnostic data streams to your controller in real-time, enabling automated alarm generation and integration with SCADA systems for centralized monitoring across distributed installations.

→ Automatic Fault Recovery
Once fault conditions clear, outputs automatically re-enable without manual intervention or system resets. This self-healing capability minimizes operator workload and reduces mean time to recovery (MTTR) by eliminating manual reset procedures that delay production restart.

✓ High-Current Capacity with Thermal Management
Each channel delivers 0.5A continuous current with 2A inrush capability for 100ms, ideal for energizing solenoid valves and relay coils. Intelligent thermal monitoring prevents overheating during sustained high-load operation, automatically throttling current when approaching thermal limits to protect both module and connected devices.

✓ Industrial-Hardened Construction
Built to withstand 30g operational shock, 5g continuous vibration, and temperature extremes from 0°C to 60°C. Conformal coating protects circuitry from moisture, dust, and corrosive atmospheres common in chemical processing, mining, and wastewater treatment facilities.

✓ Distributed Architecture Efficiency
Deploy modules within 20 meters of field devices to slash wiring costs by 30-50% compared to centralized I/O panels. Hot-swap capability allows module replacement during operation without system shutdown, critical for 24/7 continuous processes where scheduled maintenance windows don't exist.

Typical Application Scenarios

Chemical Processing & Refineries
Control emergency shutdown valves, fire suppression actuators, and safety interlock systems where fault detection prevents catastrophic releases. The module's diagnostic capabilities meet stringent safety instrumented system (SIS) requirements, providing audit trails for regulatory compliance under IEC 61511 and API standards.

Automotive Manufacturing Lines
Drive pneumatic clamps, robotic tool changers, and conveyor diverters in high-speed assembly operations. When a single output fault is detected, the module isolates the affected channel while maintaining operation of remaining outputs, preventing complete line stoppages that cost $15,000+ per hour in lost production.

Water & Wastewater Treatment
Operate pump starters, valve actuators, and chemical dosing systems in unmanned lift stations and remote treatment facilities. Open-wire diagnostics alert operators to cable damage before complete failures occur, enabling scheduled repairs during off-peak hours rather than emergency callouts.

Food & Beverage Processing
Manage filling valves, CIP (clean-in-place) systems, and packaging equipment in FDA-regulated environments. Comprehensive fault logging provides the traceability required for 21 CFR Part 11 compliance, documenting every output state change and fault event with millisecond timestamps.

Mining & Material Handling
Control conveyor belt drives, crusher interlocks, and dust suppression systems in high-vibration, high-contamination environments. The module's robust construction and reverse polarity protection ensure reliable operation despite harsh electrical conditions and frequent maintenance by field technicians with varying skill levels.

Technical Parameters & Selection Guide

Selection Recommendations:

• For applications requiring output protection and diagnostics → Choose 1794-OB16P
• For cost-sensitive, non-critical applications → Consider standard 1794-OB16
• For sinking-type outputs (NPN loads) → Use 1794-OV16P protected sinking module
• For AC output control → Select 1794-OA16 or 1794-OA8 AC output modules
• For high-speed switching (>10 Hz) → Specify 1794-OB16D high-speed variant

Extended Functions

IoT Integration & Remote Monitoring
When paired with EtherNet/IP adapters (1794-AENT, 1794-AENTR), the module's diagnostic data becomes accessible via web browsers, mobile apps, and cloud platforms. Configure email/SMS alerts when fault thresholds are exceeded, enabling remote troubleshooting and reducing on-site visits by 60% for geographically distributed installations.

Advanced Diagnostic Features
Beyond basic fault detection, the module tracks cumulative switching cycles, thermal stress events, and fault frequency trends. Export this data to maintenance management systems (CMMS) to schedule preventive replacements before failures occur, transitioning from reactive to predictive maintenance strategies.

Customization Options
Configure fault response behavior via RSLogix/Studio 5000: choose between automatic recovery, latched faults requiring manual reset, or custom logic sequences. Set per-channel current limits for sensitive loads, and define alarm priorities to distinguish critical faults from informational warnings.

Delivery & Service Assurance

Lead Times
→ Standard Stock Items: 3-5 business days (in-stock modules ship same-day if ordered before 2 PM CST)
→ Custom Configurations: 2-3 weeks (pre-configured modules with custom firmware or labeling)
→ Expedited Service: 24-48 hour delivery available for critical breakdown situations (additional fees apply)

Warranty Coverage
→ 18-month comprehensive warranty covering manufacturing defects and component failures
→ Extended warranty options available: 3-year and 5-year plans with advanced replacement service
→ Warranty includes firmware updates and technical support during coverage period

Technical Support
→ Pre-sales application engineering: Free consultation to verify module suitability for your application
→ Post-sales support: Email/phone assistance for installation, configuration, and troubleshooting
→ On-site commissioning: Available for large projects requiring system integration and startup assistance
→ Training programs: Hands-on workshops covering FLEX I/O architecture, diagnostics, and maintenance

Documentation Package
Every module ships with:
✓ Quick-start installation guide with wiring diagrams
✓ Full technical manual (PDF) with specifications and troubleshooting procedures
✓ RSLogix/Studio 5000 Add-On Instructions (AOIs) for standardized diagnostic programming
✓ Compliance certificates (UL, CE, ATEX) and material declarations (RoHS, REACH)
✓ Calibration certificate with serial number traceability

Frequently Asked Questions

Q: How does the protected 1794-OB16P differ from the standard 1794-OB16 output module?
A: The 1794-OB16P includes electronic protection on every channel (short-circuit, overload, open-wire detection) with automatic fault recovery, while the standard 1794-OB16 relies on external fusing and lacks per-channel diagnostics. For critical applications where fault detection prevents equipment damage or downtime, the protected version delivers ROI through reduced maintenance costs and improved uptime—typically recovering its 30% price premium within 6-12 months.

Q: What is the maximum cable length between the module and field devices?
A: For standard installations, 100 meters (328 feet) is recommended using 18 AWG shielded cable. Longer runs up to 300 meters are possible with 14 AWG wire and reduced switching frequency, though voltage drop calculations should be verified. In high-EMI environments (near VFDs, welders, or RF equipment), limit runs to 50 meters and use twisted-pair shielded cable with 360° shield termination at both ends.

Q: Can this module control both sourcing and sinking loads?
A: The 1794-OB16P is a sourcing-type module (provides +24V DC to loads with common return to ground), compatible with sinking-type field devices (NPN sensors, PNP relay coils). For sinking-type outputs (providing ground path with +24V supplied externally), specify the 1794-OV16P variant. Verify load compatibility before ordering to avoid field wiring modifications.

Q: How do I integrate diagnostic data into my existing SCADA or HMI system?
A: The module exposes diagnostic bits via standard I/O mapping in your controller program. Create alarm tags for each channel's fault status, then map these to your SCADA/HMI using OPC UA, Modbus TCP, or native protocol drivers. Most platforms (Ignition, FactoryTalk View, WinCC) include pre-built templates for FLEX I/O diagnostics. We provide sample code and configuration files to accelerate integration.

Q: What maintenance is required to ensure long-term reliability?
A: Quarterly inspections should verify terminal tightness (re-torque to 7 in-lbs for screw terminals), check for LED fault indicators, and review diagnostic logs for fault trends. Semi-annual thermal imaging detects hot spots indicating degraded connections. The module itself is maintenance-free with no consumable components, but connected field devices (solenoid valves, contactors) should follow manufacturer service intervals. Plan module replacement after 10 years or 1 million switching cycles, whichever occurs first.

Q: Is this module suitable for safety-rated applications like emergency stops?
A: The 1794-OB16P is SIL 2 capable per IEC 61508 when configured in approved architectures (typically 1oo2 or 2oo3 voting), but it is NOT a certified safety module. For SIL 3 or PLe applications (emergency stops, safety gates, light curtains), use dedicated safety I/O such as the 1791DS-IB12XOB8 DeviceNet Safety module or GuardLogix safety controllers. Consult a certified functional safety engineer for safety system design.

Ready to Enhance Your Control System Reliability?

The 1794-OB16P protected output module delivers the diagnostic intelligence and fault protection your critical applications demand. Whether you're upgrading aging I/O infrastructure, designing new automation systems, or troubleshooting recurring output failures, our application engineers are ready to help you specify the optimal solution.

Next Steps:
→ Request a Quote: Contact our sales team with your project requirements for volume pricing and delivery schedules
→ Technical Consultation: Schedule a free 30-minute call with our automation specialists to discuss your application
→ Sample Program: Download our evaluation kit including module, terminal base, and sample RSLogix code for hands-on testing
→ Documentation: Access full datasheets, wiring diagrams, and integration guides in our technical library
