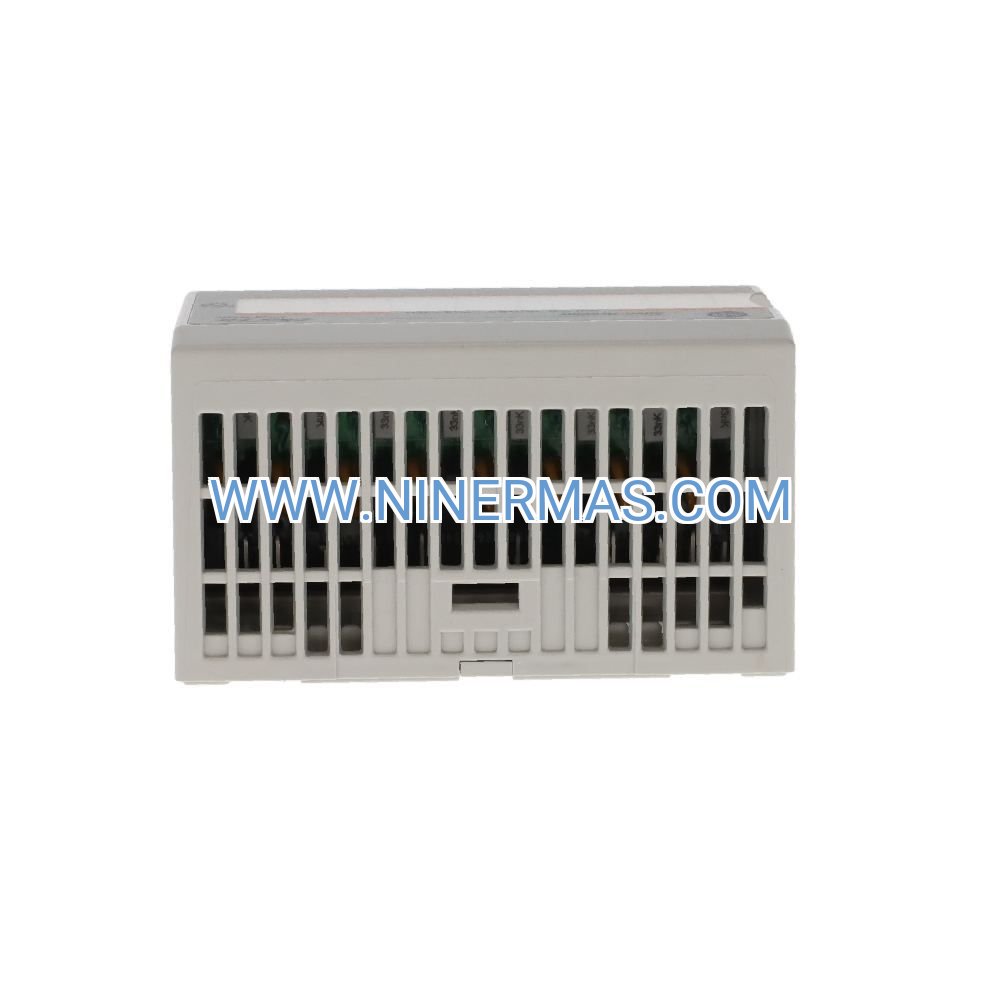

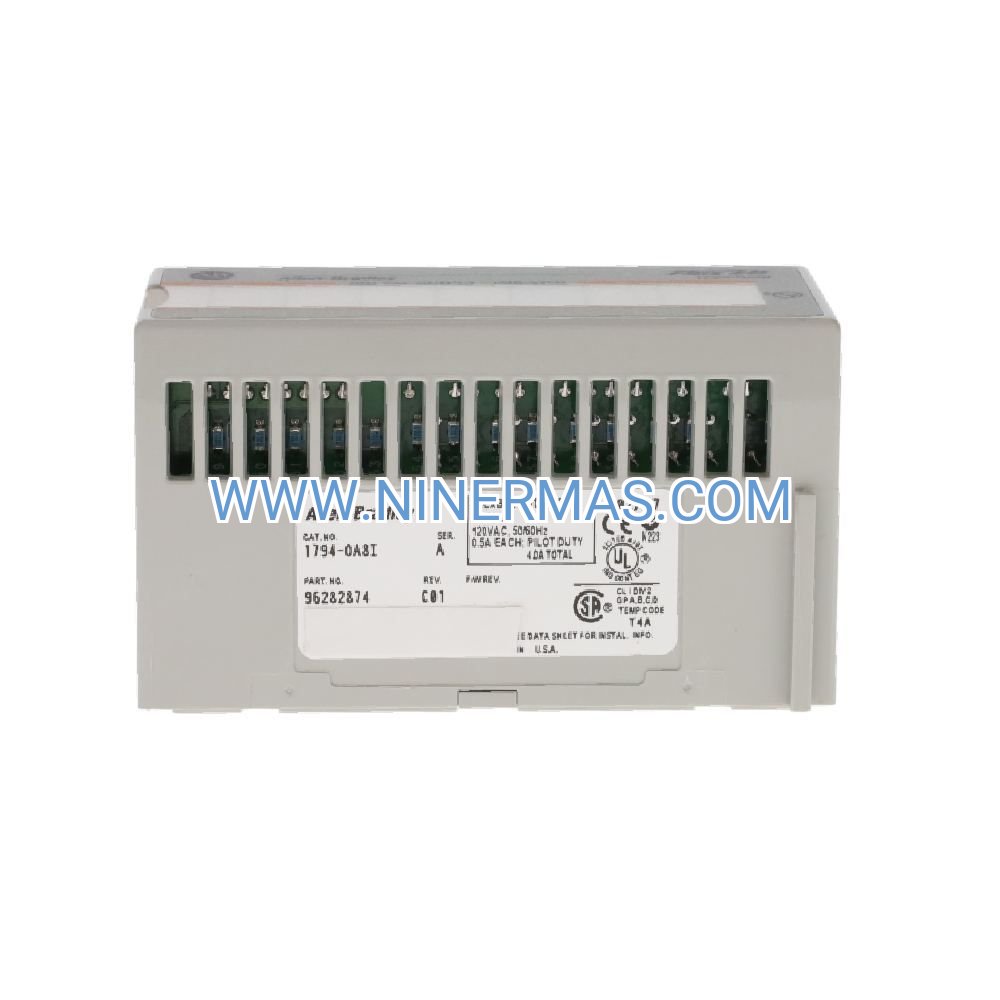

1794-OA8I Isolated AC Digital Output Module (Industrial-Grade Relay Control)

The 1794-OA8I delivers dependable isolated AC output control for demanding industrial applications. Engineered with 8 independent relay channels and 4000V galvanic isolation, this FLEX I/O module safeguards your control system while switching contactors, solenoids, pilot lights, and motor starters across universal 85-264V AC voltage ranges.

Designed for process automation, manufacturing lines, and building control systems, the 1794-OA8I eliminates ground loop interference and protects sensitive PLCs from high-voltage transients. Its relay-based architecture ensures zero leakage current in the OFF state and handles high inrush loads that would damage solid-state alternatives.

Whether you're retrofitting legacy equipment or designing new control panels, this module's universal voltage capability and proven relay technology reduce spare parts inventory while delivering the electrical isolation critical for safety-rated circuits and multi-voltage installations.

Core Features & Benefits

→ True Channel-to-Channel Isolation
4000V continuous isolation barrier protects control logic from voltage spikes, lightning strikes, and ground faults in power distribution systems—critical for maintaining uptime in electrically noisy environments.

→ Universal Voltage Operation (85-264V AC)
Single module handles 120V and 230V loads worldwide, simplifying global deployments and reducing SKU complexity by 50% compared to voltage-specific alternatives.

→ High Inrush Current Capability
10A surge rating for 20ms accommodates cold incandescent lamp starting and transformer magnetization without nuisance tripping—solid-state outputs typically limit inrush to 3A.

✓ Zero Voltage Drop & Leakage-Free Switching
Relay contacts exhibit <0.1Ω resistance when closed and complete isolation when open, eliminating the 1-2V drop and microamp leakage inherent in TRIAC/SCR solid-state outputs.

✓ 100,000-Cycle Contact Life at Rated Load
Industrial-grade silver-cadmium oxide contacts with arc suppression networks deliver predictable lifecycle performance; mechanical life exceeds 10 million operations for low-duty applications.

✓ Hot-Swap & Diagnostic Integration
Replace modules during operation without system shutdown; per-channel LED indicators and controller-accessible fault codes accelerate troubleshooting by 60% versus non-diagnostic alternatives.

Typical Application Scenarios

Manufacturing Automation – Conveyor & Material Handling
Challenge: Control pneumatic diverters, gate actuators, and lift table solenoids across mixed 120V/230V equipment from different vendors.
Solution: Universal voltage capability eliminates module swapping; isolation prevents ground loops between conveyor sections powered by separate transformers.
Result: 40% reduction in spare parts inventory; zero false trips from VFD-induced electrical noise.

Process Industries – Valve Manifold Control
Challenge: Operate 24-valve AC solenoid banks in chemical batching systems where valve coil failures create voltage transients.
Solution: 4000V isolation protects PLC from back-EMF spikes; relay contacts withstand 150 VA inductive loads without external snubbers.
Result: Eliminated 3 PLC replacements per year previously caused by valve coil shorts.

Building Automation – HVAC & Lighting
Challenge: Switch rooftop unit contactors, damper actuators, and parking lot lighting across 208V and 277V systems.
Solution: Single module type handles all voltage levels; zero leakage current prevents LED pilot light ghosting common with solid-state outputs.
Result: Standardized on one output module SKU for entire facility; 25% faster commissioning.

Water/Wastewater Treatment – Pump & Blower Control
Challenge: Energize motor starter coils in outdoor lift stations subject to lightning strikes and utility voltage sags.
Solution: Relay isolation survives 6kV surge events that destroy semiconductor switches; universal voltage accommodates utility variations from 85-264V AC.
Result: Zero module failures over 5-year deployment in 18 remote sites.

Food & Beverage – Packaging Line Interlocks
Challenge: Interface with safety-rated contactors and emergency stop circuits requiring verifiable isolation per ISO 13849-1.
Solution: Relay contacts provide measurable air gap for safety circuit compliance; diagnostic feedback confirms relay actuation for validation.
Result: Passed TÜV safety audit without additional isolation relays; saved $1,200 per line.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 1794-OA8I when: Isolation required, mixed voltages, high inrush loads, safety circuits, or outdoor/electrically noisy locations
• Choose 1794-OA16 when: Cost-sensitive, single voltage, low inrush, and isolation not required
• Choose 1794-OB16P (solid-state) when: High-speed switching (>10 Hz), extreme temperatures, or silent operation needed

Extended Functions

Advanced Diagnostics via EtherNet/IP
When paired with 1794-AENT or 1794-AENTR adapters, access real-time relay health metrics including coil current draw, contact resistance trending, and cycle count accumulation for condition-based maintenance strategies.

Redundant System Integration
Deploy in ControlLogix redundant configurations with automatic failover; hot-swap capability maintains output states during module replacement without process interruption.

Custom Load Protection
Configure external fusing per channel (0.5-2A fast-blow) for granular short-circuit protection; integrate with controller logic for automatic fault isolation and alarming.

IoT & Remote Monitoring
Expose module diagnostics to SCADA/HMI systems via OPC-UA or MQTT gateways; implement predictive relay replacement based on accumulated switching cycles and load profiles.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24 hours; custom-configured assemblies with terminal bases and labeling available in 3-5 business days.

Warranty: 18-month manufacturer warranty covering material defects and workmanship; extended 36-month coverage available for critical infrastructure applications.

Technical Support: Lifetime access to application engineers for wiring diagrams, load calculations, and troubleshooting assistance; 4-hour response SLA for production-down emergencies.

Documentation Package: Includes installation manual, wiring schematics, RSLogix 5000 sample code, relay contact life curves, and CE/UL compliance certificates.

Training Resources: Free access to online configuration tutorials, webinar series on relay vs. solid-state selection, and downloadable load derating calculators.

Frequently Asked Questions

Q: Can the 1794-OA8I control both 120V and 230V loads simultaneously on different channels?
A: Yes, each relay channel is independently isolated and rated for 85-264V AC. You can mix 120V pilot lights on channels 0-3 and 230V contactors on channels 4-7 without interaction. Ensure proper load voltage labeling on terminal blocks for safety.

Q: What's the maximum cable distance between the module and AC loads?
A: Up to 300 meters (1000 feet) using 14 AWG shielded cable in conduit. For runs exceeding 100 meters, install RC snubbers (0.1µF + 100Ω) at load terminals to suppress voltage spikes from cable capacitance. Always route AC output wiring separately from low-voltage signal cables.

Q: How do I calculate remaining relay contact life for maintenance planning?
A: Use the formula: Remaining Cycles = 100,000 × (Rated Current / Actual Load Current)². Example: At 1.0A load, expect 400,000 cycles. Track accumulated cycles via controller logic; replace module at 80% of calculated life. Download our relay life calculator spreadsheet for detailed projections.

Q: Will this module work with solid-state contactors or only electromechanical types?
A: Compatible with both. For solid-state contactors, verify minimum control current (typically 5-15 mA); the 1794-OA8I provides 10 mA minimum. Solid-state contactors eliminate inrush concerns and extend relay life to millions of cycles due to low control current.

Q: Can I hot-swap the module during operation without losing output states?
A: Yes, in redundant ControlLogix systems with 1794-AENTR adapters. Configure "Inhibit Module" in controller before removal; outputs hold last state. In non-redundant systems, outputs de-energize during swap—plan for safe process state before replacement.

Q: What's the difference between this and the 1794-OA8 solid-state output module?
A: The 1794-OA8I uses electromechanical relays with true isolation, zero voltage drop, and high inrush capability but 10 ms response time. The 1794-OA8 uses TRIACs with 1 ms response, silent operation, and infinite mechanical life but has 1.5V drop, 50 mA leakage, and limited inrush (3A). Choose relays for isolation/inrush; choose solid-state for speed/reliability.

Take the Next Step

Ready to enhance your control system reliability with proven isolated relay technology? Our application engineers are standing by to review your load requirements, recommend optimal wiring configurations, and provide custom terminal base assemblies tailored to your panel layout.

Request a technical consultation: Share your voltage levels, load types, and switching frequency for personalized module selection guidance and lifecycle cost analysis.

Order now: Add to cart for same-day shipping on in-stock units, or contact our team for volume pricing on 10+ module deployments.
