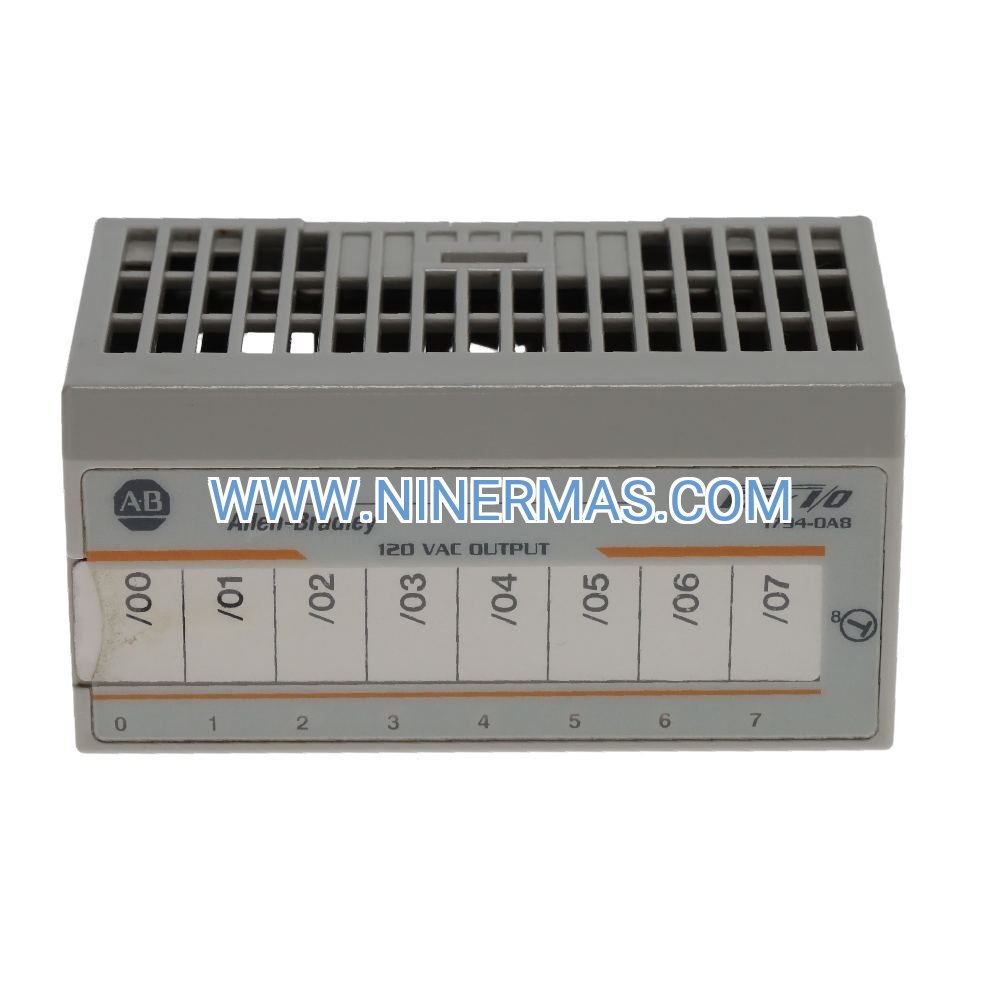

1794-OA8 Relay Output Module (Industrial-Grade AC Load Switching)

The 1794-OA8 delivers dependable AC load control through eight electromechanical relay outputs engineered for FLEX I/O distributed systems. Built to handle demanding industrial switching tasks, this module provides true galvanic isolation and robust current capacity for solenoid valves, motor contactors, lighting circuits, and annunciator devices across manufacturing, process control, and building automation environments.

Designed for system integrators and maintenance teams managing legacy AC control infrastructure, the 1794-OA8 bridges modern PLC logic with traditional 120V AC field devices. Its relay-based architecture eliminates voltage drop concerns while delivering the mechanical isolation and surge tolerance required for reliable operation in electrically noisy industrial settings.

Whether you're retrofitting aging control panels, expanding existing FLEX I/O networks, or designing new automation systems requiring AC switching capability, the 1794-OA8 combines proven relay technology with Allen-Bradley's modular platform advantages—hot-swappable installation, comprehensive diagnostics, and seamless RSLogix integration for simplified commissioning and lifecycle management.

Core Capabilities & Technical Advantages

✓ Eight Independent Relay Channels
Form A (SPST-NO) silver alloy contacts rated 4.0A at 30°C per point, with 2.0A sustained capacity at 60°C ambient. Each output operates independently with individual LED status indication and controller-accessible diagnostic data for predictive maintenance scheduling.

✓ Universal Voltage Compatibility (5-265V AC/DC)
Bidirectional relay contacts switch AC or DC loads without modification. Nominal 120V AC rating suits North American industrial standards while accommodating 24V DC control circuits, 230V European equipment, and mixed-voltage applications within a single module.

✓ True Galvanic Isolation (4000V Continuous)
Mechanical relay contacts provide complete electrical separation between control logic and field power, eliminating ground loop interference and protecting sensitive PLC backplane electronics from transient voltage spikes common in motor starter and solenoid applications.

✓ High Inrush Current Tolerance (20A Peak)
Cold-start capability handles 10-15× overcurrent from tungsten filament lamps, transformer magnetizing inrush, and capacitor charging without contact welding. Enables direct control of incandescent lighting banks and small power supply loads.

✓ Fail-Safe Normally-Open Architecture
De-energized relay coils maintain open contacts during power loss, module failure, or communication interruption. Critical for safety-critical applications requiring loads to default to off-state during fault conditions.

✓ Audible Operation Feedback
Distinctive relay click provides immediate tactile confirmation during commissioning, troubleshooting, and manual testing—valuable for field technicians verifying output operation without measurement equipment.

Industrial Application Scenarios

→ Manufacturing Automation: Pneumatic Valve Control
Drive solenoid valve banks controlling air cylinders, grippers, and ejectors in automated assembly lines. The 1794-OA8's inductive load rating and suppression compatibility ensure extended contact life when switching 120V AC solenoid coils with high inrush characteristics typical of rapid-cycle pneumatic systems.

→ Process Control: Motor Starter Interfacing
Energize magnetic contactor coils for pump motors, agitator drives, and conveyor systems in chemical processing and water treatment facilities. True isolation prevents ground loops between distributed I/O networks and high-power motor control centers, while 4A capacity handles standard NEMA Size 0-1 starter coils.

→ Building Automation: HVAC Zone Control
Switch damper actuators, zone valves, and circulation pumps in commercial HVAC systems. Relay outputs accommodate the mixed AC/DC control voltages common in building automation while providing the isolation required for integration with BACnet and Modbus networks.

→ Material Handling: Conveyor Lighting & Signaling
Control stack lights, alarm horns, and work area illumination in warehouse automation and distribution centers. The module's lamp load capability and zero voltage drop ensure full brightness delivery to indicator devices while supporting both LED and traditional incandescent technologies.

→ Machine Tool Integration: Legacy Equipment Retrofit
Interface modern ControlLogix or CompactLogix PLCs with older CNC machines, injection molding presses, and packaging equipment using 120V AC discrete control. Eliminates need for external relay panels or voltage conversion hardware when modernizing control systems.

Technical Specifications & Selection Guide

Selection Criteria: Choose relay outputs for applications requiring true isolation, universal voltage compatibility, or inrush tolerance. Select solid-state alternatives (1794-OB series) for high-speed switching (>10Hz), silent operation, or extended electrical life. For DC-only loads, consider 1794-OW modules with higher current ratings.

Advanced Integration & Customization

Network Connectivity Options
Deploy with 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), or 1794-ADN (DeviceNet) communication adapters for seamless integration into Rockwell Automation control architectures. Supports producer/consumer messaging, CIP Safety extensions, and distributed I/O redundancy protocols.

Diagnostic Intelligence
Access real-time module health data via RSLogix 5000/Studio 5000 software. Monitor cumulative relay operation counts, field power status, and per-channel output states for condition-based maintenance. Configure email alerts or HMI alarms triggered by diagnostic fault codes.

Load Protection Strategies
Implement external RC snubbers (0.1µF + 100Ω) across inductive loads to extend contact life 5-10×. Add MOV varistors for voltage spike suppression on highly inductive circuits. Install 5A fast-blow fuses per output for short-circuit protection and simplified troubleshooting.

Harsh Environment Adaptation
Conformal coating available for high-humidity or corrosive atmospheres. Pair with IP67-rated terminal bases for washdown applications. Specify wide-temperature variants (-25 to +70°C) for outdoor installations or unheated enclosures.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed OEM packaging
Custom Configuration: 4-6 weeks for pre-wired terminal assemblies or tested module/adapter combinations
Warranty Coverage: 24 months from shipment date covering manufacturing defects; relay wear excluded
Technical Assistance: Pre-sales application engineering, post-sales commissioning support, RSLogix programming guidance
Documentation Package: Installation instructions, wiring diagrams, RSLogix sample code, predictive maintenance spreadsheet

Frequently Asked Questions

Q: Can the 1794-OA8 relay module control both AC and DC loads simultaneously?
A: Yes. Relay contacts are bidirectional and voltage-agnostic. You can switch 120V AC solenoids on channels 0-3 and 24V DC indicator lamps on channels 4-7 within the same module, provided each load remains within the 4A per-point rating.

Q: What is the maximum switching frequency for solenoid valve applications?
A: Mechanical relays limit switching to 10 operations per second maximum. For pneumatic sequencing requiring faster cycling (>10Hz), specify solid-state output modules like the 1794-OB16 which support kilohertz-range switching without mechanical wear.

Q: How do I calculate expected relay life when controlling inductive loads?
A: Electrical life drops significantly with inductive loads. At 50% current derating (2A) with proper RC suppression, expect 50,000-75,000 operations. Without suppression, life may reduce to 10,000-20,000 cycles. Track operations via controller diagnostics for predictive replacement.

Q: Does the module require external power beyond the FLEX I/O backplane connection?
A: Yes. The module draws 180mA at 5VDC from the backplane for logic operation, plus 50mA at 24VDC field power for relay coil energization. Field power connects via the terminal base; verify your 24VDC supply can source the cumulative current for all installed modules.

Q: Can I retrofit this module into an existing 1794-TB2 terminal base installation?
A: No. The 1794-OA8 requires 1794-TB3 (spring-clamp) or 1794-TBN (screw-clamp) terminal bases with the correct pinout for relay outputs. TB2 bases are designed for different I/O module types. Plan for terminal base replacement during upgrades.

Q: What diagnostic indicators help troubleshoot output failures in the field?
A: The module provides a green Module OK LED (overall health), a Field Power LED (24VDC presence), and eight green output status LEDs (command state). Note that output LEDs indicate logic commands, not actual contact closure—use a multimeter to verify contact continuity during troubleshooting.

Ready to Integrate Reliable AC Switching?

The 1794-OA8 relay output module delivers the proven isolation, surge tolerance, and universal compatibility your industrial AC control applications demand. Whether you're expanding existing FLEX I/O networks or designing new distributed control systems, our application engineers are ready to assist with module selection, wiring guidance, and RSLogix configuration support.

Contact our team today for technical consultation, volume pricing, or custom pre-wired assemblies tailored to your project specifications. Fast shipping, genuine Allen-Bradley quality, and expert support—all backed by our 24-month warranty.
