1794-OA16 AC Digital Output Module (Industrial-Grade Triac Control)

The 1794-OA16 represents a proven solution for AC-powered device control in distributed automation architectures. Featuring 16 solid-state triac outputs rated for 120V AC operation, this FLEX I/O module delivers dependable switching performance across process control, material handling, and machine automation applications. Engineered for seamless integration with ControlLogix, CompactLogix, and FlexLogix platforms, it combines high-density I/O with field-proven reliability.

Designed for industrial environments demanding continuous operation, the module supports hot-swappable installation, real-time LED diagnostics, and compatibility with ten terminal base configurations. Whether controlling solenoid valves in chemical processing or managing conveyor systems in distribution facilities, the 1794-OA16 provides the robust AC switching capability modern automation systems require.

With triac-based outputs capable of handling inductive loads and surge currents up to 7A, this module addresses the demanding electrical characteristics of industrial actuators, contactors, and pilot devices. Its nonisolated architecture optimizes cost-efficiency while maintaining the performance standards expected from Allen-Bradley FLEX I/O components.

Core Features & Technical Advantages

✓ High-Density AC Switching
16 independent triac outputs deliver 500mA continuous current per channel with 120V AC nominal operation (74-132V range). Total module capacity of 4.0A supports simultaneous control of multiple AC loads while maintaining compact 94mm form factor.

✓ Rapid Response Performance
Solid-state triac technology achieves ½ cycle maximum switching time for both on-to-off and off-to-on transitions. This sub-10ms response enables precise timing control for high-speed packaging machinery, synchronized material handling, and coordinated process sequences.

✓ Inductive Load Capability
Surge current rating of 7A for 40ms (repeatable every 8 seconds) accommodates the inrush characteristics of solenoid valves, motor contactors, and electromagnetic actuators. Pilot duty rating of 5A inrush ensures reliable control of industrial-grade switching devices.

→ Visual Diagnostics System

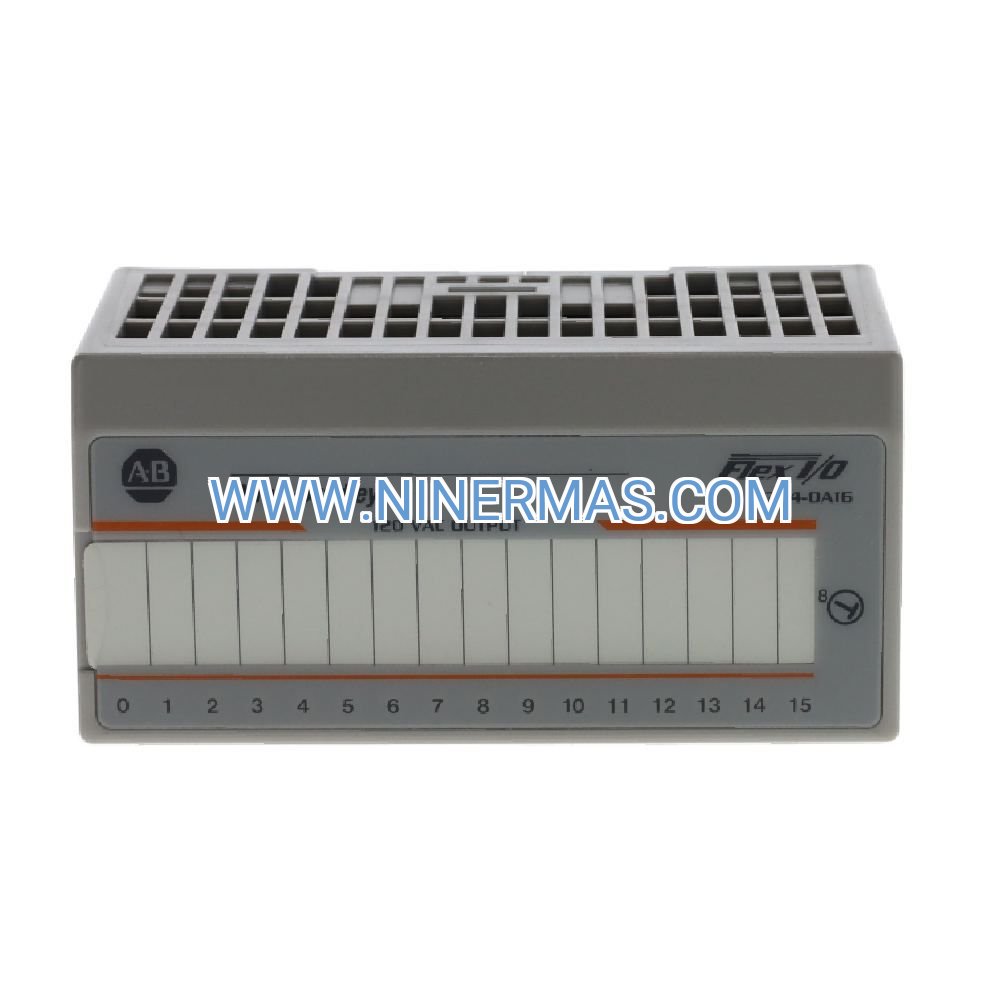

16 dedicated yellow LED indicators provide instant output status verification without requiring software tools. Front-panel visibility accelerates troubleshooting during commissioning and reduces mean-time-to-repair during production operations.

→ Hot-Swap Architecture
Field-replaceable design permits module exchange during system operation without controller shutdown or I/O base power-down. This capability minimizes production interruptions and supports preventive maintenance strategies in 24/7 manufacturing environments.

→ Universal Terminal Compatibility
Supports 10 different 1794-series terminal bases including standard, fused, and keyed variants. This flexibility accommodates diverse wiring requirements, protection strategies, and installation standards across global facilities.

Industrial Application Scenarios

Process Control & Chemical Manufacturing
Controls pneumatic valve actuators, pump motor starters, and heating element contactors in batch processing systems. The module's surge capability handles the inductive loads typical of industrial solenoids while LED diagnostics simplify valve position verification during recipe changeovers.

Automated Material Handling Systems
Manages conveyor motor starters, diverter gate actuators, and pneumatic cylinder solenoids in distribution center sortation systems. Fast ½-cycle response time ensures precise package routing while hot-swap capability maintains system uptime during peak shipping periods.

Packaging & Labeling Equipment
Drives label applicator solenoids, product ejection mechanisms, and sealing bar heaters in high-speed packaging lines. The 16-point density reduces panel space requirements while supporting the multiple AC control points typical of modern packaging machinery.

Building Automation & HVAC
Switches damper actuator motors, fan staging contactors, and heating element relays in commercial building management systems. Wide 74-132V AC input tolerance accommodates voltage variations in large facility electrical distribution networks.

Machine Tool & Metalworking
Activates coolant pump contactors, tool changer solenoids, and auxiliary equipment relays in CNC machining centers. Vibration resistance to 5g operating and shock rating of 30g withstand the mechanical environment of metal cutting operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1794-OA16 when your application requires AC output control with shared common return wiring. For applications demanding channel-to-channel isolation, consider the 1794-OA8I isolated variant. When controlling DC loads, specify the 1794-OB16 DC output module instead. Verify that your total simultaneous output current remains below 4.0A and individual loads stay within 500mA continuous rating.

Extended Integration Capabilities

Network Connectivity Options
Pairs with FLEX I/O adapter modules supporting DeviceNet (1794-ADN), ControlNet (1794-ACN15), EtherNet/IP (1794-AENT), and other industrial protocols. This adapter-based architecture enables protocol flexibility without changing I/O modules when migrating between network standards.

Configuration & Programming

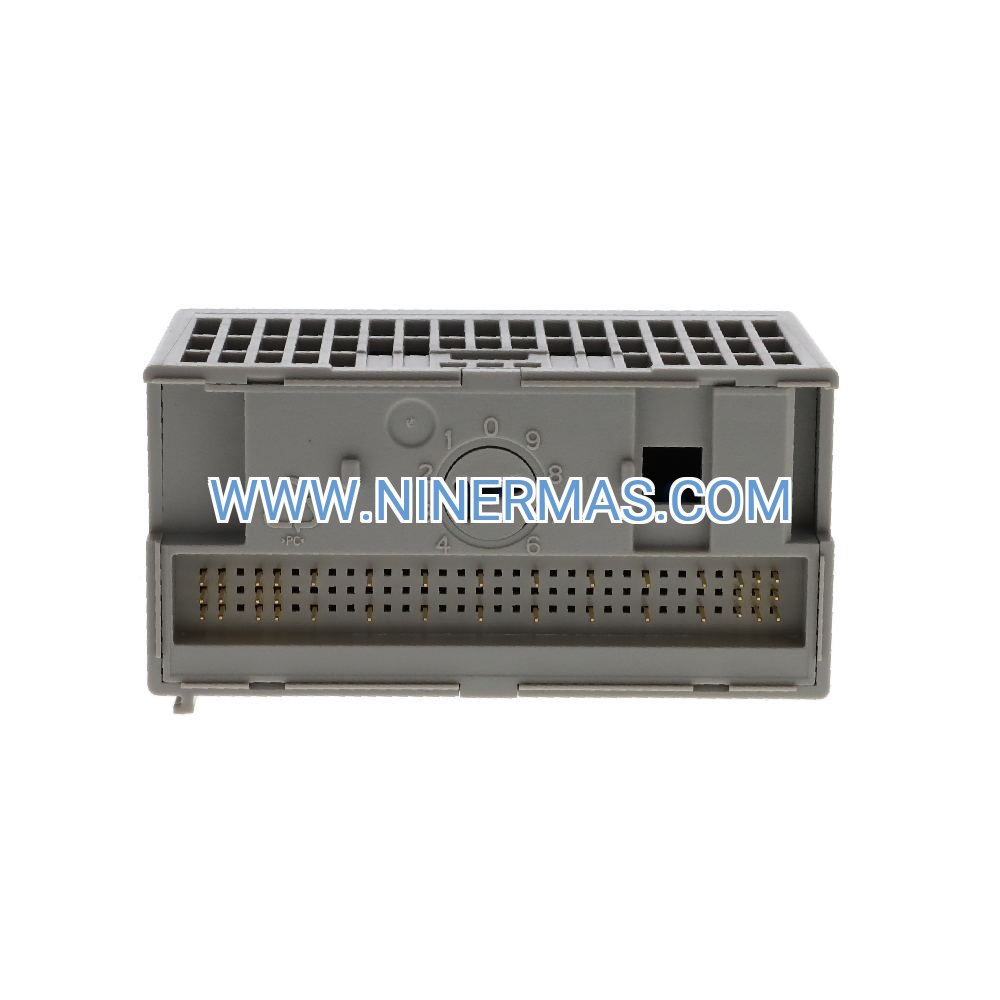

Configured through Studio 5000 Logix Designer (RSLogix 5000) for ControlLogix/CompactLogix platforms or RSLogix 500 for SLC 500 systems. Module identification via keyswitch position 8 simplifies I/O mapping during commissioning. Electronic keying options prevent incorrect module installation in safety-critical applications.

Wiring & Protection
Accepts 14-22 AWG wire gauge per terminal base specifications. Recommended external fusing: 2.5A, 150V AC normal blow (MQ2 type) for output circuit protection. Wiring category 2 classification per NEC/IEC standards. RC snubbers may be added for highly inductive loads to extend triac service life.

Mechanical Installation
Mounts on DIN rail via compatible terminal base. Module dimensions of 94 x 94 x 69mm (3.7 x 3.7 x 2.7 in.) and weight of 96g (3.38 oz) support high-density panel layouts. Vibration resistance of 5g @ 10-500 Hz and shock rating of 30g operating ensure reliability in mobile equipment and high-vibration environments.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-3 business days via express courier services. Typical transit time to major industrial centers: 3-7 business days depending on destination.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions. Warranty includes advance replacement service to minimize production downtime.

Technical Support: Application engineering assistance available for system design, load calculations, and integration planning. Troubleshooting support provided via email and phone during business hours. Comprehensive documentation package includes installation manual, wiring diagrams, and configuration examples.

Documentation Included: User manual, quick-start guide, terminal base compatibility chart, derating curves, and sample ladder logic code for common control sequences.

Frequently Asked Questions

What is the maximum switching frequency for the 1794-OA16 outputs?
While the module can switch at ½ cycle intervals (120 times per second @ 60Hz), practical switching frequency depends on load characteristics and thermal considerations. For continuous high-frequency switching applications, consult derating curves and consider additional cooling to maintain junction temperatures within specification.

Can I mix AC and DC loads on the same FLEX I/O base?
Yes, FLEX I/O architecture supports mixing AC output modules (1794-OA16), DC output modules (1794-OB16), input modules, and analog modules on the same I/O base. Each module operates independently with its own field power requirements.

How do I calculate total current draw for panel thermal design?
Sum the continuous current of all simultaneously active outputs (max 500mA each). Add the Flexbus current draw of 80mA @ 5V DC. Power dissipation reaches 4.7W maximum when all outputs are energized at full load. Use this value for panel cooling calculations.

What terminal base should I specify for fused output protection?
The 1794-TBNF and 1794-TBNFK terminal bases provide integrated fuse holders for individual output protection. These bases accept standard 5x20mm fuses and simplify troubleshooting by isolating faulted circuits without affecting other outputs.

Is the module suitable for controlling three-phase motor starters?
Yes, when controlling the coil circuit of three-phase contactors. The 1794-OA16 switches the AC control voltage to the contactor coil (typically 120V AC), which in turn controls the three-phase power circuit. Ensure contactor coil current remains within the 500mA per-point rating.

How does nonisolated output design affect system grounding?
All 16 outputs share a common return path connected to the AC neutral or ground reference. This requires consistent grounding practices across all connected loads. For applications requiring independent ground references per output, specify the 1794-OA8I isolated output module.

Ready to Optimize Your AC Control System?

The 1794-OA16 delivers the high-density AC switching capability your automation project demands. Whether upgrading legacy relay panels or designing new distributed control systems, this module provides proven performance backed by Allen-Bradley quality standards.

Contact our automation specialists today for application-specific recommendations, system integration support, and competitive pricing on volume orders. We maintain extensive inventory for immediate shipment and offer technical consultation to ensure optimal module selection for your control requirements.
