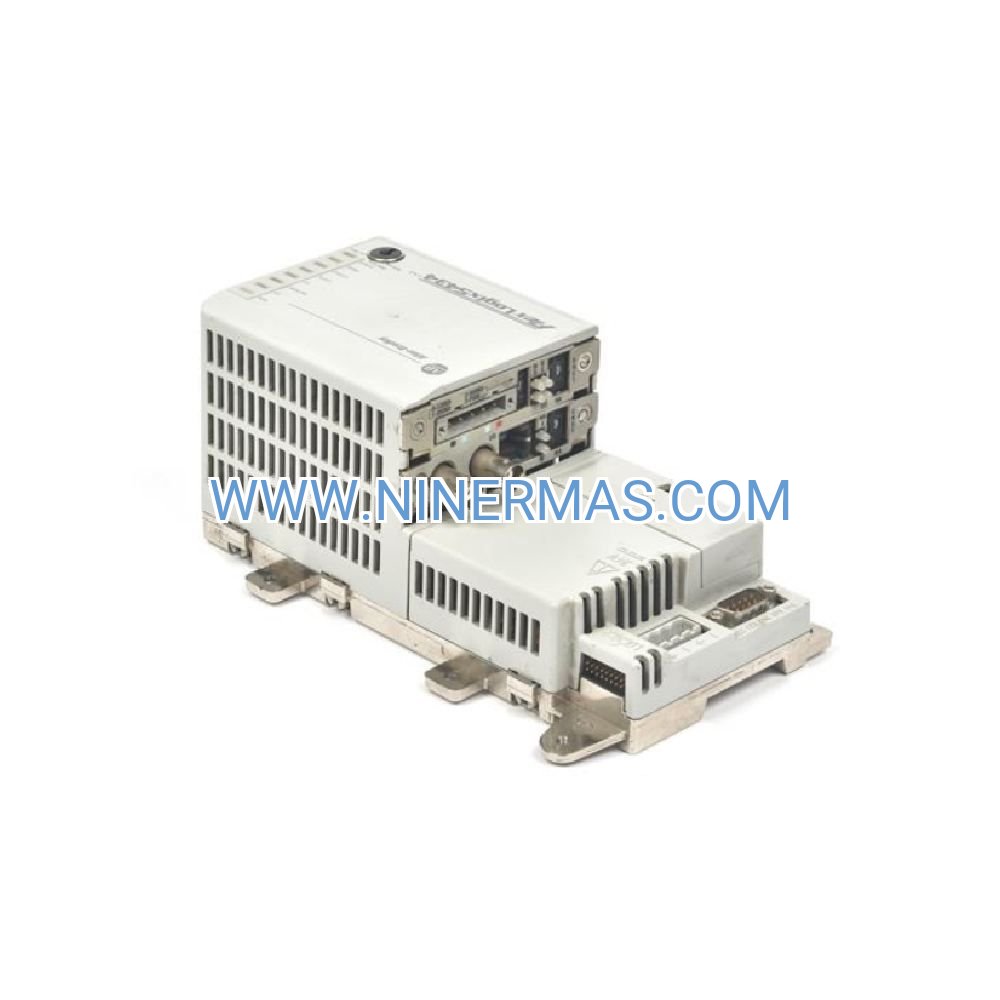

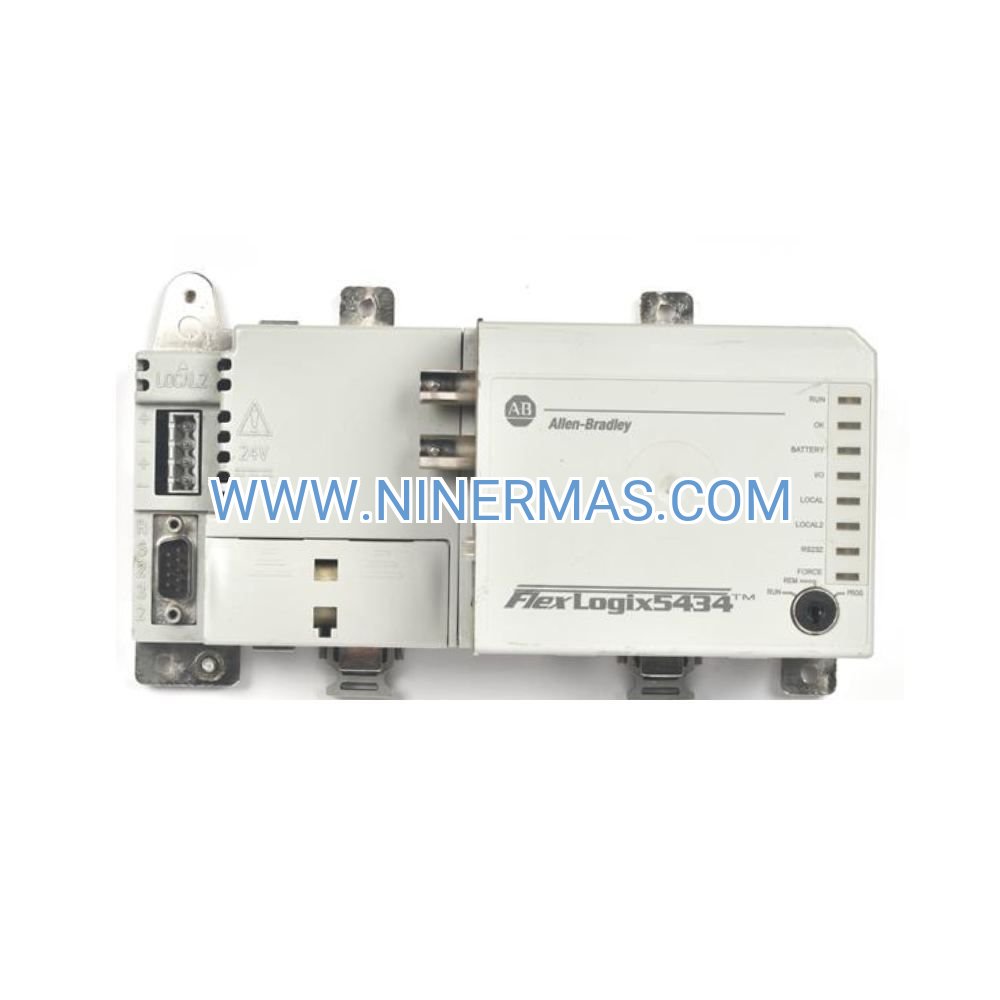

1794-L33 FlexLogix Controller (Industrial-Grade Programmable Logic Solution)

The Allen-Bradley 1794-L33 represents a breakthrough in distributed control architecture, delivering ControlLogix-class programming power within a space-efficient FLEX I/O footprint. This industrial-grade controller is purpose-built for machine-level automation where intelligent control must coexist with limited panel real estate, offering manufacturers a scalable pathway from standalone machine control to enterprise-wide integration.

Designed for OEMs and system integrators facing the dual challenge of increasing automation complexity while reducing cabinet footprint, the 1794-L33 eliminates the traditional trade-off between processing capability and physical size. Its modular architecture supports hot-swappable I/O expansion, enabling production teams to adapt control systems to evolving process requirements without costly downtime or complete system redesigns.

With 64KB of user memory, deterministic scan performance, and native compatibility with Rockwell's unified programming environment, this controller accelerates commissioning timelines while reducing long-term maintenance costs through standardized code libraries and diagnostic protocols. Whether coordinating packaging line sequences, managing material handling zones, or integrating with plant-level SCADA systems, the 1794-L33 delivers reliable, field-proven performance backed by comprehensive technical support and global parts availability.

Key Capabilities & Business Value

→ Unified Programming Environment
Leverage RSLogix 5000 across your entire Rockwell automation portfolio—share function blocks, AOIs, and tag databases between ControlLogix, CompactLogix, and FlexLogix platforms. This standardization reduces engineering hours by 30-40% during commissioning and cuts troubleshooting time through familiar diagnostic interfaces.

✓ Hot-Swappable I/O Architecture
Replace failed modules or add new I/O points without halting production. The FLEX I/O backplane isolates module power domains, allowing technicians to service individual cards while the controller maintains scan integrity—minimizing unplanned downtime and maximizing OEE.

✓ Compact Footprint, Full Functionality
Achieve 60% space savings versus traditional rack-mount PLCs while retaining advanced features like online edits, tag-based addressing, and multi-language programming. Ideal for retrofits where panel space is constrained or new machine designs demanding streamlined enclosures.

→ Scalable Network Integration
Start with serial communication and upgrade to Ethernet/IP, ControlNet, or DeviceNet via plug-in daughtercards as connectivity needs evolve. This future-proof design protects capital investment while enabling phased migration to Industrial IoT architectures.

✓ Deterministic Performance
Maintain consistent 0.5 ms/1K instruction scan times even under maximum I/O load. Predictable execution ensures precise timing for motion coordination, recipe management, and synchronized multi-axis applications.

→ Built-In Diagnostics & Fault Isolation
Multi-color LED arrays and timestamped fault logs accelerate root-cause analysis. Module-level health monitoring detects wiring faults, signal degradation, and communication errors before they trigger production stoppages—reducing MTTR by up to 50%.

Industrial Application Scenarios

Packaging & Labeling Lines
Coordinate filling stations, capping heads, labelers, and case packers with microsecond-level synchronization. The 1794-L33's fast scan time ensures accurate product tracking through vision systems and reject mechanisms, while hot-swappable I/O minimizes changeover downtime during format switches.

Conveyor & Sortation Systems
Manage zone-based conveyor control with distributed 1794-L33 controllers communicating via Ethernet/IP. Each controller handles local decision-making for diverters, photo-eyes, and VFDs, reducing network traffic while maintaining centralized SCADA visibility for throughput monitoring and predictive maintenance.

Food & Beverage Processing
Regulate mixing tanks, pasteurization loops, and CIP systems with analog I/O modules monitoring temperature, pressure, and flow. The controller's washdown-compatible mounting and wide operating temperature range (-20°C to 60°C with conformal coating) ensure reliable operation in harsh sanitary environments.

Automotive Sub-Assembly Cells
Integrate robotic welders, torque tools, and part presence sensors within a unified control strategy. Tag-based programming simplifies recipe management for multiple vehicle platforms, while online editing allows process refinement without halting the assembly line.

Water Treatment & Pumping Stations
Deploy in remote lift stations or filtration skids where panel space is limited. The 24V DC input voltage accommodates solar/battery backup systems, and optional cellular modems enable remote monitoring via Ethernet/IP daughtercards—reducing site visit frequency and operational costs.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1794-L33 when your application requires fewer than 128 I/O points and program complexity stays within 64KB. For larger systems, consider the 1794-L34 (128KB memory) or migrate to CompactLogix for 250+ I/O points. Pair with 1794-PS13 power supply (10W) for basic configurations or 1794-PS3 (30W) when using high-density analog modules.

Advanced Integration Features

Network Daughtercard Expansion
The controller's daughtercard slot accepts communication modules without consuming I/O backplane positions. Install the 1788-ENBT for 10/100 Mbps Ethernet/IP connectivity, enabling integration with FactoryTalk View HMIs, SQL databases, and cloud-based analytics platforms. ControlNet (1788-CNC) and DeviceNet (1788-DNBO) options support legacy equipment migration.

Motion & Drive Coordination
While not a dedicated motion controller, the 1794-L33 coordinates up to 4 servo axes via Ethernet/IP to Kinetix drives. Use for pick-and-place, conveyor tracking, or simple registration applications where dedicated motion control isn't justified.

Recipe & Data Logging
Store up to 32 recipes in controller memory using data file structures. Log production counts, alarm histories, and process variables to CompactFlash cards (via 1788-CF daughtercard) or network file servers for traceability and continuous improvement initiatives.

Delivery, Warranty & Technical Support

Lead Times
✓ Stock items: 3-5 business days (express shipping available)
✓ Custom configurations: 10-15 business days
✓ Bulk orders (10+ units): Contact for project-specific timelines

Warranty Coverage
✓ 24-month manufacturer warranty covering defects in materials and workmanship
✓ Extended warranty options available for critical infrastructure applications
✓ Advance replacement program minimizes downtime during warranty claims

Technical Support Included
✓ Pre-sales application engineering consultation
✓ Startup assistance via phone/email (first 90 days)
✓ Access to configuration templates and sample code libraries
✓ Firmware update notifications and compatibility advisories

Documentation Package
✓ Installation quick-start guide
✓ User manual (PDF) with wiring diagrams
✓ RSLogix 5000 programming examples
✓ Compliance certificates (UL, CE, RoHS)

Frequently Asked Questions

Can the 1794-L33 controller communicate with legacy PLC-5 or SLC 500 systems?
Yes, through MSG (message) instructions over Ethernet/IP or serial protocols. The controller can read/write data tables in older processors, enabling phased modernization without forklift upgrades. However, direct I/O mapping is not supported—communication occurs at the application layer.

What is the maximum I/O expansion capacity for a single FlexLogix controller?
The 1794-L33 supports up to 128 discrete I/O points or equivalent analog channels across multiple terminal bases. For applications exceeding this limit, deploy multiple controllers in a distributed architecture or upgrade to CompactLogix (5069-L3x series) which handles 512+ I/O points.

How does the FlexLogix controller improve energy efficiency compared to relay-based control?
By eliminating mechanical relays and timers, the 1794-L33 reduces panel heat generation by 40-60%, lowering cooling costs. Solid-state I/O modules consume 30-50% less power than equivalent electromechanical devices, and intelligent sleep modes reduce standby power draw during idle periods.

What are the installation requirements for mounting the controller in a control panel?
The controller mounts on standard 35mm DIN rail via the FLEX I/O terminal base. Maintain 50mm (2") vertical clearance for airflow, route I/O cables separately from AC power lines (minimum 300mm separation), and connect chassis ground to earth via the dedicated grounding screw. Operating ambient must stay within 0-60°C.

Does the 1794-L33 support remote monitoring and diagnostics over the internet?
When equipped with the 1788-ENBT Ethernet/IP daughtercard, the controller connects to VPN routers or cellular gateways for secure remote access. Use FactoryTalk Remote Access or third-party VPN solutions to troubleshoot, upload/download programs, and monitor real-time tag values from any location with internet connectivity.

Can I upgrade the controller firmware without specialized programming equipment?
Yes, firmware updates install via the ControlFLASH utility (free download from Rockwell Automation). Connect a laptop to the controller's RS-232 port or Ethernet daughtercard, select the new firmware file, and follow the on-screen prompts. The process takes 5-10 minutes and does not require EEPROM programmers or hardware modifications.
