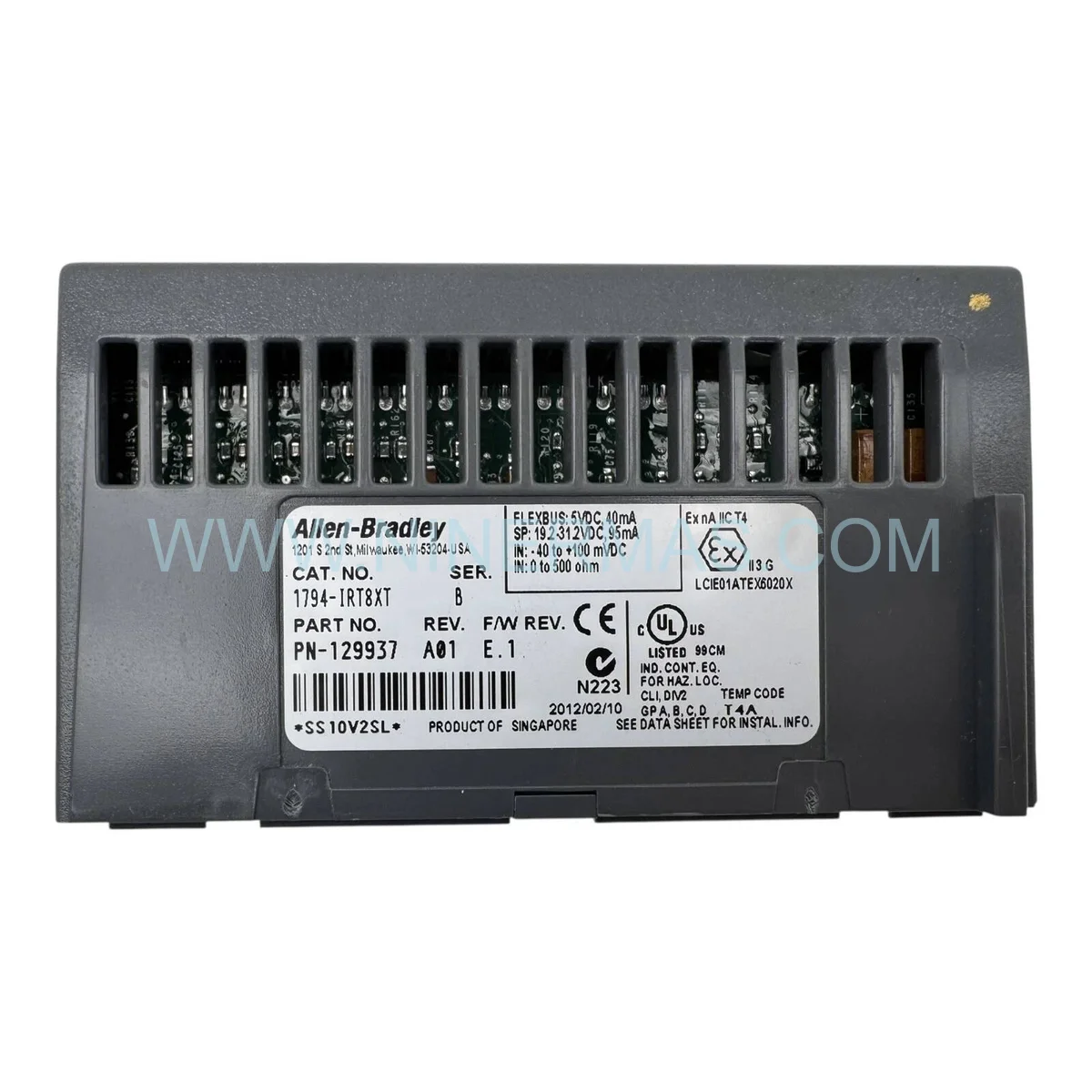

Allen-Bradley 1794-IRT8XT Thermocouple & RTD Input Module | Original & New Spare Parts

Allen-Bradley 1794-IRT8XT Thermocouple & RTD Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Allen-Bradley 1794-IRT8XT represents a cornerstone component within modern Distributed Control System (DCS) and Flex I/O architectures. This 8-channel combination thermocouple and RTD input module is engineered to deliver sub-millisecond thermal data acquisition across the most demanding Process Control environments — from upstream oil & gas to precision pharmaceutical manufacturing. Its role is not merely data collection; it is the sensory nerve of a plant’s safety and efficiency loop.

What distinguishes the Allen-Bradley 1794-IRT8XT from competing Legacy Components is its dual-input flexibility: each channel can be independently configured for thermocouple (J, K, T, E, R, S, B, N, C types) or RTD (Pt100, Pt1000, Ni120, Cu10) without requiring additional signal conditioning hardware. This architectural advantage translates directly into reduced panel footprint, lower BOM cost, and simplified Fieldbus integration within existing FLEX I/O backplane assemblies. Engineers migrating from older DCS Hardware platforms will find this module’s backward compatibility particularly valuable during phased system upgrades.

As a Factory Sealed original unit, this module is increasingly scarce on the open market. Allen-Bradley’s transition toward newer I/O platforms has made the 1794-IRT8XT a critical EOL (End-of-Life) spare — one that plant maintenance teams worldwide are actively stockpiling to protect long-running production lines from unplanned downtime.

Key Technical Highlights

8 Differential Analog Input Channels — independently configurable per channel for thermocouple or RTD sensor types
16-Bit A/D Conversion Resolution — delivers ±0.15% full-scale accuracy at 25°C for high-fidelity Process Control
Configurable Update Rate: 10-100ms per channel — supports high-speed scanning for rapid thermal event detection
250V Continuous Channel-to-Backplane Isolation — ensures Redundancy and signal integrity in electrically noisy industrial environments
Integrated Cold Junction Compensation — eliminates external reference junction hardware, reducing wiring complexity
Built-in Diagnostics — real-time detection of open circuits, short circuits, and out-of-range sensor conditions
Hot-Swap Capable — supports live module replacement without system shutdown, maximizing plant uptime
Certifications: UL, CE, CSA, ATEX — qualified for hazardous area installations and global compliance requirements

Vertical Industry Applications

Petrochemical & Refining: Deployed in reactor vessel temperature monitoring and heat exchanger control loops, the 1794-IRT8XT enables continuous thermal surveillance across multiple process streams simultaneously. Its high isolation rating protects signal integrity in environments with significant electromagnetic interference from large motor drives and variable frequency drives.

Mining & Mineral Processing: In ore processing facilities, where conveyor systems and crushers generate extreme vibration and dust, this module’s robust DCS Hardware design maintains measurement stability. It is widely used for monitoring bearing temperatures on critical rotating equipment, providing early warning data that prevents catastrophic mechanical failures.

Marine & Offshore Platforms: The ATEX certification makes the 1794-IRT8XT suitable for Zone 1 and Zone 2 hazardous areas aboard offshore drilling platforms and LNG carriers. Its compact Flex I/O form factor is particularly valued in space-constrained marine control panels.

Pharmaceutical & Life Sciences: Autoclave sterilization cycles, lyophilization chambers, and bioreactor temperature control all demand the precision that 16-bit resolution provides. The module’s compliance with international safety standards supports FDA 21 CFR Part 11 validation documentation requirements.

Power Generation: Turbine bearing temperature monitoring, boiler drum level control, and generator cooling system oversight are common applications. The module’s Redundancy-friendly architecture integrates cleanly into hot-standby DCS configurations, ensuring continuous data availability even during controller failover events.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 1794-IRT8XT supplied through our inventory is 100% Original Allen-Bradley, sourced directly from authorized distribution channels and verified against manufacturer serial number databases. Each module is shipped in its Factory Sealed Condition — original packaging, anti-static protection, and factory calibration certificates intact.

Our global supply chain infrastructure supports Emergency Delivery via DHL / FedEx / UPS, with same-day dispatch available for in-stock units. For critical plant shutdowns or unplanned maintenance events, we offer a dedicated emergency sourcing desk that operates across multiple time zones. A 12-Month Comprehensive Warranty covers all units against manufacturing defects, with advance replacement options available for qualified accounts. Full technical documentation, including the original Allen-Bradley datasheet and wiring diagrams, is provided with every shipment.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that a 1794-IRT8XT unit is 100% original and not a counterfeit or refurbished part?
A: Authentic units carry a holographic Allen-Bradley certification label on the module housing, with a traceable serial number verifiable through Rockwell Automation’s product authentication portal. Factory Sealed units will also have intact tamper-evident packaging seals. We provide a Certificate of Authenticity with every shipment, and our quality team performs visual and functional inspection prior to dispatch.

Q2: Where can I obtain the official datasheet and wiring diagrams for the 1794-IRT8XT?
A: The official Allen-Bradley publication for this module is document 1794-UM061. We include a digital copy of the datasheet, installation instructions, and terminal wiring diagrams with every order. Contact our technical team at sale@ninermas.com to request documentation prior to purchase.

Q3: Is the 1794-IRT8XT compatible with all versions of RSLogix 5000 / Studio 5000?
A: This module is compatible with RSLogix 5000 v16.0 and later, as well as Studio 5000 Logix Designer. The Add-On Profile (AOP) for the 1794-IRT8XT is available from the Rockwell Automation Compatibility and Downloads Center (PCDC). For legacy systems running RSLogix 5000 v13 or earlier, firmware compatibility should be verified against your specific controller revision.

Q4: Can this module be used as a direct replacement for the 1794-IRT8 (non-XT variant)?
A: The 1794-IRT8XT is the extended temperature range variant of the 1794-IRT8, supporting operation in environments from 0°C to 60°C versus the standard model’s 0°C to 55°C. It is a drop-in replacement in most applications, but the AOP and RSLogix configuration file must be updated to reference the XT variant specifically. Consult your system integrator before substitution in SIS (Safety Instrumented System) applications.

Q5: What is the lead time for emergency orders, and do you support air freight to remote locations?
A: In-stock units are dispatched within 24 hours of order confirmation. We support air freight delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express to over 180 countries, including remote offshore and mining locations. Estimated transit times range from 1-5 business days depending on destination. Contact our logistics team for customs documentation support for import-sensitive regions.

Q6: Is the 1794-IRT8XT classified as an EOL (End-of-Life) component, and what are the implications for long-term procurement?
A: Allen-Bradley has transitioned this product line toward newer FLEX 5000 I/O platforms. The 1794-IRT8XT is considered a Legacy Component with limited new production runs. Plants operating existing FLEX I/O infrastructure should consider establishing a Maintenance Stock of critical spare modules to mitigate supply chain risk. Our team can assist with multi-unit procurement planning and bonded inventory arrangements for long-term supply security.
