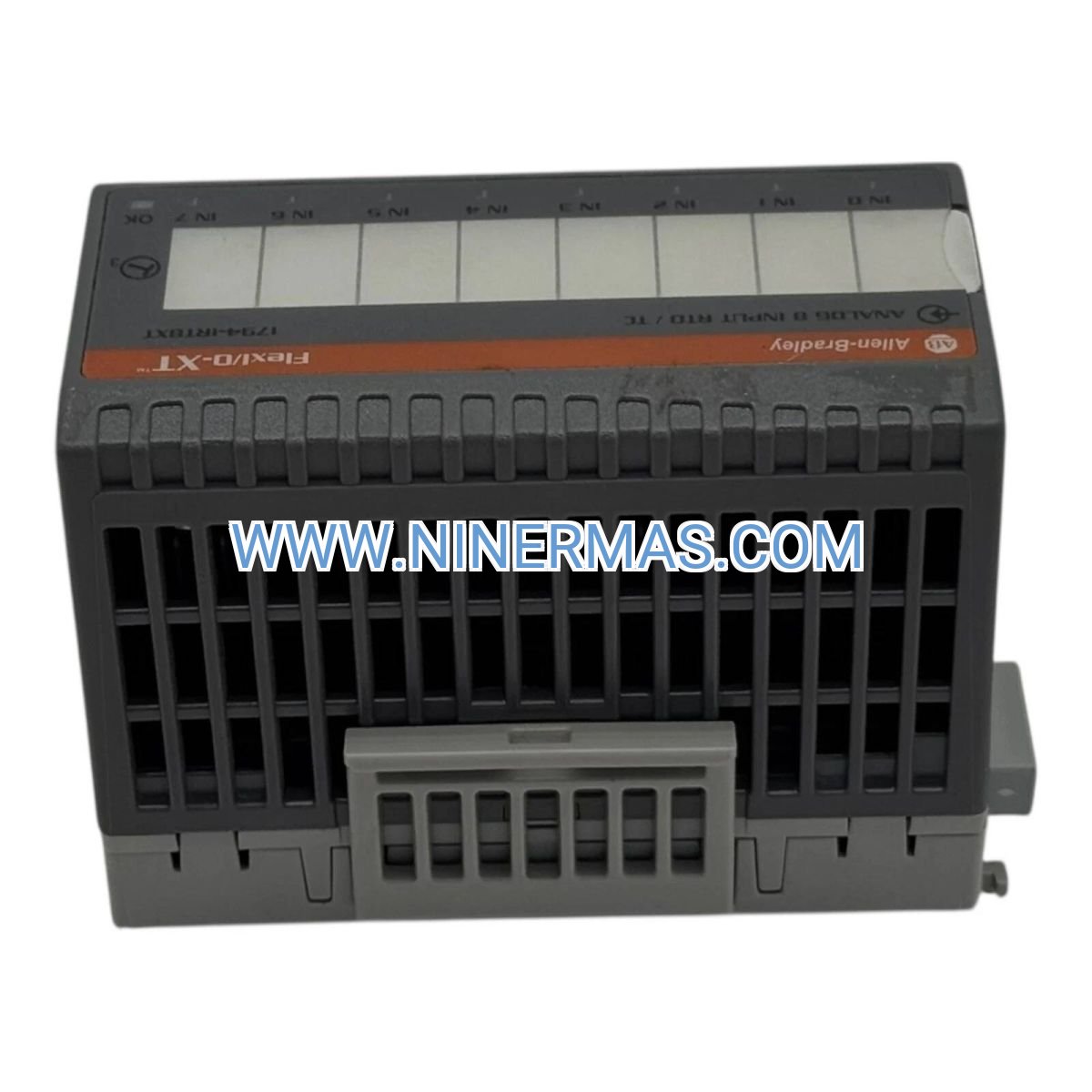

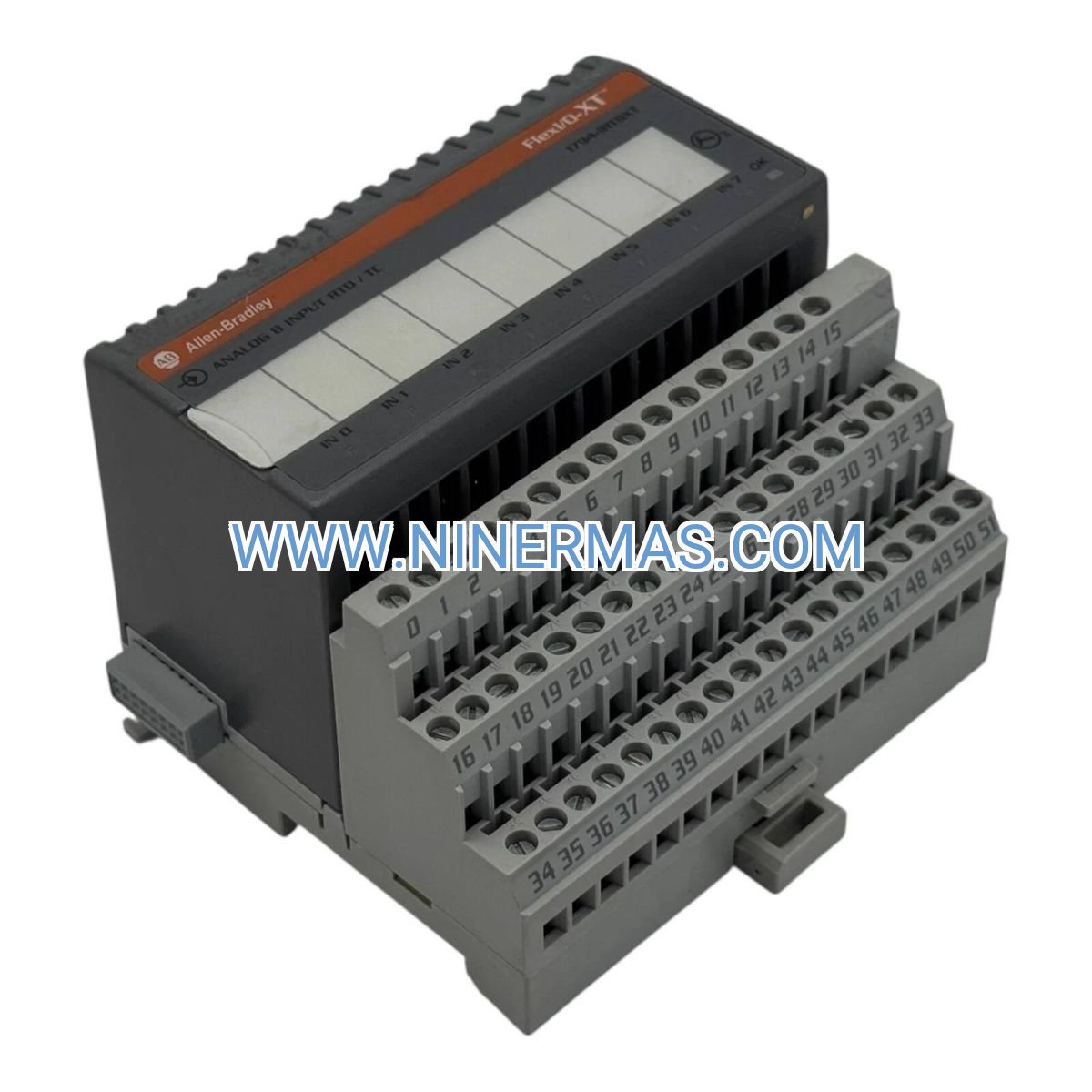

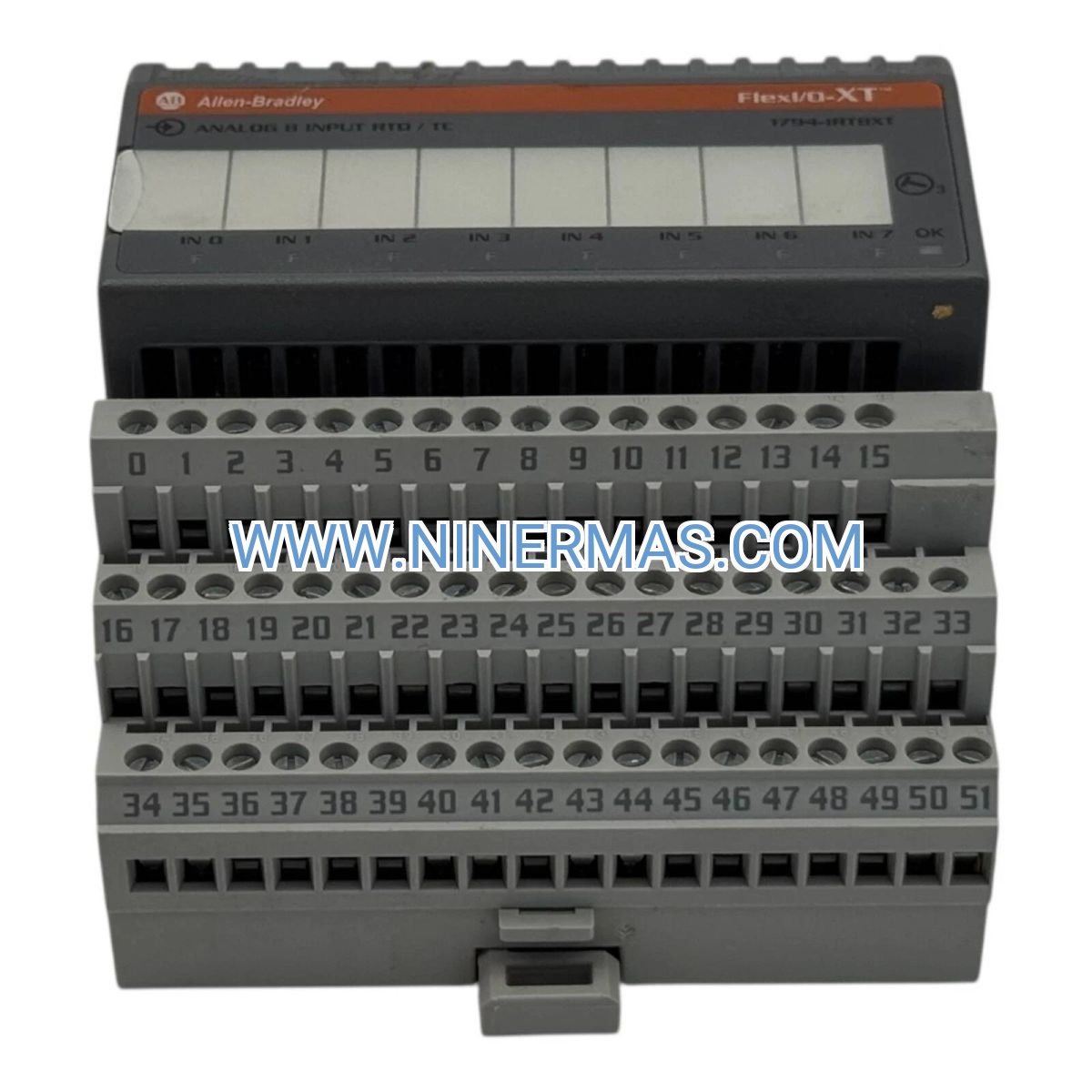

Allen-Bradley 1794-IRT8XT 8-Channel Thermocouple/RTD Input Module (Industrial Temperature Monitoring Solution)

The Allen-Bradley 1794-IRT8XT is a high-precision 8-channel analog input module designed for industrial temperature measurement and monitoring applications. Through advanced thermocouple and RTD (Resistance Temperature Detector) signal processing technology, combined with Flex I/O distributed control architecture, it delivers accurate, stable, and real-time temperature data acquisition for critical process control systems.

Ideal for manufacturing plants, chemical processing facilities, power generation stations, HVAC systems, and industrial furnace operations where precise temperature monitoring is essential. This module addresses common challenges including temperature drift, signal interference, multi-point monitoring complexity, calibration maintenance burden, and delayed fault detection in legacy systems.

With factory-calibrated accuracy, hot-swappable design, and comprehensive diagnostic capabilities, the 1794-IRT8XT offers reliable performance, simplified maintenance, and seamless integration advantages. Suitable for process engineers, automation integrators, plant maintenance teams, and OEM equipment manufacturers. Contact our application engineers for customized temperature monitoring solutions and technical specifications.

Core Features & Technical Advantages

Multi-Sensor Compatibility
Supports 9 thermocouple types (J, K, T, E, R, S, B, N, C) and 2 RTD types (Pt100, Pt1000) with automatic sensor detection. Each channel independently configurable, enabling mixed sensor deployment within a single module to accommodate diverse temperature measurement requirements across different process zones.

High-Resolution Signal Processing
16-bit A/D conversion delivers ±0.1% full-scale accuracy with 0.1°C resolution. Built-in cold junction compensation (CJC) and linearization algorithms ensure measurement precision across -200°C to +1370°C range, minimizing temperature drift and environmental interference effects.

Flexible I/O Architecture
Hot-swappable Flex I/O design allows module replacement without system shutdown. Supports 1756 ControlLogix, 1769 CompactLogix, and 1794 FlexLogix controllers via standard backplane communication, reducing installation complexity and system integration costs.

Advanced Diagnostics & Protection
Comprehensive fault detection including open circuit, short circuit, out-of-range, and sensor burnout alarms. Channel-level status indicators and diagnostic data accessible via controller programming, enabling predictive maintenance and rapid troubleshooting to minimize unplanned downtime.

Industrial-Grade Reliability
Conformal-coated circuitry withstands harsh industrial environments. Operating temperature range -40°C to +70°C, IP20 enclosure rating, and 1500V isolation between channels and backplane ensure long-term stability in demanding applications such as steel mills, refineries, and outdoor installations.

Typical Application Scenarios

This module excels in applications requiring stable temperature monitoring, continuous data acquisition, and high system reliability, particularly in:

Chemical & Petrochemical Process Control
Monitor reactor vessel temperatures, distillation column profiles, and heat exchanger performance. Multi-channel capability enables simultaneous tracking of critical process parameters, ensuring product quality consistency and preventing thermal runaway conditions in exothermic reactions.

Power Generation & Energy Systems
Track turbine bearing temperatures, boiler tube metal temperatures, and generator winding conditions. RTD inputs provide accurate monitoring for rotating equipment, while thermocouple channels handle high-temperature combustion zone measurements, supporting predictive maintenance programs and efficiency optimization.

Industrial Furnace & Heat Treatment
Control annealing furnaces, curing ovens, and kiln operations with precise multi-zone temperature profiling. Supports complex thermal recipes requiring tight temperature uniformity (±2°C) across heating chambers, critical for metallurgical processing, ceramic manufacturing, and food production applications.

HVAC & Building Automation
Manage chiller systems, air handling units, and central plant equipment with mixed RTD and thermocouple inputs. Enables energy-efficient control strategies through accurate supply/return temperature monitoring, reducing operational costs in commercial buildings, data centers, and hospital facilities.

Pharmaceutical & Biotechnology Manufacturing
Validate cleanroom environmental conditions, bioreactor temperatures, and sterilization processes. FDA 21 CFR Part 11 compliant data logging capabilities support GMP documentation requirements, ensuring batch traceability and regulatory compliance in sterile manufacturing environments.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide standard configuration parameters and customization options based on project requirements:

Key Technical Parameters:

• Input Channels: 8 differential analog inputs (individually configurable)
• Sensor Types: Thermocouples (J, K, T, E, R, S, B, N, C) | RTDs (Pt100, Pt1000, 2/3/4-wire)
• Temperature Range: -200°C to +1370°C (sensor dependent)
• Resolution: 16-bit (0.1°C typical)
• Accuracy: ±0.1% of full scale ±1°C (thermocouple) | ±0.15% ±0.5°C (RTD)
• Update Rate: 10-100ms per channel (configurable)
• Isolation: 1500V DC channel-to-backplane | 250V AC channel-to-channel
• Power Consumption: 3.5W typical @ 24V DC backplane supply
• Operating Environment: -40°C to +70°C ambient | 5-95% RH non-condensing
• Enclosure Rating: IP20 (finger-safe terminals)
• Dimensions: 118mm (H) × 35mm (W) × 87mm (D)
• Certifications: UL/cUL, CE, ATEX Zone 2, IECEx, C-Tick

Selection Considerations:
When specifying the 1794-IRT8XT module, consider: maximum number of temperature measurement points, sensor types and wire configurations, required measurement accuracy and response time, ambient temperature conditions at installation location, controller platform compatibility (ControlLogix/CompactLogix/FlexLogix), and available backplane power budget. For applications requiring more than 8 channels, multiple modules can be installed on the same Flex I/O rack. Our application engineers can assist with system architecture design, I/O point allocation, and performance optimization based on your process requirements.

System Integration & Configuration Options

Controller Compatibility: Compatible with Allen-Bradley ControlLogix (1756), CompactLogix (1769), FlexLogix (1794), and SoftLogix 5800 platforms via Flex I/O adapter modules (1794-AENT EtherNet/IP, 1794-ACN15 ControlNet, 1794-ADN DeviceNet).

Programming Support: Configured through RSLogix 5000 / Studio 5000 Logix Designer software with pre-built Add-On Instructions (AOI) for simplified programming. Supports standard function blocks for scaling, alarming, and data trending.

Network Integration: Seamlessly integrates with EtherNet/IP, ControlNet, and DeviceNet industrial networks. Supports ODVA CIP protocol for interoperability with third-party SCADA systems, HMI panels, and enterprise MES/ERP platforms.

Redundancy Options: Can be deployed in redundant Flex I/O configurations with dual adapters and controllers for high-availability applications requiring <99.9% uptime, such as continuous process industries and critical infrastructure.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 3-5 business days. Custom-configured modules with specific sensor calibrations or extended temperature testing require 10-15 business days lead time. All products include a 12-month manufacturer warranty covering defects in materials and workmanship.

We provide comprehensive technical support including remote configuration assistance, on-site commissioning services (region-dependent), and application engineering consultation. Each module ships with complete documentation package: installation instructions, wiring diagrams, electrical schematics, RSLogix configuration files, and sensor compatibility charts to streamline installation and maintenance procedures.

Factory calibration certificates traceable to NIST standards available upon request for applications requiring documented measurement accuracy. Extended warranty programs and spare parts kits available for critical process applications.

Frequently Asked Questions (FAQ)

Q: How does the 1794-IRT8XT thermocouple RTD input module interface with existing temperature sensor installations?
A: The module accepts standard thermocouple and RTD sensor wiring via removable terminal blocks with clearly labeled connection points. For thermocouples, connect positive and negative leads to designated terminals; for RTDs, configure 2-wire, 3-wire, or 4-wire connections based on sensor type. Module auto-detects sensor type during configuration. Existing sensor wiring can be reused if properly sized (18-22 AWG recommended) and shielded for noise immunity.

Q: What is the maximum number of temperature sensors one Flex I/O rack can accommodate?
A: A standard 1794 Flex I/O rack supports up to 8 I/O modules per adapter. With 1794-IRT8XT modules (8 channels each), a single rack can handle up to 64 temperature measurement points. For larger systems, multiple racks can be networked via EtherNet/IP or ControlNet, with practical limits determined by controller scan time and network bandwidth rather than physical I/O capacity.

Q: What energy savings can be achieved, and what conditions are required?
A: While the module itself is a measurement device (not a control actuator), accurate temperature monitoring enables optimized process control strategies that typically reduce energy consumption by 15-30% in thermal systems. Savings are realized through: precise setpoint control minimizing overshoot, early detection of heat exchanger fouling, optimized heating/cooling cycles, and reduced product waste from temperature excursions. Maximum benefit requires integration with advanced control algorithms (PID, cascade, feedforward) in the host controller.

Q: What are the installation environment requirements and protection rating?
A: The module is rated for industrial environments: -40°C to +70°C operating temperature, 5-95% relative humidity (non-condensing), and IP20 enclosure protection. Install in a climate-controlled panel or NEMA-rated enclosure to protect from direct water spray, corrosive atmospheres, and excessive vibration. Maintain 50mm clearance above/below module for convection cooling. For hazardous area installations, use approved Flex I/O adapters with ATEX/IECEx Zone 2 or Division 2 certifications.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Yes, temperature data is accessible via standard industrial protocols. When paired with EtherNet/IP adapters (1794-AENT), the module supports OPC UA, Modbus TCP, and MQTT for integration with cloud-based monitoring platforms, SCADA systems, and IoT gateways. Real-time data streaming, historical trending, and alarm notification can be configured through Allen-Bradley FactoryTalk software suite or third-party visualization tools. Supports SNMP for network diagnostics and remote module health monitoring.

Q: Can I mix different sensor types on the same module?
A: Absolutely. Each of the 8 input channels is independently configurable, allowing simultaneous use of different thermocouple types and RTDs on a single module. For example, you could monitor a furnace with Type K thermocouples (high temperature zones) and Pt100 RTDs (ambient zones) using one 1794-IRT8XT. This flexibility reduces hardware costs and simplifies system architecture compared to dedicated single-sensor-type modules.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, pricing quotations, or customized temperature monitoring solutions, please provide the following information: project name and industry sector, application description and process requirements, number of measurement points and sensor types (thermocouple/RTD models), required accuracy and response time specifications, ambient conditions and hazardous area classifications, existing controller platform (ControlLogix/CompactLogix/other), and preferred communication network (EtherNet/IP/ControlNet/DeviceNet). Our engineers will provide one-on-one consultation with system architecture recommendations, I/O configuration proposals, and budget estimates within 24 hours.
