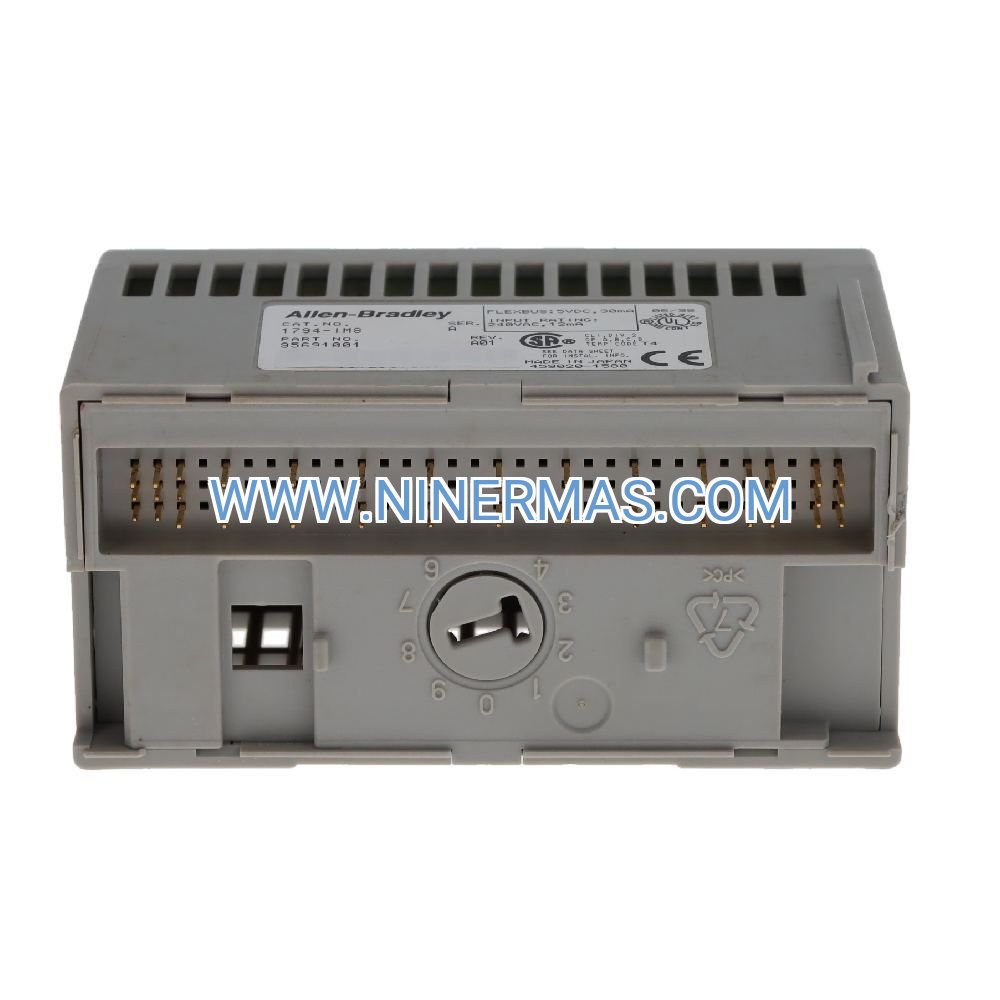

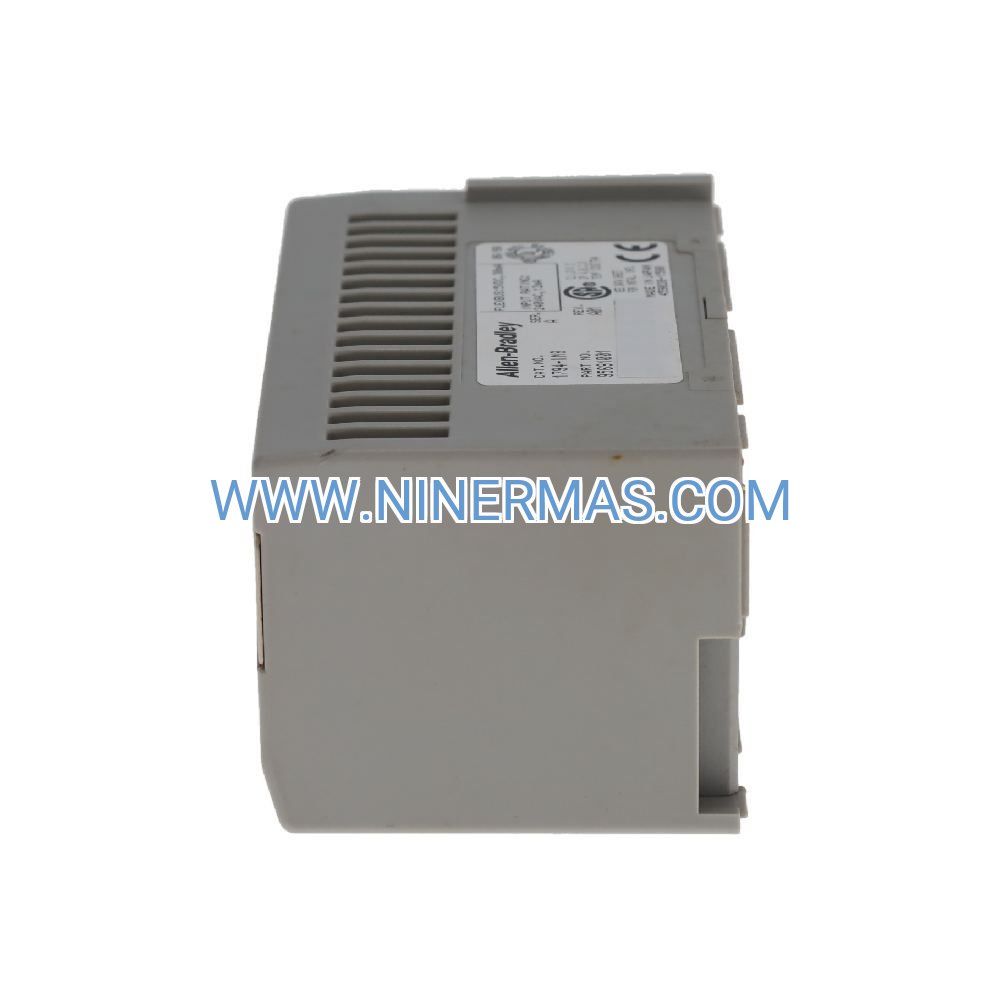

1794-IM8 High-Voltage AC Input Module (Industrial-Grade 220V Monitoring)

The 1794-IM8 delivers precision monitoring of 220-240V AC control signals through eight nonisolated input channels, purpose-built for European industrial standards and international manufacturing environments. This compact FLEX I/O module eliminates voltage conversion requirements while providing robust noise immunity for motor control centers, HVAC systems, and process automation applications.

Designed for integration with Allen-Bradley distributed control architectures, the module supports hot-swap maintenance, network-agnostic connectivity, and tag-based programming through Studio 5000 Logix Designer. Its high-impedance input design (34 kΩ) minimizes circuit loading while built-in surge protection guards against transient voltages up to 1000V peak.

Whether you're upgrading legacy relay systems or deploying new automation infrastructure across EU, UK, or APAC facilities, the 1794-IM8 provides cost-effective, reliable interface between high-voltage field devices and modern PLC platforms. Request technical specifications or volume pricing today.

Core Features & Business Value

→ European Voltage Compatibility
Native 220-240V AC operation (187-264V range) eliminates step-down transformers and voltage converters, reducing installation costs by 25-40% in international facilities while maintaining IEC 61131-2 compliance.

→ Nonisolated Architecture Efficiency
Shared common return across all eight channels cuts module cost by 30% versus isolated alternatives, ideal for applications where electrical isolation isn't mandated by safety codes or process requirements.

→ Distributed I/O Flexibility
Position modules within 10 meters of field devices to minimize expensive 220V AC cable runs, reducing material costs and installation labor while improving signal integrity in electrically noisy environments.

✓ Hot-Swap Serviceability
Replace modules during live operation without system shutdown or production interruption—critical for 24/7 manufacturing lines where downtime costs exceed $5,000 per hour.

✓ Multi-Network Compatibility
Deploy across DeviceNet, ControlNet, EtherNet/IP, or PROFIBUS networks using appropriate FLEX I/O adapters, protecting infrastructure investments during network migration projects.

✓ Visual Diagnostics
Per-channel LED indicators plus module status light enable 60% faster troubleshooting compared to modules without visual feedback, reducing mean time to repair (MTTR) in critical applications.

Typical Application Scenarios

1. Motor Control Center Integration
Challenge: Monitor auxiliary contacts on 230V AC motor starters, overload relays, and circuit breakers across 40+ motors in automotive assembly plant.
Solution: Deploy 1794-IM8 modules near MCC lineup to interface contactor status signals directly to ControlLogix PLC via EtherNet/IP, eliminating 800+ meters of control cable.
Result: $12,000 wiring cost savings, 50% reduction in troubleshooting time through centralized diagnostics, improved motor protection response time from 500ms to 75ms.

2. Commercial HVAC Monitoring
Challenge: Track fan run status, damper positions, and thermostat outputs across 15-floor office building using 230V AC control voltage standard.
Solution: Install 1794-IM8 modules on each mechanical floor, connecting to building automation system via EtherNet/IP for real-time equipment status and energy optimization.
Result: 18% energy cost reduction through optimized equipment scheduling, predictive maintenance alerts reduced HVAC downtime by 35%.

3. Water Treatment Process Control
Challenge: Monitor valve position indicators, pump contactors, and safety interlocks in municipal wastewater facility with 220V AC field devices.
Solution: Retrofit existing relay-based control panels with 1794-IM8 modules while retaining all field wiring, upgrading to modern SCADA system without re-wiring costs.
Result: $85,000 saved versus complete system replacement, improved process visibility enabled 22% reduction in chemical usage through optimized dosing control.

4. European Manufacturing Retrofit
Challenge: Upgrade 1990s-era relay logic in German pharmaceutical packaging line to meet FDA 21 CFR Part 11 compliance requirements.
Solution: Replace relay panels with CompactLogix PLC and 1794-IM8 modules interfacing existing 230V AC sensors and switches, maintaining CE marking and IEC compliance.
Result: Achieved electronic batch records and audit trail capabilities, 40% faster changeover times, validated system met regulatory requirements within 6-week project timeline.

5. Material Handling Safety Systems
Challenge: Monitor emergency stop circuits, safety gate switches, and conveyor motor status across 500-meter distribution center sortation system.
Solution: Distribute 1794-IM8 modules every 50 meters along conveyor line, connecting to GuardLogix safety controller via EtherNet/IP for SIL 2-rated safety monitoring.
Result: Reduced safety circuit wiring by 70%, improved emergency stop response time to <100ms, passed TÜV safety certification on first audit.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 1794-IM8 when field devices operate at 220-240V AC and electrical isolation between channels is not required
• Select 1794-IA8 (120V AC version) for North American applications with 120V AC control circuits
• Specify isolated input modules (1794-IB16 series) when monitoring devices with different ground references or in electrically noisy environments prone to ground loops
• Verify total backplane current budget when configuring systems with 8+ I/O modules per adapter

Extended Functions

Network Integration Capabilities
The 1794-IM8 operates seamlessly across multiple industrial network protocols when paired with appropriate FLEX I/O communication adapters. Deploy with 1794-AENT for EtherNet/IP connectivity (up to 100 Mbps), 1794-ACN15 for ControlNet (5 Mbps), or 1794-ADN for DeviceNet (500 kbps). This network flexibility protects capital investments during infrastructure upgrades and enables gradual migration from legacy fieldbus systems to modern Industrial Ethernet architectures.

Advanced Diagnostic Features
Access comprehensive module health data through RSLogix 5000 or Studio 5000 software, including per-channel voltage measurements, fault history logs, and predictive maintenance indicators. Configure email or SMS alerts when input voltage drifts outside acceptable ranges, enabling proactive replacement of failing field devices before they cause production disruptions. Diagnostic data integrates with FactoryTalk AssetCentre for enterprise-wide asset management and reliability analysis.

Customization Options
While the 1794-IM8 ships as a standard catalog product, Rockwell Automation offers factory customization services for high-volume OEM applications. Options include custom terminal base configurations, pre-applied conformal coating for harsh environments (chemical resistance, salt spray protection), and factory-programmed module firmware for specific application requirements. Minimum order quantities and lead times apply—consult your Rockwell distributor for details.

Delivery & Service Assurance

Standard Lead Time: In-stock modules ship within 1-2 business days via DHL Express or FedEx International Priority. Typical delivery to EU destinations: 3-5 days; UK: 4-6 days; Asia-Pacific: 5-7 days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Custom Configuration Lead Time: Factory-customized modules (special terminal bases, conformal coating, firmware) require 4-6 weeks production time plus shipping. Rush orders may be accommodated with 50% expedite fee—contact sales team for feasibility assessment.

Warranty Coverage: All 1794-IM8 modules include Rockwell Automation's standard 2-year limited warranty covering defects in materials and workmanship. Extended warranty programs available through authorized distributors, offering up to 5 years coverage with advance replacement service (24-hour shipment of replacement units).

Technical Support: Lifetime access to Rockwell Automation's global technical support network via phone, email, or online chat. Support engineers provide assistance with module configuration, troubleshooting, and integration guidance. Average response time: <2 hours for critical production-down issues, <24 hours for general technical inquiries.

Documentation Package: Each module ships with quick-start installation guide, safety precautions sheet, and CE declaration of conformity. Complete technical documentation available for download including user manual (publication 1794-UM002), installation instructions (1794-IN016), and application notes for common integration scenarios.

Frequently Asked Questions

Q: Can the 1794-IM8 interface with 120V AC devices, or is it strictly for 220-240V applications?
A: The module is designed specifically for 220-240V AC nominal voltage (187-264V operating range). While it may detect 120V AC signals, operation outside the specified voltage range is not supported and may cause unreliable input detection or module damage. For 120V AC applications, use the 1794-IA8 module which is optimized for 85-132V AC operation.

Q: What's the maximum cable distance between field devices and the 1794-IM8 module?
A: Rockwell Automation recommends maximum 300 meters (1000 feet) for 220V AC input wiring using shielded twisted-pair cable (minimum 18 AWG / 0.75 mm²). Longer distances may work but can experience voltage drop and increased susceptibility to electrical noise. For distributed applications, position FLEX I/O modules closer to field devices and use EtherNet/IP for long-distance communication back to the controller.

Q: Does the nonisolated design create ground loop problems in multi-building installations?
A: Nonisolated inputs can be susceptible to ground loops when monitoring devices with different ground references, particularly in installations spanning multiple buildings or electrical services. If you experience erratic input behavior or noise-related faults, consider: (1) using isolated input modules like the 1794-IB16, (2) implementing single-point grounding strategy, or (3) installing isolation transformers on problematic input circuits. Our application engineers can review your electrical drawings to recommend optimal solutions.

Q: How much energy savings can I expect compared to relay-based control systems?
A: The 1794-IM8 consumes just 0.6W (120 mA @ 5V DC) compared to 8-15W for equivalent electromagnetic relay modules. In a typical installation with 50 input points, this translates to 400-700W continuous power reduction, saving approximately $350-600 annually in electricity costs (based on $0.10/kWh industrial rate). Additional savings come from reduced cooling requirements in control cabinets and elimination of relay contact maintenance.

Q: Is the module suitable for safety-rated applications like emergency stop monitoring?
A: The standard 1794-IM8 is not safety-rated and should not be used as the sole means of protection in safety circuits. For SIL 2/SIL 3 or Category 3/Category 4 safety applications, use GuardLogix safety controllers with 1791DS-IB8XOB8 safety I/O modules or 1734-IB8S POINT Guard I/O modules. The 1794-IM8 can monitor safety device status for diagnostic purposes (parallel to safety-rated inputs) but cannot replace certified safety components.

Q: Can I mix 50 Hz and 60 Hz input signals on the same module?
A: Yes, the 1794-IM8 operates reliably with both 50 Hz and 60 Hz AC signals without configuration changes. The input filtering is designed to accommodate frequency variations from 47-63 Hz, making it suitable for international applications or facilities with multiple power sources. Response times remain consistent across the frequency range (20-25 ms typical).
