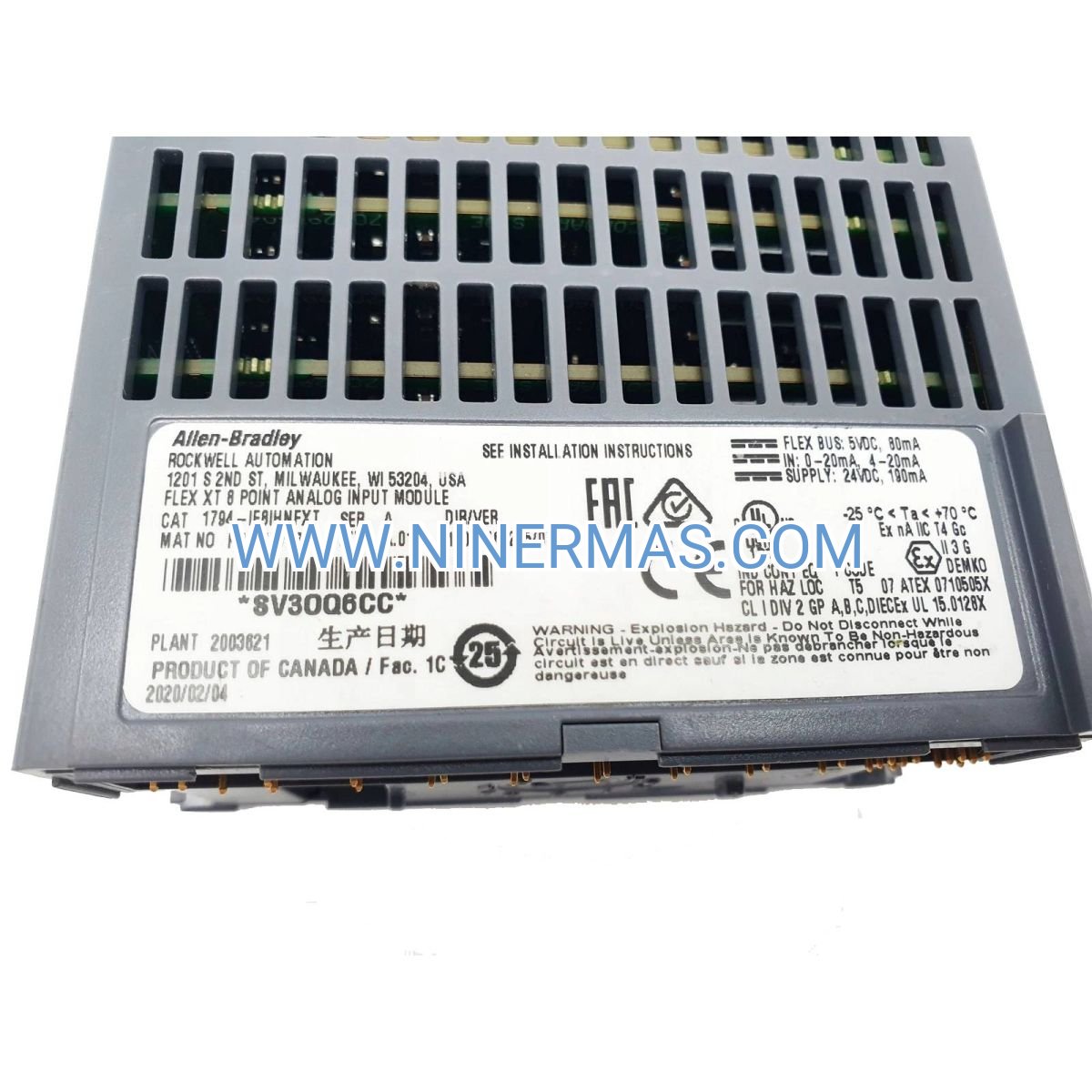

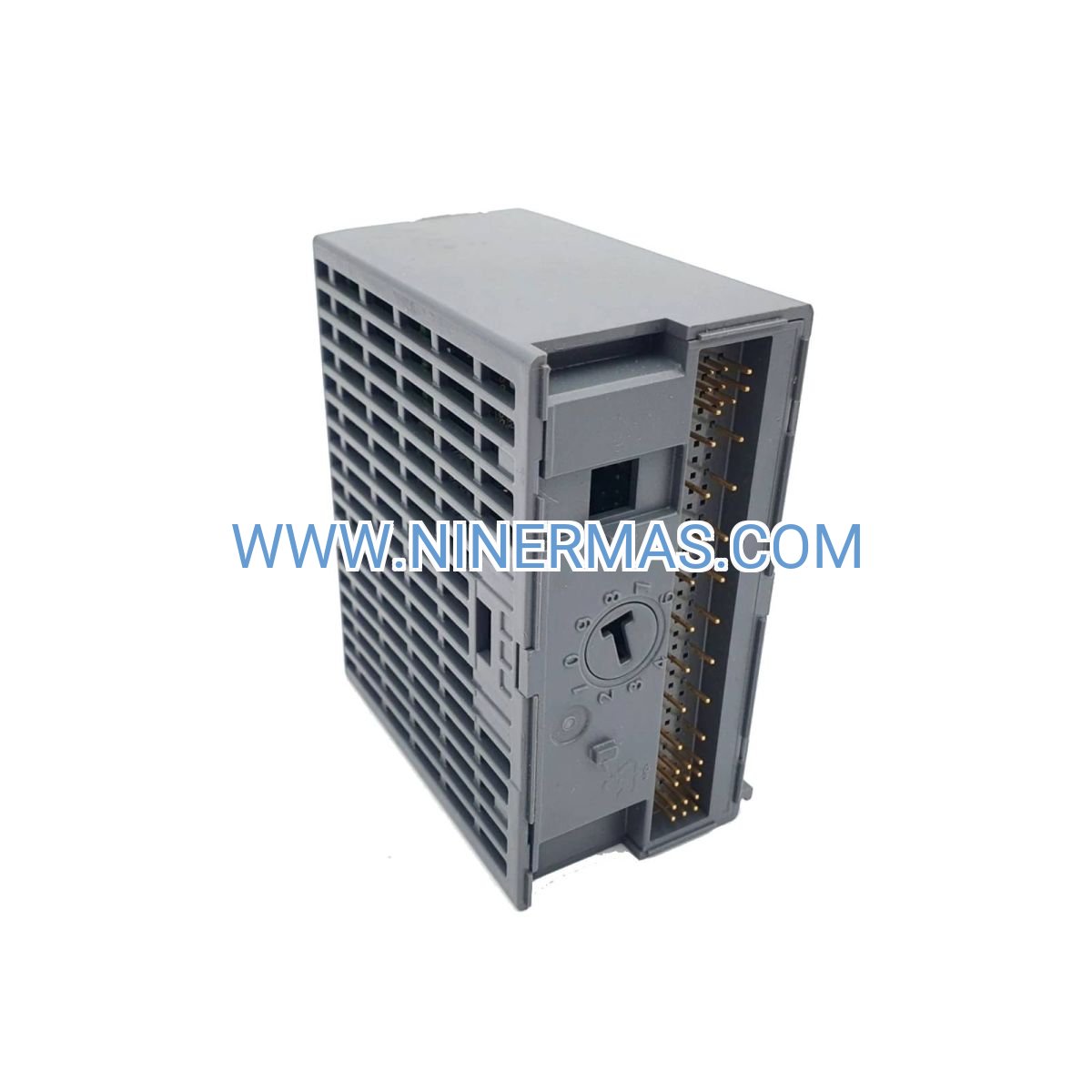

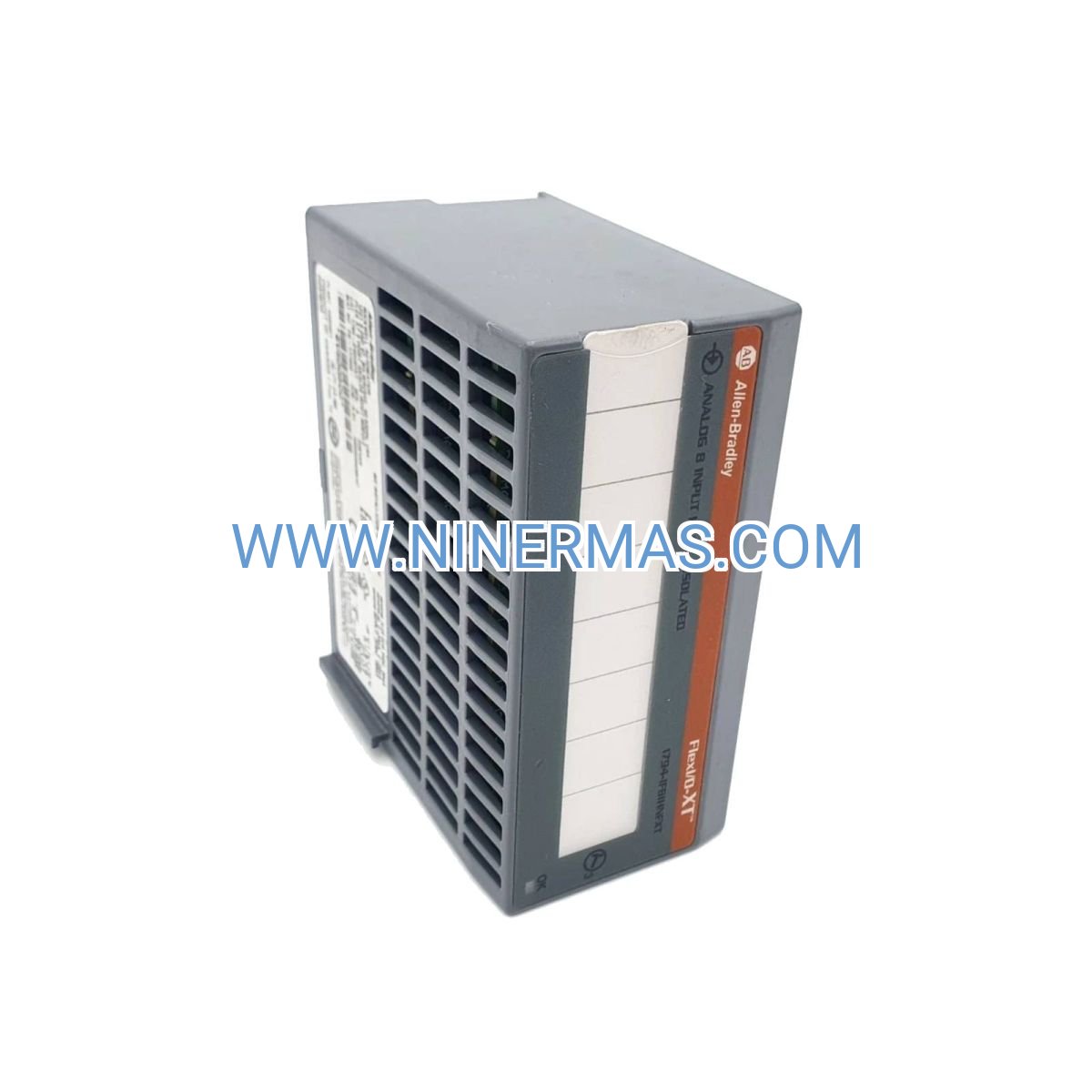

Allen-Bradley 1794-IF8IHNFXT HART Isolated Analog Input Module (Industrial-Grade Signal Processing System)

The Allen-Bradley 1794-IF8IHNFXT is a high-precision HART-enabled isolated analog input module designed for demanding industrial automation and process control applications. Through advanced signal isolation technology and factory-calibrated HART communication protocol, it delivers accurate multi-channel data acquisition with exceptional noise immunity and system reliability.

Ideal for oil & gas facilities, chemical processing plants, power generation stations, water treatment systems, and manufacturing environments where precise analog signal monitoring is critical. This module addresses common challenges including signal interference, ground loop issues, hazardous area monitoring requirements, and the need for real-time diagnostics with HART-enabled field devices.

Featuring standardized Flex I/O architecture with flexible configuration options, the 1794-IF8IHNFXT offers superior electromagnetic compatibility, API 670 compliance for machinery protection systems, simplified installation, and comprehensive diagnostic capabilities. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for customized configuration guidance and technical specifications.

Core Features & Technical Advantages

8-Channel HART-Enabled Inputs
Supports simultaneous monitoring of eight independent analog signals with integrated HART communication, enabling advanced device diagnostics and configuration without interrupting the 4-20mA process signal.

Channel-to-Channel Isolation
Each input channel features electrical isolation up to 250V AC continuous, eliminating ground loops and protecting against voltage transients in harsh industrial environments with multiple ground references.

Factory Calibration & High Accuracy
Pre-calibrated to ±0.1% accuracy across the full operating range, reducing commissioning time and ensuring consistent measurement performance without field calibration requirements.

API 670 Compliance for Machinery Protection
Certified for use in critical machinery monitoring systems per API Standard 670, meeting stringent requirements for vibration monitoring, bearing temperature measurement, and turbomachinery protection applications.

Flexible Input Range Configuration
Software-configurable for multiple input types including 4-20mA, 0-20mA, ±20mA, 0-10V, and thermocouple/RTD inputs (with appropriate signal conditioning), adapting to diverse sensor requirements within a single platform.

Comprehensive Diagnostic & Fault Detection
Built-in diagnostics monitor wire break, over-range, under-range, and module health status with LED indicators and network-accessible fault data, minimizing troubleshooting time and unplanned downtime.

Hot-Swappable Design
Supports online module replacement without powering down the entire I/O system, maintaining process continuity during maintenance activities and reducing mean time to repair (MTTR).

Typical Application Scenarios

This module excels in applications demanding high signal integrity, regulatory compliance, and reliable performance under challenging conditions, including:

Oil & Gas Production & Refining
Monitors pressure transmitters, flow meters, and temperature sensors in hazardous classified areas. HART capability enables remote device configuration and diagnostics, reducing field visits and improving safety in offshore platforms and refinery units.

Chemical & Petrochemical Processing
Provides isolated signal acquisition for reactor monitoring, distillation column control, and batch process management. Channel isolation prevents cross-contamination of signals in complex multi-loop control strategies with varying ground potentials.

Power Generation & Turbomachinery Protection
API 670 compliance makes it suitable for steam turbine monitoring, gas turbine protection systems, and generator bearing temperature surveillance. Meets utility and independent power producer requirements for critical machinery safeguarding.

Water & Wastewater Treatment
Handles analog inputs from pH sensors, dissolved oxygen probes, flow transmitters, and level sensors across distributed treatment facilities. Isolation protects sensitive instrumentation from electrical noise in pump stations and chemical dosing systems.

Manufacturing & Process Automation
Integrates with SCADA and DCS systems for real-time monitoring of production parameters including temperature, pressure, level, and flow in automotive, food & beverage, pharmaceutical, and discrete manufacturing operations.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide key electrical, environmental, and mechanical parameters:

Input Specifications:
• Number of Channels: 8 differential isolated inputs
• Input Types: 4-20mA, 0-20mA, ±20mA (software selectable)
• Input Impedance: 250Ω typical for current inputs
• Accuracy: ±0.1% of full scale at 25°C
• Resolution: 16-bit (1 in 65,536)
• Update Rate: 10ms per channel typical
• Isolation Voltage: 250V AC continuous, channel-to-channel and channel-to-backplane

HART Communication:
• Protocol: HART 7.x compatible
• Simultaneous Channels: All 8 channels support concurrent HART communication
• Multidrop Support: Yes, with appropriate configuration

Power & Environmental:
• Backplane Power: 5V DC @ 150mA typical, 24V DC @ 50mA typical
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5g operational, 10-500Hz per IEC 60068-2-6
• Shock: 30g operational per IEC 60068-2-27

Compliance & Certifications:
• API 670 4th Edition (Machinery Protection Systems)
• UL/cUL Listed (Class I, Division 2 hazardous locations)
• ATEX/IECEx certified options available
• CE marked for EMC and Low Voltage Directives
• RoHS compliant

Physical Dimensions:
• Form Factor: Single-slot Flex I/O module
• Dimensions: 118mm H × 35mm W × 87mm D (4.65" × 1.38" × 3.43")
• Weight: Approximately 0.2 kg (0.44 lbs)
• Mounting: DIN rail via Flex I/O adapter or panel mount

Selection Considerations:
When specifying the 1794-IF8IHNFXT, evaluate: number of analog input points required, sensor signal types and ranges, need for HART diagnostics, environmental conditions (temperature, vibration, hazardous area classification), isolation requirements between channels, and compatibility with existing Flex I/O chassis and controller platform. For assistance with system architecture or multi-module configurations, provide your I/O count, sensor list, and application requirements to our engineering team for optimized recommendations.

System Integration & Compatibility

Controller Compatibility:
Compatible with Allen-Bradley ControlLogix, CompactLogix, and SLC 500 controllers via appropriate Flex I/O adapters (1794-AENT for EtherNet/IP, 1794-ACN15 for ControlNet, 1794-ADN for DeviceNet). Seamless integration with RSLogix 5000/Studio 5000 programming environment.

Network Options:
Supports EtherNet/IP, ControlNet, DeviceNet, and Remote I/O communication depending on adapter selection, enabling flexible network topologies for distributed control architectures.

HART Integration:
HART data accessible through controller logic or dedicated HART multiplexer/gateway for integration with asset management systems (AMS Device Manager, PACTware, FieldCare) for predictive maintenance and advanced diagnostics.

Redundancy Support:
Can be deployed in redundant I/O configurations with appropriate Flex I/O adapters and controllers, meeting high-availability requirements for critical process control applications.

Delivery, Service & Quality Assurance

Availability & Lead Time:
Factory-sealed units typically available from stock for immediate shipment. Custom-configured or large-volume orders: 2-4 weeks lead time depending on specifications and quantity.

Warranty Coverage:
Standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support:
Comprehensive pre-sales application engineering support, post-sales commissioning assistance, and remote troubleshooting services. On-site startup and training available in select regions (subject to project scope and location).

Documentation Package:
Each module ships with installation instructions, wiring diagrams, technical data sheet, and quick-start guide. Complete user manuals, configuration software, and sample ladder logic available for download from manufacturer support portal.

Quality Standards:
Manufactured in ISO 9001-certified facilities with rigorous quality control processes. Each unit undergoes factory acceptance testing (FAT) including functional verification, isolation testing, and HART communication validation before shipment.

Frequently Asked Questions (FAQ)

Q: How does the 1794-IF8IHNFXT HART analog input module integrate with existing Allen-Bradley control systems?
A: The module installs in any Flex I/O chassis with compatible adapter (EtherNet/IP, ControlNet, DeviceNet, or Remote I/O). Configuration is performed through RSLogix/Studio 5000 software using standard Add-On Instructions (AOI). HART data can be accessed via controller logic or external HART multiplexer depending on your architecture requirements.

Q: What is the maximum number of modules I can install in a single Flex I/O system?
A: A standard Flex I/O chassis supports up to 8 I/O modules (local) or 30 modules (distributed via network adapter). For applications requiring more than 64 analog inputs, multiple chassis can be networked. Consult power budget calculations for your specific adapter and module combination to ensure adequate backplane power.

Q: What level of energy savings or efficiency improvement can be expected with isolated input modules?
A: While the module itself doesn't directly reduce energy consumption, the improved signal accuracy and HART diagnostics enable better process optimization, potentially reducing energy waste by 5-15% in applications like compressor control, pump optimization, and thermal management systems. Isolation also prevents costly equipment damage from ground faults, avoiding unplanned downtime.

Q: What are the environmental and installation requirements for this module?
A: Operating temperature range is -40°C to +70°C with 5-95% non-condensing humidity. The module is rated for industrial environments with vibration up to 5g and shock to 30g. Enclosure protection depends on chassis selection—NEMA 4/4X and IP65/IP67 rated chassis available for harsh environments. For hazardous locations, use UL Class I Division 2 or ATEX/IECEx certified configurations.

Q: Can this module support remote monitoring and data acquisition via industrial IoT platforms?
A: Yes. When paired with EtherNet/IP adapters and edge gateways (such as Allen-Bradley Stratix switches or FactoryTalk Edge Gateway), analog data and HART diagnostics can be published to cloud platforms (AWS IoT, Azure IoT, FactoryTalk Analytics) using MQTT, OPC UA, or REST APIs for predictive maintenance and remote monitoring applications.

Q: Is field calibration required after installation, and what calibration interval is recommended?
A: No field calibration is required—modules are factory-calibrated with certificates traceable to NIST standards. For critical measurement applications (custody transfer, regulatory compliance), annual verification is recommended. Routine applications typically require calibration verification every 2-3 years or per plant maintenance schedules.

Request Technical Support & Custom Configuration

For detailed application engineering support, custom I/O system design, or project quotations, please provide the following information: project name and industry, application description (process type, control objectives), required I/O count and signal types, sensor specifications (manufacturer, model, output range), environmental conditions (temperature, hazardous area classification), preferred communication network (EtherNet/IP, ControlNet, DeviceNet), and controller platform (ControlLogix, CompactLogix, etc.). Our application engineers will provide tailored recommendations, system architecture drawings, and competitive pricing within 24-48 hours.
