Allen-Bradley 1794-IF8IH FLEX I/O Analog Input Module

Allen-Bradley 1794-IF8IH FLEX I/O Analog Input Module: Retrofit-Compatible Upgrade for Legacy Control Systems

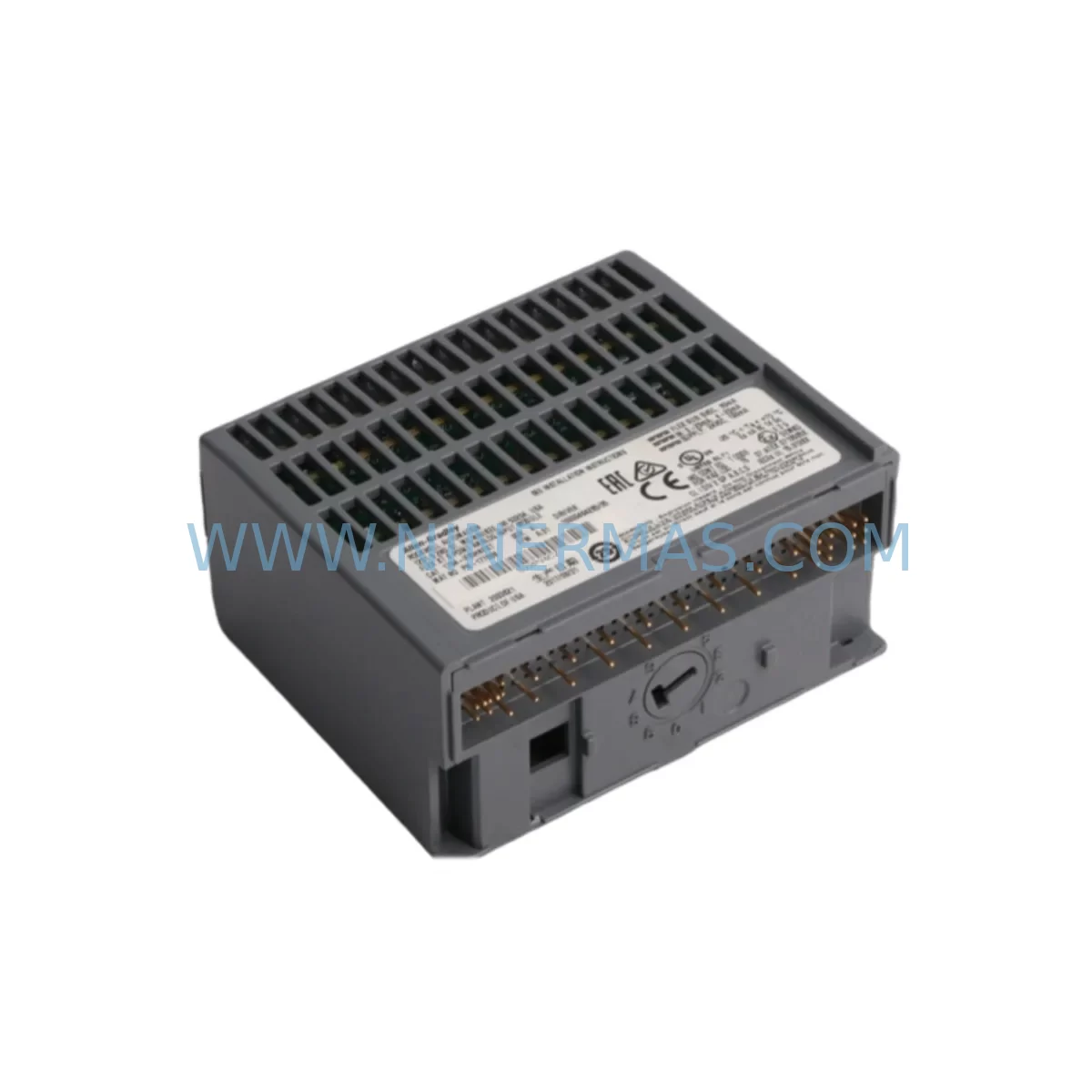

The Allen-Bradley 1794-IF8IH is an 8-channel, high-resolution analog input module designed for the FLEX I/O platform — one of Rockwell Automation’s most widely deployed distributed I/O architectures in process and discrete manufacturing environments. As original equipment reaches end-of-life and spare parts become increasingly scarce, the 1794-IF8IH remains a critical component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full system overhaul.

NINERMAS supplies verified retrofit-compatible 1794-IF8IH modules with full functional testing, 12-month warranty coverage, and rapid international dispatch. Whether you are replacing a failed module in an active production line or building a strategic spare parts inventory for a long-term maintenance program, our supply chain is structured to support your operational continuity requirements.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating a replacement 1794-IF8IH into an existing FLEX I/O installation requires a structured pre-commissioning review. The module slots into any compatible 1794-TB3 or 1794-TB3S terminal base, preserving existing field wiring without modification — a significant advantage when minimizing downtime is a priority. Before installation, engineers should confirm that the adapter module — typically a 1794-AENT for EtherNet/IP networks or a 1794-ACN15 for ControlNet topologies — is configured to recognize the new module at the correct slot address.

In ControlLogix and CompactLogix environments, the I/O tree in Studio 5000 Logix Designer must reflect the correct module profile for the 1794-IF8IH. If the replacement module is being installed into a system previously running RSLogix 5000, the existing program logic and tag database should be verified to ensure channel scaling parameters — particularly engineering unit conversions for 4–20 mA process signals — remain intact. Any mismatch between the configured input range and the physical signal source can result in erroneous process values at the HMI level, which may trigger spurious alarms or incorrect control responses.

For facilities operating legacy SLC 500 or PLC-5 platforms with FLEX I/O distributed racks, the 1794-IF8IH interfaces through a 1794-ACN15 or 1794-ADN adapter. In these configurations, the rack size and starting I/O address must be confirmed in the legacy processor’s I/O configuration table. Technicians should also verify that the 1794-PS13 or 1794-PS19 power supply feeding the FLEX I/O rail provides sufficient current capacity to support the additional analog input module without exceeding the rail’s power budget.

Where communication protocol migration is underway — for example, transitioning from DeviceNet (1794-ADN) to EtherNet/IP (1794-AENT) — the 1794-IF8IH module itself requires no hardware changes. The migration effort is concentrated at the adapter and network infrastructure level, making the analog input module a stable element across protocol transitions. Signal isolators may be required at the field terminal level if the new network topology introduces ground loop risks from shared instrumentation commons.

HMI screens connected to ControlLogix or CompactLogix controllers via FactoryTalk View SE or ME should be reviewed to confirm that analog display faceplates reference the correct tag paths after any controller or I/O tree restructuring. In systems where the 1794-IF8IH feeds signals into a process historian or DCS integration layer, the OPC server tag configuration should also be validated post-replacement to prevent data gaps in trend records.

Downtime Control During System Migration

Replacing a 1794-IF8IH in a live production environment demands careful sequencing to protect process continuity. The recommended approach is to perform the physical swap during a scheduled maintenance window, with the controller placed in Program mode to suspend output execution while preserving the existing ladder logic and function block program in memory. The replacement module should be bench-tested prior to installation — verifying channel response across the full 4–20 mA range using a calibrated signal source — to eliminate the risk of introducing a second fault during the changeover.

Once the replacement module is seated and the terminal base wiring confirmed, the controller can be returned to Run mode with a controlled ramp-up sequence. Process engineers should monitor the first 15–30 minutes of operation closely, comparing live analog values against historical baselines to confirm that all eight input channels are reading within expected tolerances. Any deviation should be investigated at the field instrument level before assuming a module fault.

For critical process loops — particularly those involving temperature, pressure, or flow measurement — it is advisable to place the associated PID blocks in Manual mode during the module swap, holding the last known good output value to the final control element. This prevents process upsets caused by momentary signal loss during the module changeover interval. Once the replacement 1794-IF8IH is confirmed stable, the PID blocks can be returned to Auto mode sequentially, allowing the control system to resume normal regulatory operation without a process disturbance.

NINERMAS modules are pre-tested prior to dispatch, with functional verification records available upon request. This pre-shipment testing protocol reduces the risk of receiving a non-functional unit and supports faster on-site commissioning, directly contributing to downtime reduction targets.

Retrofit Support FAQ

Q1: Is the NINERMAS 1794-IF8IH a direct replacement for the original Allen-Bradley module?
Yes. The 1794-IF8IH supplied by NINERMAS is functionally equivalent to the original Rockwell Automation specification. It installs into the same 1794-TB3 or 1794-TB3S terminal base, uses the same module profile in Studio 5000 and RSLogix 5000, and requires no wiring or programming changes in a standard like-for-like replacement scenario.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm the module address in the adapter configuration, verify the I/O tree module profile in the controller programming software, and perform a channel-by-channel signal check using a calibrated 4–20 mA or 0–10 V source. For systems with HMI integration, validate that all analog display tags are reading correctly before returning the system to automatic control.

Q3: Can this module be used in a system being migrated from ControlNet to EtherNet/IP?
Yes. The 1794-IF8IH is protocol-agnostic at the module level. The communication protocol is determined by the FLEX I/O adapter (e.g., replacing a 1794-ACN15 with a 1794-AENT). The analog input module itself requires no modification and will operate correctly with any compatible FLEX I/O adapter.

Q4: What does the 12-month warranty cover, and what is the lead time?
The 12-month warranty covers functional failure under normal operating and storage conditions, excluding physical damage caused by incorrect installation or electrical overstress. Standard lead time is 3–7 business days for in-stock units, with expedited dispatch available for urgent requirements. Pre-shipment test records are available upon request. Contact sale@ninermas.com or +0086 187 5021 5667 for stock confirmation and order processing.
