Allen-Bradley 1794-IF4IXT 4-Channel Isolated Analog Input Module | Flex I/O System

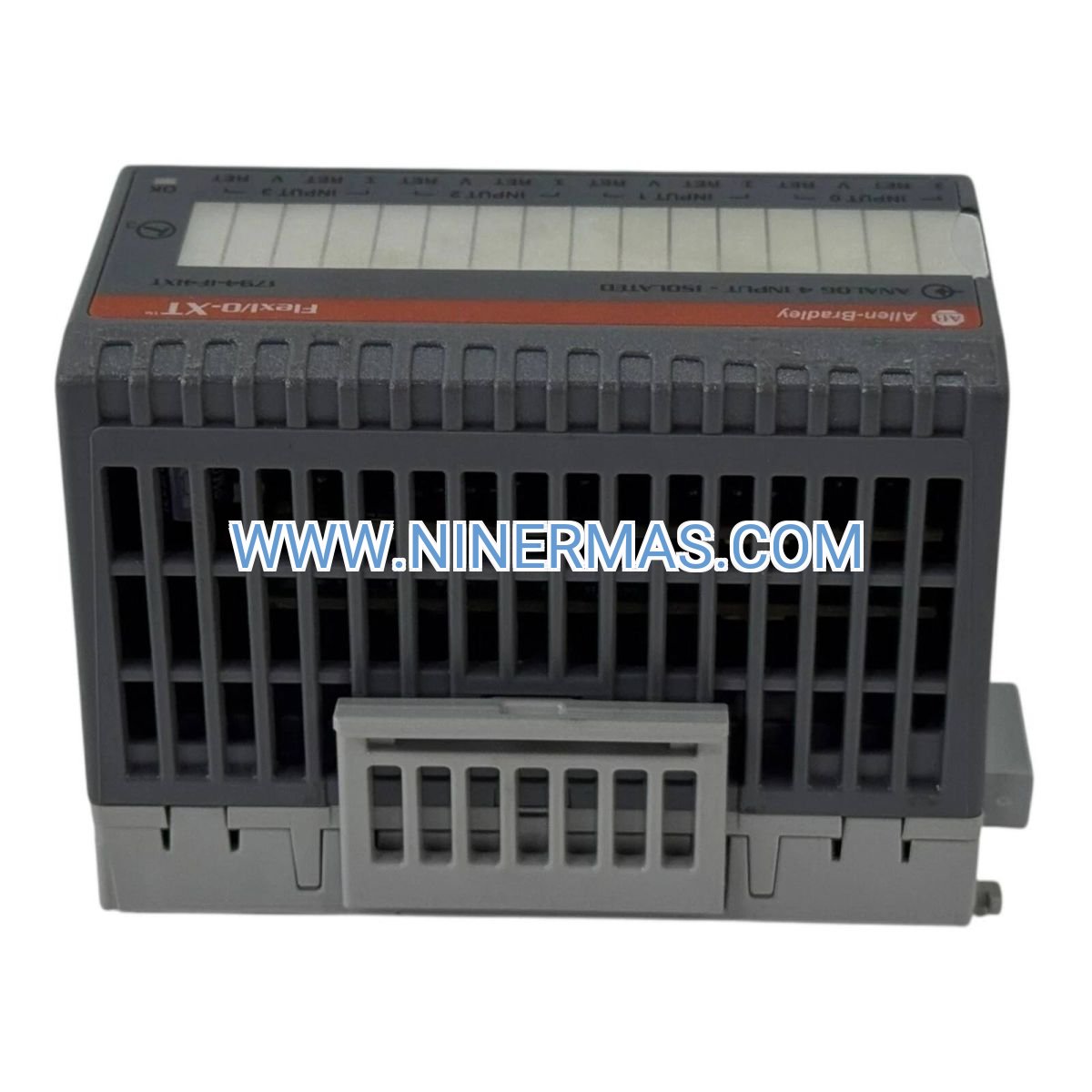

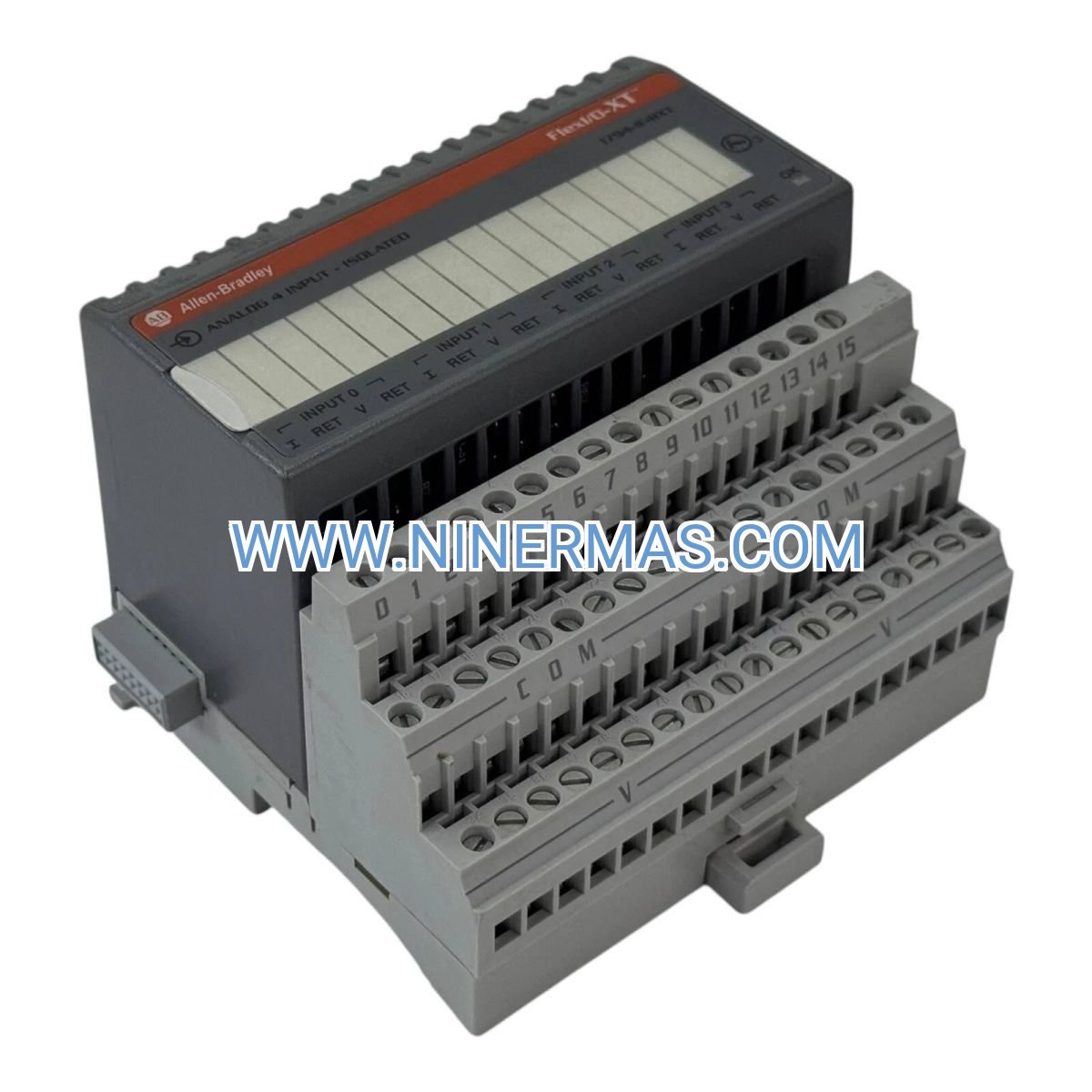

Allen-Bradley 1794-IF4IXT Isolated Analog Input Module (Industrial-Grade Precision Control Solution)

The Allen-Bradley 1794-IF4IXT is a high-performance isolated analog input module designed for industrial automation and process control applications. Through advanced 4-channel differential input architecture and 16-bit A/D conversion technology, it delivers precise signal acquisition with ±10V voltage and 0-20mA current input capabilities, ensuring reliable data collection in harsh industrial environments.

Ideal for factory automation systems, process monitoring, SCADA integration, building management systems, and industrial data acquisition networks, this module addresses critical challenges including signal interference, ground loop issues, measurement accuracy degradation, and multi-point analog signal isolation requirements in complex industrial settings.

Featuring standardized Flex I/O design with flexible configuration options, the 1794-IF4IXT offers channel-to-channel isolation, high noise immunity, wide input range compatibility, hot-swappable capability, and seamless ControlLogix/CompactLogix integration. Perfect for system integrators, control panel builders, OEM equipment manufacturers, and industrial facility maintenance teams. Contact our engineers for application-specific configuration guidance and technical support.

Core Features & Advantages

Channel-to-Channel Isolation Protection
Each of the 4 input channels features electrical isolation up to 250V AC continuous, effectively eliminating ground loops and common-mode interference. This isolation architecture protects sensitive control systems from voltage spikes and ensures accurate signal integrity across distributed measurement points.

High-Precision 16-Bit Resolution
Advanced analog-to-digital conversion delivers 16-bit resolution across the full input range, providing measurement accuracy within ±0.1% of full scale. This precision enables reliable monitoring of critical process variables in pharmaceutical, chemical processing, and precision manufacturing applications.

Dual Input Mode Flexibility
Supports both voltage (±10V DC) and current (0-20mA, 4-20mA) input signals on each channel, configurable via software without hardware modifications. This versatility accommodates diverse sensor types including thermocouples, RTDs, pressure transmitters, and flow meters within a single module.

Robust EMI/RFI Immunity
Industrial-grade shielding and filtering circuits provide exceptional electromagnetic interference resistance, maintaining signal accuracy in electrically noisy environments such as motor control centers, welding facilities, and high-power switching installations.

Hot-Swap & Diagnostic Capabilities
Module replacement during system operation minimizes downtime, while built-in diagnostics including open-wire detection, over-range indication, and channel fault reporting enable proactive maintenance and rapid troubleshooting.

Seamless Rockwell Automation Integration
Native compatibility with ControlLogix, CompactLogix, and SLC 500 platforms via Flex I/O architecture. Configuration through RSLogix 5000/Studio 5000 software provides intuitive setup with pre-built function blocks and comprehensive diagnostic tools.

Typical Application Scenarios

This module excels in applications demanding high signal integrity, electrical isolation, and reliable analog data acquisition:

Process Control & Monitoring Systems
Monitors temperature, pressure, flow, and level sensors in chemical reactors, distillation columns, and batch processing equipment. Isolation prevents ground-related measurement errors in multi-zone temperature control and ensures accurate process variable tracking for regulatory compliance.

Factory Automation & Machine Control
Integrates with CNC machines, robotic cells, and automated assembly lines to acquire position feedback, force/torque measurements, and quality inspection data. Supports predictive maintenance programs through vibration and bearing temperature monitoring in rotating equipment.

Building Management & HVAC Systems
Collects data from chiller plants, air handling units, and energy meters across commercial facilities. Enables centralized monitoring of temperature zones, humidity levels, and energy consumption for optimization of building environmental systems.

Water & Wastewater Treatment
Interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and flow transmitters in municipal treatment plants. Isolation protects control systems from electrical noise generated by variable frequency drives and high-power pump motors.

Oil & Gas Production Facilities
Monitors wellhead pressure, separator levels, and pipeline flow rates in upstream production and midstream transportation applications. Rugged design withstands temperature extremes and vibration in remote field installations.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide comprehensive specifications for integration planning:

Input Specifications:
• Number of Channels: 4 differential isolated inputs
• Voltage Range: ±10V DC (differential)
• Current Range: 0-20mA, 4-20mA (with 250Ω precision resistor)
• Resolution: 16-bit (1 in 65,536)
• Accuracy: ±0.1% of full scale at 25°C
• Input Impedance: >10MΩ (voltage mode), 250Ω (current mode)
• Isolation Voltage: 250V AC continuous, channel-to-channel and channel-to-backplane

Performance Characteristics:
• Update Rate: Configurable 10ms to 10s per channel
• Common Mode Rejection: >100dB at 50/60Hz
• Normal Mode Rejection: >60dB at 50/60Hz
• Temperature Drift: ±50ppm/°C maximum
• Step Response Time: <100ms to 99% of final value

Environmental & Mechanical:
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Vibration: 5g operational, 10-500Hz per IEC 60068-2-6
• Shock: 30g operational per IEC 60068-2-27
• Enclosure Rating: IP20 (when installed in appropriate enclosure)
• Dimensions: Standard Flex I/O module size (35mm DIN rail mount)
• Weight: Approximately 0.2kg (0.44 lbs)

Power & Communication:
• Backplane Power: 5V DC @ 150mA, 24V DC @ 50mA (typical)
• External Power: 24V DC ±20% @ 100mA (for isolated circuits)
• Communication: Flex I/O backplane (DeviceNet, ControlNet, EtherNet/IP via adapter)
• LED Indicators: Module status, channel status, diagnostics

Selection Recommendations:
When selecting this module, consider: maximum signal levels from field devices, required measurement accuracy for your process, environmental conditions at installation location, available backplane power budget, and communication network architecture. For applications requiring thermocouple or RTD inputs, consider companion temperature input modules. Our application engineers can review your I/O list and recommend optimal module configuration—provide process tag list, signal types, accuracy requirements, and environmental conditions for personalized selection assistance.

Advanced Configuration Options

Software Configuration Features:
• Individual channel enable/disable for power optimization
• Selectable input filtering (50Hz/60Hz rejection, custom time constants)
• Programmable alarm limits with hysteresis
• Engineering unit scaling with offset and gain adjustment
• Diagnostic event logging and timestamp recording

Integration Capabilities:
• Add-On Instruction (AOI) libraries for Studio 5000
• Pre-configured HMI faceplates for FactoryTalk View
• OPC UA server support for third-party SCADA integration
• Modbus TCP mapping for legacy system connectivity
• Cloud data forwarding via FactoryTalk Edge Gateway

Delivery, Service & Quality Assurance

Product Availability: OEM-quality modules typically ship within 3-5 business days for standard configurations. Custom-tested or certified units may require 7-10 business days. All products undergo functional testing and calibration verification prior to shipment.

Warranty & Support: Comprehensive 12-month warranty covering manufacturing defects and component failures. Technical support includes remote configuration assistance, troubleshooting guidance, and firmware update recommendations. On-site commissioning services available for large-scale projects (region-dependent).

Documentation Package: Each module ships with complete technical documentation including installation quick-start guide, wiring diagrams with terminal assignments, Studio 5000 configuration examples, and calibration certificates. Detailed user manuals and CAD drawings available for download from our technical library.

Quality Certifications: Products meet UL 508, CE marking (Low Voltage Directive, EMC Directive), RCM (Australia/New Zealand), and EAC (Eurasian Conformity) standards. Manufactured in ISO 9001:2015 certified facilities with full traceability documentation.

Frequently Asked Questions (FAQ)

Q: How does the 1794-IF4IXT isolated analog input module integrate with existing ControlLogix systems?
A: The module mounts on any Flex I/O adapter (1794-AENT for EtherNet/IP, 1794-ADN for DeviceNet, etc.) and appears as standard I/O in your controller's I/O configuration tree. Simply add the module in Studio 5000, configure input ranges and filtering parameters, then map tags to your control logic. No special programming required beyond standard analog input handling.

Q: What is the maximum number of 1794-IF4IXT modules supported on a single Flex I/O rack?
A: A standard Flex I/O system supports up to 8 modules per adapter, limited by backplane power budget and communication update rates. Each 1794-IF4IXT consumes approximately 150mA at 5V DC and 50mA at 24V DC. For systems requiring more than 32 analog inputs (8 modules × 4 channels), deploy multiple Flex I/O adapters on your network.

Q: Can I mix voltage and current inputs on the same 1794-IF4IXT module?
A: Yes, each channel independently configures for voltage (±10V) or current (0-20mA/4-20mA) mode via software. For current mode operation, install a 250Ω precision resistor across the input terminals (typically supplied with module or available as accessory kit). Configuration changes take effect immediately without power cycling.

Q: What environmental protection does this module require for reliable operation?
A: The module carries IP20 rating and requires installation in a NEMA-rated enclosure appropriate for your environment (NEMA 12 for indoor industrial, NEMA 4X for washdown areas). Maintain ambient temperature between 0-60°C, ensure adequate ventilation for heat dissipation, and protect from direct water spray, corrosive gases, and excessive dust accumulation.

Q: Does the 1794-IF4IXT support remote monitoring and data logging capabilities?
A: Yes, when paired with FactoryTalk Edge Gateway or similar IoT platforms, analog input data streams to cloud-based historians and analytics tools. The module supports standard industrial protocols including EtherNet/IP (via Flex adapter), Modbus TCP mapping, and OPC UA for integration with third-party SCADA systems and enterprise MES platforms.

Q: How do I troubleshoot open-wire or signal fault conditions on input channels?
A: The module provides comprehensive diagnostics accessible through Studio 5000 or HMI displays. Open-wire detection automatically flags disconnected sensors, over-range indicators show signals exceeding configured limits, and channel fault bits trigger when isolation barriers fail. LED indicators on the module front panel provide at-a-glance status—solid green for normal operation, flashing red for channel faults, solid red for module-level errors.

Get Expert Selection Support

To receive detailed configuration recommendations, competitive quotations, or application-specific technical guidance, please provide our engineering team with the following project information:

• Project name and application overview
• Number and types of analog sensors (voltage/current, signal ranges)
• Required measurement accuracy and update rates
• Environmental conditions (temperature, humidity, vibration)
• Existing control system platform (ControlLogix, CompactLogix, etc.)
• Installation timeline and quantity requirements

Our certified automation specialists will respond within 24 hours with personalized module selection, system architecture recommendations, and comprehensive pricing.
