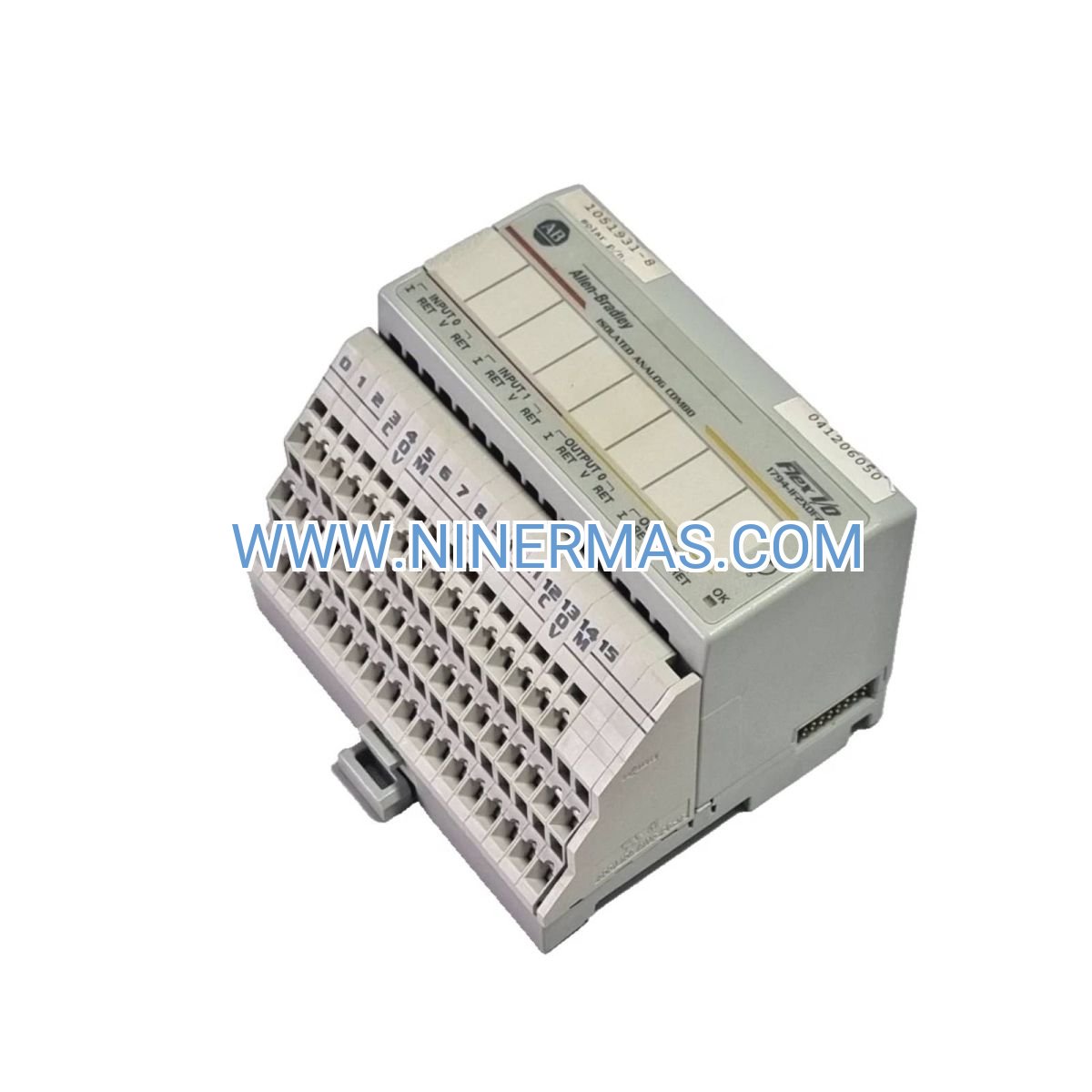

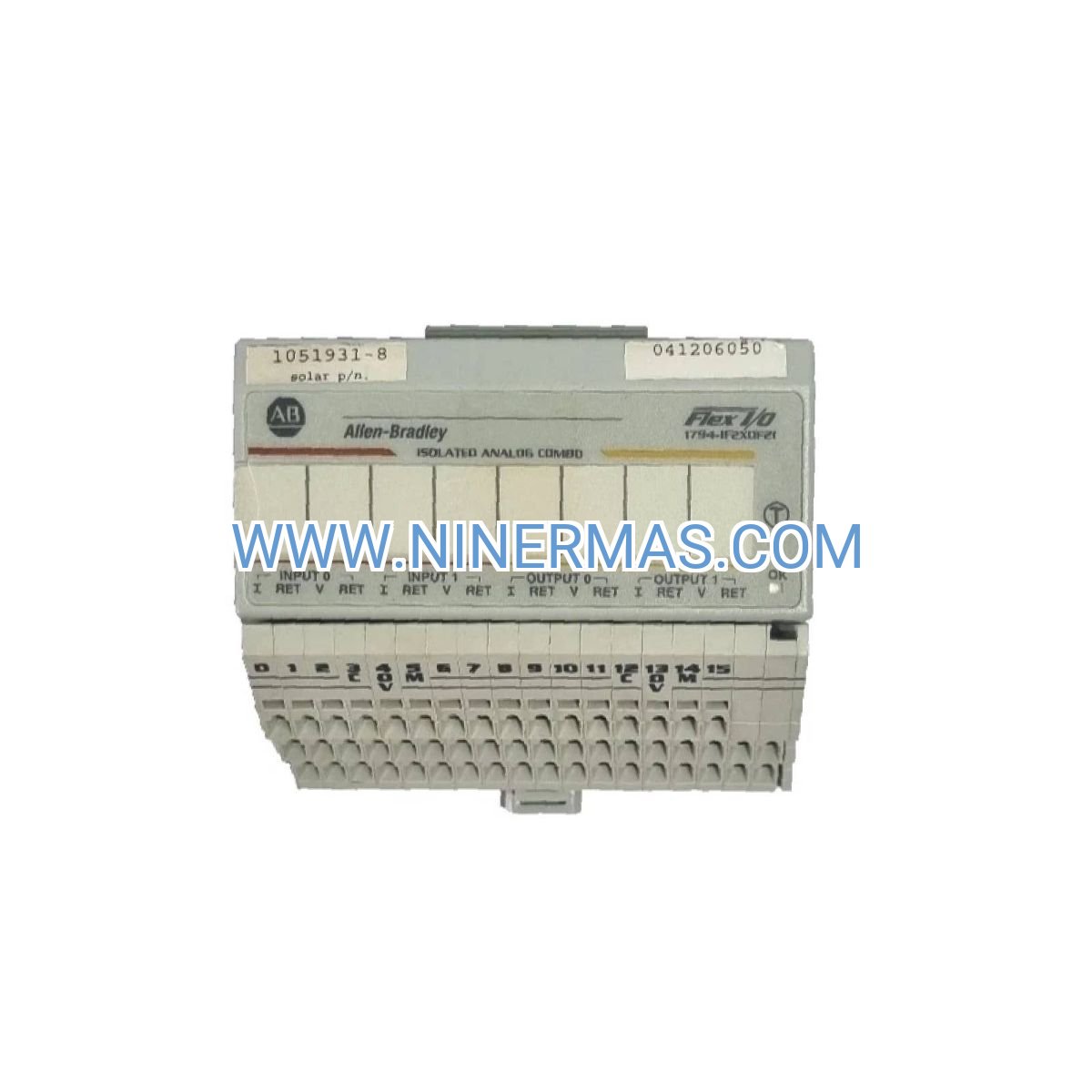

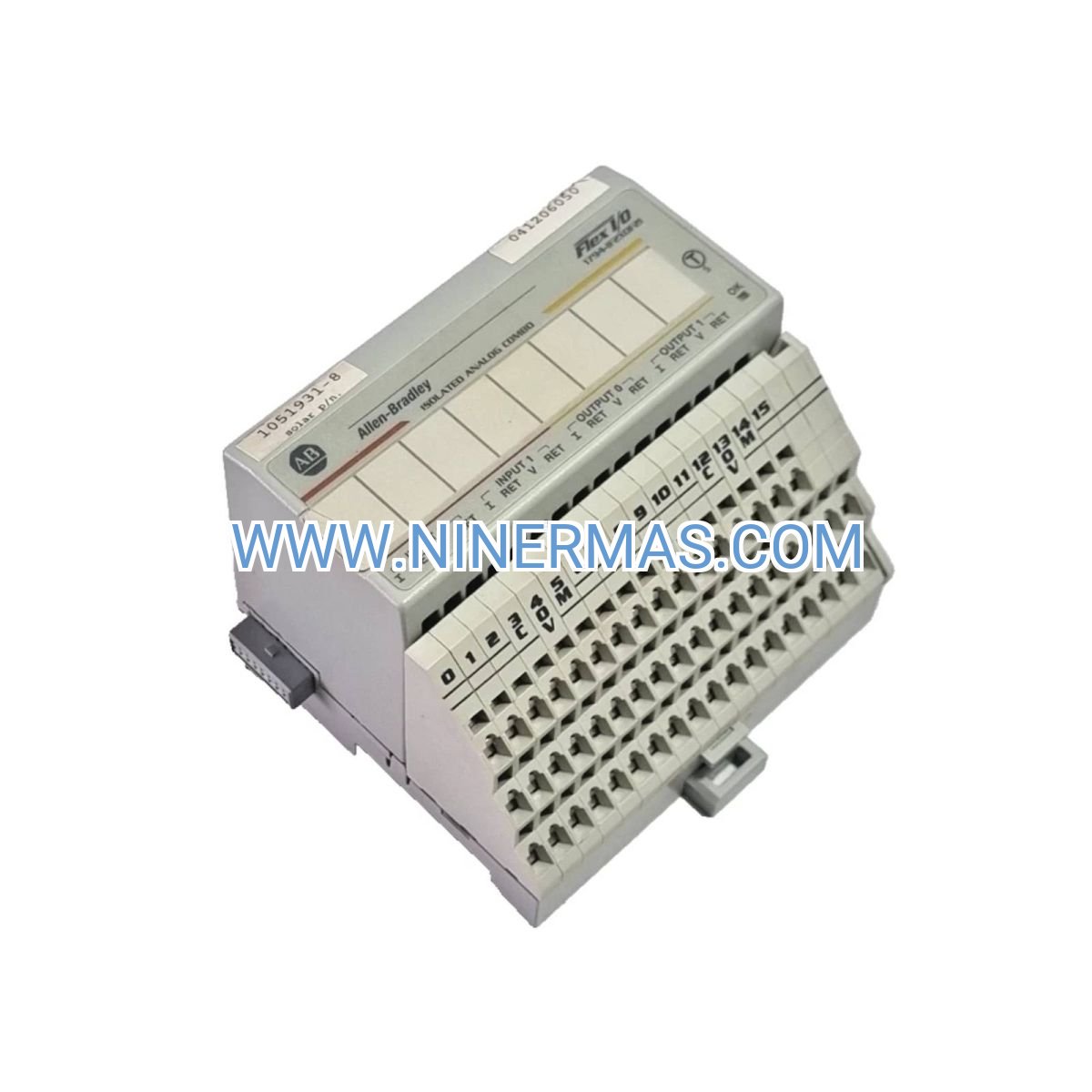

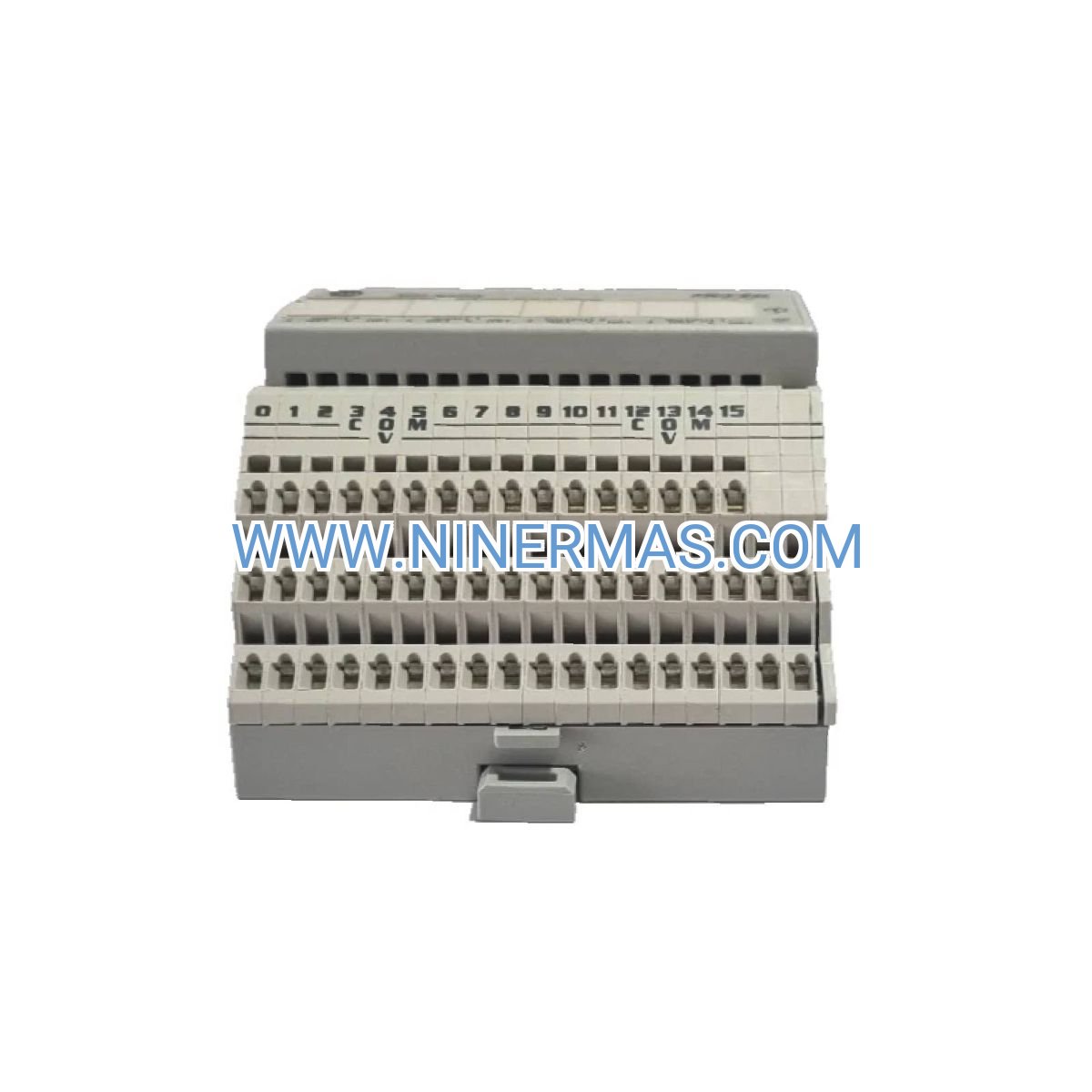

1794-IF2XOF21 Analog Combination Module (Industrial-Grade Signal Processing)

The 1794-IF2XOF21 represents a precision-engineered analog I/O solution for Flex-based control architectures. Combining dual analog inputs with dual analog outputs in a single compact module, this unit delivers exceptional signal fidelity and electrical isolation for mission-critical industrial processes. Engineered for environments where measurement accuracy and system uptime directly impact operational efficiency, the module supports voltage and current signal types with software-selectable ranges.

Designed to address the challenges of noisy industrial environments, each channel features robust isolation barriers that prevent ground loops and electromagnetic interference from compromising signal integrity. Whether you're monitoring temperature transmitters in a chemical reactor or controlling valve positioners in a water treatment facility, the 1794-IF2XOF21 ensures reliable data acquisition and precise actuator control. The module integrates seamlessly into existing Flex I/O racks, enabling rapid deployment without extensive system reconfiguration.

With factory calibration, hot-swap capability, and comprehensive diagnostic features, this analog combo module minimizes commissioning time and reduces maintenance overhead. The 16-bit resolution provides granular measurement precision, while the 10ms update rate ensures responsive control loop performance for dynamic processes.

Core Features & Benefits

→ Dual-Channel Architecture: Two isolated analog inputs and two isolated outputs eliminate the need for separate I/O modules, reducing panel space requirements and simplifying wiring infrastructure.

→ Multi-Range Flexibility: Software-configurable signal ranges (±10V, 0-10V, 0-20mA, 4-20mA) adapt to diverse sensor and actuator specifications without hardware modifications, accelerating project deployment.

→ 1500V Isolation Protection: Channel-to-channel and channel-to-backplane isolation safeguards control systems from voltage transients and ground potential differences common in industrial power distribution networks.

→ 16-Bit Measurement Precision: High-resolution analog-to-digital conversion captures subtle process variations, enabling tighter control tolerances and improved product quality in manufacturing operations.

✓ Hot-Swap Serviceability: Field-replaceable design allows module exchange during system operation, minimizing production downtime during maintenance activities.

✓ Integrated Diagnostics: Onboard LED indicators and software-accessible fault registers accelerate troubleshooting, reducing mean time to repair (MTTR) by up to 40%.

Typical Application Scenarios

Chemical Processing & Refining:
Monitor reactor temperatures and pressures while controlling proportional valves for reagent dosing. The module's isolation prevents electrical noise from variable frequency drives (VFDs) from corrupting critical process measurements, ensuring batch consistency and regulatory compliance.

Water & Wastewater Treatment:
Acquire pH sensor data and turbidity measurements while regulating chemical feed pumps and aeration blowers. The 4-20mA current loop capability maintains signal integrity across long cable runs between remote field instruments and central control rooms.

Food & Beverage Production:
Track pasteurization temperatures and flow rates while modulating steam valves and pump speeds. The module's conformal coating option protects electronics in high-humidity washdown environments, extending service life in sanitary applications.

HVAC & Building Automation:
Interface with temperature sensors, humidity transmitters, and pressure transducers while controlling damper actuators and variable air volume (VAV) boxes. The compact footprint maximizes I/O density in space-constrained mechanical rooms.

Energy & Utilities:
Measure power quality parameters and load currents while adjusting power factor correction capacitors and transformer tap changers. The module's wide operating temperature range (-20°C to 70°C with extended rating) suits outdoor substation installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1794-IF2XOF21 when your application requires both analog input monitoring and output control in a single module footprint. For input-only applications with higher channel counts, consider the 1794-IE8 (8-input module). For output-intensive applications, the 1794-OE4 (4-output module) may offer better economics. Verify that your control platform supports the Flex I/O communication adapter (DeviceNet, ControlNet, or EtherNet/IP) required for your network architecture.

Extended Functions

Advanced Filtering: Programmable digital filters suppress high-frequency noise from switching power supplies and motor drives, improving signal-to-noise ratio by up to 60dB without sacrificing response time.

Scaling & Linearization: Built-in engineering unit conversion and sensor linearization (square root, polynomial) reduce controller processing overhead and simplify ladder logic programming.

Alarm Thresholds: Configurable high/high-high and low/low-low alarm limits trigger immediate notifications when process variables exceed safe operating ranges, enabling proactive intervention before equipment damage occurs.

IoT Integration: When paired with EtherNet/IP adapters and edge gateways, analog data streams to cloud-based analytics platforms for predictive maintenance modeling and remote performance monitoring.

Delivery & Service Assurance

Standard Lead Time: In-stock modules ship within 24-48 hours via express courier services (DHL, FedEx, UPS). Typical transit time to major industrial hubs: 3-7 business days.

Custom Configuration: Pre-programmed modules with customer-specific I/O ranges and scaling parameters available with 5-10 business day lead time.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift. Extended 24-month and 36-month warranty plans available at purchase.

Technical Support: Direct access to application engineers via email (response within 4 hours) and phone support during business hours (GMT+8, 9:00-18:00). Remote diagnostic assistance for troubleshooting complex integration issues.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, RSLogix configuration examples, and calibration certificates. Full technical manuals and firmware updates available via download portal.

Frequently Asked Questions

Q: Can I mix voltage and current signals on the same module?
A: Absolutely. Each of the four channels (2 inputs + 2 outputs) can be independently configured for voltage or current operation through software settings in RSLogix 5000 or Studio 5000, providing maximum application flexibility.

Q: What terminal base unit is required for installation?
A: The module requires a 1794-TB3 (standard), 1794-TB3G (grounded), or 1794-TB3S (spring-clamp) terminal base. The TB3G variant is recommended for applications with significant electrical noise or when connecting to long cable runs exceeding 100 meters.

Q: How does the isolation protect my control system?
A: The 1500V isolation barrier prevents ground loops caused by potential differences between field devices and the control cabinet. This is critical when sensors and actuators are distributed across large facilities with separate grounding systems, eliminating measurement errors and protecting sensitive PLC backplane electronics.

Q: Is the module suitable for hazardous area installations?
A: The standard 1794-IF2XOF21 is rated for general industrial use (Class I, Division 2 when properly installed). For Class I, Division 1 or ATEX Zone 1 applications, consult our technical team for intrinsically safe barrier solutions or explosion-proof enclosure recommendations.

Q: What is the maximum cable length for 4-20mA signals?
A: Current loop signals can reliably transmit over distances up to 1000 meters (3280 feet) with standard 18 AWG shielded cable, making the module ideal for distributed process control applications where sensors are located far from the control room.

Q: Does the module support HART communication protocol?
A: No, the 1794-IF2XOF21 does not include HART pass-through capability. For applications requiring HART device configuration and diagnostics, consider the 1794-IRT8 HART-enabled input module or implement a separate HART multiplexer.

Ready to Optimize Your Process Control?

Contact our application engineering team to discuss your specific analog I/O requirements. We provide complimentary system design reviews, wiring diagram verification, and configuration file templates to accelerate your project deployment. Request a quotation today and receive detailed technical specifications, compliance documentation, and volume pricing options.
