1794-IE8XT Thermocouple Input Module | 8-Channel Flex I/O for Industrial Automation

1794-IE8XT Thermocouple Input Module – Industrial-Grade Temperature Measurement Solution

The 1794-IE8XT Thermocouple Input Module is a high-precision analog input device designed for industrial temperature sensing and process control applications. Through advanced 24-bit A/D conversion and individual channel isolation, it delivers accurate, stable temperature data from thermocouples and millivolt sources directly to your Flex I/O control system.

Engineered for demanding industrial environments including chemical processing, power generation, food & beverage production, and manufacturing automation, this module addresses critical challenges such as temperature drift, signal interference, electromagnetic noise, and multi-point monitoring complexity. It ensures reliable data acquisition even in harsh conditions with high EMI/RFI exposure.

With factory calibration, hot-swappable design, and compatibility with major thermocouple types (J, K, T, E, N, R, S, B), the 1794-IE8XT offers exceptional flexibility for system integrators, control engineers, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized configuration guidance and technical specifications tailored to your project requirements.

Core Features & Technical Advantages

8 Isolated Analog Input Channels
Each channel features independent electrical isolation up to 250V AC continuous, preventing ground loops and cross-channel interference. This architecture ensures measurement integrity in multi-sensor installations and protects against voltage transients.

Universal Thermocouple Compatibility
Supports J, K, T, E, N, R, S, and B-type thermocouples plus millivolt input ranges (±25mV, ±50mV, ±100mV). Software-selectable input types enable flexible sensor deployment without hardware modifications, reducing spare parts inventory and commissioning time.

Superior Measurement Accuracy
24-bit sigma-delta ADC delivers ±0.1% full-scale accuracy with 0.05°C resolution (type-dependent). Factory calibration certificates ensure traceability, while automatic cold junction compensation eliminates external reference requirements.

Robust Noise Rejection
Integrated 50/60Hz notch filtering and 500V isolation withstand industrial electrical noise. Shielded terminal blocks and differential inputs maintain signal quality in VFD-heavy environments, reducing false alarms and process variability.

Hot-Swap & Diagnostic Capabilities
Field-replaceable under power without system shutdown. Built-in diagnostics detect open thermocouples, out-of-range signals, and module faults, with status LEDs and network-accessible fault codes accelerating troubleshooting.

Seamless Flex I/O Integration

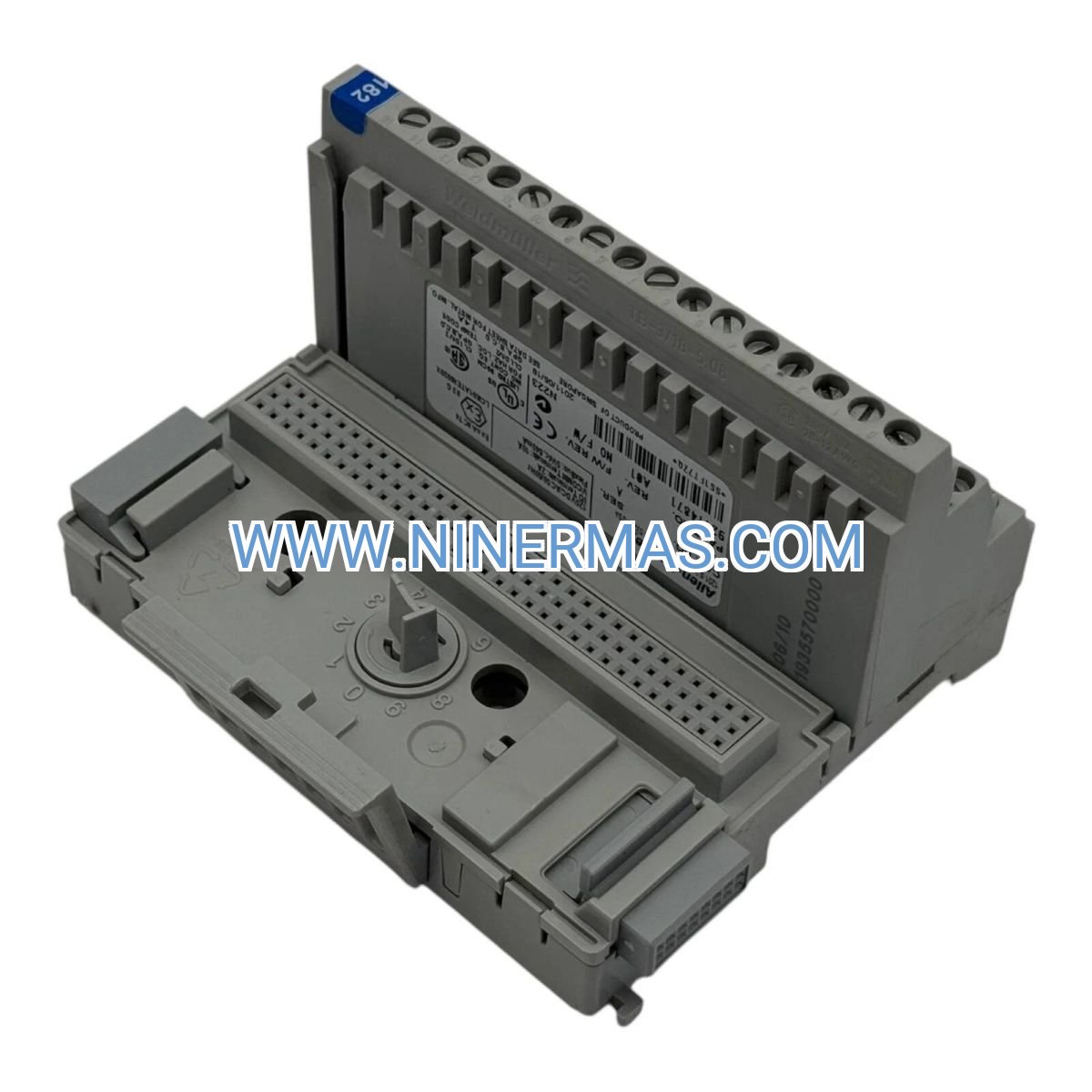

Mounts directly to 1794 backplane with spring-clamp or screw terminals. Automatic module recognition and RSLogix/Studio 5000 integration streamline configuration. Compatible with ControlLogix, CompactLogix, and SLC controllers via standard communication adapters.

Typical Application Scenarios

This module excels in applications demanding high-accuracy temperature monitoring, continuous process control, and regulatory compliance:

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation columns, and heat exchangers with multi-point thermocouple arrays. Isolated inputs prevent ground-loop errors in large-scale distributed control systems, ensuring safe operation within critical temperature windows.

Power Generation & Energy Systems
Track turbine exhaust, boiler superheater, and generator winding temperatures in real-time. High common-mode rejection handles electrical noise from switchgear and transformers, supporting predictive maintenance and efficiency optimization programs.

Food & Beverage Production
Validate pasteurization, sterilization, and cooking processes with certified accuracy. Supports HACCP compliance through continuous temperature logging and alarm generation, reducing batch rejection rates and regulatory audit risks.

Metal Processing & Heat Treatment
Control furnace zones, annealing cycles, and quench bath temperatures with fast update rates (10ms per channel). R and S-type thermocouple support enables high-temperature applications up to 1768°C (3214°F) in forging and casting operations.

Pharmaceutical & Cleanroom Manufacturing
Maintain tight temperature tolerances in lyophilizers, autoclaves, and environmental chambers. Isolated design prevents electrical interference with sensitive analytical instruments, while diagnostic features support 21 CFR Part 11 validation requirements.

Technical Specifications & Selection Guide

Selection Considerations:
When specifying the 1794-IE8XT, evaluate: (1) Maximum process temperature range and corresponding thermocouple type, (2) Required measurement accuracy and response time for your control loop, (3) Electrical noise environment and grounding strategy, (4) Available backplane slots and power budget, (5) Ambient temperature and enclosure cooling provisions. For applications requiring faster sampling (<10ms) or higher channel density, consult our product comparison guide or request application engineering support.

Advanced Configuration Options

Custom Scaling & Linearization
Configure engineering units (°C, °F, K) and custom scaling ranges via RSLogix/Studio 5000. Built-in linearization tables for all thermocouple types eliminate manual polynomial calculations, while user-defined curves support proprietary sensor types.

Alarm & Notification Integration
Set high/high-high and low/low-low alarm thresholds with programmable hysteresis. Alarms trigger discrete outputs, HMI notifications, or email alerts via controller logic, enabling proactive intervention before process upsets occur.

Data Logging & Trending
Stream temperature data to historians (FactoryTalk, OSIsoft PI, Wonderware) for compliance reporting and process optimization. Time-stamped records support root-cause analysis, energy audits, and continuous improvement initiatives.

Redundancy & Failover
Deploy in redundant controller architectures with automatic switchover. Module-level diagnostics and health monitoring integrate with plant-wide asset management systems (PlantPAx, DeltaV) for predictive maintenance scheduling.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days from regional distribution centers. Custom-configured modules or bulk orders typically require 2–3 weeks; expedited service available upon request.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Complimentary pre-sales application engineering and post-sales commissioning assistance. Remote diagnostics and on-site startup services offered based on project scope and location. Access to 24/7 technical hotline for urgent troubleshooting.

Documentation Package: Each module includes installation instructions, wiring diagrams, dimensional drawings, calibration certificates, and sample RSLogix code. Downloadable resources include 3D CAD models (STEP, IGES), product certifications, and integration guides for common HMI/SCADA platforms.

Quality Standards: Manufactured in ISO 9001:2015 certified facilities with full traceability. Complies with RoHS, REACH, and conflict minerals regulations. Batch testing includes burn-in, thermal cycling, and functional verification per IEC 61131-2 standards.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1794-IE8XT to my existing Flex I/O system?
A: The module mounts directly onto any 1794 Flex I/O backplane. Ensure your communication adapter (e.g., 1794-AENT for EtherNet/IP) firmware is up-to-date. Connect thermocouples to the removable terminal block observing polarity (+/-), then configure input types and scaling in your controller programming software. Refer to publication 1794-UM001 for detailed wiring diagrams.

Q: What is the maximum number of modules I can install on a single backplane?
A: A standard 1794 backplane supports up to 8 I/O modules (excluding the adapter). The 1794-IE8XT consumes 1.5W, so verify total power budget does not exceed backplane capacity (typically 10W for compact, 25W for extended). For larger systems, use multiple backplanes or distributed I/O architecture.

Q: Can this module achieve energy savings in temperature control applications?
A: Yes. Precise temperature measurement enables tighter PID control loop tuning, reducing overshoot and energy waste in heating/cooling systems. Customers report 15–30% energy reduction in furnace and HVAC applications by minimizing temperature cycling and optimizing setpoint tracking. Actual savings depend on process characteristics and baseline control performance.

Q: What environmental protection does the module provide?
A: The module itself is rated IP20 (finger-safe, no ingress protection). For dusty or wet environments, install in a NEMA 4/4X or IP65-rated enclosure with appropriate sealing and climate control. Conformal coating options are available for high-humidity or corrosive atmospheres—consult factory for custom environmental specifications.

Q: Does the 1794-IE8XT support remote monitoring and IoT integration?
A: When paired with EtherNet/IP or ControlNet adapters, temperature data is accessible via standard industrial protocols (Modbus TCP, OPC UA, MQTT). Integration with cloud platforms (AWS IoT, Azure IoT Hub, ThingWorx) is achievable through edge gateways or controller-based data forwarding. Our application team can recommend architectures for specific Industry 4.0 use cases.

Q: What is the typical calibration interval, and can I perform field calibration?
A: Factory calibration is valid for 12 months under normal operating conditions. Field calibration requires precision voltage sources and is generally not recommended; return modules to authorized service centers for recalibration. Diagnostic features monitor drift and alert when recalibration is due, supporting ISO 17025 and NIST traceability requirements.

Request a Custom Solution

To obtain detailed selection assistance, pricing quotations, or application-specific technical support, please provide the following project information: Project name and industry, Temperature measurement range and accuracy requirements, Number of measurement points and thermocouple types, Control system platform (ControlLogix, CompactLogix, etc.), Environmental conditions (ambient temp, enclosure rating), and Delivery timeline and quantity. Our engineering team will respond within one business day with a tailored recommendation and formal quotation.
