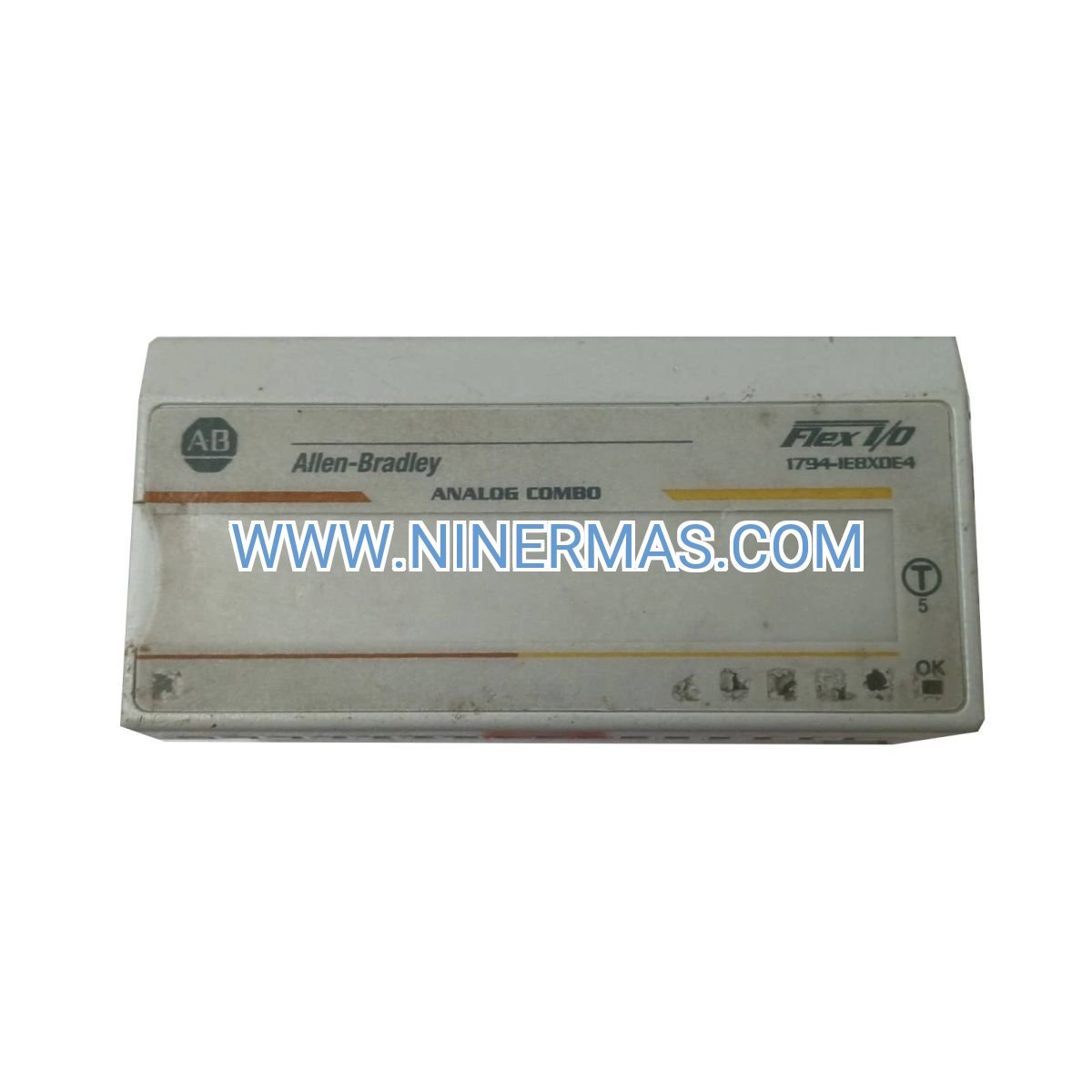

1794-IE8XOE4 Analog Combination Module (Industrial-Grade Multi-Channel I/O Solution)

The 1794-IE8XOE4 represents a versatile analog interface solution engineered for industrial control systems requiring simultaneous multi-point monitoring and actuation. This combination module integrates eight independently configurable analog inputs with four analog outputs in a single compact footprint, streamlining system architecture while maintaining exceptional signal fidelity. Designed for Allen-Bradley Flex I/O platforms, it serves as the critical bridge between field instrumentation and programmable logic controllers across manufacturing, process, and building automation environments.

Industrial facilities face mounting pressure to optimize panel space, reduce installation complexity, and maintain measurement accuracy under challenging environmental conditions. The 1794-IE8XOE4 addresses these demands by consolidating traditionally separate input and output modules into one hot-swappable unit, cutting wiring labor by up to 40% while delivering 16-bit resolution for precision control applications. Whether you're retrofitting legacy systems or designing greenfield installations, this module provides the flexibility and reliability demanded by mission-critical operations.

Target users include control system integrators, plant maintenance engineers, OEM machine builders, and automation professionals seeking to maximize I/O density without compromising signal integrity. With factory calibration, comprehensive diagnostics, and proven compatibility across ControlLogix, CompactLogix, and SLC 500 platforms, the 1794-IE8XOE4 accelerates commissioning timelines while reducing total cost of ownership through simplified inventory management and reduced spare parts requirements.

Core Features & Benefits

✓ Dual-Function Architecture: Combines 8 analog inputs and 4 analog outputs in one module, eliminating the need for separate I/O cards and reducing backplane slot consumption by 50% compared to discrete solutions.

✓ Universal Signal Compatibility: Each channel supports voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) signals with software-selectable configuration, enabling seamless integration with diverse sensor and actuator types without hardware modifications.

✓ High-Resolution Conversion: 16-bit analog-to-digital and digital-to-analog converters deliver 0.0015% full-scale accuracy, ensuring precise measurement and control for temperature loops, pressure regulation, and flow management applications.

✓ Rapid Update Performance: 10ms typical channel scan time supports fast-response control strategies, making it suitable for dynamic processes requiring quick feedback loops and real-time adjustments.

✓ Industrial-Hardened Design: Channel-to-backplane isolation (50V continuous), conformal coating, and 0-60°C operating range protect against electrical noise, moisture, and thermal stress in harsh factory environments.

✓ Hot-Swap Capability: Field-replaceable design allows module exchange during system operation without shutting down the entire I/O rack, minimizing production downtime during maintenance activities.

Application Scenarios

→ Chemical Processing Plants: Monitor reactor temperatures, pressures, and pH levels through multiple inputs while controlling proportional valves and variable frequency drives via analog outputs. The module's isolation prevents ground loop interference common in distributed process installations, ensuring stable control even with long cable runs to remote field devices.

→ Food & Beverage Production: Integrate weight scales, flow meters, and temperature sensors for recipe management systems, with outputs driving pneumatic actuators and servo positioners. The 4-20mA current loop support maintains signal integrity in wet environments where voltage signals would be susceptible to degradation.

→ HVAC & Building Automation: Consolidate zone temperature monitoring, humidity sensing, and CO2 detection with damper positioning and valve modulation in a single module. Reduces panel complexity in mechanical rooms while providing the channel density needed for multi-zone climate control strategies.

→ Water & Wastewater Treatment: Acquire data from turbidity sensors, dissolved oxygen probes, and level transmitters while regulating chemical dosing pumps and aeration blowers. The module's diagnostic capabilities flag sensor failures and wiring faults before they impact treatment quality.

→ Packaging Machinery: Interface with tension sensors, web guides, and registration marks on high-speed packaging lines, outputting control signals to servo drives and pneumatic actuators. Fast update rates support the tight synchronization required for consistent product quality at production speeds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1794-IE8XOE4 when your application requires both analog input monitoring and output control within the same process area. If you need input-only functionality, consider the 1794-IE8 (8 inputs). For output-intensive applications, the 1794-OE4 (4 outputs) may be more cost-effective. Verify that your Flex I/O adapter module supports the total backplane current draw when planning multi-module configurations.

Extended Functions

Advanced Diagnostics: Built-in channel health monitoring detects open circuits, short circuits, and out-of-range conditions, with status bits accessible through controller logic for predictive maintenance strategies.

Scaling & Linearization: Configure input/output scaling parameters directly in RSLogix software to convert raw counts into engineering units (°C, PSI, GPM), eliminating the need for custom ladder logic calculations.

Filtering Options: Selectable digital filtering reduces noise on input signals without requiring external signal conditioners, with time constants adjustable from 1ms to 16.5 seconds based on process dynamics.

Alarm Thresholds: Program high/high-high and low/low-low alarm limits for each input channel, triggering controller interrupts when process variables exceed safe operating ranges.

IoT Integration Readiness: Data accessible via EtherNet/IP for integration with SCADA systems, cloud analytics platforms, and Industry 4.0 initiatives through standard Rockwell Automation communication protocols.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom-configured modules or bulk orders may require 5-10 business days for preparation and quality verification.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship, with optional extended service agreements available for critical applications requiring guaranteed uptime.

Technical Support: Access to experienced application engineers for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start guide. Complete user manuals, CAD drawings, and sample RSLogix code available for download from our technical library.

Calibration Certification: Factory calibration certificate included, documenting traceability to NIST standards. Field recalibration typically not required during normal service life.

Frequently Asked Questions

Q: What terminal base module is required for field wiring connections?
A: The 1794-IE8XOE4 requires a 36-pin terminal base such as the 1794-TB3 (screw terminals) or 1794-TB3S (spring-clamp terminals). The terminal base is ordered separately and must match the module's pin configuration.

Q: Can I configure some channels as voltage inputs while others use current inputs on the same module?
A: Yes, each of the 8 input channels and 4 output channels is independently configurable for either voltage or current operation through software settings in RSLogix, providing maximum application flexibility.

Q: How does this module compare to remote I/O solutions for distributed installations?
A: The 1794-IE8XOE4 is ideal for centralized control panels. For distributed architectures with I/O points located far from the main controller, consider POINT I/O or ArmorBlock modules with EtherNet/IP connectivity to reduce wiring costs.

Q: What is the maximum recommended cable length for analog signal integrity?
A: Current loop signals (4-20mA) support cable runs up to 500 meters with minimal signal degradation. Voltage signals should be limited to 100 meters and use shielded twisted-pair cable to minimize electromagnetic interference.

Q: Does the module support simultaneous input reading and output writing operations?
A: Yes, all input channels and output channels operate independently with concurrent data transfer over the Flex I/O backplane, ensuring real-time performance without channel multiplexing delays.

Q: Are there any energy efficiency features for reducing power consumption in standby mode?
A: The module operates at constant low power (1.5W typical). For applications requiring power management, consider implementing controller logic to disable unused channels or use sleep modes during non-production periods.

Take the Next Step

Ready to streamline your analog I/O architecture? Contact our technical sales team for application-specific recommendations, volume pricing, and integration support. Request a detailed quotation including compatible terminal bases, power supplies, and communication adapters tailored to your control system requirements.
