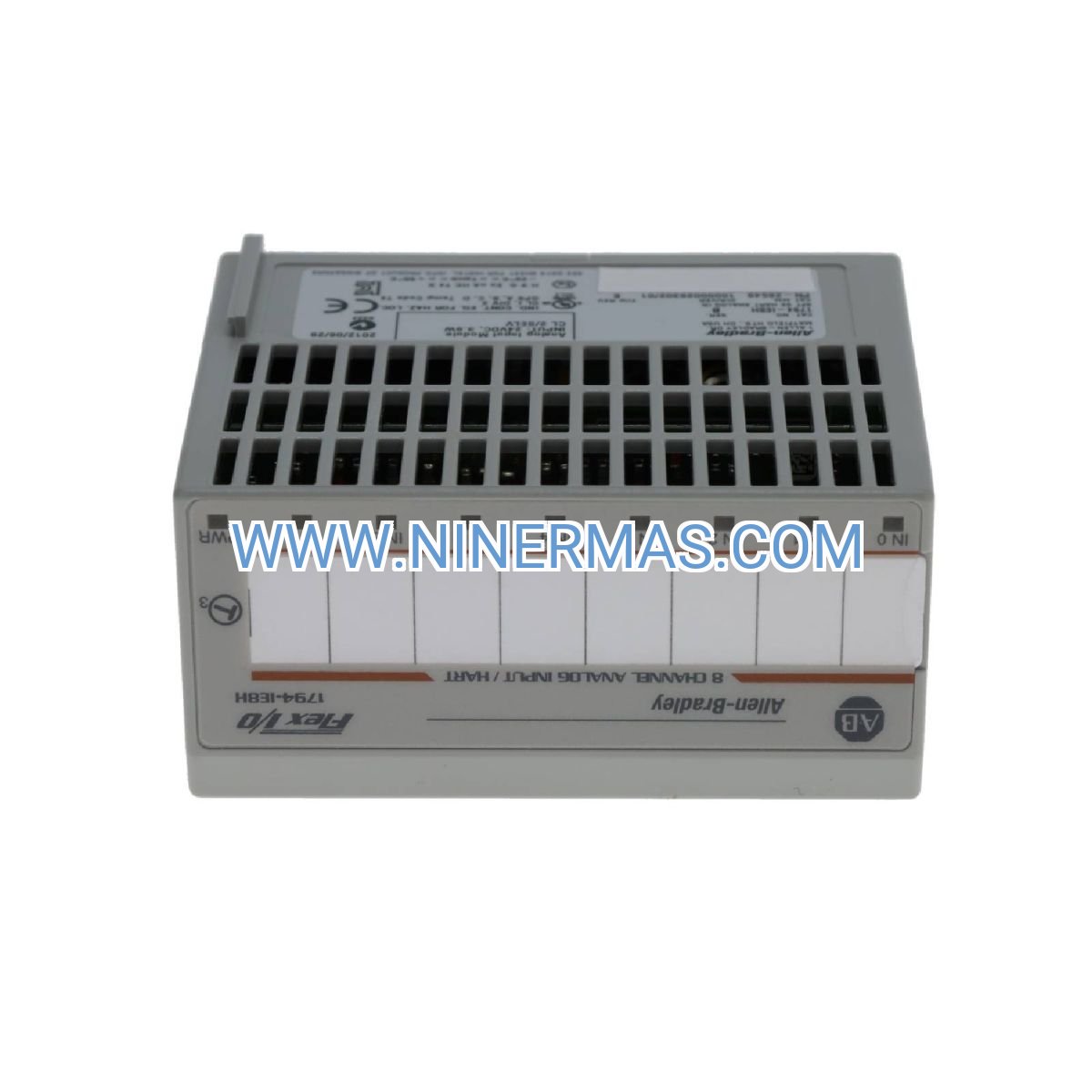

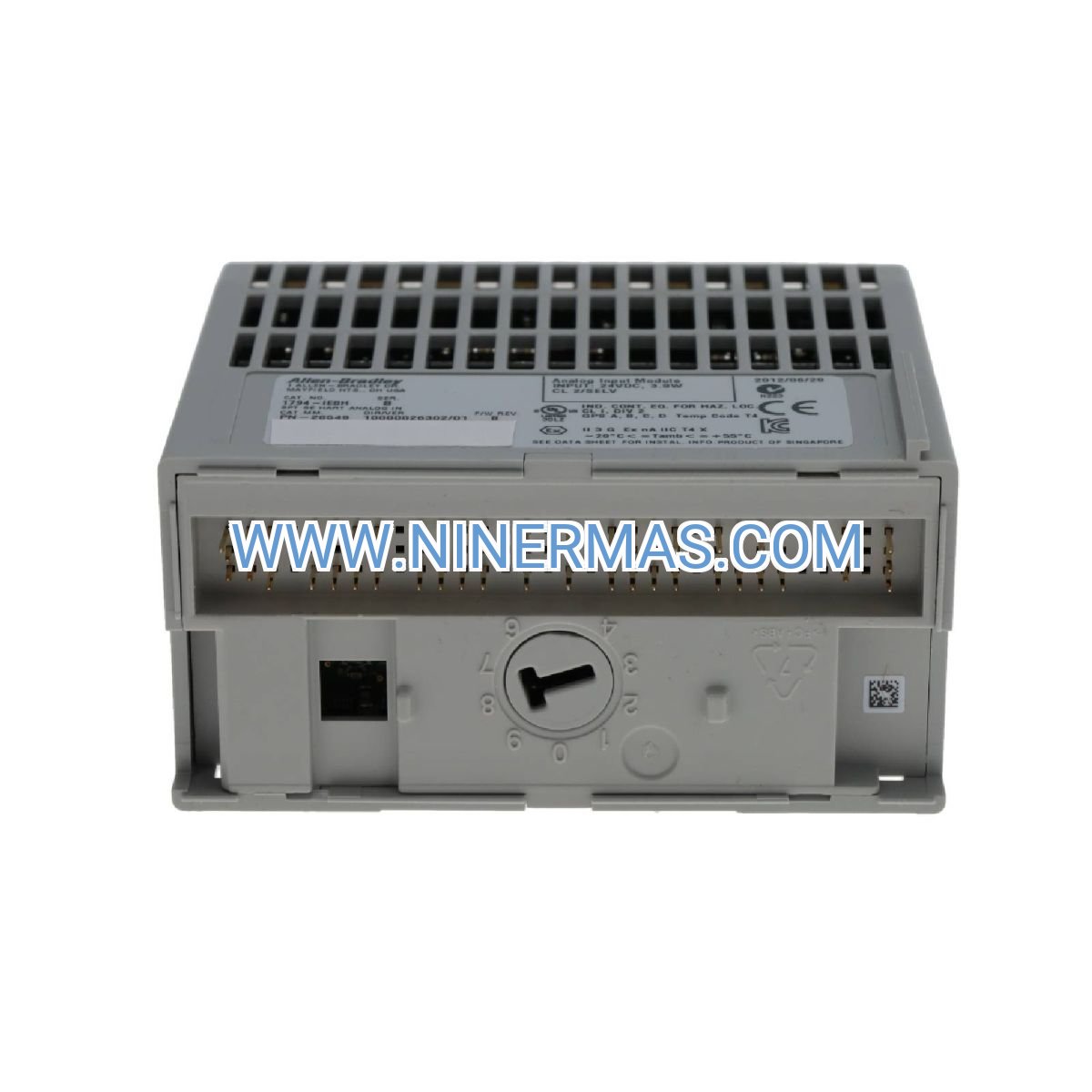

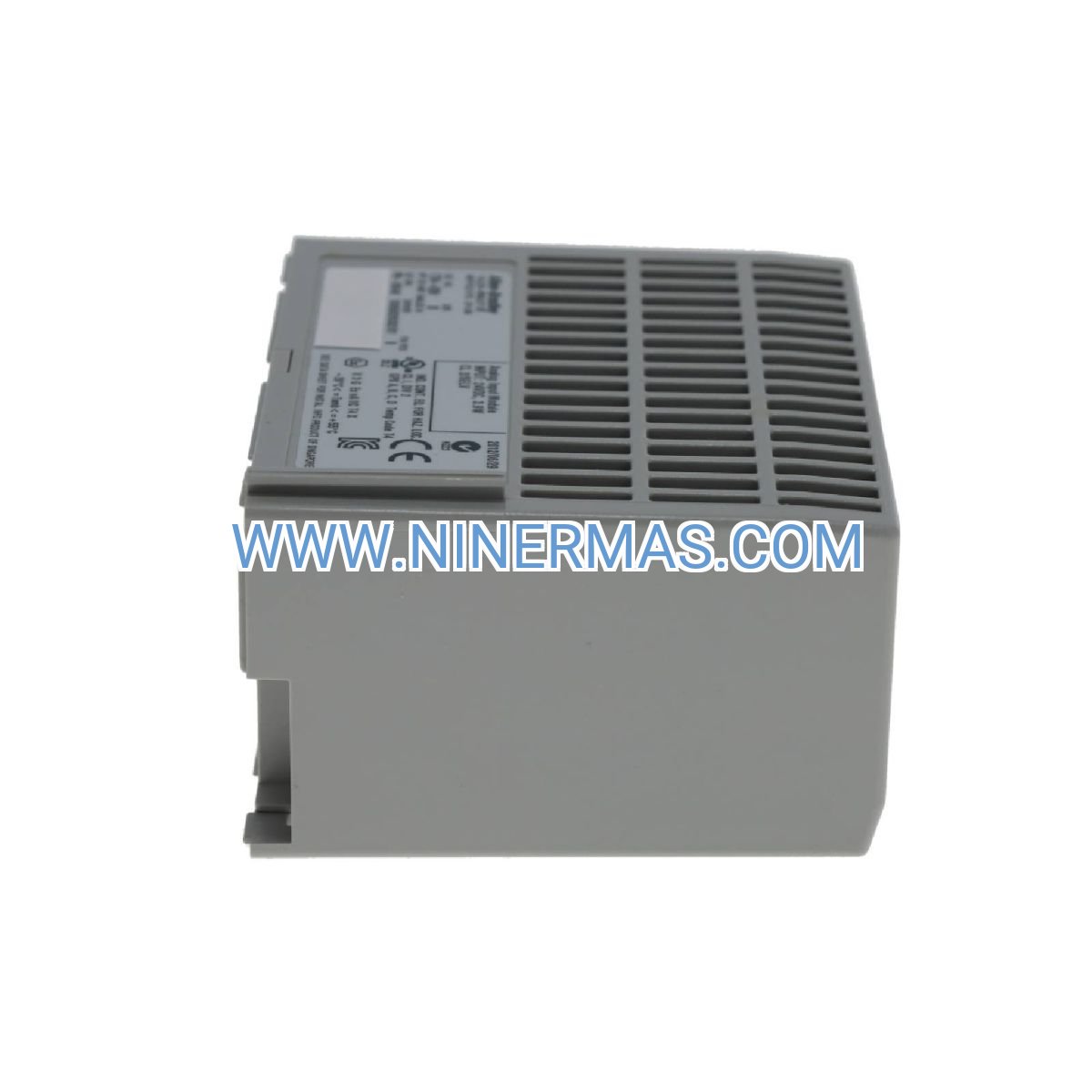

Allen-Bradley 1794-IE8H HART Analog Input Module – Industrial-Grade 8-Channel Flex I/O Solution

The Allen-Bradley 1794-IE8H HART Analog Input Module is a high-performance industrial control component designed for precision signal acquisition in process automation systems. Through advanced HART (Highway Addressable Remote Transducer) communication protocol and 8 differential analog input channels, this module delivers accurate real-time data collection, intelligent diagnostics, and seamless integration with Flex I/O distributed control architectures.

Ideal for oil & gas refineries, chemical processing plants, water treatment facilities, power generation stations, and pharmaceutical manufacturing, this module addresses critical challenges including signal interference, calibration drift, limited diagnostic visibility, and complex multi-point monitoring requirements in harsh industrial environments.

Engineered with standardized design and flexible configuration options, the 1794-IE8H offers superior noise immunity, API 670 compliance, hot-swappable installation, and comprehensive fault detection—making it the preferred choice for system integrators, control engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our application engineers for customized configuration guidance and technical quotations.

Core Features & Technical Advantages

HART Protocol Intelligence
Supports HART communication overlay on 4-20mA signals, enabling simultaneous process variable transmission and digital device configuration. Access advanced diagnostics, calibration data, and sensor health information without interrupting control loops.

8 Differential Input Channels
Provides eight isolated differential inputs with 16-bit resolution, ensuring precise measurement of voltage (±10V) or current (4-20mA) signals. Differential architecture eliminates common-mode noise and ground loop interference in industrial wiring.

API 670 Machinery Protection Compliance
Meets API Standard 670 requirements for vibration, position, and temperature monitoring in rotating machinery protection systems. Certified for critical turbomachinery applications in petrochemical and power industries.

Hot-Swappable & Modular Design
Enables online module replacement without system shutdown, minimizing production downtime. Compact Flex I/O form factor allows flexible rack configuration and easy expansion as system requirements grow.

Comprehensive Diagnostics & Protection
Built-in self-diagnostics detect open circuit, short circuit, out-of-range signals, and module faults. LED status indicators and network-accessible fault logs accelerate troubleshooting and reduce mean time to repair (MTTR).

Industrial-Hardened Construction
Conformal-coated circuitry withstands temperature extremes (-40°C to +70°C), vibration, humidity, and electromagnetic interference. Suitable for hazardous area installations when paired with appropriate barriers or isolators.

Typical Application Scenarios

This module excels in applications demanding high accuracy, diagnostic intelligence, and reliable operation under challenging conditions:

Process Control & Monitoring
Acquire temperature, pressure, flow, and level measurements from HART-enabled field transmitters in continuous process industries. Centralize data collection for DCS/SCADA systems while maintaining local loop integrity and device management capabilities.

Turbomachinery Protection Systems
Monitor vibration probes, bearing temperature sensors, and axial position transducers in gas turbines, steam turbines, and centrifugal compressors. Comply with API 670 standards for critical machinery shutdown and alarm systems in refineries and power plants.

Environmental & Emissions Monitoring
Interface with gas analyzers, pH sensors, and particulate monitors in air quality control systems, wastewater treatment plants, and stack emission monitoring applications. Leverage HART diagnostics for predictive maintenance and regulatory compliance reporting.

Batch & Discrete Manufacturing
Integrate analog feedback from pneumatic actuators, variable frequency drives, and quality inspection sensors in food processing, pharmaceutical production, and automotive assembly lines. Support recipe-driven processes with flexible I/O mapping and rapid changeover.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key electrical, mechanical, and environmental parameters:

Input Specifications:
• Number of Channels: 8 differential analog inputs
• Signal Types: 4-20mA, 0-20mA, ±10V DC
• Resolution: 16-bit (0.0015% of full scale)
• Accuracy: ±0.1% of full scale at 25°C
• Update Rate: Configurable, up to 10ms per channel
• HART Support: Simultaneous analog + digital communication

Power & Communication:
• Backplane Power: 5V DC @ 150mA, 24V DC @ 50mA (typical)
• Network Interface: Flex I/O backplane (ControlNet, DeviceNet, EtherNet/IP compatible)
• Isolation: 250V AC channel-to-backplane, 30V AC channel-to-channel

Environmental & Mechanical:
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5g operational, 50g shock
• Enclosure Rating: Open-type (requires suitable enclosure)
• Dimensions: 118mm H × 35mm W × 87mm D
• Weight: Approximately 0.15 kg

Selection Considerations:
When specifying the 1794-IE8H, evaluate: number of analog signals, signal type (current vs. voltage), required HART functionality, environmental conditions, hazardous area classification, and compatibility with existing Flex I/O network adapter. For complex applications or custom configurations, provide process flow diagrams, I/O lists, and environmental data to our engineering team for optimized system design.

Advanced Configuration & Integration Options

RSLogix/Studio 5000 Integration: Pre-built Add-On Instructions (AOI) and function blocks simplify programming. Configure channel scaling, alarm limits, and HART pass-through via intuitive software interface.

Redundancy Support: Compatible with redundant Flex I/O adapters for high-availability applications. Automatic failover ensures continuous operation during controller or network faults.

Third-Party Device Compatibility: Works with HART-enabled transmitters from Rosemount, Endress+Hauser, Yokogawa, Siemens, and other major instrumentation vendors. Universal HART DDL support enables full device configuration and diagnostics.

Cybersecurity Features: Supports secure backplane communication and integrates with Rockwell Automation's Trusted system architecture for defense-in-depth industrial network protection.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured modules require 10-15 business days for factory testing and documentation.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical installations.

Technical Support: Complimentary pre-sale application engineering assistance, post-sale commissioning guidance, and remote troubleshooting support. On-site startup services available in select regions (subject to travel charges).

Documentation Package: Each module ships with installation instructions, wiring diagrams, configuration quick-start guide, and certificate of conformity. Full technical manuals, CAD drawings, and sample code available for download from our support portal.

Quality Certifications: UL/cUL Listed, CE marked, RoHS compliant. Manufactured in ISO 9001-certified facilities with full traceability and factory acceptance testing (FAT) documentation upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1794-IE8H HART analog input module integrate with existing Allen-Bradley control systems?
A: The module mounts on any Flex I/O adapter (1794-AENT EtherNet/IP, 1794-ACN15 ControlNet, 1794-ADN DeviceNet, etc.) and appears as standard analog input points in your RSLogix or Studio 5000 project. HART data is accessible via explicit messaging or integrated AOIs. No special gateways required—seamless integration with ControlLogix, CompactLogix, and MicroLogix platforms.

Q: What is the maximum number of HART devices I can connect to one 1794-IE8H module?
A: Each of the 8 input channels can interface with one HART field device, supporting up to 8 HART instruments per module. For larger systems, install multiple modules on the same Flex I/O rack. Each channel operates independently for simultaneous multi-device communication.

Q: What energy savings or efficiency improvements can I expect from using HART-enabled analog input modules?
A: While the module itself doesn't directly reduce energy consumption, HART diagnostics enable predictive maintenance, early fault detection, and optimized process control—reducing unplanned downtime by up to 25% and improving overall equipment effectiveness (OEE). Remote calibration and configuration eliminate field trips, cutting maintenance labor costs by 15-30%.

Q: What are the installation environment requirements and ingress protection rating?
A: The 1794-IE8H is an open-type module designed for installation inside NEMA-rated control enclosures (NEMA 12/IP54 minimum recommended). Operating temperature range is -40°C to +70°C with 5-95% non-condensing humidity. For outdoor or washdown environments, house the Flex I/O system in appropriately rated enclosures (NEMA 4X/IP66).

Q: Can I remotely monitor and configure connected HART devices? Which protocols are supported?
A: Yes. HART data is accessible via EtherNet/IP, ControlNet, or DeviceNet networks using standard Rockwell Automation communication protocols. Integrate with PlantPAx DCS, FactoryTalk View HMI, or third-party SCADA systems. Supports HART-IP gateway functionality for direct access from asset management software (AMS, PACTware, FieldCare).

Q: Is the module hot-swappable, and what precautions should I take during replacement?
A: Yes, the 1794-IE8H supports hot-swap (online insertion and removal) when used with electronic keying enabled in your controller configuration. Before removal, verify module status LEDs indicate normal operation, and ensure replacement module is keyed identically. The controller will automatically detect and re-establish communication within 2-3 seconds.

Request Custom Configuration & Technical Support

To receive a tailored system design, competitive quotation, or application-specific technical consultation, please provide the following project details: application description, number and type of analog signals, HART device list, environmental conditions, network architecture, and any special certifications required (ATEX, IECEx, SIL, etc.). Our certified application engineers will respond within 24 hours with optimized recommendations and budget pricing.
