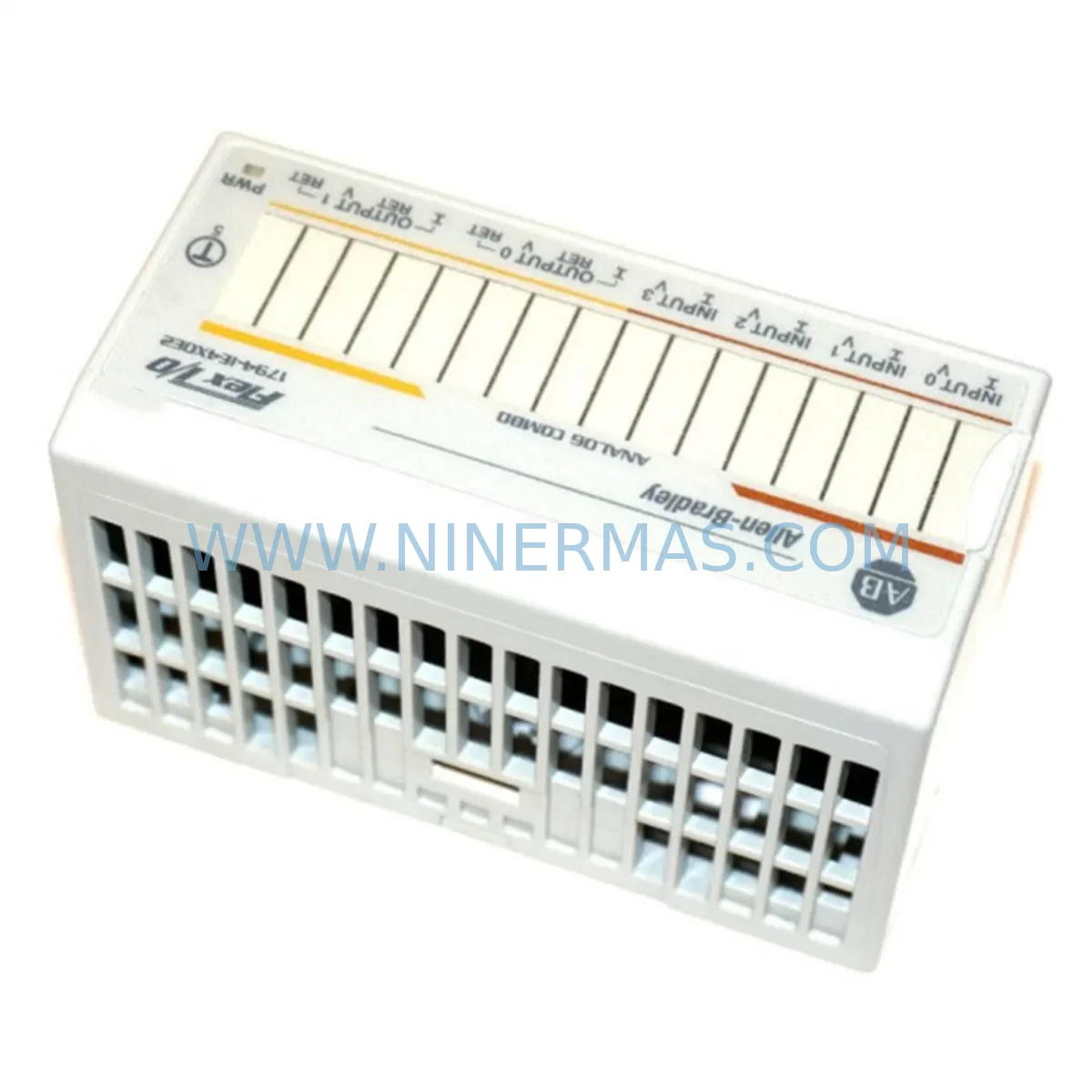

Allen-Bradley 1794-IE4X0E2 Spare Part for FLEX I/O

Allen-Bradley 1794-IE4X0E2 Spare Part for FLEX I/O

The Allen-Bradley 1794-IE4X0E2 is a FLEX I/O analog input module designed for industrial process control environments where accurate signal acquisition and system reliability are non-negotiable. As a 4-channel analog input module supporting both current (4–20 mA) and voltage (0–10 V) input modes, the 1794-IE4X0E2 is widely deployed in manufacturing lines, water treatment facilities, chemical processing plants, and energy management systems. When this module fails or reaches end-of-life, every minute of unplanned downtime translates directly into production loss. Maintaining a verified spare in your parts inventory is the most effective strategy for protecting operational continuity.

From a maintenance engineer’s perspective, the 1794-IE4X0E2 sits at the heart of the analog signal chain. Before replacing this module, it is essential to verify the integrity of the surrounding system components. The 1794-AENT or 1794-ACNR15 adapter module that hosts the FLEX I/O backplane must be confirmed operational, as a faulty adapter can cause false module faults that mimic analog input failures. The 24 VDC field power supply feeding the I/O bank should be checked for voltage stability and ripple, since under-voltage conditions can corrupt analog readings and trigger nuisance faults. Terminal wiring at the 1794-TB3 or 1794-TB3S terminal base must be inspected for loose connections, corrosion, or incorrect shielding, all of which directly affect signal accuracy on a 4–20 mA loop.

For procurement engineers, sourcing the 1794-IE4X0E2 requires attention to revision level and firmware compatibility with the host controller. This module is commonly used alongside the 1794-OE4 analog output module in closed-loop control applications, and both should be treated as paired spare items in any well-structured maintenance BOM. The 1794-IB16 and 1794-OB16 digital I/O modules sharing the same FLEX I/O rack should also be inspected during any analog module replacement, as backplane communication errors can affect the entire I/O bank. If the system uses a 1747-SN Remote I/O Scanner or a 1756-DNB DeviceNet Bridge for network communication, confirming that the network node address and baud rate settings are preserved after module swap is a critical step before returning the line to production.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for systems using the 1794-IE4X0E2 should extend beyond the module itself. During scheduled annual shutdowns or quarterly cabinet inspections, maintenance teams should simultaneously evaluate the condition of the 1794-AENT EtherNet/IP adapter, which manages all data exchange between the FLEX I/O bank and the ControlLogix or CompactLogix controller. If the adapter’s firmware is outdated, upgrading it during the same maintenance window avoids a second shutdown cycle.

The 24 VDC power supply module — often a 1606-XLP or equivalent industrial DIN rail power supply — should be load-tested during the inspection. A degraded power supply that still passes basic voltage checks under no-load conditions may fail under full I/O bank load, causing intermittent analog faults that are difficult to diagnose in the field. Replacing the power supply proactively when it exceeds five years of continuous service is a cost-effective strategy compared to an emergency replacement during a production crisis.

Signal wiring integrity is another critical factor. The 1794-IE4X0E2 uses a 1794-TB3 terminal base, and the field wiring connected to it should be inspected for insulation degradation, especially in high-temperature or high-vibration environments. Shielded twisted-pair cables used for 4–20 mA transmitter loops should have their shield grounding verified at a single point to prevent ground loop interference. If the system includes signal isolators or loop-powered transmitter barriers — such as those used in hazardous area installations — these components should be tested for output accuracy and response time as part of the same maintenance cycle.

For systems where the 1794-IE4X0E2 feeds process values to an HMI panel — such as a PanelView Plus 7 or PanelView 800 — the HMI tag database should be reviewed to confirm that engineering unit scaling and alarm setpoints remain correctly configured after any module replacement. A module swap that resets internal calibration offsets can cause subtle process deviations that only become apparent during production, not during initial commissioning checks.

Site Replacement Workflow

Replacing the 1794-IE4X0E2 on an active production line requires a disciplined workflow to minimize downtime and prevent configuration errors. Begin by documenting the current module configuration using RSLogix 5000 or Studio 5000 Logix Designer — export the I/O configuration and save the project file with a timestamped backup before any hardware changes are made. This protects the original program logic and allows rapid recovery if the replacement module requires reconfiguration.

Power down the field devices connected to the analog input channels before removing the module. This prevents transient signals from corrupting the analog input data table during the swap. Remove the 1794-IE4X0E2 from the terminal base by releasing the module locking tab — the terminal base itself remains wired and in place, which eliminates the need to rewire field connections and significantly reduces replacement time. Insert the new 1794-IE4X0E2 module into the same terminal base, confirm the module locking tab engages fully, and restore field device power.

After power restoration, verify that the controller recognizes the new module without faults in the I/O tree. Check the analog input values in the controller tag database against known process values from field instruments to confirm signal accuracy. If the system uses a 1794-ACNR15 ControlNet adapter, confirm that the network schedule is intact and that the module’s scheduled connection is re-established without requiring a full network reschedule. Document the replacement date, module serial number, and post-replacement test results in the site maintenance log to support future spare parts lifecycle planning.

Spare Parts Support FAQ

Q: Is the 1794-IE4X0E2 still available as a new original spare?
A: Yes. Ninermas maintains verified stock of the 1794-IE4X0E2 as a genuine Allen-Bradley spare part. Each unit is sourced through authorized supply channels and undergoes pre-shipment functional testing. Contact sale@ninermas.com to confirm current inventory availability and lead time.

Q: What is the warranty coverage for the 1794-IE4X0E2?
A: All 1794-IE4X0E2 units supplied by Ninermas carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical assistance for installation and commissioning issues.

Q: Can the 1794-IE4X0E2 be replaced without rewiring the terminal base?
A: Yes. The FLEX I/O system is designed for module-level replacement without disturbing field wiring. The 1794-TB3 or 1794-TB3S terminal base remains in place during module swap, which reduces replacement time to under 15 minutes in most installations and eliminates wiring errors as a source of post-replacement faults.

Q: How do I verify compatibility between the 1794-IE4X0E2 and my existing FLEX I/O adapter?
A: The 1794-IE4X0E2 is compatible with all standard FLEX I/O adapters including the 1794-AENT, 1794-ACNR15, and 1794-ADN. Compatibility is determined by the adapter’s firmware revision and the controller’s I/O configuration. Ninermas technical support can assist with compatibility verification based on your system’s adapter model and controller firmware version prior to shipment.
