Allen-Bradley 1794-IB8 Digital DC Input Module | 8-Point Flex I/O for Industrial PLC Systems

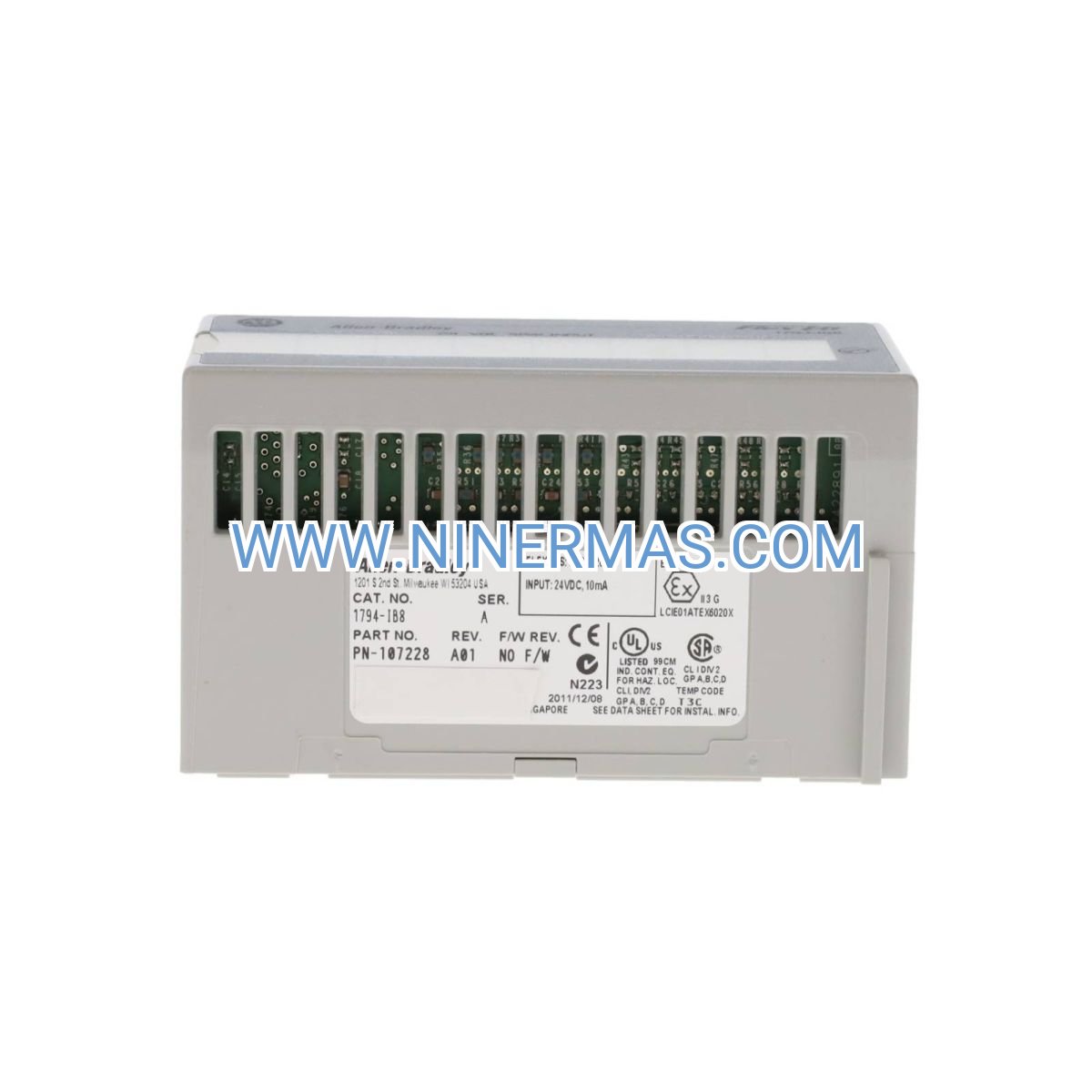

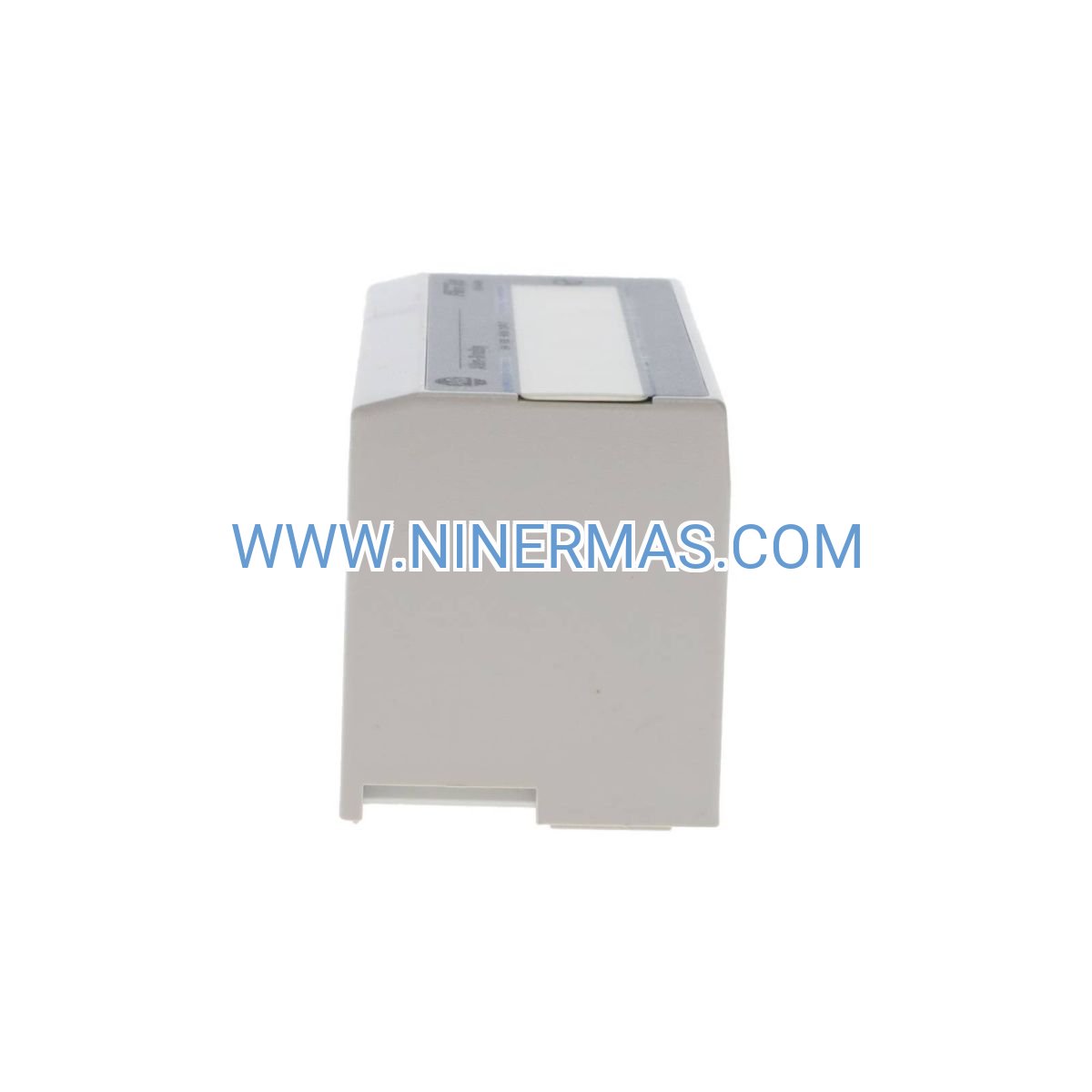

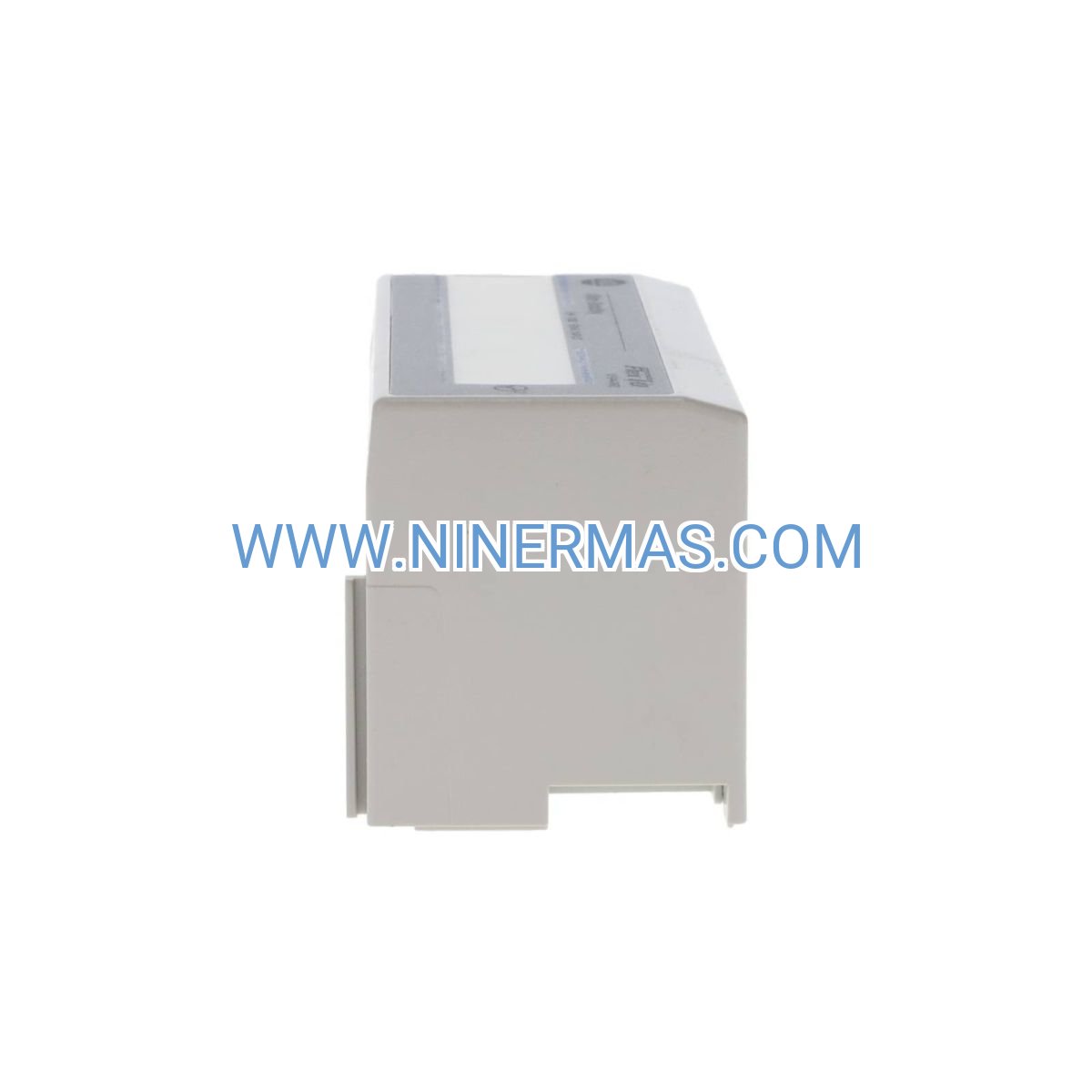

Allen-Bradley 1794-IB8 Digital DC Input Module (Industrial-Grade Flex I/O Solution)

The Allen-Bradley 1794-IB8 is an 8-point digital DC input module designed for industrial automation and control systems. Through advanced optical isolation technology and hot-swappable architecture, it enables reliable signal acquisition from field devices such as sensors, switches, and proximity detectors. This module seamlessly integrates with Flex I/O platforms to deliver stable, real-time monitoring for mission-critical applications.

Ideal for manufacturing plants, process industries, building automation, and machine control environments, the 1794-IB8 addresses common challenges including signal interference, installation downtime, wiring complexity, and system scalability limitations. It provides robust protection against electrical noise while maintaining continuous operation during module replacement.

Featuring standardized design with flexible configuration options, this module offers key advantages: superior noise immunity, maintenance-friendly hot-swap capability, wide voltage compatibility, and proven reliability in harsh industrial environments. It serves design engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized configuration guidance and technical quotations.

Core Features & Technical Advantages

Optical Isolation Protection
Each input channel incorporates optical isolation circuitry, effectively blocking ground loops and electrical noise from field wiring. This design protects sensitive PLC backplane components while ensuring accurate signal transmission in electrically noisy industrial environments.

Hot-Swappable Architecture
Supports online module replacement without powering down the entire I/O rack or interrupting system operation. This feature significantly reduces maintenance downtime and enables rapid troubleshooting, making it ideal for continuous production processes that cannot tolerate extended shutdowns.

Wide Input Voltage Range
Accepts DC input signals from 10V to 30V, accommodating standard 24VDC industrial sensors as well as 12VDC devices. This voltage flexibility simplifies integration with diverse field equipment and reduces inventory requirements for spare modules.

Compact High-Density Design
Provides 8 discrete input points in a single module slot, maximizing I/O density within limited panel space. The removable terminal block design facilitates quick wiring changes and simplifies pre-wiring procedures during installation.

Comprehensive Diagnostic Capabilities
Features individual channel status indicators and integrated diagnostics accessible through programming software. Real-time fault detection and alarm reporting minimize troubleshooting time and improve overall system availability.

Industrial-Grade Reliability
Engineered to withstand temperature extremes, vibration, and electromagnetic interference typical of factory floor environments. Conformal coating options provide additional protection against moisture, dust, and corrosive atmospheres.

Typical Application Scenarios

This module excels in applications requiring dependable digital signal acquisition with high noise immunity and operational flexibility:

Automated Manufacturing & Assembly Lines
Monitors limit switches, photoelectric sensors, and proximity switches in packaging equipment, conveyor systems, and robotic work cells. Ensures precise position detection and sequence control while minimizing false triggering from motor drives and welding equipment.

Process Control & Chemical Plants
Interfaces with level switches, flow indicators, and safety interlocks in batch processing, mixing operations, and fluid handling systems. Provides reliable status monitoring for pumps, valves, and agitators in environments with significant electrical noise from variable frequency drives.

Building Automation & HVAC Systems
Connects to occupancy sensors, door contacts, smoke detectors, and equipment status switches in commercial buildings and data centers. Enables centralized monitoring of mechanical systems while supporting distributed I/O architectures across multiple floors or zones.

Machine Tool & CNC Equipment
Acquires signals from tool presence sensors, safety guards, coolant level switches, and operator panel buttons. The hot-swap capability allows technicians to replace modules during scheduled maintenance windows without halting production on adjacent machines.

Water Treatment & Municipal Infrastructure
Monitors pump status, tank level switches, and alarm contacts in water distribution, wastewater treatment, and irrigation control systems. Optical isolation protects control equipment from lightning-induced surges and ground potential differences common in geographically distributed installations.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide key electrical and mechanical parameters. Custom configurations are available to meet specific project requirements.

Electrical Specifications:

• Input Points: 8 discrete channels
• Input Voltage Range: 10-30V DC (24V DC nominal)
• Input Current: Typically 7mA @ 24V DC per point
• Isolation: 1500V AC optical isolation (field to logic)
• Input Impedance: Approximately 3.4kΩ
• On-State Voltage: 10-30V DC
• Off-State Voltage: 0-5V DC
• Response Time: Typically 1-10ms (configurable via software)

Mechanical & Environmental:

• Module Width: Single slot (approximately 35mm)
• Terminal Block: Removable screw terminals (accepts 12-22 AWG wire)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Enclosure Rating: IP20 (suitable for enclosed control panels)
• Shock & Vibration: Meets IEC 61131-2 industrial standards

System Compatibility:

• Compatible with Allen-Bradley Flex I/O adapter modules
• Supports ControlLogix, CompactLogix, and SLC 500 platforms (via appropriate adapters)
• Configuration via RSLogix 5000, Studio 5000, or RSLinx software
• Supports DeviceNet, EtherNet/IP, and ControlNet communication protocols (adapter-dependent)

Selection Recommendations:
When selecting this module, consider the following factors: total number of discrete input points required, field device voltage levels, required response time for your application, available panel space and I/O rack capacity, and environmental conditions (temperature, humidity, vibration). For applications requiring faster response or higher channel counts, consult our engineering team for alternative module recommendations. Provide your system architecture details for personalized configuration assistance.

Extended Functionality & Integration Options

Flexible I/O Expansion
The 1794-IB8 integrates seamlessly with other Flex I/O modules including analog input/output, relay output, and specialty modules. Mix and match up to 8 modules per adapter to create customized I/O configurations that precisely match your application requirements without over-provisioning.

Network Communication Support
When paired with appropriate Flex I/O adapters, this module supports multiple industrial network protocols including EtherNet/IP for high-speed Ethernet connectivity, DeviceNet for cost-effective device-level networking, and ControlNet for deterministic, real-time control. This flexibility enables integration into existing infrastructure without protocol conversion.

Advanced Diagnostics & Predictive Maintenance
Built-in diagnostics monitor module health, power supply status, and individual channel integrity. Integration with FactoryTalk software platforms enables predictive maintenance strategies by tracking input signal trends, detecting intermittent connections, and logging fault history for root cause analysis.

Redundancy & High-Availability Configurations
For critical applications, the 1794-IB8 supports redundant I/O architectures when used with redundant Flex I/O adapters and controllers. This configuration ensures continuous operation even during single-point failures, making it suitable for safety-critical processes and 24/7 production environments.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard catalog modules typically ship within 3-5 business days from stock. Custom-configured assemblies or large quantity orders may require 2-3 weeks. Expedited shipping options are available for urgent project requirements.

Warranty & Support:
All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs are available for critical applications. Our technical support team provides remote troubleshooting assistance, configuration guidance, and on-site commissioning services (availability varies by region).

Documentation & Resources:
Each module ships with comprehensive technical documentation including installation instructions, wiring diagrams, terminal block layouts, and software configuration examples. CAD drawings, 3D models, and sample ladder logic code are available for download to streamline system design and integration.

Quality Certifications:
Manufactured to ISO 9001 quality standards and compliant with UL, CE, and RoHS directives. Suitable for use in industrial environments requiring certified components for safety and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1794-IB8 digital input module to my existing PLC system?
A: The module mounts onto a Flex I/O adapter (such as 1794-AENT for EtherNet/IP or 1794-ADN for DeviceNet) which communicates with your PLC. You'll need to verify your adapter compatibility, configure the module address via software, and wire your field devices to the removable terminal block following the provided wiring diagram.

Q: What is the maximum number of input modules I can use in a single Flex I/O system?
A: Each Flex I/O adapter supports up to 8 I/O modules in a single bank. For larger systems, multiple adapters can be deployed on the same network, each supporting its own set of modules. Total capacity depends on your network bandwidth and controller scan time requirements.

Q: What level of energy savings or efficiency improvement can I expect with this module?
A: While the module itself is not an energy-saving device, its low power consumption (approximately 56mA @ 24V DC for the module electronics plus input current) minimizes heat generation and reduces cooling requirements in control panels. The optical isolation also prevents ground loop currents that can cause unnecessary power losses in large distributed systems.

Q: What are the environmental requirements for installing this module? What is its protection rating?
A: The module is rated IP20 and designed for installation inside enclosed control cabinets. Operating temperature range is 0-60°C with 5-95% non-condensing humidity. For outdoor or harsh environments, install within a NEMA 4/4X or IP65-rated enclosure with appropriate climate control. Conformal coating options are available for corrosive atmospheres.

Q: Does this module support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, when paired with network-capable Flex I/O adapters, the module supports remote monitoring via EtherNet/IP, DeviceNet, or ControlNet protocols. Data can be accessed through HMI systems, SCADA software, or cloud-based platforms using standard industrial communication protocols. OPC UA and MQTT connectivity is possible through gateway devices or modern ControlLogix controllers.

Q: Can I replace this module while the system is running without causing downtime?
A: Yes, the 1794-IB8 features hot-swappable design. You can remove and replace the module while the I/O rack remains powered and the system continues operating. However, the specific input points on the module being replaced will be unavailable during the swap. Always follow proper ESD precautions and verify module configuration after replacement.

Request Technical Support & Custom Configuration

For detailed application engineering support, product quotations, or custom system design, please provide the following information: project name and industry sector, specific application requirements (machine type, process description), total number of digital inputs required, field device voltage levels and signal types, PLC platform and communication network in use, environmental conditions (temperature, humidity, enclosure type), and any special certifications or compliance requirements.

Our application engineers will provide personalized module selection recommendations, system architecture guidance, and competitive pricing within 24 hours.
