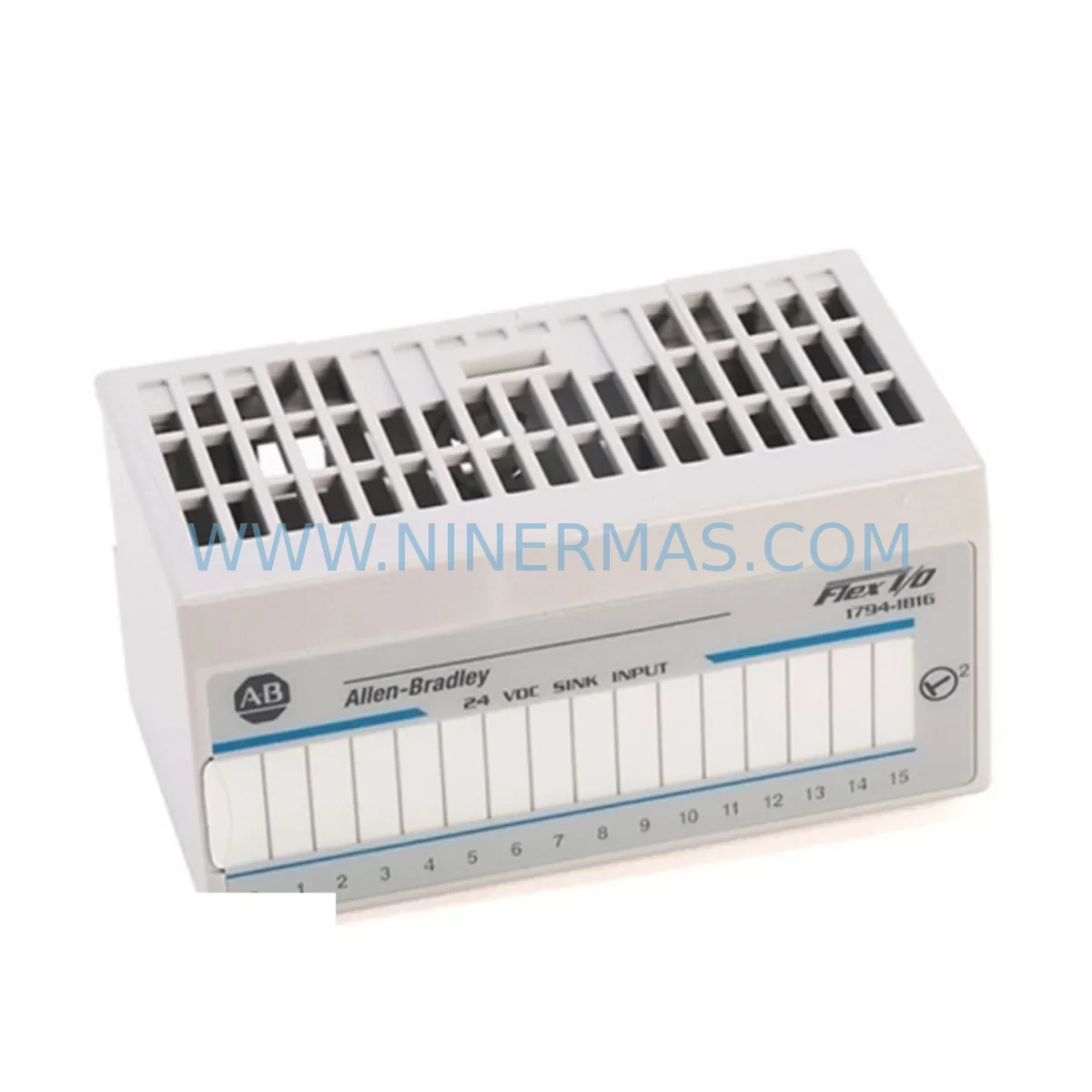

The Allen-Bradley 1794-IB16D is a 16-point, 24VDC sink input module from the FLEX I/O series, designed for distributed I/O applications in industrial automation environments. As legacy control systems age and original spare parts become increasingly difficult to source, the 1794-IB16D has become a critical component in retrofit projects, discontinued-model replacements, and control cabinet upgrades across manufacturing, process, and infrastructure industries. Whether you are migrating from an older PLC-5 or SLC 500 platform to a ControlLogix or CompactLogix architecture, or simply extending the service life of an existing FLEX I/O rack, this module provides the input density and signal compatibility required to maintain operational continuity with minimal disruption.

When planning a retrofit around the 1794-IB16D, engineers must carefully verify several key parameters before committing to installation. Power capacity on the existing 1794-PS13 or 1794-PS3 power supply must be confirmed against the total current draw of all modules on the adapter, including any newly added 1794-OB16 output modules or 1794-IE8 analog input modules sharing the same backplane. Terminal wiring on the 1794-TB3 or 1794-TB3S terminal base must be inspected for compatibility with the existing field wiring gauge and connection type — screw-type versus spring-clamp bases are not interchangeable without rewiring. Backplane interface alignment between the 1794-IB16D and the installed 1794-AENT or 1794-ADNX adapter must be confirmed, as communication protocol differences between DeviceNet, EtherNet/IP, and ControlNet adapters directly affect module addressing and network configuration.

Module address assignment within the adapter’s I/O map must be re-verified in the controller program after any module swap. In ControlLogix systems using Studio 5000 Logix Designer, the I/O tree must reflect the correct slot position and module type to avoid faulted module states at startup. If the original program was developed for an older 1794-IB16 (non-D variant), the engineer must confirm that the input filter timing and diagnostic bit mapping remain compatible, as the 1794-IB16D includes additional diagnostic capabilities that may require minor program adjustments. HMI screens built on FactoryTalk View SE or ME platforms that reference specific input tag addresses should be reviewed to ensure display logic remains accurate after the module replacement.

Communication link integrity is another critical checkpoint. If the 1794-IB16D is installed on a rack served by a 1794-AENT EtherNet/IP adapter, the network switch port configuration, IP address assignment, and connection timeout parameters must all be validated before going live. In systems where the FLEX I/O rack communicates over a legacy 1794-ADN DeviceNet adapter, node address conflicts must be resolved prior to energizing the rack. Installation space confirmation is equally important — the 1794-IB16D occupies one module slot on the FLEX I/O backplane, and available slot count on the existing 1794-CRxx chassis must be verified before ordering.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 1794-IB16D begins with a thorough audit of the existing control architecture. In most legacy installations, the FLEX I/O rack will include a mix of modules such as the 1794-OB16 16-point output module, 1794-IE8 8-channel analog input module, and 1794-OE4 analog output module, all sharing a common backplane and power budget. The 1794-AENT EtherNet/IP adapter is the most common communication interface in modernized installations, replacing older 1794-ADN DeviceNet adapters as plants migrate to Ethernet-based control networks.

When the retrofit scope extends beyond a single module swap to a full control cabinet upgrade, the project typically involves replacing the legacy 1747-L553 SLC 5/05 processor with a 1769-L33ER CompactLogix controller, or migrating to a 1756-L85E ControlLogix processor for larger systems. In these cases, the 1794-IB16D rack may be retained as a remote I/O node connected via EtherNet/IP, preserving existing field wiring while the control layer is modernized. The 1794-TB3 terminal base allows field wiring to remain undisturbed during the module swap, significantly reducing retrofit labor time and the risk of wiring errors.

For installations involving signal isolation requirements — common in environments with long cable runs, ground loops, or mixed-voltage field devices — signal isolators may be inserted between field sensors and the 1794-IB16D input terminals. Programming cable access via a 1756-USB or 1747-UIC USB-to-DH485 interface adapter is required during commissioning to upload and verify the updated program logic. All modules should be functionally tested prior to shipment, and our pre-delivery testing protocol confirms input response, diagnostic bit behavior, and backplane communication integrity before the unit leaves our facility.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system retrofit. When replacing the 1794-IB16D in an operating production environment, the recommended approach is to perform a full program backup using Studio 5000 or RSLogix 5000 before any hardware is disturbed. The existing I/O configuration, tag database, and controller properties file should be archived to a secure location. If the system uses a 1794-AENT adapter, the adapter’s configuration file should also be exported from the network configuration tool.

Where production schedules permit only brief maintenance windows, a staged replacement strategy is advisable: pre-configure the replacement 1794-IB16D module and its associated 1794-TB3 terminal base offline, verify the module firmware revision matches the existing rack configuration, and prepare the updated program file in advance. During the maintenance window, the physical swap can typically be completed in under 30 minutes, with an additional 15–30 minutes for program download, I/O verification, and HMI confirmation. Field control continuity can be maintained on non-affected I/O points throughout the process, as the FLEX I/O architecture allows individual module replacement without powering down the entire rack in many configurations. Post-installation, all 16 input points should be individually verified against the field device list before returning the system to automatic mode.

Retrofit Support FAQ

Q: Is the 1794-IB16D a direct drop-in replacement for the 1794-IB16?
A: The 1794-IB16D is functionally compatible with the 1794-IB16 and uses the same terminal base and backplane interface. However, the IB16D variant includes additional diagnostic capabilities. Engineers should review the I/O tag mapping in the controller program to confirm that diagnostic bits do not conflict with existing logic before going live.

Q: What commissioning steps are required after installing the 1794-IB16D?
A: After physical installation on the 1794-TB3 terminal base, the controller program should be downloaded and the module’s I/O tree entry verified in Studio 5000. Each of the 16 input points should be individually exercised from the field device side and confirmed in the controller tag monitor. Communication link status on the 1794-AENT or 1794-ADN adapter should be confirmed as healthy before returning to automatic operation.

Q: Do you provide pre-shipment testing for the 1794-IB16D?
A: Yes. Every 1794-IB16D unit undergoes functional testing prior to shipment, including input response verification, backplane communication check, and diagnostic bit confirmation. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures from the date of shipment.

Q: What is your stock availability and lead time for the 1794-IB16D?
A: We maintain inventory of the 1794-IB16D to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity or project-based orders, please contact our team directly to confirm availability and arrange priority allocation.
