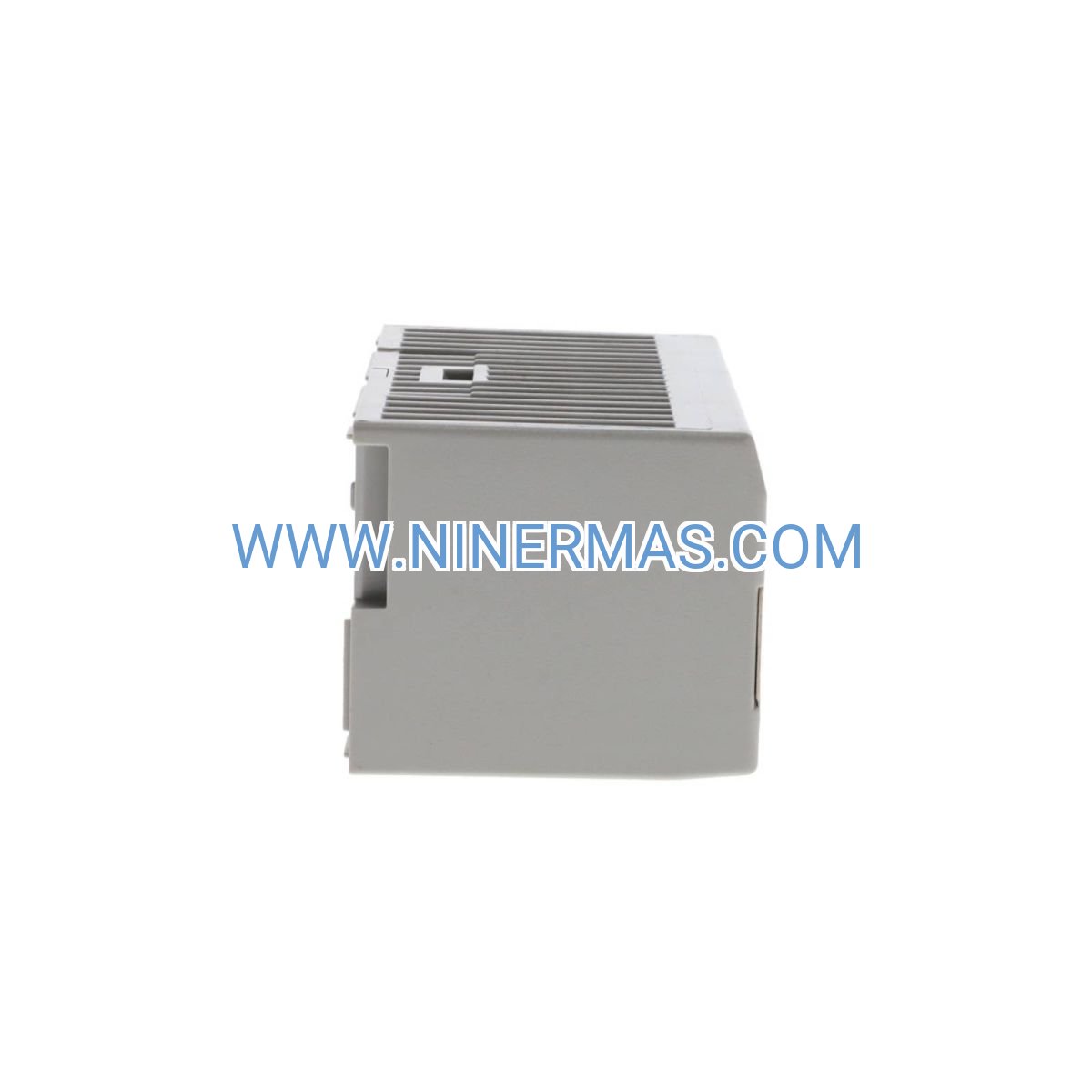

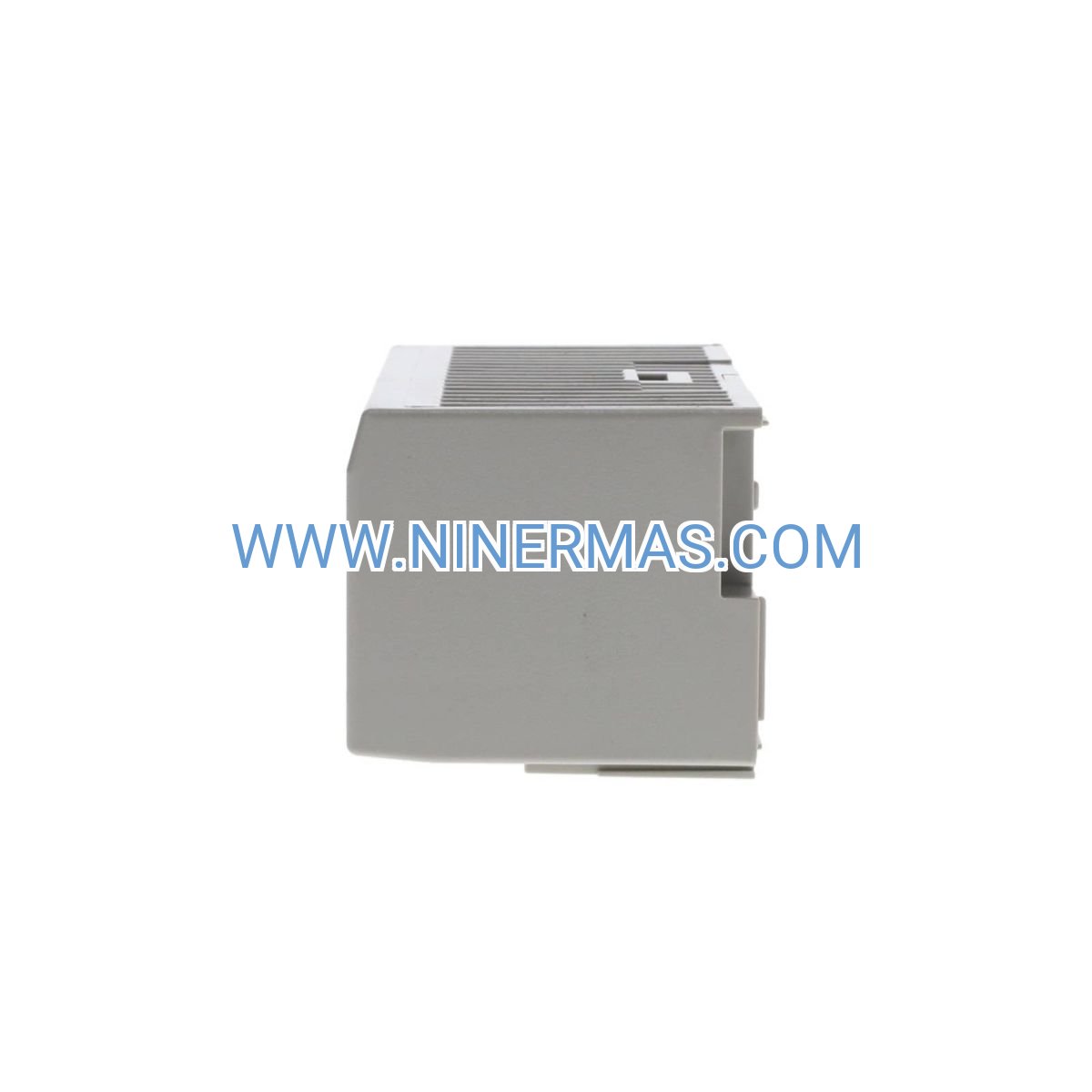

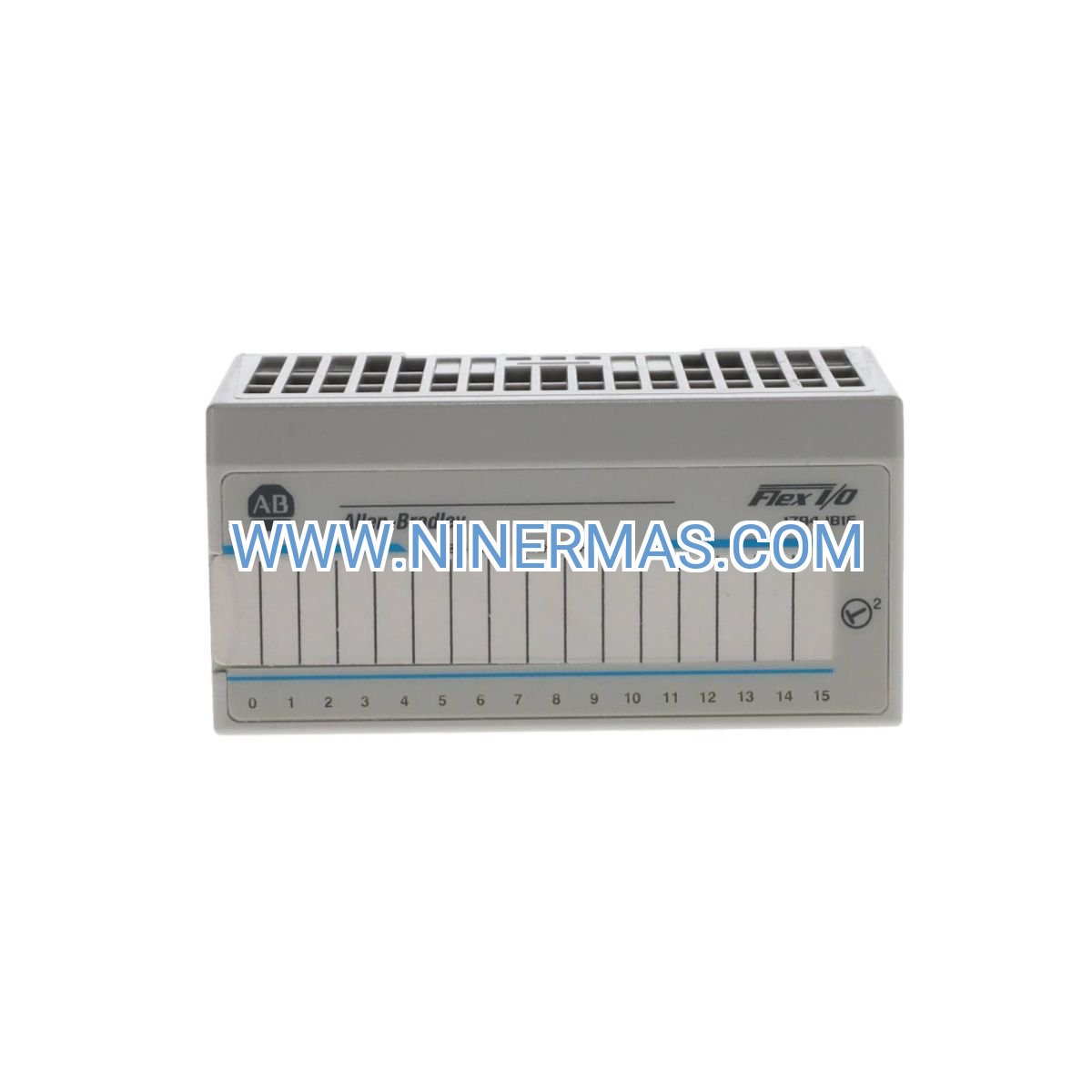

Allen-Bradley 1794-IB16 Digital Input Module (Industrial-Grade Flex I/O System)

The Allen-Bradley 1794-IB16 is a high-performance 16-point digital input module designed for industrial automation and control systems. Utilizing advanced signal processing and robust 24VDC input architecture, it delivers real-time status monitoring, seamless ControlLogix/CompactLogix integration, and reliable operation in demanding manufacturing environments.

Ideal for discrete manufacturing, process control, packaging lines, material handling systems, and machine safety monitoring, this module addresses critical challenges including signal noise interference, wiring complexity, limited I/O density, and slow fault diagnostics in legacy control systems.

Engineered with standardized Flex I/O architecture and field-proven reliability, the 1794-IB16 offers hot-swappable installation, compact footprint, universal 24VDC compatibility, and comprehensive diagnostic capabilities—making it the preferred choice for system integrators, control engineers, OEM manufacturers, and plant maintenance teams. Contact our automation specialists for application-specific configuration and technical consultation.

Core Features & Advantages

High-Density Digital Input Acquisition
16 individually isolated 24VDC input channels in a single compact module, reducing panel space requirements by up to 40% compared to traditional terminal block solutions while simplifying field wiring and installation labor.

Universal 24VDC Sensor Compatibility
Accepts standard industrial proximity sensors, photoelectric switches, limit switches, and dry contact signals with wide voltage tolerance (10-30VDC), ensuring compatibility with diverse field devices across global automation standards.

Real-Time Diagnostic & Status Indication
Integrated LED indicators for each input channel plus module-level fault detection provide instant visual feedback, accelerating troubleshooting and reducing mean time to repair (MTTR) by 50% during commissioning and maintenance.

Seamless Flex I/O Network Integration
Hot-swappable design with keying options and automatic addressing enables rapid module replacement without system shutdown, minimizing production downtime and supporting predictive maintenance strategies.

Industrial-Grade Environmental Protection
Conformal-coated circuitry and rugged housing withstand temperature extremes (-40°C to +70°C), vibration, electrical noise, and humidity—ensuring reliable operation in harsh factory floors, outdoor enclosures, and mobile equipment applications.

Simplified Configuration & Programming
Fully compatible with RSLogix 5000/Studio 5000 programming environments, supporting tag-based addressing, online editing, and standardized function blocks that reduce engineering time and enable rapid system scaling.

Typical Application Scenarios

This module is engineered for applications requiring high reliability, fast response times, and centralized monitoring of discrete input signals, particularly in:

Discrete Manufacturing & Assembly Lines
Monitor conveyor position sensors, part presence detection, quality inspection gates, and safety interlocks across automotive, electronics, and consumer goods production facilities with sub-millisecond response accuracy.

Process Control & Batch Systems
Integrate level switches, pressure transmitters (digital output), valve position feedback, and alarm contacts in chemical processing, food & beverage, pharmaceutical, and water treatment plants requiring FDA/GAMP compliance.

Packaging & Material Handling Equipment
Capture high-speed counting signals from encoders, label sensors, reject gates, and diverter confirmations in packaging machines, sortation systems, and warehouse automation with deterministic scan times.

Machine Safety & Interlock Monitoring
Interface with safety relays, E-stop circuits, light curtain outputs, and guard door switches to create comprehensive safety-rated monitoring systems compliant with ISO 13849 and IEC 62061 standards.

Building Automation & Infrastructure Control
Collect status signals from HVAC dampers, pump run confirmations, fire alarm panels, and access control systems in commercial buildings, data centers, and critical facility management applications.

Technical Specifications & Selection Guide

To ensure optimal system design and performance, we provide standardized electrical, mechanical, and environmental specifications. Custom configurations are available for specialized applications.

Selection Recommendations:
When specifying the 1794-IB16, consider: total input point count required, field device voltage levels (ensure 24VDC compatibility), required input filter time (based on signal noise characteristics), environmental conditions (temperature/humidity/vibration), panel space constraints, and network architecture (ControlNet, DeviceNet, EtherNet/IP via appropriate adapter). For assistance with system design, BOM generation, or compatibility verification, provide your application details and our control engineers will recommend optimized configurations.

Extended Capabilities

Flexible Input Filtering
Software-selectable input filter times (0.5/1/3/6 ms) allow optimization for high-speed counting applications or noise rejection in electrically harsh environments, eliminating false triggering without additional external components.

Distributed I/O Architecture Support
Compatible with ControlNet, DeviceNet, and EtherNet/IP communication adapters, enabling distributed control strategies that reduce wiring costs, improve system modularity, and support remote I/O placement up to 500 meters from the controller.

Redundancy & Fault Tolerance Options
When paired with redundant Flex I/O adapters and ControlLogix redundant processors, supports mission-critical applications requiring 99.99% uptime in utilities, oil & gas, and continuous process industries.

Third-Party Integration
EDS (Electronic Data Sheet) files and Add-On Profiles enable seamless integration with SCADA systems (Wonderware, Ignition, FactoryTalk), MES platforms, and Industry 4.0 data analytics tools via OPC-UA and MQTT protocols.

Delivery, Service & Quality Assurance

Lead Time: Stock items ship within 1-3 business days; custom-configured systems typically 7-14 days depending on complexity and component availability.

Warranty: All modules include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Complimentary pre-sales application engineering, post-sales commissioning assistance, remote diagnostics support, and access to certified Rockwell Automation technical resources. On-site startup services available in select regions.

Documentation Package: Each shipment includes installation instructions, wiring diagrams, dimensional drawings, I/O specifications, sample ladder logic code, and Studio 5000 Add-On Profile—ensuring rapid integration and reducing commissioning errors.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full traceability, RoHS compliance, and conflict minerals reporting. Test reports and certificates of conformity available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1794-IB16 digital input module to my existing ControlLogix system?
A: The 1794-IB16 mounts on a Flex I/O DIN rail adapter and connects to your ControlLogix/CompactLogix processor via a communication adapter module (1794-AENT for EtherNet/IP, 1794-ACN15 for ControlNet, or 1794-ADN for DeviceNet). Simply install the module, configure the I/O in Studio 5000 using the Add-On Profile, and map your input tags—no custom programming required.

Q: What is the maximum number of input modules I can use in a single Flex I/O system?
A: A single Flex I/O adapter supports up to 8 I/O modules (any combination of input, output, analog, or specialty modules), providing up to 128 digital I/O points per adapter. For larger systems, deploy multiple adapters on the same network with unique node addresses.

Q: What energy savings can I expect, and what conditions are required?
A: While the 1794-IB16 itself is a low-power device (150 mA @ 5 VDC), system-level energy savings of 15-30% are achievable when replacing relay-based logic or older I/O systems—primarily through reduced wiring, elimination of interposing relays, and optimized scan times that enable more efficient process control algorithms.

Q: What are the environmental requirements for installation? What is the IP rating?
A: The module is rated for 0-60°C operating temperature, 5-95% non-condensing humidity, and is designed for installation in NEMA 12/IP54 or better enclosures. It is an open-type device and must be mounted in a suitable protective enclosure. Conformal coating provides additional protection against dust and moisture in industrial environments.

Q: Can I monitor and collect data remotely? Which protocols are supported?
A: Yes—when used with EtherNet/IP adapters (1794-AENT), the system supports remote monitoring via FactoryTalk View, web-based HMI, or third-party SCADA using standard protocols including EtherNet/IP, Modbus TCP (via gateway), OPC-UA, and MQTT for IIoT applications. Real-time diagnostics and historical trending are fully supported.

Q: Is this module suitable for safety-rated applications?
A: The standard 1794-IB16 is not safety-rated. For SIL 2/3 or PLd/e applications, consider the 1794-IB16XOB8 safety I/O module or integrate with GuardLogix safety controllers and certified safety relays. Our application engineers can design compliant safety architectures for your specific machinery directive requirements.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, system configuration recommendations, or formal quotations, please provide the following project information: application type (machine control, process monitoring, safety system), total I/O count (digital inputs/outputs, analog channels), field device specifications (sensor types, voltage levels, response time requirements), communication network (EtherNet/IP, ControlNet, DeviceNet), environmental conditions (temperature range, enclosure type, hazardous area classification), and project timeline. Our certified automation specialists will deliver tailored solutions with detailed BOMs, wiring schematics, and programming templates within 24-48 hours.
