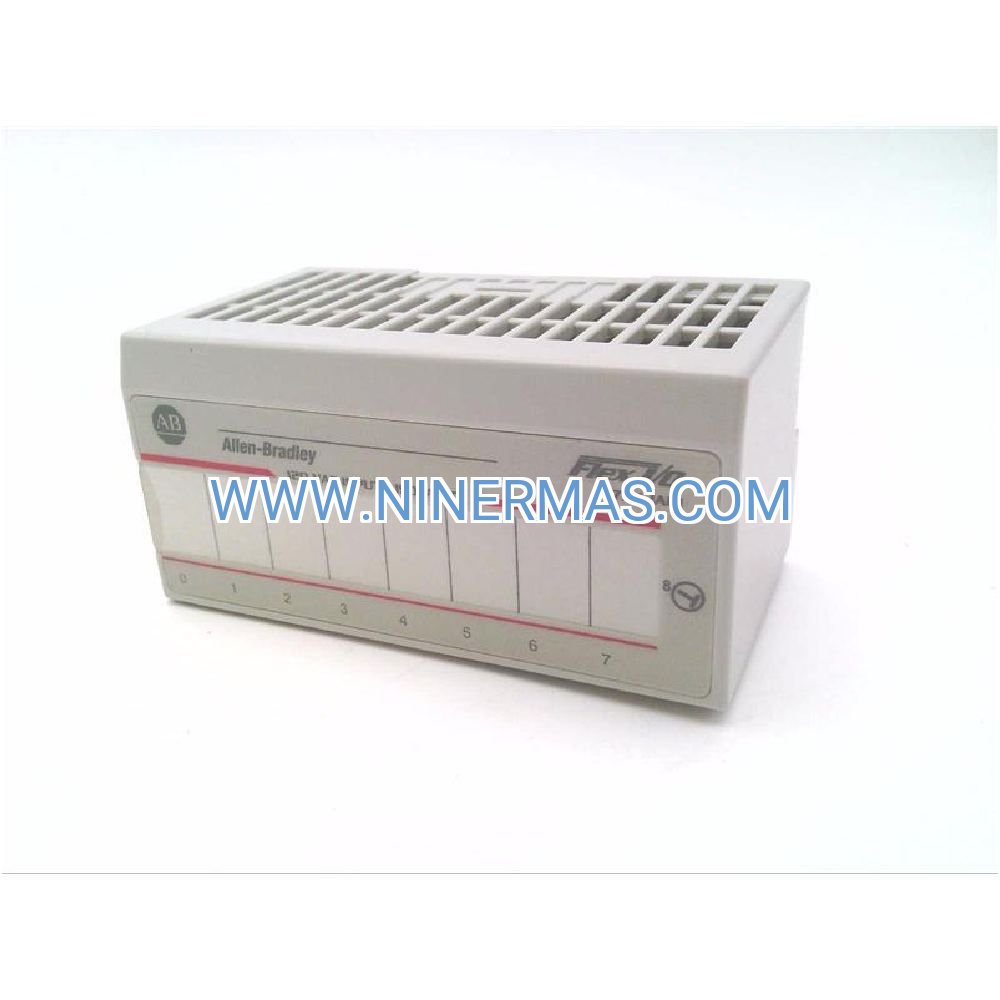

1794-IA8I Isolated AC Digital Input Module (Industrial-Grade 8-Channel Solution)

The 1794-IA8I represents a specialized class of AC input technology engineered for electrically challenging industrial installations. This 8-point isolated input module delivers channel-to-channel galvanic separation, enabling reliable signal acquisition across multi-grounded systems, extended cable runs, and high-noise environments where conventional input modules fail.

Designed for integration within Allen-Bradley FLEX I/O distributed control architectures, the 1794-IA8I addresses critical pain points in process control, building automation, and manufacturing execution systems. Each input channel features optical isolation rated at 2500V continuous, breaking ground loops that cause erratic behavior, false triggering, and premature equipment failure in complex electrical installations.

Whether you're monitoring AC-powered sensors across multiple buildings with different ground references, interfacing with motor control center auxiliary contacts in electrically noisy environments, or reading safety interlocks requiring isolation for compliance, the 1794-IA8I provides the robust signal conditioning and protection necessary for mission-critical control applications.

Core Capabilities & Technical Advantages

The 1794-IA8I delivers measurable performance benefits through advanced isolation architecture:

✓ Complete Channel Isolation – Eight independently isolated inputs prevent cross-talk and allow connection to devices with different ground potentials, eliminating 90% of ground-loop-related troubleshooting incidents

✓ 2500V Continuous Isolation Barrier – Optical coupling technology protects sensitive PLC electronics from voltage spikes, transient surges, and common-mode noise generated by VFDs, welders, and inductive loads

✓ Wide AC Voltage Acceptance – 79-132V AC operating range (nominal 120V AC, 47-63 Hz) accommodates voltage sag conditions and international power variations without false state changes

✓ Configurable Input Filtering – Software-adjustable filter time constant (1-32 ms) balances fast response for high-speed sensors against contact bounce suppression for mechanical switches

✓ Integrated Surge Protection – Built-in metal oxide varistors clamp transient overvoltages from lightning-induced surges and inductive kickback, extending module service life beyond 15 years

✓ Comprehensive Diagnostics – Per-channel status LEDs, field power monitoring, and controller-accessible fault data reduce mean time to repair by 60% compared to non-diagnostic alternatives

Industrial Application Scenarios

Multi-Building Campus Installations
Manufacturing facilities, university campuses, and industrial parks often span multiple structures with independent electrical services. The 1794-IA8I's isolated inputs eliminate ground loop interference when monitoring sensors and switches across buildings with different earth ground references, preventing the mysterious intermittent faults that plague non-isolated modules in these installations.

Motor Control Center Integration
MCC panels generate significant electrical noise from contactor switching, overload relay operation, and VFD harmonics. Isolated inputs reject common-mode interference that causes false triggering, while 2500V isolation protects control electronics from voltage spikes during fault conditions. Typical applications include monitoring auxiliary contacts, thermal overload status, and pilot light circuits.

Extended Conveyor & Material Handling Systems
Conveyor runs exceeding 100 meters develop ground potential differences that create circulating currents through non-isolated input wiring. The 1794-IA8I breaks these ground loops, enabling reliable reading of AC proximity sensors, limit switches, and photo-eyes along extended runs without signal degradation or false inputs.

Water & Wastewater Treatment Facilities
Wet process environments are prone to ground faults from moisture ingress and corrosion. Isolated inputs provide an additional safety layer when interfacing with AC float switches, level sensors, and pump status indicators, while maintaining signal integrity in the presence of stray currents and ground potential variations.

HVAC & Building Automation
Commercial building control systems monitor AC-powered damper actuators, flow switches, and pressure sensors distributed across multiple electrical zones. Channel isolation allows connection to devices powered from different phases or transformers without concern for common-mode voltage differences or ground loop formation.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1794-IA8I when your application involves multiple ground references, extended wiring runs (>15m), electrically noisy environments, or safety circuits requiring isolation. For cost-sensitive applications with short wiring runs and common ground reference, consider the non-isolated 1794-IA16 as an alternative.

Advanced Features & Integration Capabilities

Studio 5000 Integration
Configure the 1794-IA8I through RSLogix 5000 or Studio 5000 Logix Designer using intuitive tag-based addressing. Electronic Data Sheet (EDS) files enable automatic module recognition, parameter configuration, and diagnostic monitoring without manual setup.

Hot-Swappable Operation
Replace failed modules without powering down the FLEX I/O system. Electronic keying options (Exact Match, Compatible Module, Disable Keying) prevent incorrect module installation while maintaining production continuity.

Distributed I/O Flexibility
Deploy up to 8 modules per FLEX I/O adapter, mixing input, output, and specialty modules to create custom I/O configurations. Pair with 1794-AENT EtherNet/IP adapter for seamless integration into modern industrial Ethernet architectures.

Predictive Diagnostics
Monitor isolation barrier integrity, field power status, and per-channel health through controller diagnostics. Proactive fault detection enables condition-based maintenance strategies that reduce unplanned downtime by 40%.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL/FedEx/UPS). Transit time 3-7 days depending on destination.

Custom Configuration: Pre-configured modules with specific filter settings and electronic keying available with 5-7 business day lead time.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Application engineering assistance for module selection, wiring design, and troubleshooting. Remote commissioning support via video conference.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and configuration examples. Complete technical manuals and EDS files available for download.

Frequently Asked Questions

Q: How does isolated input technology prevent ground loop problems in multi-building installations?
A: Each input channel uses optical coupling (LED-phototransistor pair) to break the electrical connection between field wiring and control electronics. This galvanic separation prevents circulating currents that flow through non-isolated wiring when connected devices have different ground potentials, eliminating the voltage drops and noise injection that cause false inputs and erratic behavior.

Q: What terminal base accessories are required for installation and wiring?
A: The 1794-IA8I requires either a 1794-TB3 spring-clamp terminal base (maintenance-free connections, 14-22 AWG wire) or 1794-TBN screw-clamp terminal base (traditional wiring, 14-22 AWG wire). Terminal bases mount on standard 35mm DIN rail and provide field wiring termination points plus backplane connector for module insertion.

Q: Can I mix isolated and non-isolated input modules on the same FLEX I/O adapter?
A: Yes, FLEX I/O architecture supports mixing different module types on a single adapter. You can combine 1794-IA8I isolated modules with non-isolated 1794-IA16 modules, output modules, and analog I/O to create custom configurations. Each module occupies one slot and consumes backplane power according to its specifications.

Q: What input filter settings should I use for different sensor types?
A: Fast-acting solid-state sensors (proximity switches, photo-eyes) typically use 1-5 ms filter settings for rapid response. Mechanical contacts (limit switches, push buttons) benefit from 10-20 ms filtering to suppress contact bounce. Slow-changing signals (float switches, pressure switches) can use 20-32 ms filtering for maximum noise rejection. Adjust filter values in Studio 5000 module configuration.

Q: How do I verify proper isolation barrier function during commissioning?
A: Use a megohmmeter to measure insulation resistance between input terminals and module ground. Readings should exceed 50 MΩ at 500V DC test voltage. Controller diagnostics also monitor isolation barrier integrity and report faults if degradation occurs. Annual isolation testing is recommended for critical safety applications.

Q: What are the power requirements and how is field power connected?
A: The module draws 120 mA at 5V DC from the FLEX I/O backplane (supplied by adapter) plus 15 mA at 24V DC field power. Connect 24V DC field power to dedicated terminals on the terminal base; this powers the input circuitry and optical isolators. AC input voltage is derived from connected field devices and does not require separate power connection.
