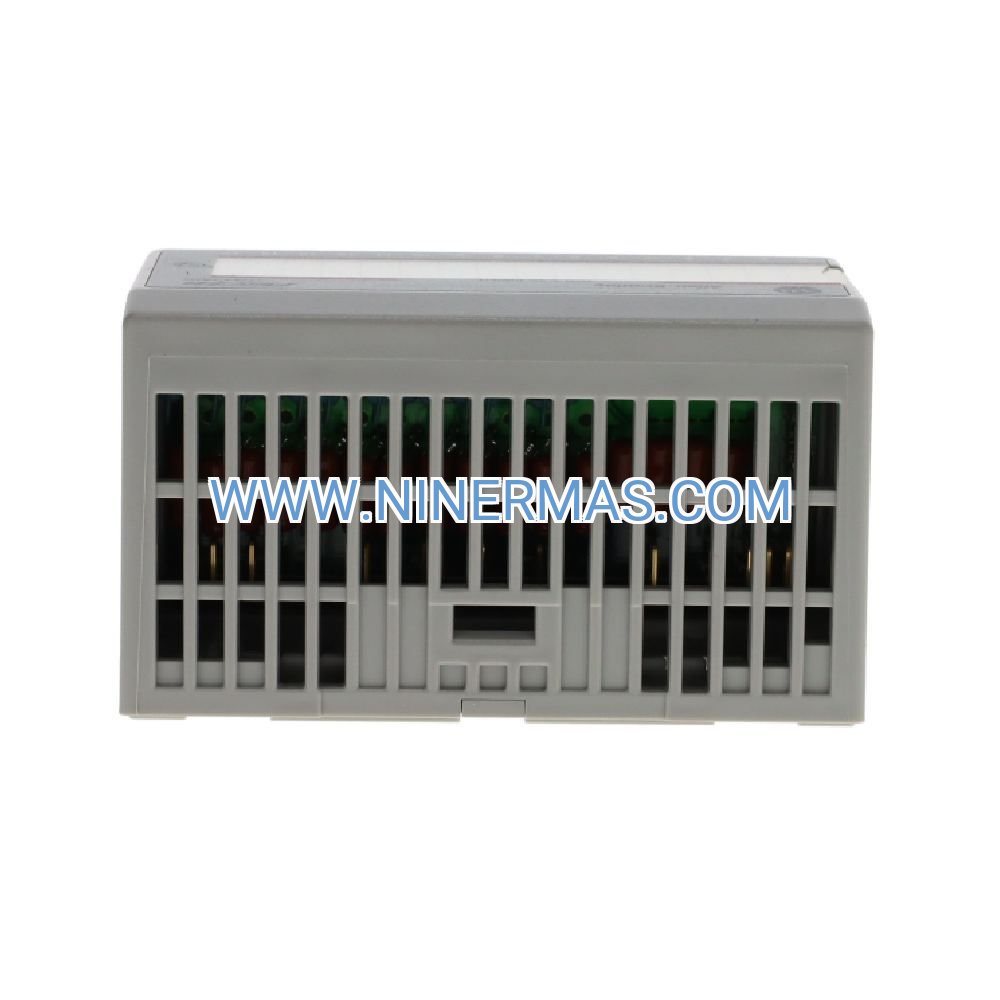

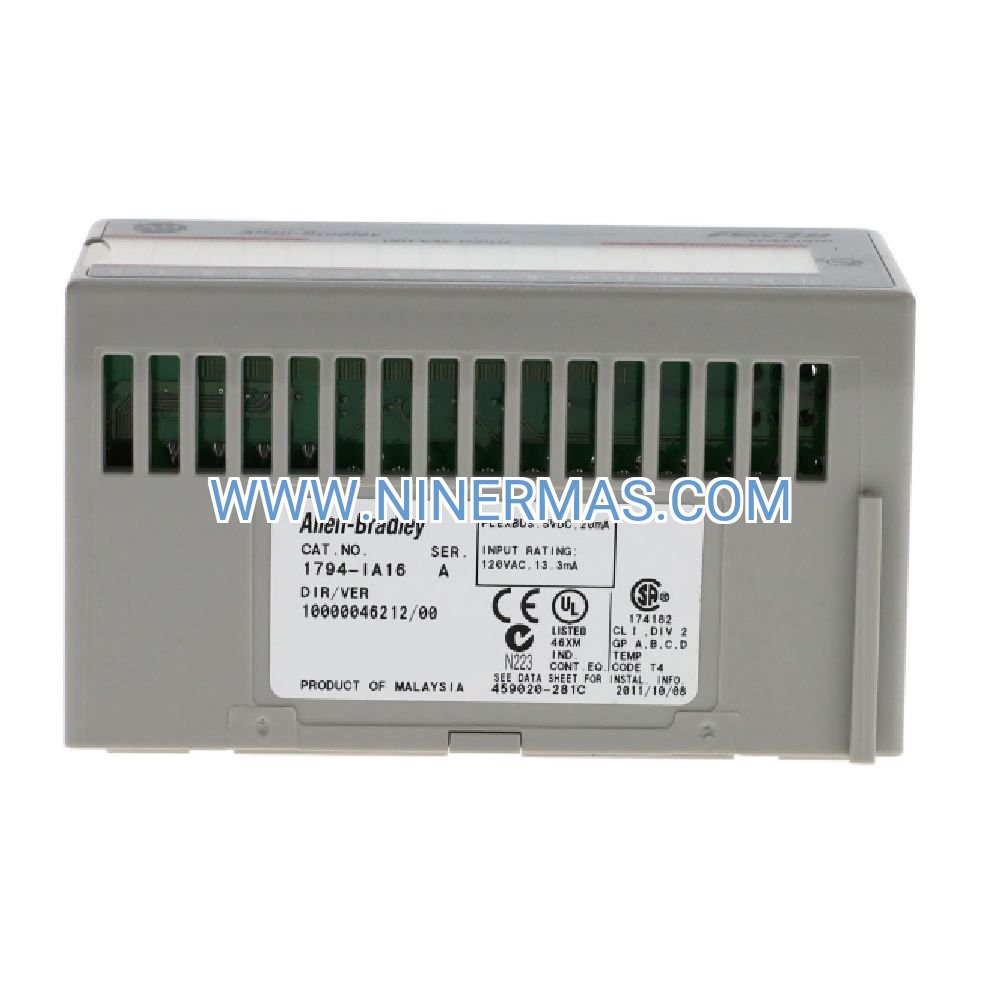

1794-IA16 AC Digital Input Module (Industrial-Grade Signal Acquisition)

Designed for demanding industrial environments, the 1794-IA16 provides reliable 16-channel AC voltage monitoring within Allen-Bradley's Flex I/O distributed architecture. This module transforms AC signals from field devices—limit switches, proximity sensors, control relays—into actionable data for ControlLogix, CompactLogix, and SLC 500 automation platforms.

Manufacturing facilities facing complex sensor integration challenges benefit from the module's hot-swappable design and individual channel diagnostics. Process engineers and system integrators rely on the 1794-IA16 to reduce commissioning time while maintaining system uptime in mission-critical applications spanning automotive assembly, food processing, and pharmaceutical production.

With 1500V optical isolation and conformal coating protection, this input module delivers consistent performance across temperature extremes and electrically noisy environments where standard I/O solutions fail.

Core Capabilities & Business Impact

→ 16-Point High-Density Architecture
Consolidate sensor wiring into a single compact module, reducing panel space requirements by up to 40% compared to traditional relay-based systems. Lower material costs and simplified troubleshooting accelerate project ROI.

→ Live Module Replacement
Swap modules during operation without halting production lines or disrupting adjacent I/O channels. Maintenance windows shrink from hours to minutes, directly improving OEE (Overall Equipment Effectiveness) metrics.

→ Per-Channel Visual Diagnostics
Green LED indicators on each input eliminate guesswork during commissioning and fault diagnosis. Technicians identify wiring errors or sensor failures in seconds rather than tracing circuits with multimeters.

✓ Field-Proven Isolation Technology
1500V AC optical barriers protect sensitive logic circuitry from voltage spikes, ground loops, and electromagnetic interference common in motor control centers and high-power switching environments.

✓ Universal Voltage Compatibility
74-132V AC operating range accommodates global voltage standards (100V, 110V, 120V) without dip switches or jumper configuration, simplifying multi-site deployments and spare parts inventory.

✓ Tool-Free Terminal Access
Removable screw-clamp terminal blocks enable pre-wiring and rapid module exchanges. Field technicians complete installations 30% faster compared to fixed-terminal designs.

Industry Applications & Problem Solving

Automotive Manufacturing Lines
Monitor safety gate interlocks, part presence sensors, and robotic cell status signals across welding, painting, and final assembly stations. The 1794-IA16's fast 20ms response time ensures precise synchronization with high-speed transfer systems, while optical isolation prevents false triggers from welding equipment EMI.

Water & Wastewater Treatment
Acquire pump run status, valve position feedback, and alarm contacts from distributed lift stations and treatment basins. Pair with EtherNet/IP adapters for centralized SCADA monitoring, reducing site visits and enabling predictive maintenance through trend analysis of motor starter auxiliary contacts.

Packaging & Material Handling
Interface with photoelectric sensors, inductive proximity switches, and conveyor jam detectors in high-throughput distribution centers. The module's conformal coating withstands dust and humidity in non-climate-controlled warehouses, maintaining 99.9% uptime during peak seasonal demand.

Chemical Processing & Batch Control
Integrate with explosion-proof limit switches, pressure switch contacts, and emergency stop circuits in hazardous area control panels. ATEX and IECEx certifications support global compliance requirements, while diagnostic data streams to DCS platforms for regulatory audit trails.

HVAC & Building Systems
Connect to damper end switches, fan status relays, and thermostat contacts in commercial building automation networks. Low 150mA backplane current draw allows dense I/O configurations in space-constrained electrical rooms.

Technical Parameters & Selection Criteria

Module Selection Guide: For applications requiring DC input monitoring, substitute the 1794-IB16 (10-30V DC). When output control is needed, combine with 1794-OB16 (DC sinking), 1794-OA16 (AC output), or 1794-OW8 (relay output) modules. Analog signal acquisition requires 1794-IE8 (voltage/current input) or 1794-IF8 (HART-compatible) modules.

Advanced Integration Features

Network Connectivity Options: The 1794-IA16 communicates via Flex I/O adapter modules supporting DeviceNet (1794-ADN), ControlNet (1794-ACN15), and EtherNet/IP (1794-AENT) protocols. For remote installations, the 1794-ASB RIO adapter enables DH+ connectivity to legacy PLC-5 and SLC 500 systems. Maximum distance from adapter to last I/O module: 30 meters using standard Flex I/O bus cables.

Redundancy & Fault Tolerance: Deploy dual adapters with redundant controllers for critical infrastructure applications. The module's diagnostic registers report individual channel faults, module health status, and backplane communication errors to supervisory systems. Configure controller logic to trigger alarms or switch to backup sensors when input failures occur.

Configuration Flexibility: Studio 5000 Logix Designer software enables customization of input filtering (standard/fast response), diagnostic severity levels, and fault handling behavior. Electronic keying prevents incorrect module replacement, while stored configurations auto-download during module swaps.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory orders
Custom Configurations: 4-6 weeks for special voltage ratings or extended-temperature variants
Warranty Coverage: 12 months against manufacturing defects; optional extended service plans available
Technical Support: Pre-sales application engineering, post-installation troubleshooting, firmware update assistance
Documentation Package: Installation manual, wiring diagrams, sample ladder logic, dimensional drawings (PDF/DWG formats)

Frequently Asked Questions

What terminal base compatibility should I verify before ordering?
The 1794-IA16 requires 16-point Flex I/O terminal bases: 1794-TB3 (screw-clamp), 1794-TB3G (grounded screw-clamp), or 1794-TB3S (spring-clamp). Terminal bases sold separately. Verify terminal style matches your wiring preference and vibration environment—spring-clamp bases resist loosening in high-vibration applications.

How does input filtering affect response time in high-speed applications?
Standard filtering provides 20ms ON delay for noise immunity in electrically noisy environments. Fast-response mode (configurable via software) reduces delay to 10ms but increases susceptibility to transient signals. Select filtering based on sensor switching frequency and ambient EMI levels—packaging lines typically use standard mode, while high-speed counting applications may require fast mode.

Can this module monitor both 110V and 120V sensors in the same installation?
Yes, the 74-132V input range accommodates mixed-voltage sensors without adjustment. However, all inputs sharing a common terminal must use the same voltage source. Group sensors by voltage level when planning terminal block wiring to avoid cross-voltage connections.

What power supply sizing is required for a full 8-module Flex I/O rack?
Each 1794-IA16 draws 150mA from the 5V backplane. An 8-module rack with all AC input modules requires 1.2A minimum (8 × 150mA), plus adapter overhead (typically 200-400mA). Specify a 1794-PS13 (2A) or 1794-PS3 (3A) power supply with 30-50% margin for future expansion and inrush current.

How do I troubleshoot intermittent input detection issues?
Check three common causes: (1) Verify input voltage remains above 74V AC under load using a true-RMS multimeter; (2) Inspect terminal screw torque (7-9 in-lbs recommended) to eliminate high-resistance connections; (3) Review controller diagnostic buffers for module fault codes. LED behavior provides immediate clues—flickering indicates marginal voltage, while no illumination suggests open wiring or de-energized sensor.

Is this module suitable for SIL-rated safety applications?
The standard 1794-IA16 is not safety-certified. For safety-critical applications requiring SIL 2/3 or Category 3/4 compliance, specify GuardLogix safety I/O modules (1791DS-IB16 or 5094-IB16) with appropriate safety controllers. Standard I/O modules may be used for non-safety monitoring in the same system.

Ready to Optimize Your I/O Architecture?

Contact our application engineers to discuss your specific sensor integration requirements, receive custom wiring diagrams, or request compatibility verification with your existing Flex I/O infrastructure. Volume pricing and technical training available for system integrators and OEM partners.
