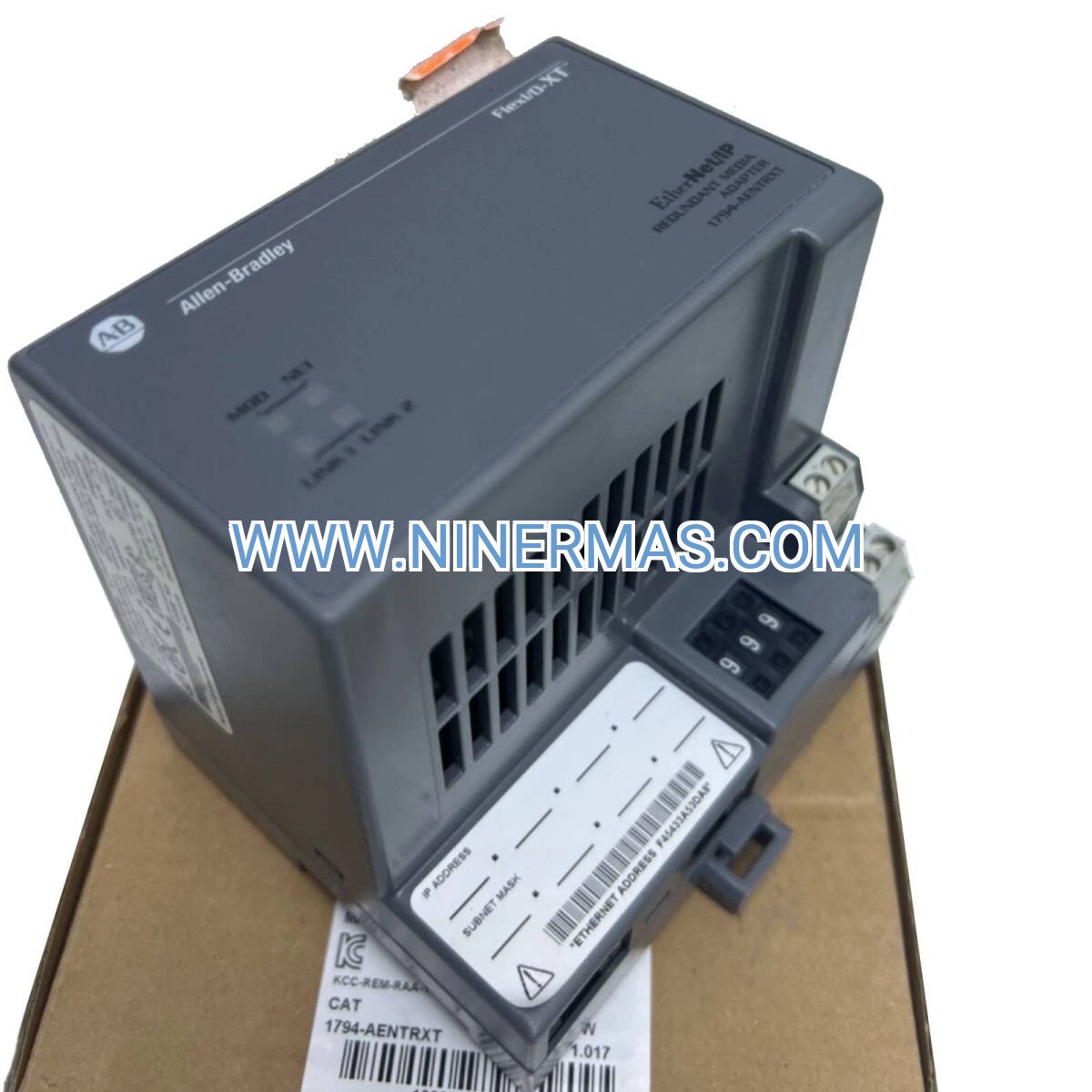

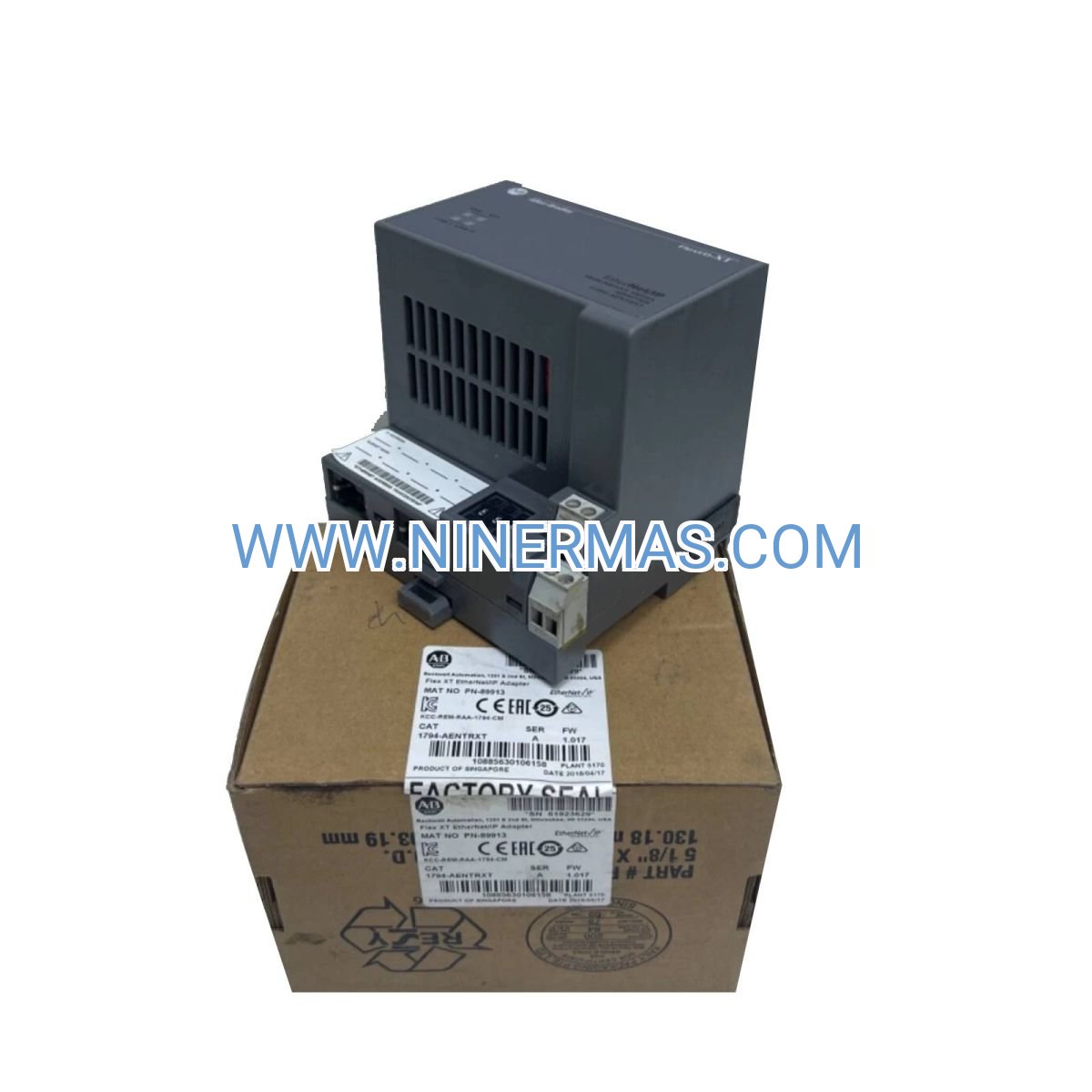

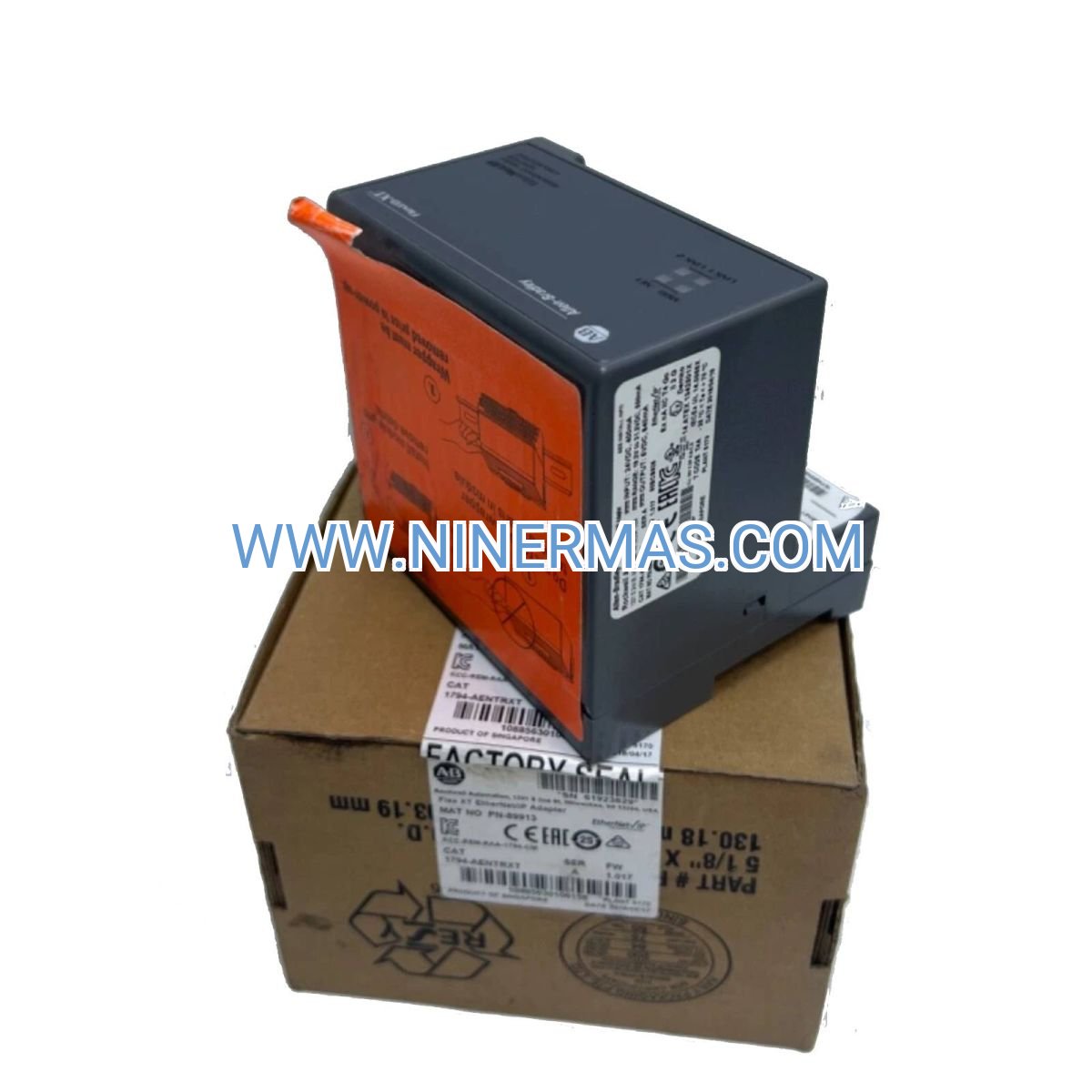

1794-AENTRXT Redundant EtherNet/IP Adapter for FLEX I/O Systems

The 1794-AENTRXT is an industrial-grade redundant EtherNet/IP adapter module designed for mission-critical FLEX I/O distributed control applications. Through dual-port Device Level Ring (DLR) topology and intelligent failover mechanisms, it ensures continuous network connectivity and real-time data integrity across your automation infrastructure.

Engineered for high-availability environments including power generation facilities, petrochemical plants, water treatment systems, and advanced manufacturing lines, this adapter addresses critical challenges such as network downtime, single-point failures, communication interruptions, and unplanned production losses.

With standardized configuration and flexible system scalability, the 1794-AENTRXT delivers seamless integration, fault-tolerant operation, simplified diagnostics, and proven compatibility with Rockwell Automation ecosystems—making it the preferred choice for system integrators, control engineers, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized network architecture and technical consultation.

Core Features & Technical Advantages

Redundant Network Architecture
Dual embedded Ethernet ports support Device Level Ring (DLR) protocol with sub-50ms automatic failover, eliminating single points of failure and maintaining uninterrupted I/O communication during cable breaks or switch failures.

High-Density I/O Expansion
Supports up to 63 FLEX I/O modules per adapter across 8 banks, enabling scalable distributed control for complex process and discrete applications while reducing cabinet footprint and wiring costs.

Deterministic Real-Time Performance
EtherNet/IP CIP Sync technology ensures precise time synchronization and deterministic data exchange with scan times as low as 2ms, critical for coordinated motion control and synchronized process operations.

Comprehensive Diagnostic Capabilities
Integrated module-level diagnostics with LED status indicators, embedded web server access, and RSLogix 5000 integration provide real-time health monitoring, fault localization, and predictive maintenance insights.

Industrial-Hardened Design
Conformal-coated circuitry, wide operating temperature range (-20°C to +70°C), and IP20-rated enclosure ensure reliable operation in harsh industrial environments with vibration, humidity, and electromagnetic interference.

Seamless System Integration
Native compatibility with ControlLogix, CompactLogix, and SoftLogix controllers via standard EDS files and Add-On Profiles, plus support for third-party EtherNet/IP devices through ODVA-certified interoperability.

Typical Application Scenarios

The 1794-AENTRXT adapter is specifically designed for distributed control systems requiring maximum uptime and network resilience, particularly in:

Power Generation & Distribution
Ensures continuous monitoring and control of turbine systems, generator protection relays, and substation automation equipment where network interruptions can trigger costly shutdowns or safety incidents.

Oil, Gas & Petrochemical Processing
Maintains real-time communication with remote wellhead controllers, pipeline monitoring stations, and refinery process units across geographically dispersed installations with extreme reliability requirements.

Water & Wastewater Treatment
Provides fault-tolerant connectivity for pump stations, filtration systems, and chemical dosing controls in municipal infrastructure where service continuity directly impacts public health and environmental compliance.

Automotive & Discrete Manufacturing
Supports high-speed production lines, robotic work cells, and material handling systems where millisecond-level response times and zero unplanned downtime are essential for meeting production targets.

Food & Beverage Processing
Delivers hygienic-compliant control solutions for packaging lines, batch processing, and CIP systems with full traceability and validation documentation required by FDA and FSMA regulations.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide comprehensive technical parameters for the 1794-AENTRXT adapter:

Network Specifications

• Protocol: EtherNet/IP (IEEE 802.3, CIP)
• Network Topology: Device Level Ring (DLR), Star, Linear
• Data Rate: 10/100 Mbps auto-negotiation
• Connections: Dual RJ45 ports with integrated switch
• Failover Time: < 50ms (DLR ring recovery)
• Maximum Ring Nodes: 50 devices

I/O System Capacity

• Maximum Modules: 63 FLEX I/O modules
• Bank Configuration: 8 banks (configurable)
• I/O Update Rate: 2ms to 750ms (configurable)
• Data Capacity: 512 bytes input / 512 bytes output
• Module Types: Digital, Analog, Specialty (all 1794 series)

Electrical & Environmental

• Power Supply: 24V DC (19.2V to 31.2V range)
• Power Consumption: 800mA @ 24V DC (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5g operational (IEC 60068-2-6)
• Shock: 30g operational (IEC 60068-2-27)

Physical & Mounting

• Enclosure Rating: IP20 / NEMA Type 1
• Mounting: DIN rail (35mm) or panel mount
• Dimensions: 118mm H × 35mm W × 87mm D
• Weight: Approximately 0.2 kg
• Conformal Coating: Yes (standard)

Certifications & Compliance

• UL Listed (Class I, Division 2 hazardous locations)
• CE marked (EMC, Low Voltage Directives)
• ODVA EtherNet/IP conformance tested
• RoHS compliant
• ATEX / IECEx available (consult factory)

Selection Recommendations
When specifying the 1794-AENTRXT, consider: total I/O point count, required network redundancy level, controller platform compatibility, environmental conditions, and future expansion needs. For applications requiring hazardous location approvals or extended temperature ranges, consult our engineering team with your specific site parameters for customized recommendations and compliance documentation.

Advanced Configuration Options

Network Redundancy Modes
Configure as DLR ring supervisor or ring node, with optional linear topology for non-redundant applications. Supports Media Redundancy Protocol (MRP) for integration with third-party industrial Ethernet infrastructure.

Quality of Service (QoS) Prioritization
Implement DSCP-based traffic prioritization to ensure critical control data takes precedence over diagnostic and configuration traffic during network congestion scenarios.

Security Features
Enable CIP Security extensions for authenticated connections, encrypted data transmission, and role-based access control when integrated with FactoryTalk Security or third-party RADIUS servers.

Remote Monitoring Integration
Embedded web server provides browser-based diagnostics; SNMP MIB support enables integration with enterprise network management systems (NMS) for centralized monitoring and alerting.

Firmware Management
Field-upgradable firmware via ControlFLASH utility or RSLinx Classic, with backward compatibility maintained across major revision levels to protect existing application investments.

Delivery, Support & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured systems or large-volume orders require 2-4 weeks. Expedited shipping available for critical project timelines.

Warranty & Service Coverage
All 1794-AENTRXT modules include a comprehensive 2-year manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services available through authorized distributors.

Technical Support Services
Access to Rockwell Automation TechConnect support portal, including 24/7 phone assistance, remote diagnostic tools, firmware updates, and application engineering consultation. On-site commissioning and training services available regionally.

Documentation Package
Each module ships with complete technical documentation including: installation quick-start guide, user manual (publication 1794-UM002), wiring diagrams, EDS/AOP files, sample RSLogix 5000 code, and compliance certificates. Full documentation library accessible via Rockwell Automation Literature Library.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with full traceability. Each unit undergoes automated functional testing, burn-in validation, and final inspection before shipment. Certificate of Conformance (CoC) available upon request.

Frequently Asked Questions (FAQ)

Q: How does the 1794-AENTRXT redundant adapter integrate with existing non-redundant FLEX I/O systems?
A: The adapter is backward-compatible with all 1794 series I/O modules and can replace standard 1794-AENT adapters without hardware modifications. Simply update your controller program to recognize the new adapter's IP address and configure DLR parameters if implementing ring topology. Existing I/O module configurations remain unchanged.

Q: What is the maximum number of adapters supported in a single DLR ring network?
A: A single DLR ring can support up to 50 network devices total, including 1794-AENTRXT adapters, managed switches, and other EtherNet/IP devices. For larger systems, implement multiple rings connected via higher-level switches with ring coupling functionality.

Q: What energy savings can be achieved compared to traditional hardwired I/O systems?
A: While the adapter itself doesn't directly reduce energy consumption, distributed FLEX I/O architecture eliminates long cable runs (reducing voltage drop losses by 15-25%), enables zone-based power management, and facilitates energy monitoring at the I/O level—collectively reducing installation costs by 30-40% and enabling data-driven energy optimization strategies.

Q: What are the environmental requirements for installation, and what is the IP rating?
A: The module is rated IP20 for indoor industrial environments. It requires installation in a ventilated enclosure with ambient temperature maintained between -20°C and +70°C. For outdoor or washdown applications, install in a NEMA 4X/IP65 rated panel with appropriate climate control. Conformal coating provides additional protection against humidity and contaminants.

Q: Does the adapter support remote monitoring and SCADA integration via standard protocols?
A: Yes. The 1794-AENTRXT supports multiple integration methods: native EtherNet/IP for Rockwell controllers, embedded web server for browser-based diagnostics, SNMP v1/v2c for NMS integration, and Modbus TCP via gateway devices. OPC UA connectivity available through FactoryTalk Linx Gateway for enterprise-level data exchange.

Q: Can I mix different I/O module types and vendors on the same FLEX I/O bank?
A: Yes, you can mix any combination of 1794 series digital, analog, specialty, and safety I/O modules on the same adapter. However, all modules must be Allen-Bradley 1794 series—third-party I/O modules are not compatible with the FLEX I/O backplane architecture. For multi-vendor integration, use separate EtherNet/IP adapters for each vendor's I/O system.

Request Technical Consultation & Quotation

To receive a detailed system design proposal, competitive pricing, or application-specific technical support, please provide our engineering team with the following project information:

• Project Overview: Application type, industry sector, and criticality level
• I/O Requirements: Total point count (digital/analog), signal types, and module preferences
• Network Architecture: Redundancy requirements, controller platform, existing infrastructure
• Environmental Conditions: Temperature range, enclosure type, hazardous area classification
• Timeline & Quantity: Project schedule, initial order volume, and future expansion plans

Our certified application engineers will respond within 24 hours with customized recommendations, compliance documentation, and budget pricing.
