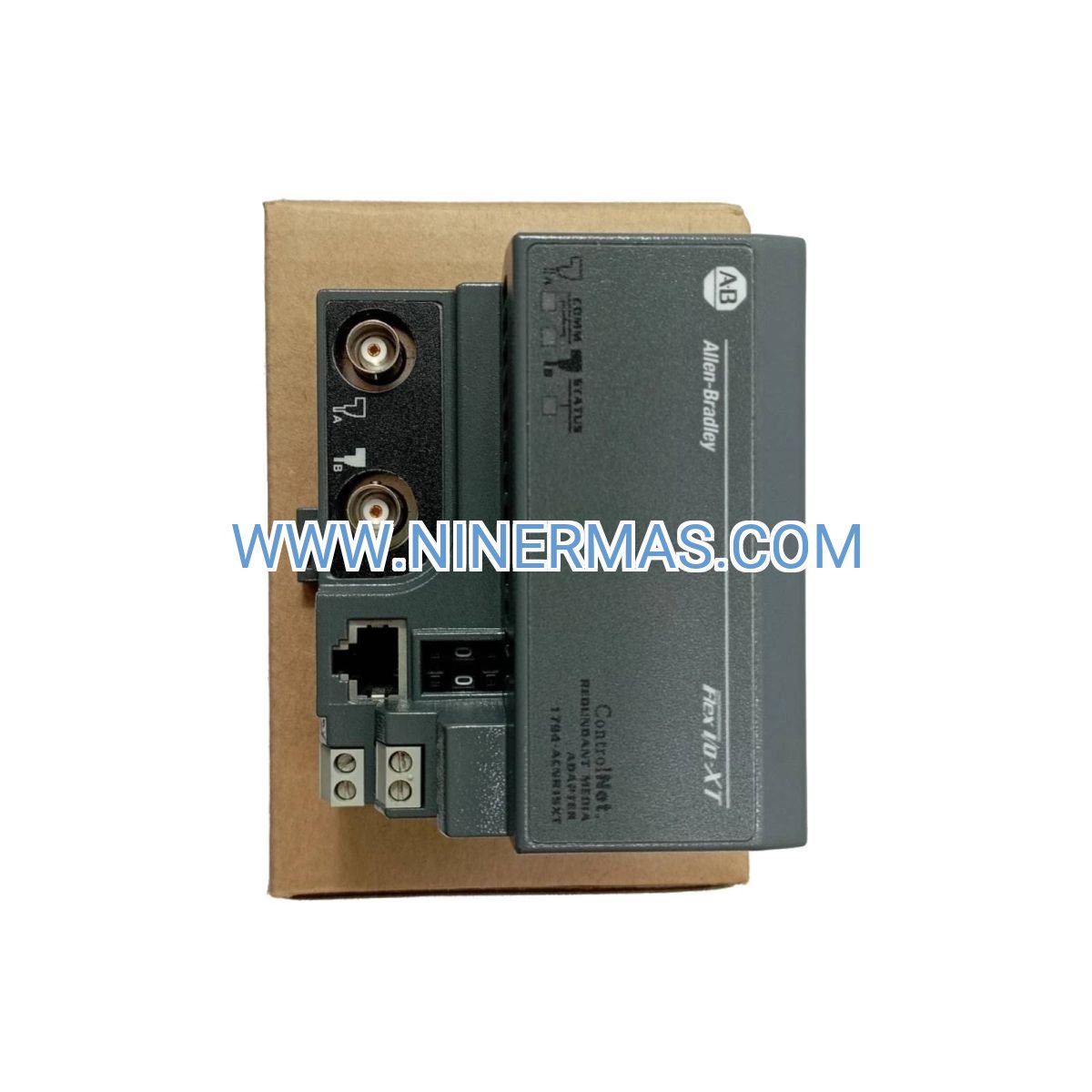

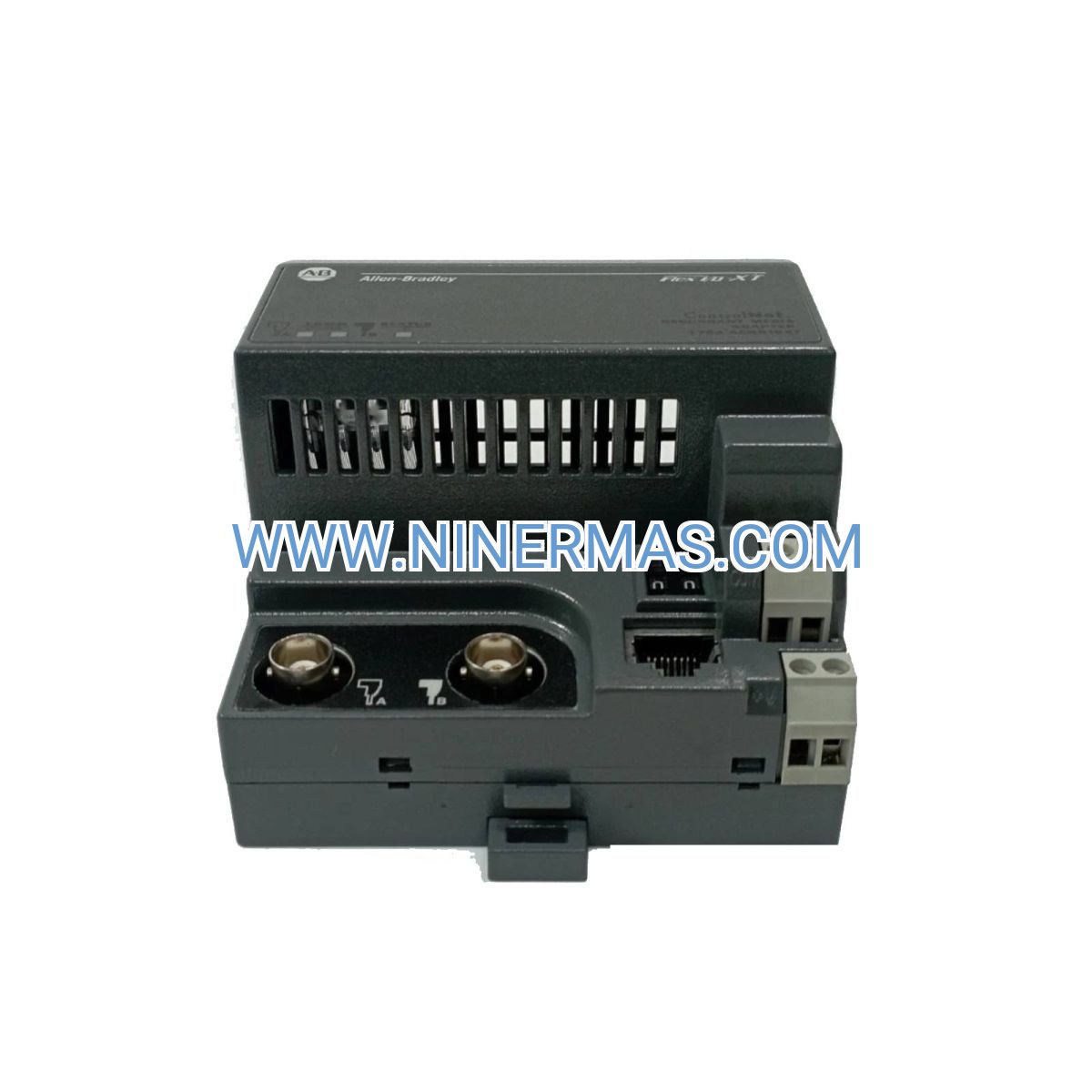

1794-ACNR15XT ControlNet Redundant Media Adapter (Industrial Fault-Tolerant Communication Module)

The 1794-ACNR15XT ControlNet Redundant Media Adapter is an industrial-grade communication interface designed for mission-critical automation systems. Through dual-channel redundant architecture and seamless failover technology, it ensures uninterrupted ControlNet network connectivity for FLEX I/O distributed control systems.

Ideal for applications requiring high availability and zero-downtime operation—including process control, manufacturing automation, and critical infrastructure—this adapter addresses challenges such as single-point network failures, communication interruptions, and system vulnerability during maintenance or cable faults.

With standardized FLEX I/O mounting and field-proven reliability, the 1794-ACNR15XT is trusted by system integrators, control engineers, OEMs, and plant maintenance teams worldwide. Contact our application engineers for redundancy configuration guidance, network topology design, and competitive quotations.

Core Features & Advantages

Redundant ControlNet Communication
Dual independent ControlNet channels with automatic failover ensure continuous network operation even during cable damage, connector failure, or scheduled maintenance—eliminating single points of failure.

Seamless FLEX I/O Integration
Hot-swappable design compatible with 1794 FLEX I/O chassis and modules; supports mixed I/O configurations including digital, analog, specialty, and safety modules for flexible system expansion.

Enhanced Environmental Protection
Conformal coating protects circuitry against moisture, dust, chemical vapors, and temperature extremes—extending service life in harsh industrial environments such as petrochemical plants, wastewater facilities, and outdoor installations.

Deterministic Real-Time Performance
ControlNet protocol delivers predictable, repeatable scan times with microsecond-level synchronization—critical for motion control, coordinated drives, and time-sensitive process loops.

Comprehensive Diagnostic Capabilities
Front-panel LED indicators and embedded diagnostics provide real-time status of both network channels, module health, and communication errors—simplifying troubleshooting and reducing mean time to repair (MTTR).

Proven Rockwell Automation Ecosystem
Fully compatible with RSLogix, Studio 5000, FactoryTalk, and RSNetWorx for ControlNet—leveraging industry-standard programming tools and reducing engineering learning curves.

Typical Application Scenarios

This module is engineered for environments where communication reliability directly impacts production uptime, safety, and operational continuity:

Process Industries & Continuous Manufacturing
Ensures uninterrupted control in chemical reactors, distillation columns, and blending systems where communication loss could trigger emergency shutdowns or product quality deviations.

Automotive & Discrete Assembly Lines
Maintains synchronization across robotic welding cells, conveyor systems, and vision inspection stations—preventing costly line stoppages and rework due to network interruptions.

Water/Wastewater Treatment Facilities
Provides fault-tolerant SCADA communication for pump stations, aeration basins, and chemical dosing systems operating in corrosive, high-humidity environments.

Oil & Gas Upstream/Midstream Operations
Supports remote wellhead control, pipeline monitoring, and compressor station automation where redundant communication is mandated by safety regulations and operational standards.

Power Generation & Utilities
Enables reliable distributed control for turbine sequencing, boiler management, and substation automation—meeting stringent availability requirements for critical infrastructure.

Technical Specifications & Selection Guide

To facilitate system design and module selection, key specifications are provided below. Custom configurations available for project-specific requirements.

Network Interface: Dual ControlNet coaxial ports (redundant channels)
Communication Speed: 5 Mbps (ControlNet standard)
I/O Bus: FLEX I/O backplane (hot-swappable)
Power Supply: 24V DC nominal (19.2–31.2V DC operating range), supplied via FLEX I/O backplane
Current Draw: Typically 150 mA @ 24V DC (consult datasheet for exact values)
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Humidity: 5% to 95% non-condensing
Conformal Coating: Yes (enhanced environmental protection)
Mounting: DIN rail via FLEX I/O chassis
Dimensions: Standard FLEX I/O module width (35 mm / 1.38 in)
Certifications: UL, cUL, CE, ATEX/IECEx (consult certification documents for specific approvals)

Selection Considerations:
When specifying this module, evaluate: required network redundancy level, total I/O point count, environmental conditions (temperature/humidity/vibration), existing ControlLogix/CompactLogix architecture, and integration with FactoryTalk View or third-party SCADA systems. Our engineering team can assist with network loading calculations, cable topology design, and redundancy failover testing.

Extended Capabilities

Modular System Scalability
Combine with 1794 digital input/output, analog I/O, thermocouple, RTD, and specialty modules to build distributed control nodes from 2 to 64+ I/O points per chassis.

Redundant Controller Support
Pairs with ControlLogix redundant processor systems (1756-L7x series) for fully redundant controller + network + I/O architectures meeting SIL 2/3 and high-availability standards.

Remote I/O & Device-Level Ring Topologies
Supports linear, star, and redundant ring ControlNet topologies—enabling flexible cabinet layouts and minimizing single-cable vulnerabilities.

Integration with EtherNet/IP & DeviceNet
Coexists with multi-protocol Rockwell Automation networks via ControlLogix communication bridges—allowing phased migration and hybrid network strategies.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured assemblies 10–15 business days depending on specifications.
Warranty: 12-month manufacturer warranty covering defects in materials and workmanship.
Technical Support: Pre-sales application engineering, post-sales commissioning assistance, remote diagnostics, and on-site service available (region-dependent).
Documentation Package: Includes installation instructions, wiring diagrams, ControlNet configuration files, and RSNetWorx setup guides—ensuring rapid deployment and maintenance readiness.

Frequently Asked Questions (FAQ)

Q: How does the 1794-ACNR15XT redundant adapter integrate with existing ControlNet networks?
A: The module connects via dual coaxial ControlNet ports (Channel A and Channel B). Configure both channels in RSNetWorx for ControlNet with identical node addresses; the adapter automatically switches to the backup channel upon primary channel failure. Ensure proper termination resistors and cable impedance (75Ω RG-6 coaxial) for reliable operation.

Q: What is the maximum number of I/O modules supported per FLEX I/O chassis with this adapter?
A: A single 1794-ACNR15XT can support up to 8 I/O modules in a standard FLEX I/O chassis (1794-IE series). For larger systems, use multiple adapters or transition to ControlLogix local I/O for higher density.

Q: What energy savings or efficiency gains can be expected with redundant communication?
A: While the adapter itself does not directly reduce energy consumption, preventing unplanned downtime avoids costly production losses, emergency restarts, and material waste—often yielding ROI within 6–12 months in high-value manufacturing environments.

Q: What are the environmental and installation requirements for this module?
A: Rated for 0–60°C ambient temperature, 5–95% RH non-condensing, and conformal coated for enhanced protection. Install in NEMA-rated enclosures (Type 12 or IP54 minimum) when exposed to dust, moisture, or corrosive atmospheres. Avoid direct sunlight and ensure adequate ventilation.

Q: Does the adapter support remote monitoring and data acquisition via OPC or Ethernet/IP?
A: The 1794-ACNR15XT communicates exclusively via ControlNet. For Ethernet/IP or OPC connectivity, pair with a ControlLogix processor (e.g., 1756-L73) equipped with Ethernet/IP communication modules, or use a ControlNet-to-Ethernet/IP gateway (e.g., 1756-CNB/E series).

Q: Can this module be used in safety-rated (SIL/PLd) applications?
A: The 1794-ACNR15XT is a standard communication adapter and not safety-rated. For safety I/O, integrate with GuardLogix controllers and 1791DS or 5069-IB8S safety modules, using the adapter for non-safety distributed I/O only.

Request a Custom Solution

To receive a tailored configuration, technical datasheet, or project quotation, please provide the following details: project name, application type (process/discrete/hybrid), required I/O count and types, ControlNet network size, environmental conditions, power supply specifications, and delivery timeline. Our application engineers will respond within 24 hours with a comprehensive selection guide and pricing.
