Allen-Bradley 1794-ACNR ControlNet Redundant Adapter | FLEX I/O Network Module for High-Availability Systems

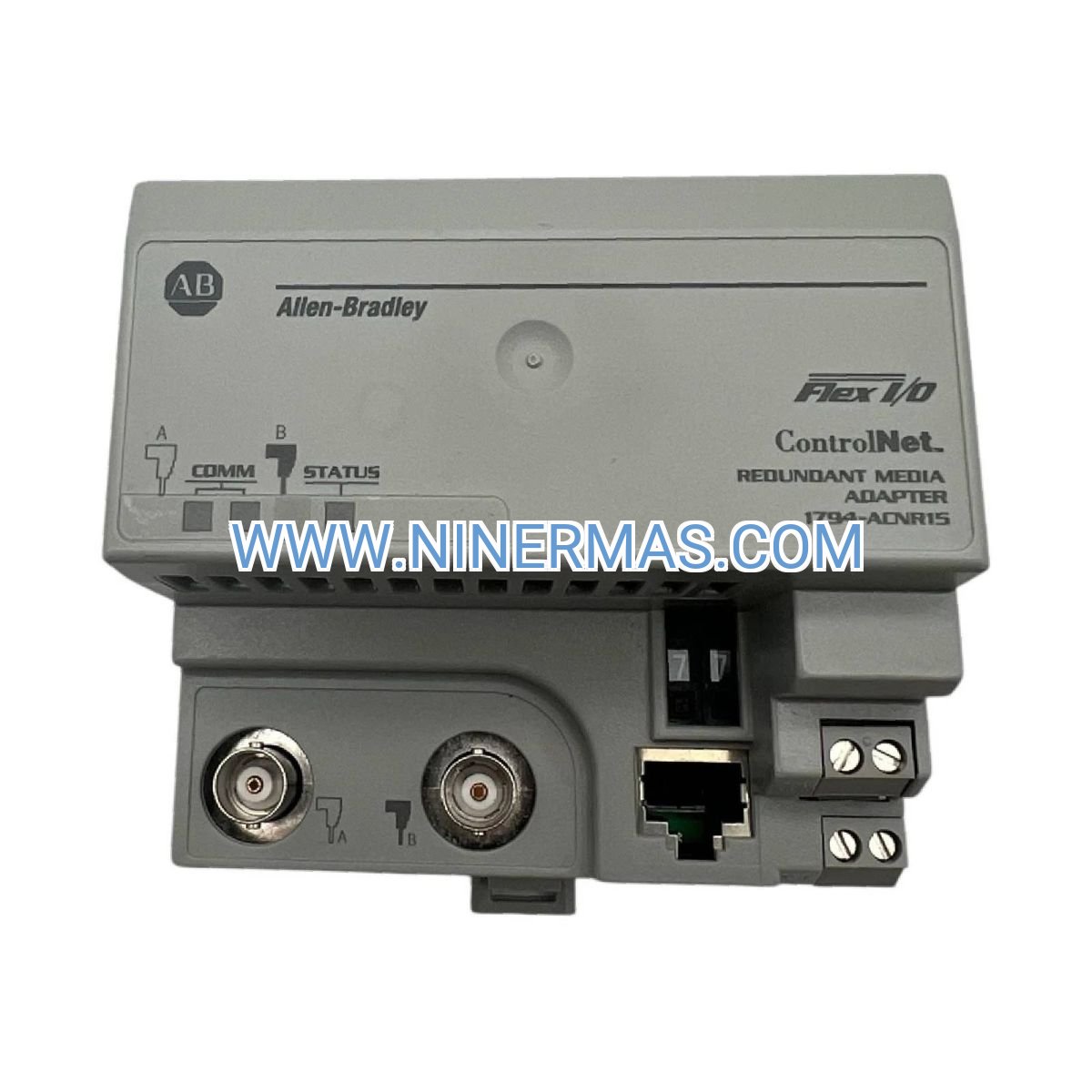

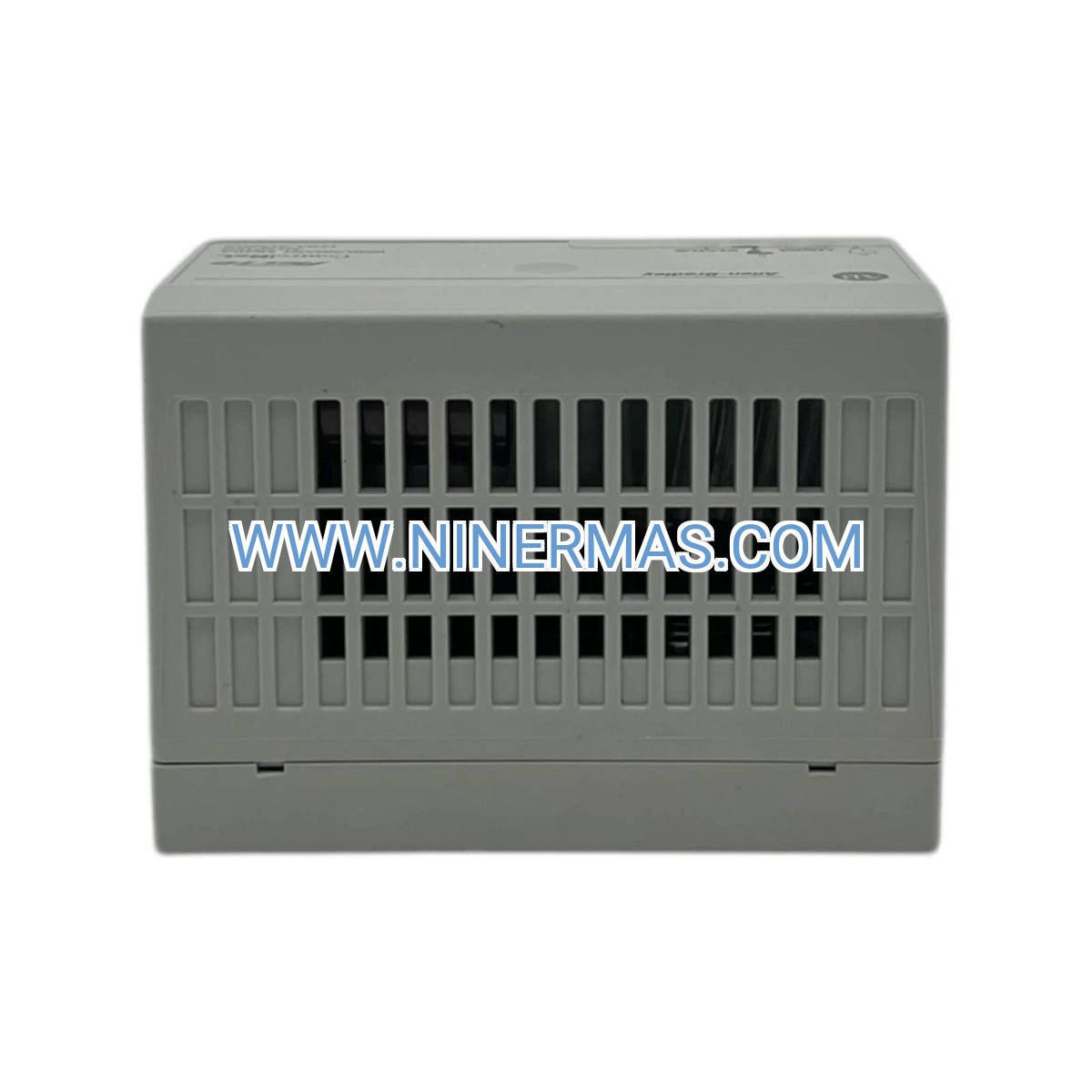

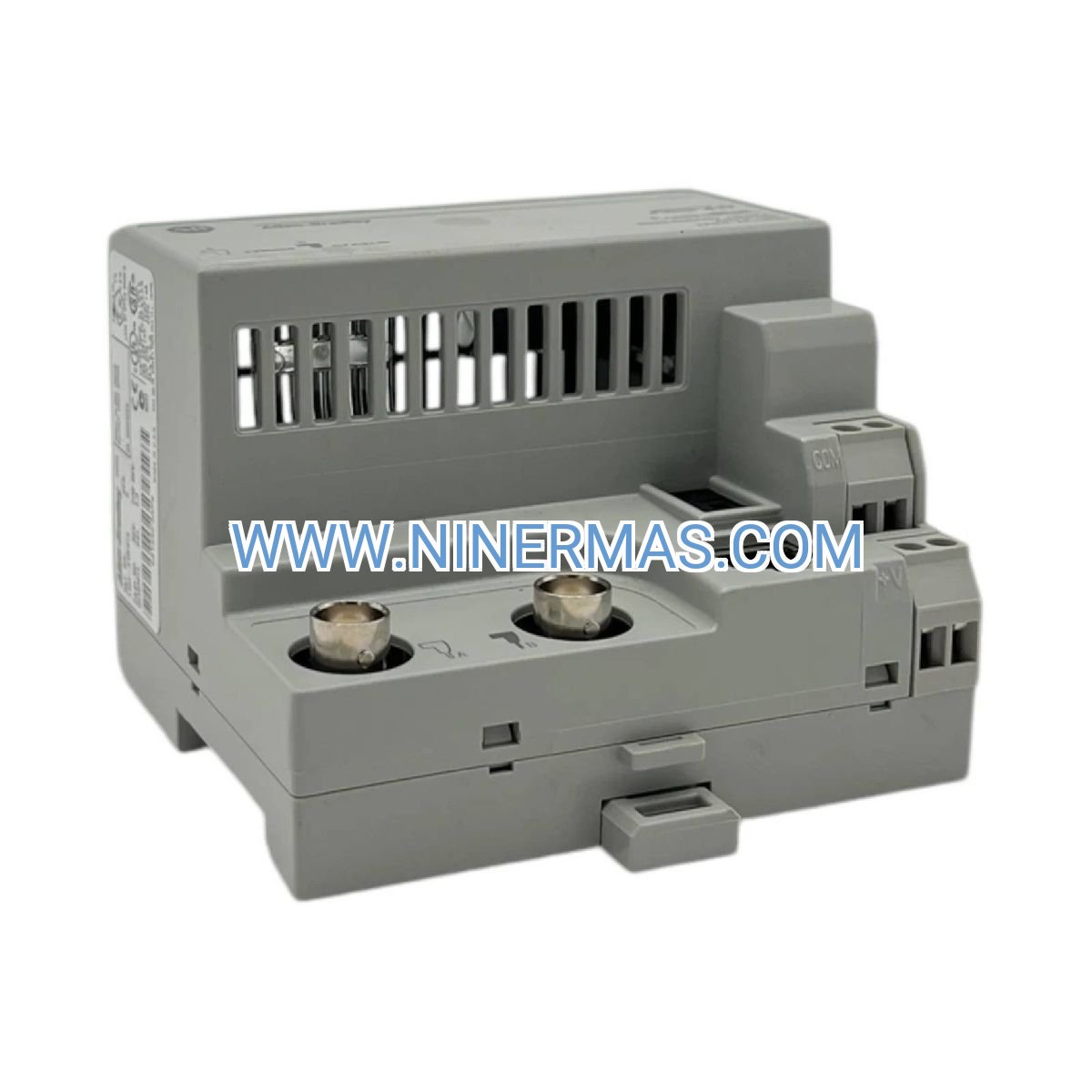

Allen-Bradley 1794-ACNR ControlNet Redundant Media Adapter (Industrial-Grade Network Communication Module)

The Allen-Bradley 1794-ACNR is a ControlNet redundant media adapter designed for mission-critical industrial automation systems. By integrating dual-path network communication and automatic failover technology, it ensures continuous data exchange between FLEX I/O modules and ControlNet networks, delivering uninterrupted operation even during network path failures or maintenance events.

Ideal for high-availability applications in manufacturing, process control, and infrastructure systems, this module addresses challenges such as network downtime, single-point failures, and costly production interruptions. It serves design engineers, system integrators, OEMs, and plant maintenance teams who demand reliable, deterministic communication in harsh industrial environments.

With standardized configuration and field-proven compatibility, the 1794-ACNR offers seamless integration, hot-swappable convenience, and robust fault tolerance—making it the preferred choice for critical control architectures. Contact our engineering team for application-specific selection guidance and technical support.

Core Features & Advantages

Redundant Network Architecture
Dual ControlNet media paths provide automatic failover capability, ensuring network continuity during cable faults, switch failures, or scheduled maintenance without disrupting I/O communication.

Deterministic Real-Time Performance
Supports 5 Mbps ControlNet communication with predictable, repeatable scan times, critical for time-sensitive control loops, motion coordination, and synchronized multi-axis applications.

Hot-Swappable Design
Field-replaceable without powering down the FLEX I/O system, minimizing downtime and enabling proactive maintenance strategies in 24/7 production environments.

Comprehensive Diagnostic Capabilities
Built-in LED indicators and network diagnostics provide real-time visibility into module status, network health, and fault conditions, accelerating troubleshooting and reducing mean time to repair (MTTR).

Rugged Industrial Construction
Designed to withstand vibration, electrical noise, and temperature extremes typical of factory floors, ensuring long-term reliability in demanding industrial settings.

Seamless FLEX I/O Integration
Compatible with the full range of 1794 FLEX I/O modules, enabling flexible, scalable distributed control architectures with centralized programming and diagnostics via RSLogix/Studio 5000.

Typical Application Scenarios

The 1794-ACNR is engineered for environments where network reliability and uptime are non-negotiable:

Automotive & Discrete Manufacturing
Supports high-speed assembly lines, robotic cells, and material handling systems where network interruptions can halt production and cause significant financial losses.

Process Industries (Oil & Gas, Chemical, Water Treatment)
Ensures continuous monitoring and control of critical process variables—pressure, temperature, flow—where communication failures can lead to safety incidents or environmental hazards.

Power Generation & Utilities
Provides redundant communication for turbine control, substation automation, and SCADA systems, meeting stringent reliability and regulatory compliance requirements.

Food & Beverage, Pharmaceutical Manufacturing
Maintains uninterrupted control of batch processes, CIP systems, and packaging lines, supporting FDA/GMP compliance and minimizing product waste.

Infrastructure & Building Automation
Enables fault-tolerant control of HVAC, lighting, and energy management systems in mission-critical facilities such as data centers, hospitals, and airports.

Technical Specifications & Selection Guide

To facilitate design and procurement, key specifications are outlined below:

Network Protocol: ControlNet (CIP-based, deterministic)
Communication Speed: 5 Mbps
Redundancy Type: Dual media path with automatic failover
Compatibility: Allen-Bradley FLEX I/O 1794 series modules
Power Consumption: Supplied via FLEX I/O backplane (24V DC typical)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Humidity: 5% to 95% non-condensing
Enclosure Rating: Open-type module (install in rated enclosure per NEC/IEC standards)
Certifications: UL, cUL, CE, RCM (region-dependent)
Dimensions: Standard FLEX I/O module form factor
Weight: Approximately 1 kg

Selection Considerations:
When specifying the 1794-ACNR, evaluate the following project parameters: required I/O count and distribution, ControlNet network topology (linear, star, redundant ring), environmental conditions (temperature, vibration, EMI), enclosure type and IP rating, and integration with existing ControlLogix or CompactLogix controllers. For custom configurations or multi-drop network layouts, consult with our application engineers to optimize performance and cost.

Extended Capabilities

Integration with Rockwell Automation Ecosystem
Fully compatible with RSLogix 5000/Studio 5000 programming environments, FactoryTalk View HMI, and FactoryTalk AssetCentre for centralized asset management and predictive maintenance.

Support for Industry 4.0 & IIoT
Enables data collection and remote monitoring via ControlNet-to-Ethernet gateways, facilitating integration with MES, ERP, and cloud-based analytics platforms for enhanced operational intelligence.

Compliance & Safety
Meets international standards for industrial control equipment, including IEC 61131, NFPA 79, and machinery directives, ensuring safe deployment in regulated industries.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured systems may require 10–15 days depending on scope.
Warranty: Backed by a minimum 12-month manufacturer warranty covering defects in materials and workmanship.
Technical Support: Remote configuration assistance, on-site commissioning (region-dependent), and access to detailed documentation including wiring diagrams, user manuals, and EDS files.
Documentation Package: Each module ships with installation instructions, electrical schematics, ControlNet configuration guidelines, and compliance certificates to streamline installation and regulatory approval.

Frequently Asked Questions (FAQ)

Q: How does the 1794-ACNR ControlNet redundant adapter integrate with existing FLEX I/O systems?
A: The module mounts directly onto the FLEX I/O backplane and connects to dual ControlNet media (coax or fiber) via standard BNC or fiber-optic connectors. Configuration is performed through RSLogix/Studio 5000 using the module's EDS file, with automatic recognition of redundant paths.

Q: What is the maximum number of I/O modules supported per adapter?
A: A single 1794-ACNR can support up to 8 FLEX I/O modules per bank (left and right), with total I/O capacity determined by backplane power budget and ControlNet network bandwidth allocation.

Q: What level of energy savings or efficiency improvement can be expected?
A: While the adapter itself does not directly reduce energy consumption, its redundant architecture minimizes unplanned downtime—preventing costly production losses, scrap, and emergency repairs that often exceed 20–30% of operational costs in high-availability environments.

Q: What are the environmental and installation requirements?
A: The module requires installation in a NEMA-rated enclosure (Type 12 or IP54 minimum) to protect against dust and moisture. Ambient temperature should remain within 0–60°C, and adequate ventilation is recommended for densely populated I/O racks.

Q: Does the 1794-ACNR support remote monitoring and data acquisition?
A: Yes, when paired with ControlNet-to-Ethernet gateways or ControlLogix controllers with Ethernet/IP interfaces, the module enables remote diagnostics, alarm notification, and integration with SCADA, MES, and cloud-based IIoT platforms via standard protocols (Modbus TCP, OPC UA, MQTT).

Q: Can the module be replaced without shutting down the entire system?
A: Yes, the hot-swappable design allows field replacement during operation, provided proper ESD precautions are followed and the redundant network path remains active during the swap.

Request a Custom Solution

To receive a tailored selection proposal, pricing quotation, or technical consultation, please provide the following project details: application description, required I/O count and types, ControlNet network architecture (node count, cable length, redundancy requirements), environmental conditions, enclosure specifications, and integration with existing control systems. Our engineering team will deliver a comprehensive recommendation within 24–48 hours.
