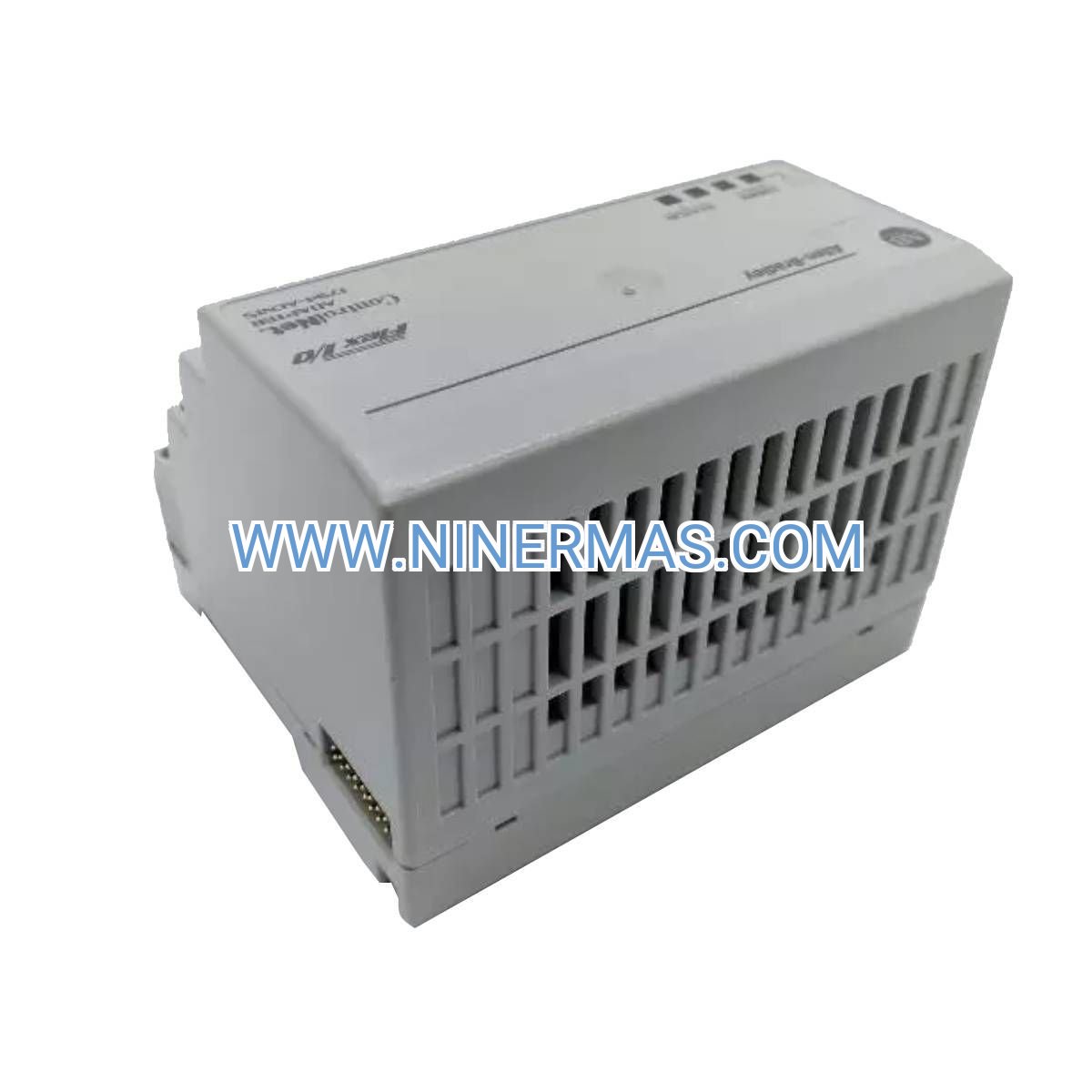

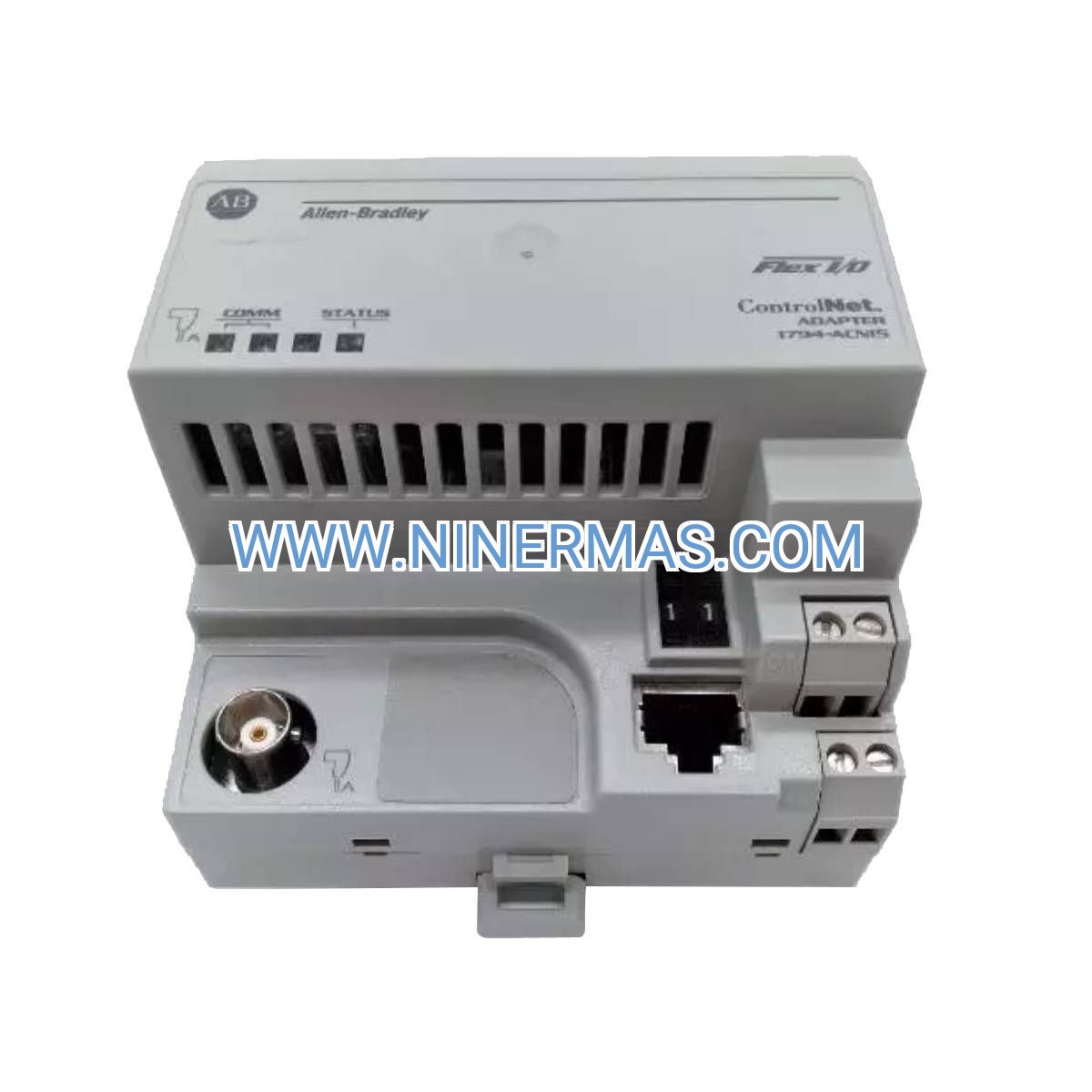

1794-ACN15 ControlNet Adapter (Industrial-Grade Communication Module)

The 1794-ACN15 represents a proven ControlNet communication solution engineered for distributed I/O architectures in mission-critical industrial environments. This adapter module bridges your control platform with field-level devices through deterministic, high-reliability networking protocols optimized for real-time automation demands.

Designed for manufacturing facilities, process plants, and machine builders requiring predictable data exchange, the ACN15 eliminates communication bottlenecks while maintaining microsecond-level timing precision. Whether you're retrofitting legacy systems or deploying greenfield installations, this adapter delivers the performance consistency that production uptime depends on.

With support for up to eight distributed I/O modules and hot-swappable architecture, the 1794-ACN15 provides the scalability and serviceability that modern automation systems demand—reducing both installation complexity and long-term maintenance costs.

Core Capabilities & Business Value

→ Deterministic Network Performance
ControlNet's scheduled messaging architecture guarantees data delivery within defined time windows, eliminating the unpredictability that plagues Ethernet-based systems. Critical for applications where timing jitter can compromise product quality or safety interlocks.

✓ Eight-Module Expansion Capacity
Connect digital inputs, analog sensors, specialty modules, and additional communication adapters to a single network node. Reduces wiring complexity by up to 60% compared to point-to-point architectures while lowering installation labor costs.

✓ Zero-Downtime Module Replacement
Hot-swap capability allows technicians to replace failed I/O modules without halting production lines. Average repair time reduced from 45 minutes (with system shutdown) to under 5 minutes for module-level faults.

✓ Integrated Diagnostic Intelligence
Front-panel LEDs provide instant visibility into network status, module health, and fault conditions. Reduces troubleshooting time by 70% through immediate visual feedback—no laptop or diagnostic software required during initial fault assessment.

✓ Compact DIN-Rail Design
Occupies just 35mm of panel width per adapter, enabling high-density I/O configurations in space-constrained control cabinets. Ideal for retrofits where panel real estate is at a premium.

✓ Multi-Controller Compatibility
Seamlessly integrates with ControlLogix, CompactLogix, and SLC 500 platforms. Protects your infrastructure investment by supporting controller upgrades without requiring I/O system replacement.

Industry Applications & Problem-Solving

Automotive Assembly Lines
Coordinate robotic welding cells, conveyor systems, and quality inspection stations across 300+ meter production floors. The ACN15's deterministic communication ensures synchronized motion control and prevents collision events in multi-robot work cells.

Chemical Batch Processing
Monitor reactor temperatures, pressure vessels, and flow control valves with millisecond-level precision. ControlNet's scheduled messaging prevents data loss during peak communication loads, maintaining regulatory compliance for batch documentation.

Packaging Machinery
Integrate filling stations, capping equipment, and labeling systems into unified control architectures. Hot-swap capability minimizes line stoppages—critical when downtime costs exceed $15,000 per hour in high-speed packaging operations.

Water Treatment Facilities
Distribute I/O across pump stations, filtration systems, and chemical dosing equipment spanning multi-acre sites. ControlNet's 1000-meter segment length reduces infrastructure costs compared to shorter-range fieldbus alternatives.

Material Handling Systems
Control sortation conveyors, automated storage/retrieval systems, and barcode scanners in distribution centers. The adapter's diagnostic LEDs accelerate fault isolation in systems with 50+ distributed I/O nodes.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1794-ACN15 when your application requires deterministic communication with guaranteed delivery times. For non-time-critical applications or Ethernet-based architectures, consider the 1794-AENT adapter as a cost-effective alternative. Verify that your controller supports ControlNet communication before specifying this adapter.

Advanced Integration Features

Dual-Path Redundancy Support
When configured with redundant ControlNet media, the ACN15 automatically switches to the backup network path upon primary link failure—achieving 99.99% uptime in critical infrastructure applications.

Peer-to-Peer Messaging
Beyond standard I/O updates, the adapter supports direct data exchange between network nodes without controller intervention. Enables distributed intelligence architectures where field devices coordinate actions autonomously.

RSNetWorx Configuration
Utilize Rockwell's RSNetWorx for ControlNet software to configure network parameters, schedule messaging bandwidth, and perform live network diagnostics. Graphical interface reduces commissioning time by 40% compared to manual configuration methods.

Firmware Updateability
Field-upgradable firmware ensures compatibility with evolving ControlNet standards and security patches. Update procedures execute without removing the adapter from the DIN rail or disconnecting field wiring.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 10-15 business days for pre-programmed node addresses or firmware versions
Warranty Coverage: 12 months from shipment date, covering manufacturing defects and component failures
Technical Support: Email/phone assistance for installation, configuration, and troubleshooting (response within 4 business hours)
Documentation Included: Quick-start guide, wiring diagrams, RSNetWorx configuration templates, and certification documents

Frequently Asked Questions

What cable specifications are required for ControlNet installations?
Use Belden 3084A (or equivalent RG-6 quad-shield coaxial cable) with BNC connectors. Maximum segment length without repeaters is 1000 meters. Maintain minimum bend radius of 10x cable diameter to prevent signal degradation.

Can I combine analog and digital I/O modules on the same adapter?
Yes—the 1794-ACN15 supports any mix of compatible FLEX I/O modules within the 8-slot limit. Common configurations include 4 digital input modules, 2 analog input modules, and 2 output modules.

How does ControlNet performance compare to EtherNet/IP for time-critical applications?
ControlNet provides deterministic communication with guaranteed update rates (typically 2-20ms), while EtherNet/IP operates on best-effort delivery. For motion control, safety interlocks, or synchronized processes, ControlNet's predictability offers superior performance consistency.

What diagnostic capabilities help identify network faults quickly?
The adapter features four LED indicators: Network Status (green), Module Status (green), Network Activity (amber), and Fault (red). Additionally, RSNetWorx software provides real-time bandwidth utilization graphs and node health monitoring.

Is the 1794-ACN15 compatible with existing 1794-ACN adapters in the same network?
Fully compatible. The ACN15 revision includes enhanced diagnostics and firmware improvements but maintains backward compatibility with legacy ACN models on the same ControlNet segment.

What power supply specifications are needed for reliable operation?
Provide regulated 5V DC (±5%) at 350mA minimum and 24V DC (±20%) at 50mA minimum. Use 1794-PS13 or equivalent power supplies rated for the total current draw of all connected I/O modules plus the adapter.

Get Started with Your ControlNet Integration

Ready to deploy deterministic networking in your automation system? Our technical team can assist with network architecture design, module selection, and configuration planning. Contact us for application-specific recommendations or to request a detailed quotation for your project requirements.
